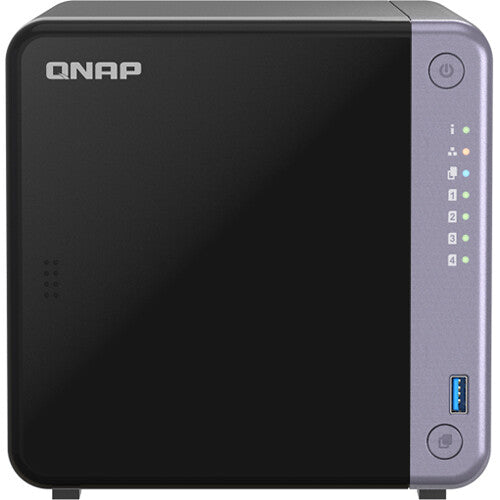

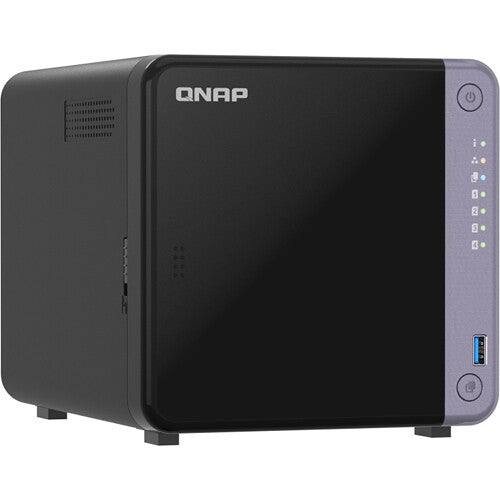

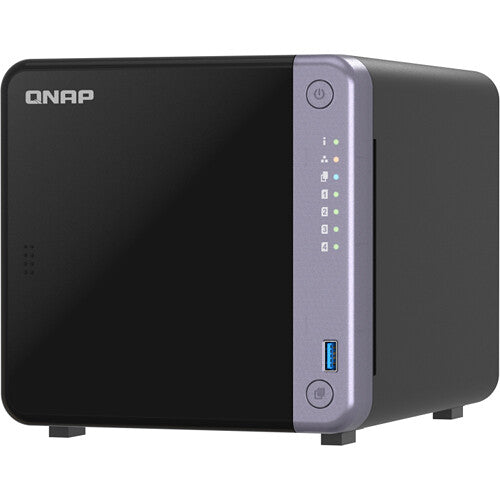

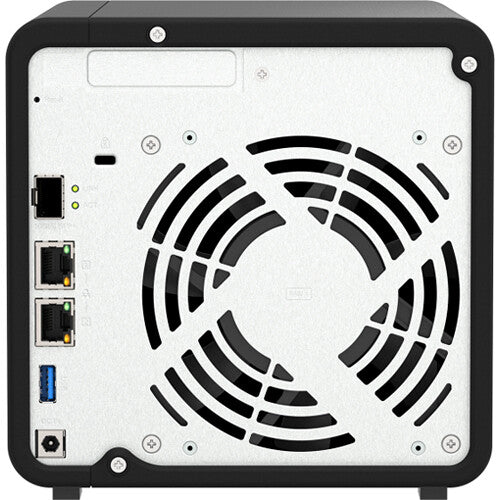

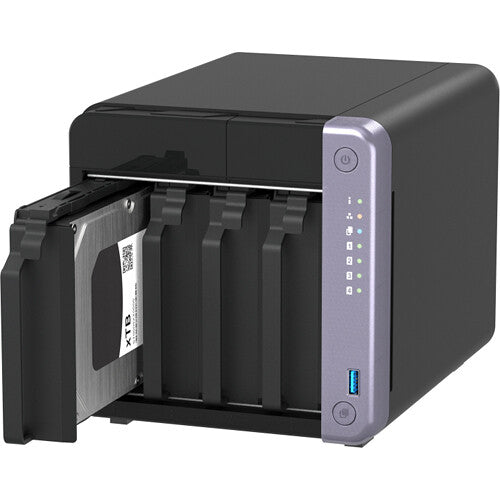

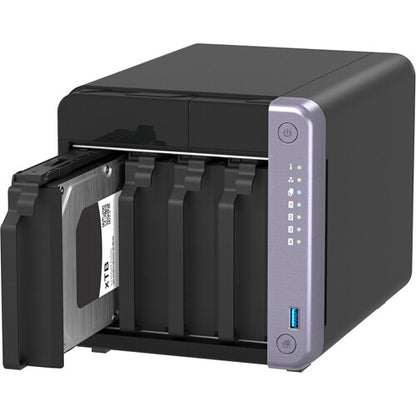

QNAP TS-432X-4G Quad Core 4 Bay 10GbE Desktop NAS with ARM Alpine AL524 - Black
QNAP TS-432X-4G Quad Core 4 Bay 10GbE Desktop NAS with ARM Alpine AL524 - Black
Couldn't load pickup availability
Couldn't load pickup availability
- Free Standard Shipping
- TPS Returns Policy
- Original Brand Warranty
Product Description:
High-Performance Quad-Core Processor: The QNAP TS-432X-4G is equipped with an ARM Alpine AL524 quad-core 2.0GHz processor. This powerful processor ensures robust performance, enabling smooth multitasking and efficient handling of intensive applications, making it ideal for both personal and professional use.
10GbE High-Speed Connectivity: This NAS features a single-port 10GbE SFP+ interface, providing significantly faster data transfer speeds compared to traditional Ethernet connections. This high-speed connectivity is perfect for intensive data transmission tasks, reducing backup times and enhancing overall network performance.
Expandable Storage and Performance: The TS-432X-4G supports two M.2 PCIe slots, allowing for the installation of NVMe SSDs to boost performance through SSD caching. Additionally, it includes a PCIe slot for further expansion, such as adding additional network cards or storage options, giving you the flexibility to upgrade and enhance your NAS as needed.
Comprehensive Data Protection: This NAS offers advanced data protection features, including snapshot protection to safeguard against accidental deletions and ransomware attacks. Regular snapshots ensure that your data remains secure and recoverable, providing peace of mind for your critical data.
Versatile Connectivity Options: In addition to the 10GbE port, the TS-432X-4G includes dual 2.5GbE ports, allowing for increased bandwidth and access speed through SMB Multichannel or Port Trunking. It also features two USB 3.2 Gen 1 ports with One-Touch Copy support, enabling faster backup to and from USB devices, enhancing your data management capabilities.
Model | TS-432X-4G |
CPU | |
CPU Model | Alpine AL524 |
CPU Architecture | 64-bit ARM |
CPU Core | 4 |
CPU Frequency | 2.0 GHz |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory Capacity | 16 GB (1 x 16 GB) |
Memory Slot | 1 x SODIMM DDR4 Support ECC memory |
Flash Memory | 512 MB (Dual boot OS protection) |
Storage | |
Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Compatible Drive Type |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot Swappable Drive | Yes |
External Ports | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
PCIe Slot | Slot 1: PCIe Gen 3 x4 |
USB 3.2 Gen 1 port | 2 |
File System | |
Supported Client OS |
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
|
Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
LUN feature | LUN Mapping LUN Masking WWPN Aliases Import/Export Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |
System Fan | 1 x 120mm, 12VDC |
Power Supply Unit / Adapter | 90W adapter (12VDC), 100-240VAC |
System Warning | Buzzer |
Buttons | Power Reset USB Auto Copy |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
LED Indicators | System Status LAN USB HDD1~2 |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 165 × 170 × 226.5 mm |
Net Weight | 1.99 kg |
Warranty | 2 Year Standard Warranty |
Package Contents |
TS-216G
Ethernet cable x 1
Power cord x 1
AC Adapter
Flat head screw (for 3.5" HDD) x 8
Flat head screw (for 2.5" HDD)
Quick installation guide (QIG)
Drive tray keys x 2
|
