Product Description:
High-Speed Connectivity: The QNAP TS-632X-4G is designed with dual 10GbE SFP+ ports, which significantly boost data transfer speeds. This feature is particularly beneficial for businesses and users who need to handle large volumes of data quickly, such as during backups or when accessing large files.
Robust Processing Power: At the heart of this NAS is the ARM Alpine AL524 quad-core 2.0 GHz processor. This powerful CPU ensures smooth and efficient performance, allowing the NAS to handle multiple tasks simultaneously without slowing down, making it suitable for demanding applications and multitasking.
Expandable Memory: The device comes with 4 GB of DDR4 RAM, which is already quite capable. However, for users with more intensive needs, the memory can be expanded up to 16 GB. This flexibility ensures that the NAS can grow with your needs, providing more power as your data requirements increase.

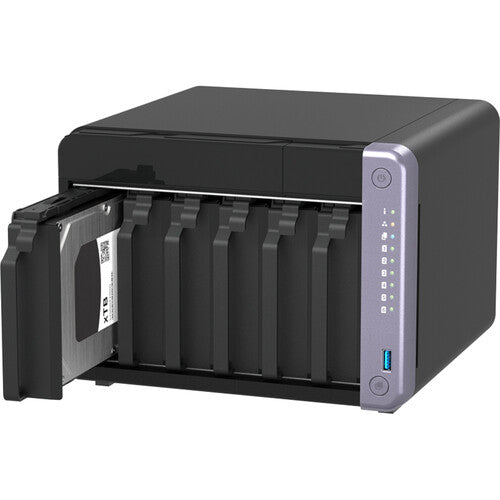

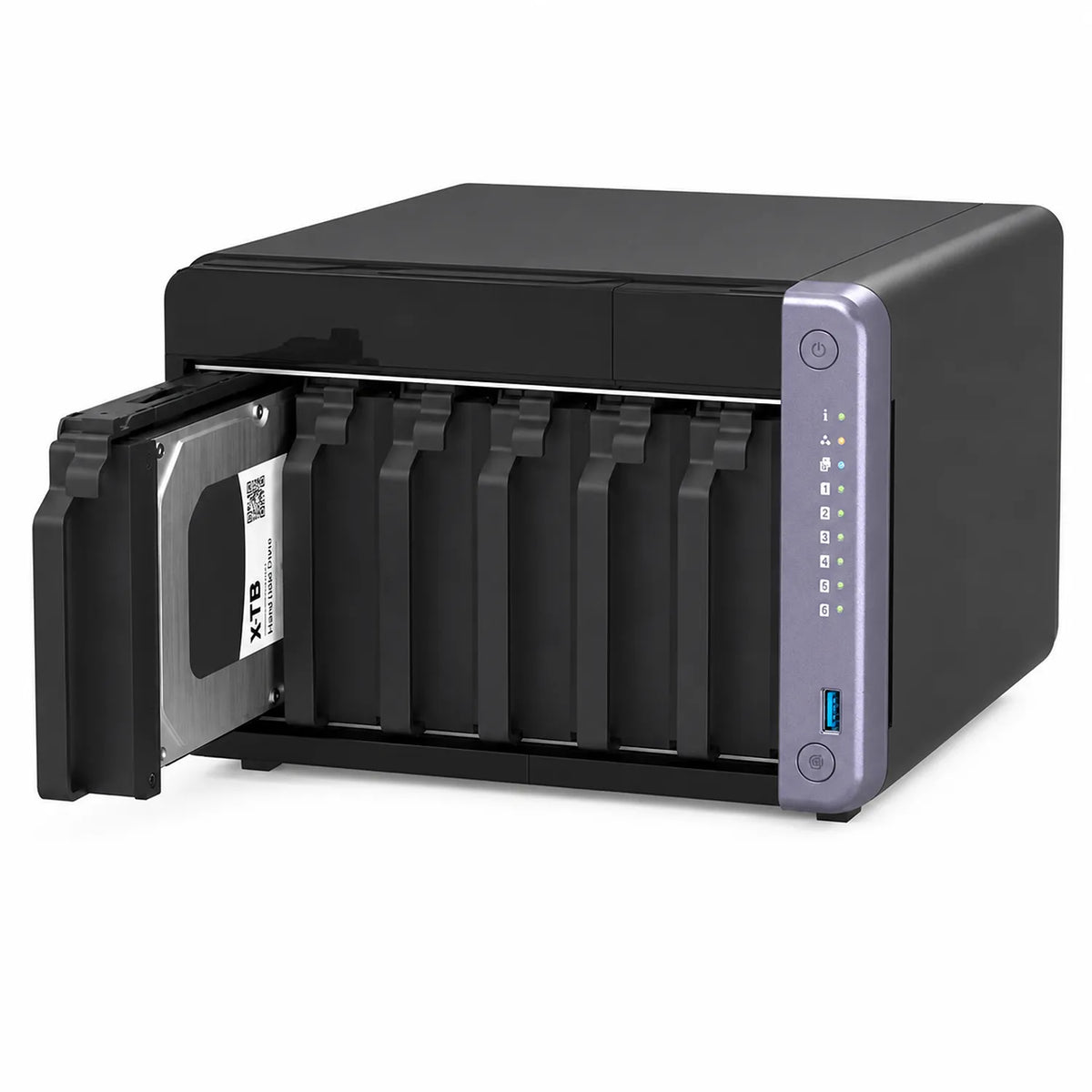

Ample Storage Capacity: With six drive bays, the TS-632X-4G offers extensive storage options. It supports various RAID configurations, including RAID 0, 1, 5, 6, 10, and JBOD, allowing users to balance between performance, capacity, and data protection according to their specific needs.
Advanced Security and Backup Features: Security is a top priority with the TS-632X-4G. It supports AES 256-bit encryption, ensuring that your data is protected from unauthorized access. Additionally, it offers comprehensive backup solutions, including snapshot protection, which helps safeguard your data against ransomware attacks and accidental deletions.
Model | TS-632X-4G |
CPU | |
CPU Model | Alpine AL524 |
CPU Architecture | 64-bit ARM |
CPU Core | 4 |
CPU Frequency | 2.0 GHz |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory Capacity | 16 GB (1 x 16 GB) |
Memory Slot | 1 x SODIMM DDR4 Support ECC memory |
Flash Memory | 512 MB (Dual boot OS protection) |
Storage | |
Drive Bays | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Compatible Drive Type |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot Swappable Drive | Yes |

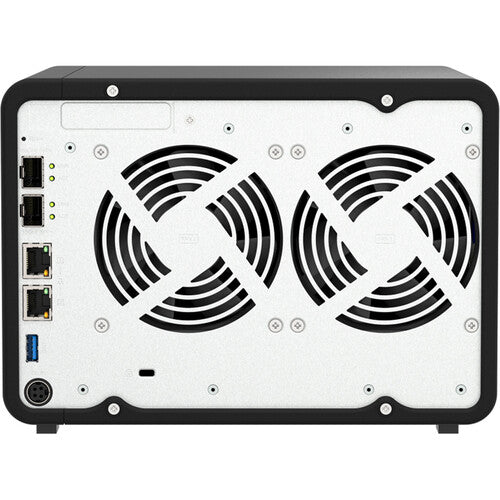

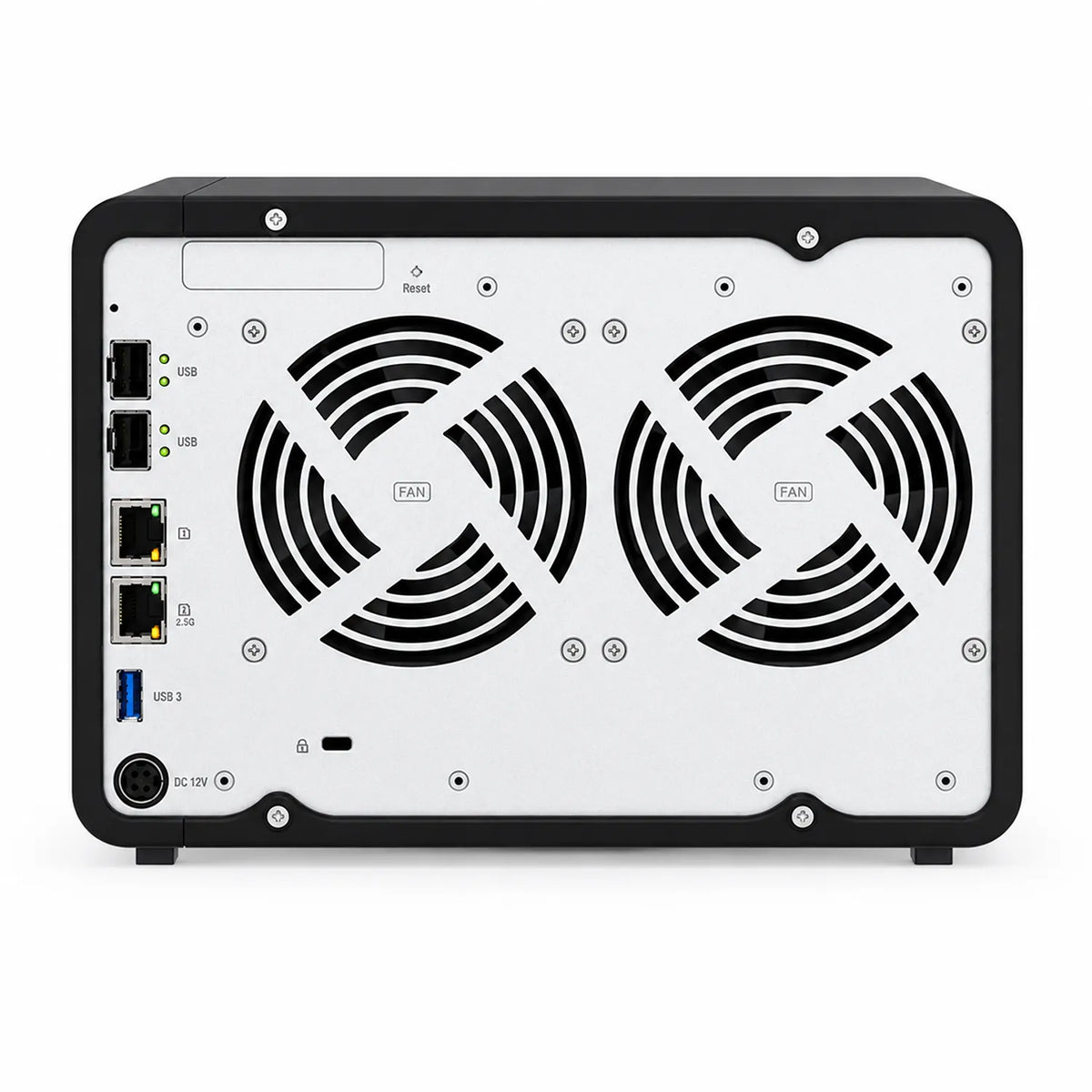

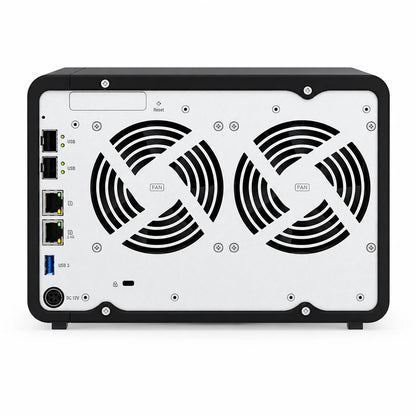

External Ports | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
PCIe Slot | Slot 1: PCIe Gen 3 x4 |
USB 3.2 Gen 1 port | 2 |
File System | |
Supported Client OS |
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
|
Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
LUN feature | LUN Mapping LUN Masking WWPN Aliases Import/Export Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |
System Fan | 2 x 90mm, 12VDC |
Power Supply Unit / Adapter | 120W adapter (12VDC), 100-240VAC |
System Warning | Buzzer |
Buttons | Power Reset USB Auto Copy |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |

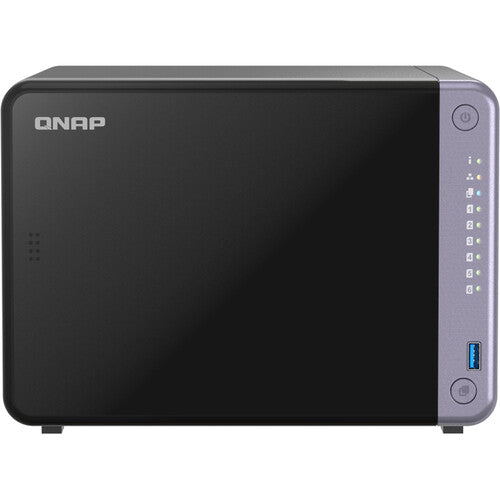

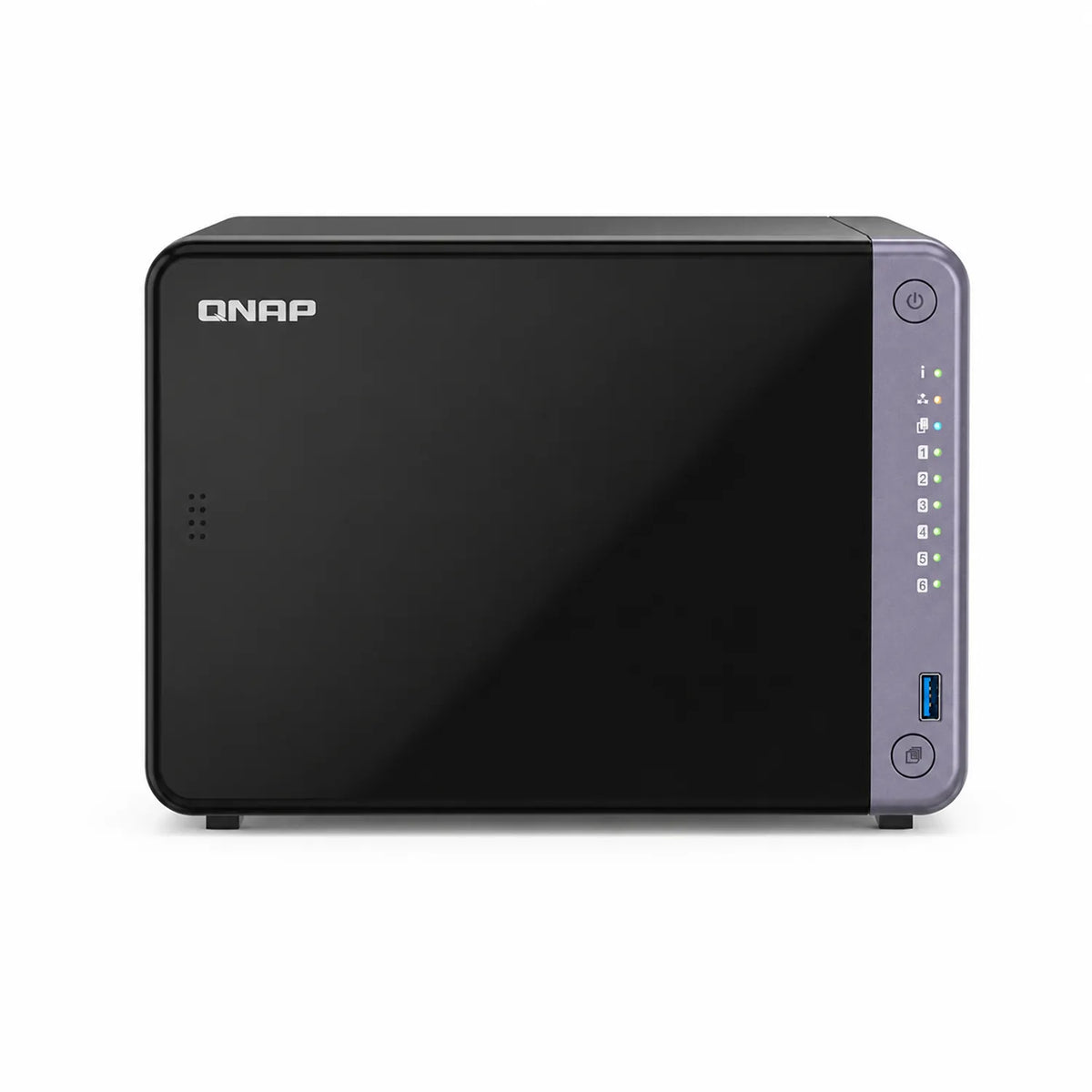

LED Indicators | System Status LAN USB HDD1~6 |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 165 × 170 × 226.5 mm |
Net Weight | 2.5 kg |
Warranty | 2 Year Standard Warranty |
Package Contents |
TS-632X Ethernet Cable x 1 AC Adapter x 1 Power Cord x 1 Flat head screw x 32 (for 3.5" HDD) Flat head screw x 24 (for 2.5" HDD) Quick Installation Guide (QIG) |
