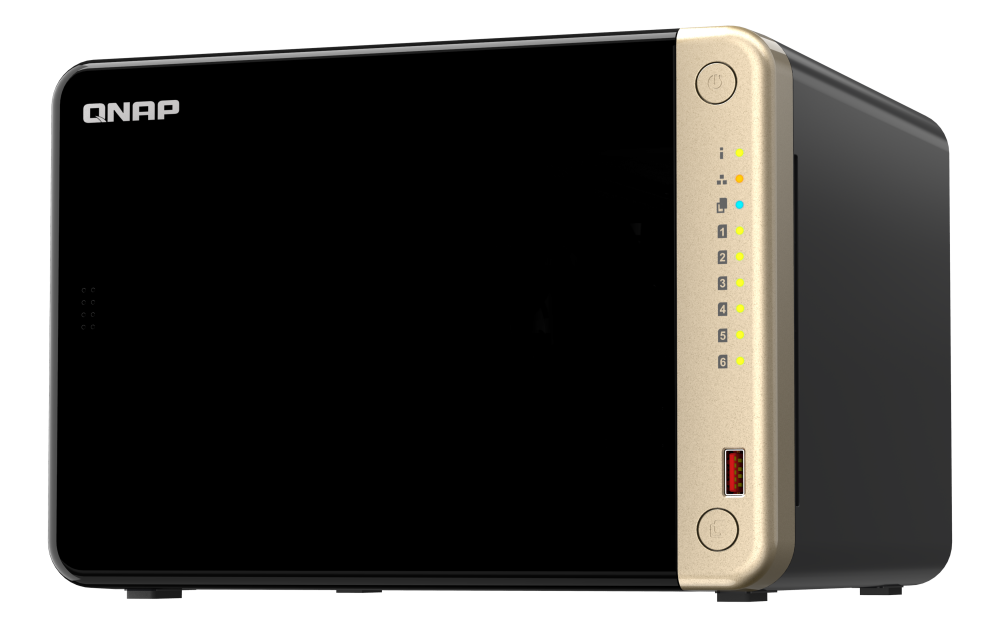

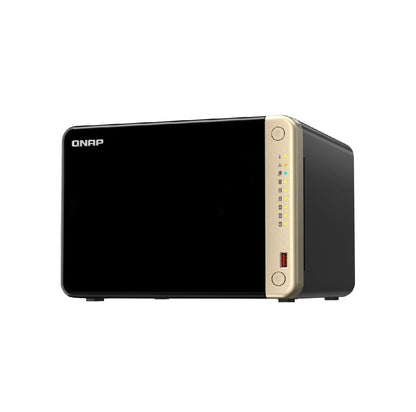

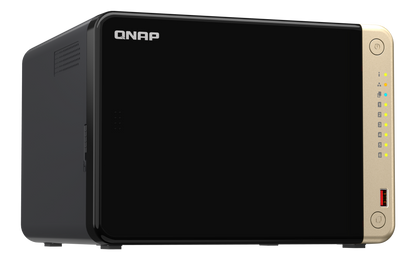

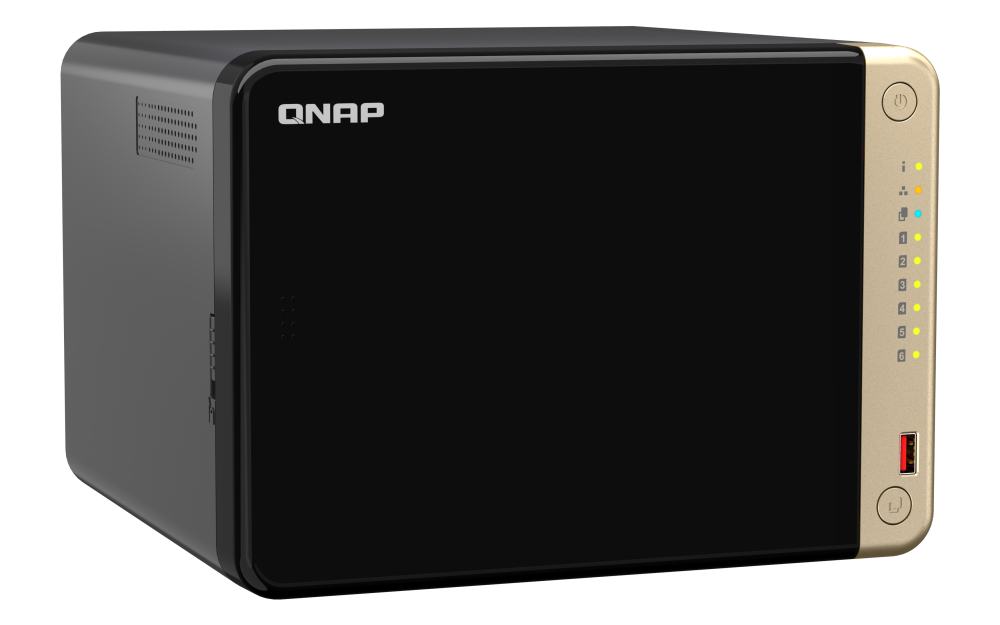

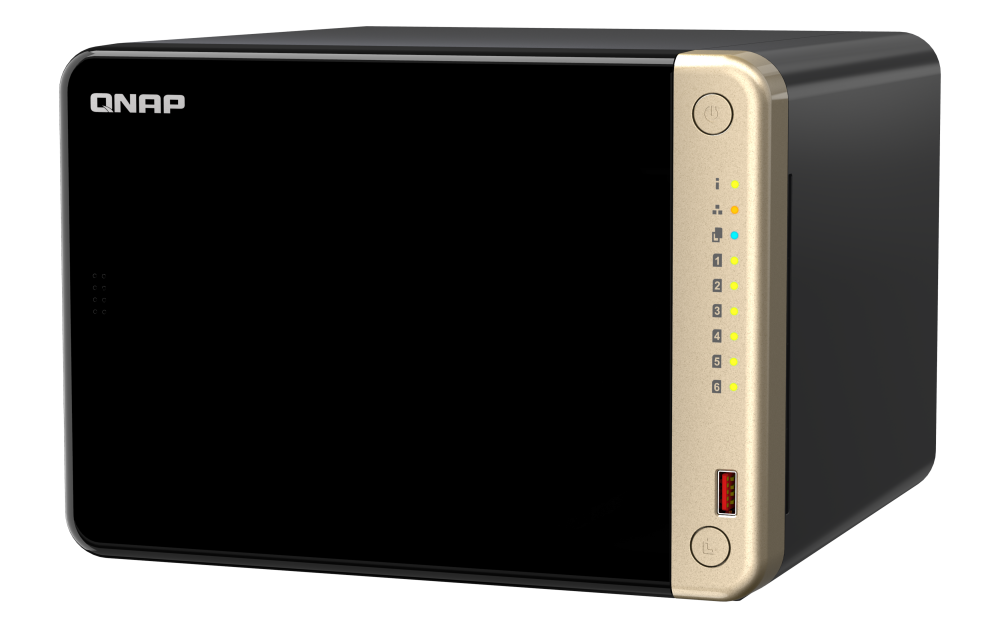

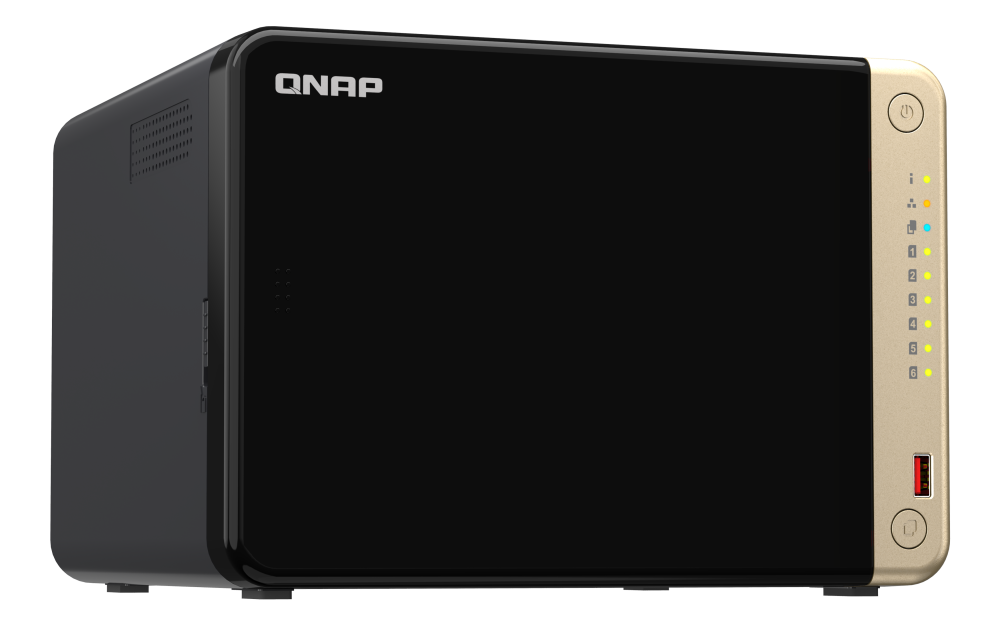

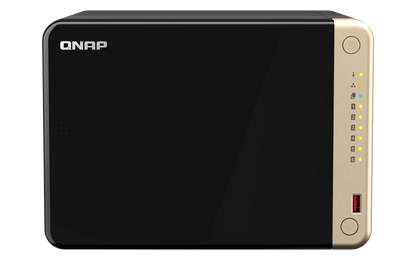

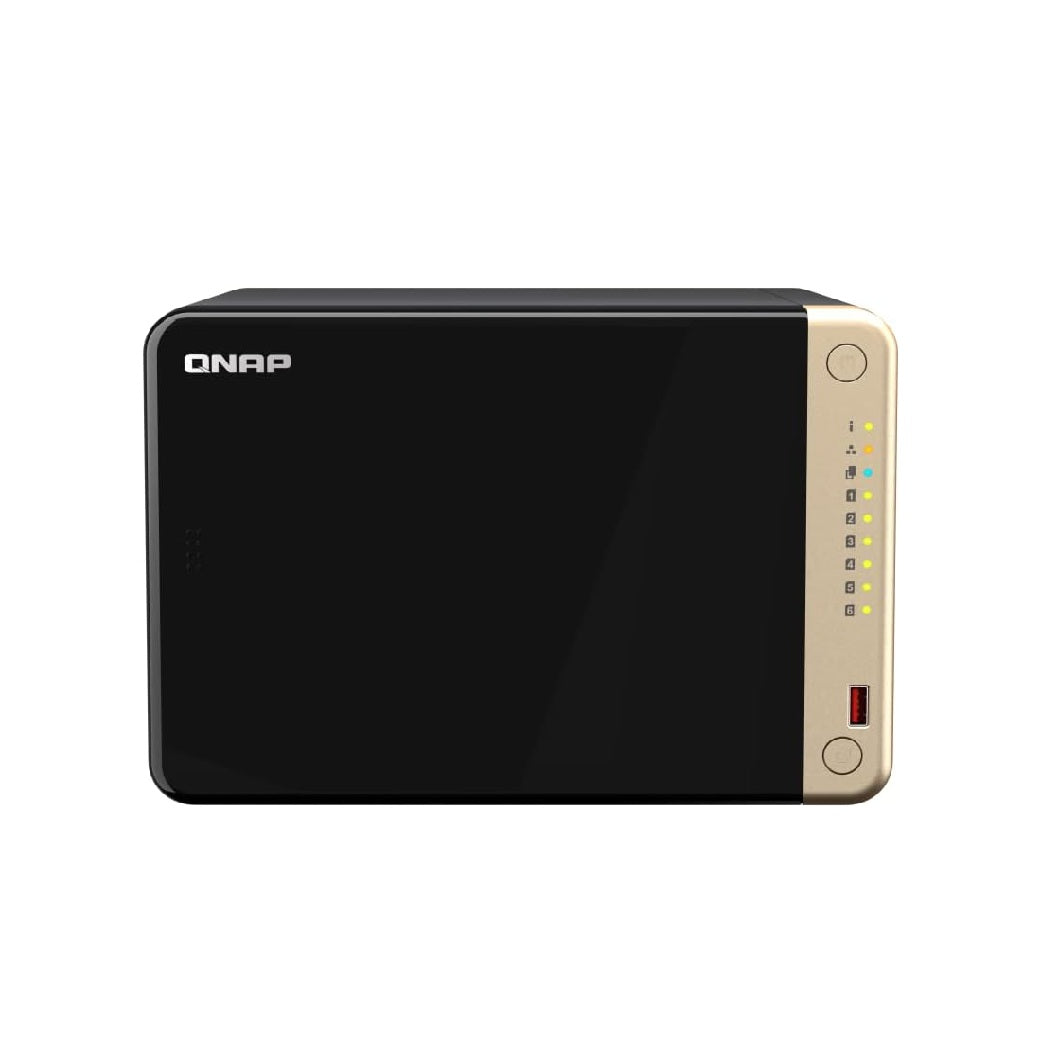

QNAP TS-664-8G Quad Core 6 Bay Desktop Network Attached Storage Enclosure - Black
QNAP TS-664-8G Quad Core 6 Bay Desktop Network Attached Storage Enclosure - Black
Couldn't load pickup availability
Couldn't load pickup availability
- Free Standard Shipping
- TPS Returns Policy
- Original Brand Warranty
Product Description:
Powerful Processing: The QNAP TS-664-8G is equipped with an Intel® Celeron® N5095 quad-core processor, capable of reaching burst speeds up to 2.9 GHz. This ensures smooth and efficient performance for multitasking, file management, and media streaming.
Extensive Storage Capacity: With six bays supporting up to 24 TB hard drives each, the TS-664-8G can handle a total of 120 TB of storage. Additionally, it features dual M.2 PCIe Gen3x2 NVMe SSD slots, allowing for cache acceleration or SSD storage pools to boost performance.
High-Speed Connectivity: The device includes dual 2.5GbE ports, providing fast data transfer speeds up to 589 MB/s. This makes it ideal for quick file sharing and large data transfers, ensuring efficient collaboration and backup processes.
Enhanced Media Capabilities: The integrated Intel® UHD Graphics GPU enhances video processing, enabling smooth video conversion and streaming. This feature is particularly beneficial for media professionals and enthusiasts who require high-quality video playback and editing.
Future-Proof and Expandable: The TS-664-8G offers flexibility with a PCIe slot that can be upgraded with a dual-port 10GbE network card, significantly increasing transfer speeds. It also includes multiple USB 3.2 Gen 2 ports for faster backups and compatibility with the latest USB devices and expansion enclosures.
Model | QNAP TS-664-8G |
CPU | |
CPU Model | Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x 86 |
CPU Core | 4 |
CPU Frequency | 2.9 GHz |
Graphic Processors | Intel UHD Graphics |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory Capacity | 16 GB (2 x 8GB) |
Memory Slot | 2 x SODIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Storage | |

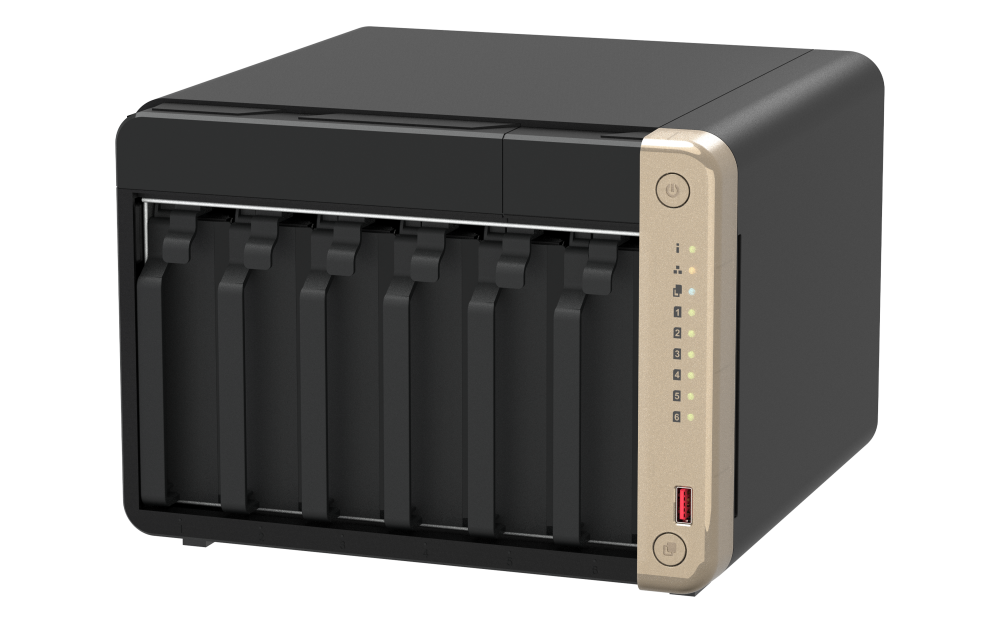

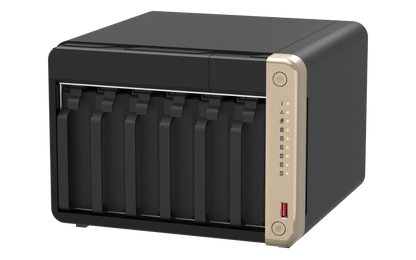

Drive Bays | 6 x 3.5-inch SATA 6Gb/s |
Compatible Drive Type |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |

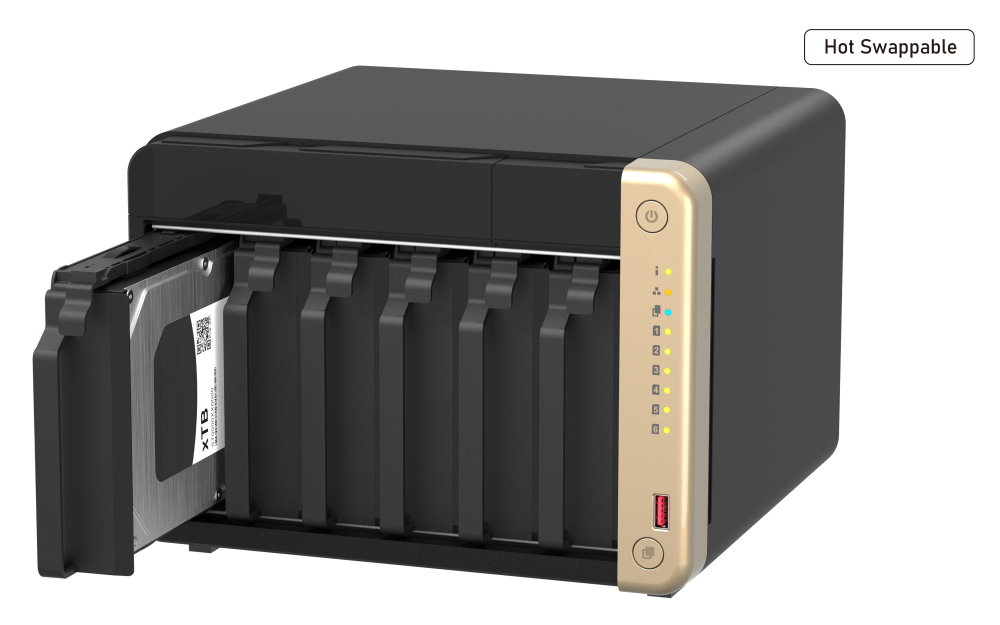

Hot Swappable Drive | Yes |

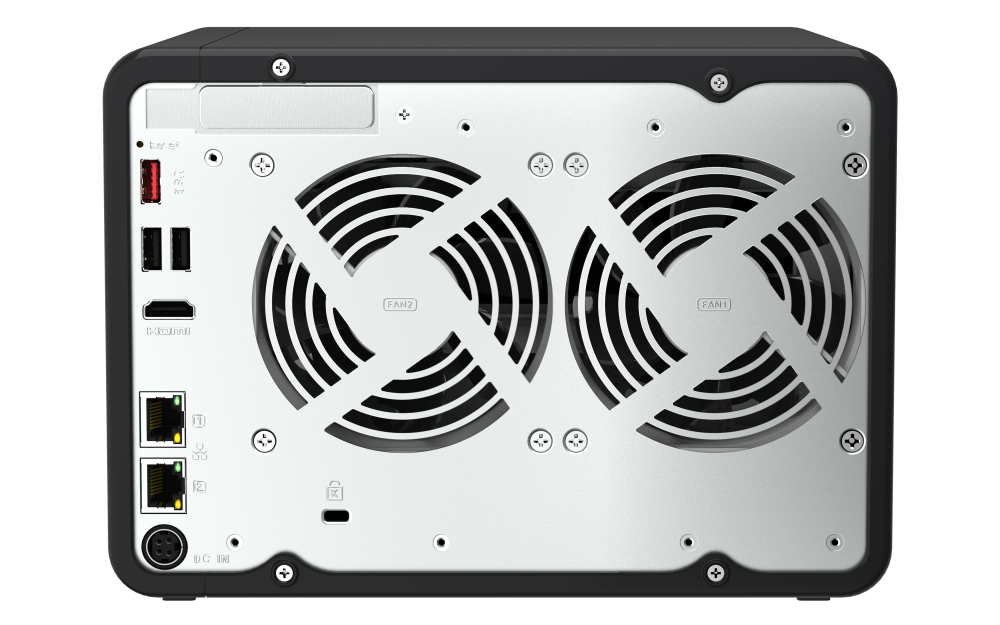

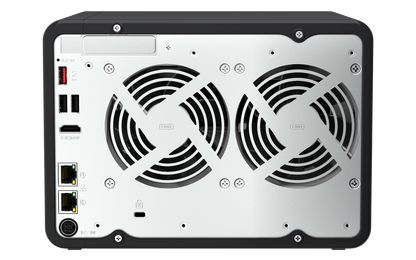

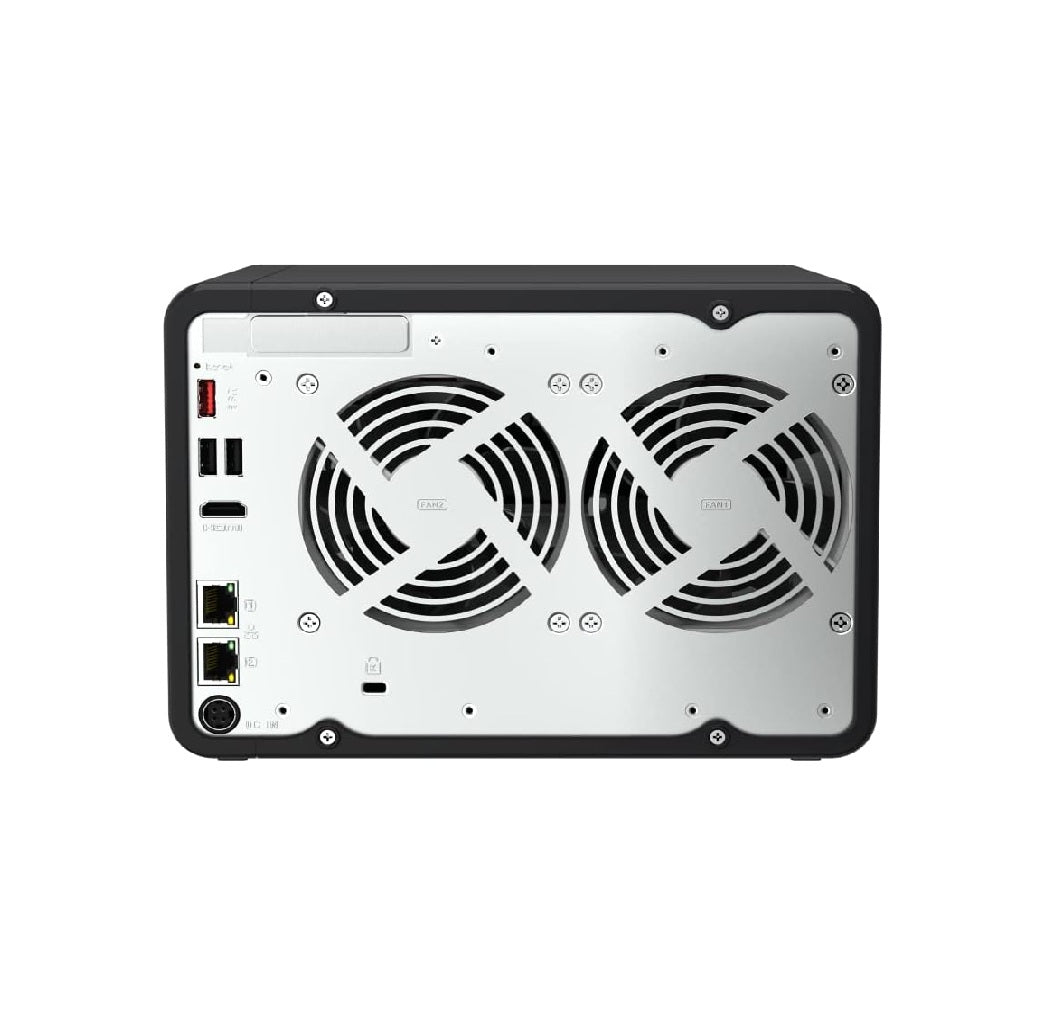

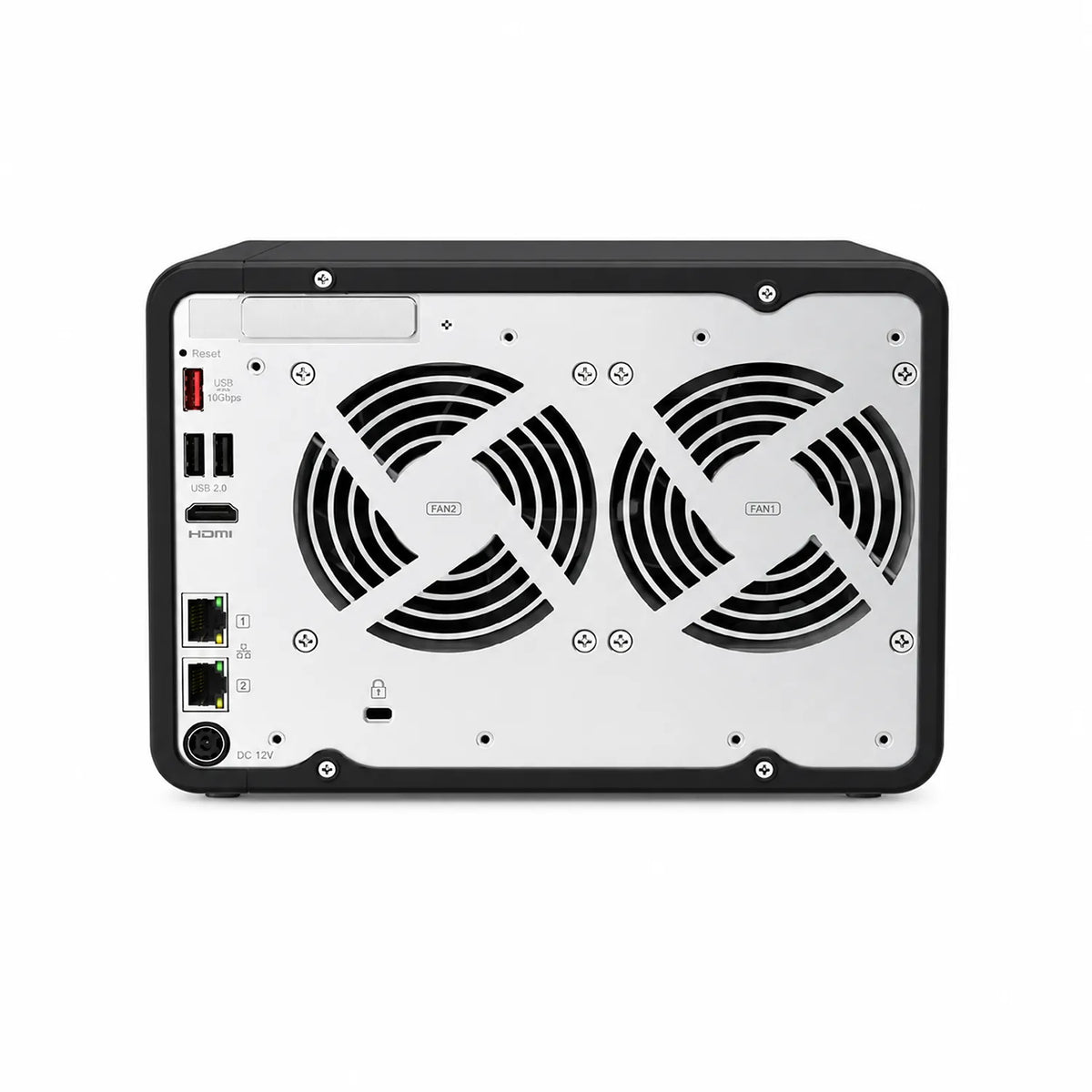

External Ports | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
USB 2.0 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
PCIe Slot | Slot 1: PCIe Gen 3 x2 |
HDMI Output | 1 x HDMI 2.1 (up to 4096 x 2160 @ 60Hz) |
File System | |
Supported Client OS | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 |
Supported Browsers | Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
LUN feature | LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking WWPN Aliases Import/Export FC Port Group FC Port Binding Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |
System Fan | 2 x 90mm, 12VDC |
System Warning | Buzzer |
Power Consumption |
23.22 (Disk Standby Mode)
44.02W (Operating Mode) |

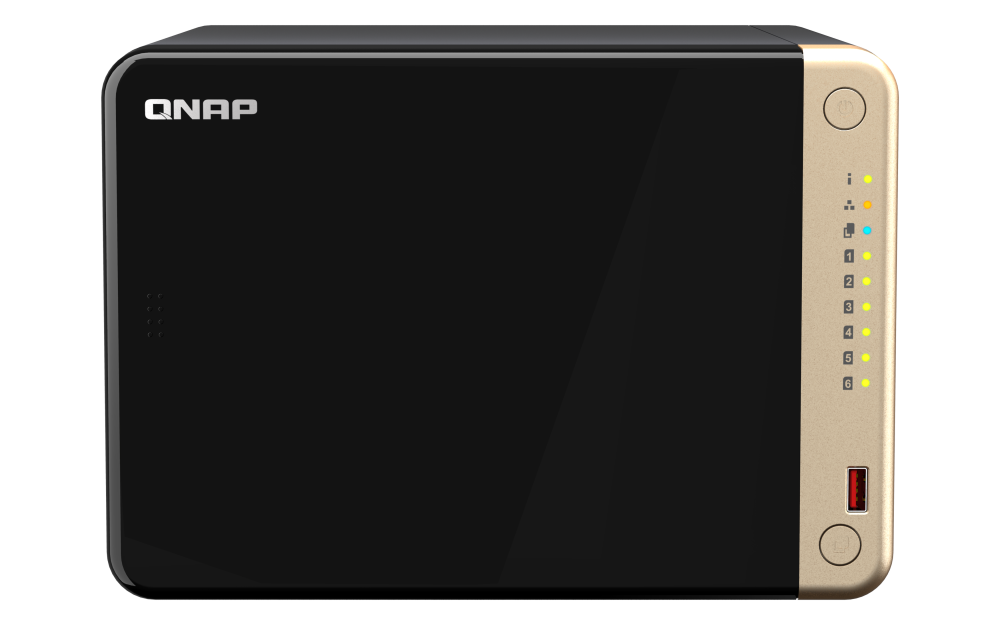

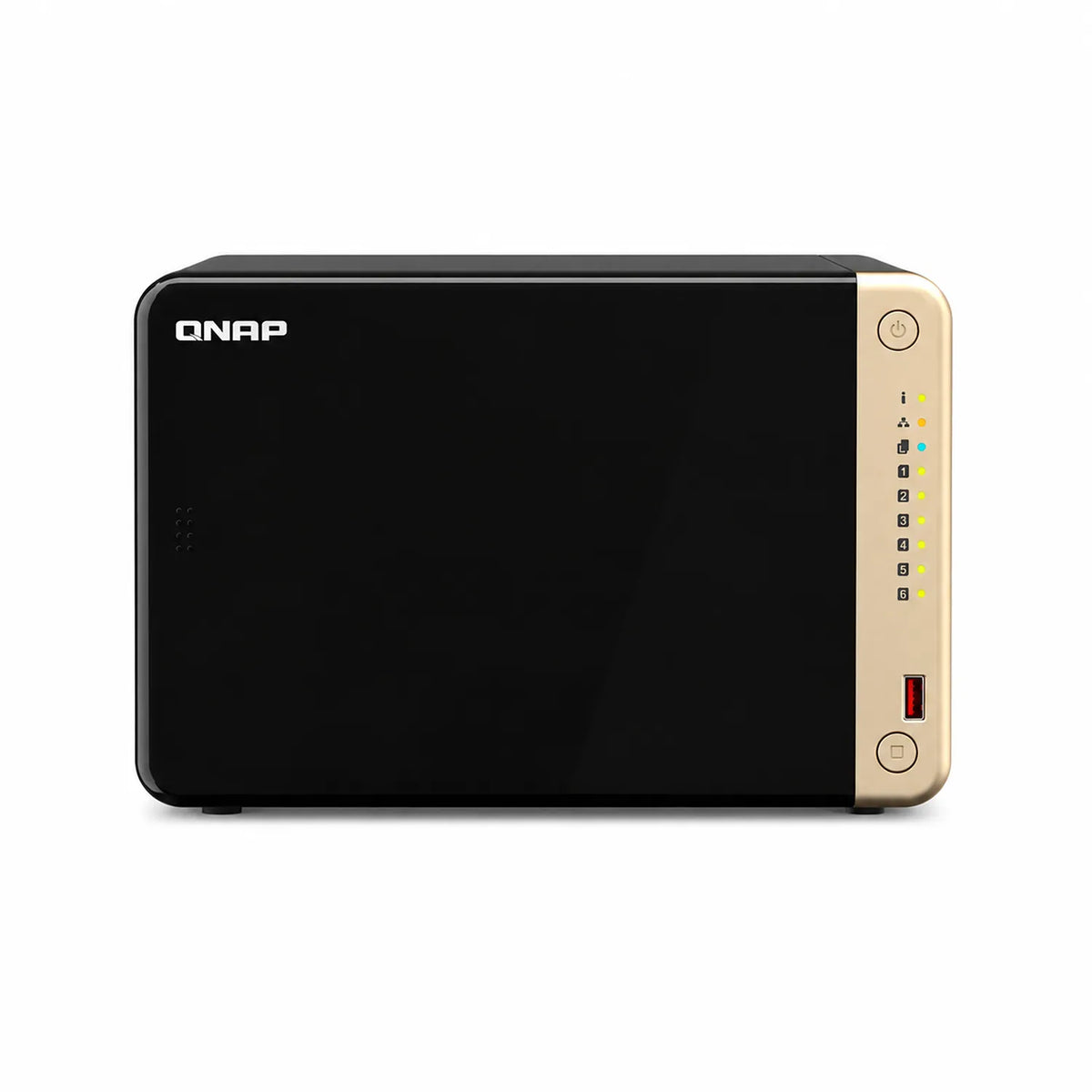

LED Indicators |
Status
Power USB LAN Drive 1-4 M.2 SSD 1-2 |
Buttons |
Power
Reset USB Auto Copy |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 165 × 235 × 226.5 mm |
Net Weight | 2.94kg |
Warranty | 3 Year Brand Warranty |
Package Contents | TS-664 Ethernet cable x 1 Power cord x 1 Flat head screw (for 3.5" HDD) x 18 Flat head screw (for 2.5" HDD) x 18 AC Adapter Quick installation guide (QIG) |
