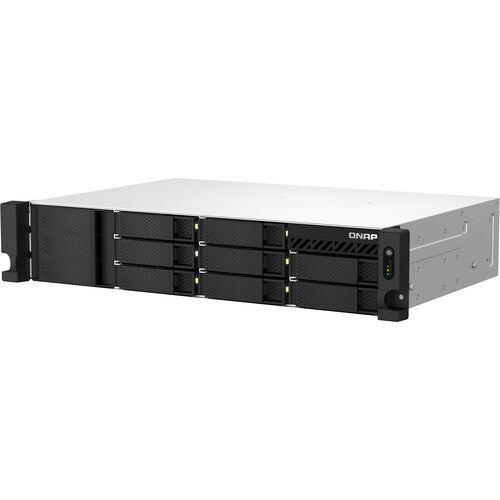

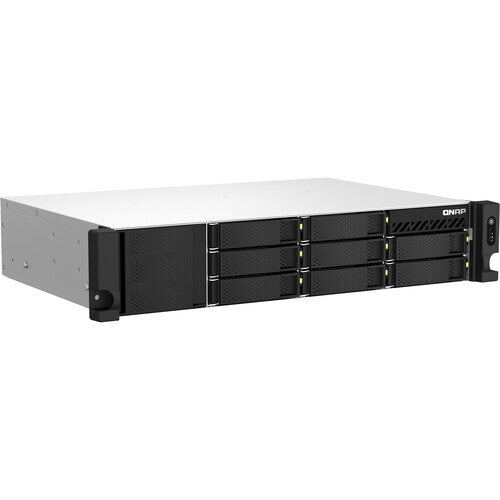

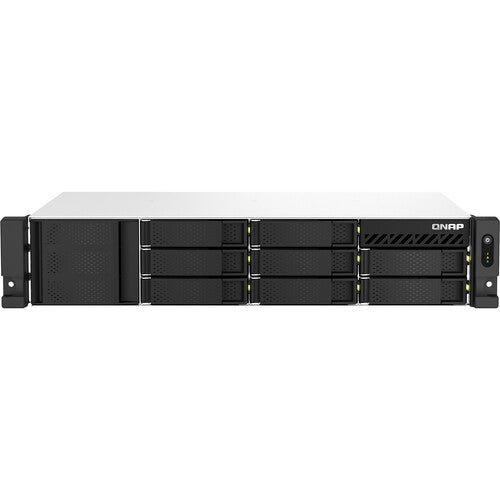

QNAP TS-873AeU-RP-4G 8 Bay Quad Core High Speed Short Depth 2U Rackmount NAS
QNAP TS-873AeU-RP-4G 8 Bay Quad Core High Speed Short Depth 2U Rackmount NAS
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
Powerful AMD Ryzen Processor: The NAS is equipped with an AMD Ryzen™ V1500B quad-core/eight-thread 2.2 GHz processor. This ensures robust performance, allowing it to handle resource-demanding applications and multitasking efficiently.
Compact and Space-Efficient Design: With its short-depth 2U form factor, measuring only 11.7 inches (297.4 mm) in depth, the TS-873AeU-RP-4G is ideal for installation in small media cabinets or environments with limited space. This design makes it easy to manage and integrate into existing setups.
High-Speed Network Connectivity: Featuring dual 2.5GbE ports, the NAS supports port trunking, providing up to 5Gbps combined bandwidth. This results in fast data transfer speeds and reliable network performance, suitable for demanding network environments.
Versatile Expansion Options: The NAS includes a PCIe Gen 3 slot, which allows for the installation of additional cards such as 10GbE/25GbE network cards, QM2 cards for M.2 SSD caching, or USB 3.2 Gen 2 cards. This flexibility enhances the NAS's functionality to meet various performance needs.
Enhanced Data Protection and Reliability: The TS-873AeU-RP-4G comes with redundant power supplies, ensuring maximum system uptime and reliability. It also supports AES 256-bit encryption and snapshot technology to safeguard your data against accidental deletion and malware attacks.
| Model | TS-873AeU-RP-4G |
| CPU | AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) |
| 2.5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| PCIe Slot | 1 x PCIe Gen3 x8 |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI Output | 1, HDMI 1.4b |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8 Status LAN USBPower |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption | Disk Standby Mode: 32.19 Operating Mode: 58.14 W |
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 Years |
| Dimensions | 88.6 × 432 × 297.4 mm |
| Package Contents | TS-873AeU-RP Ethernet Cable x 1 Power Cord x 2 Flat head screw (for 3.5" HDD) x 32 Flat head screw (for 2.5" HDD) x 24 Quick Installation Guide (QIG) |
