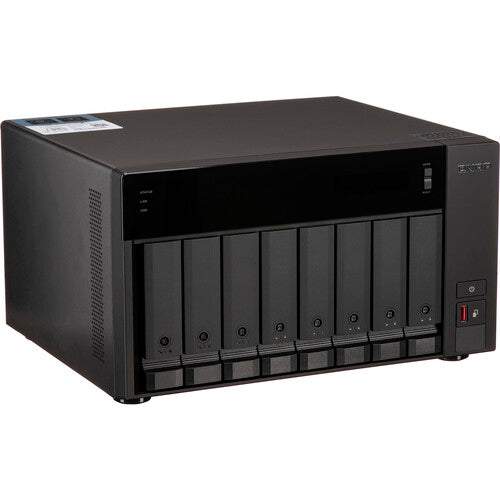

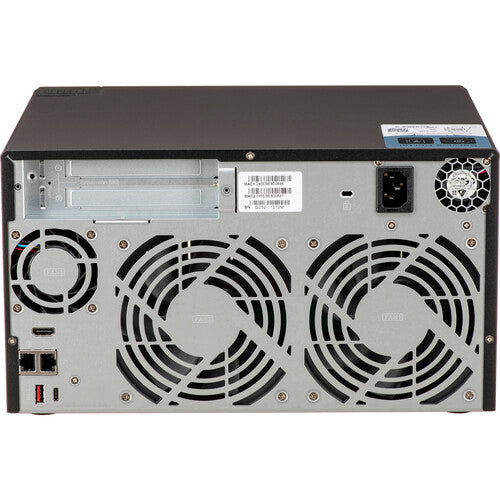

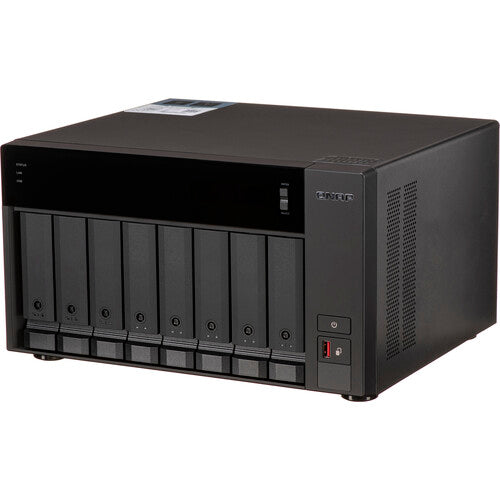

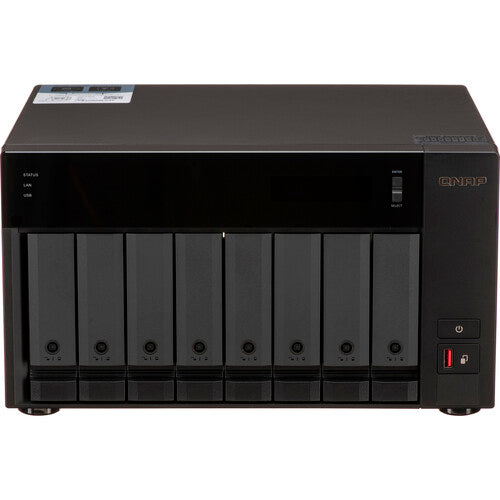

QNAP TVS-h874-i5-32G 8 Bay 2.5GbE Desktop Network Attached Storage - Black
QNAP TVS-h874-i5-32G 8 Bay 2.5GbE Desktop Network Attached Storage - Black
Couldn't load pickup availability
Couldn't load pickup availability
- Free Standard Shipping
- TPS Returns Policy
- Original Brand Warranty
Product Description:
Powerful Processing Capabilities: The TVS-h874-i5-32G is equipped with a 12th Gen Intel Core i5-12400 processor, featuring 6 cores and 12 threads, with a burst speed of up to 4.4 GHz. This high-performance processor, along with 32GB of DDR4 RAM (expandable up to 64GB), ensures smooth multitasking and efficient handling of demanding applications.
Versatile Storage Solutions: This NAS supports eight drive bays that can accommodate both 3.5-inch and 2.5-inch SATA drives, offering extensive storage capacity. Additionally, it includes dual M.2 PCIe Gen4 slots for NVMe SSD caching, which significantly enhances data access speeds and overall system performance.
Enhanced Network Connectivity: Featuring dual 2.5GbE ports, the TVS-h874-i5-32G provides faster data transfer rates compared to standard Gigabit Ethernet. This improved connectivity is ideal for environments that require high-speed data transfers and efficient network performance, making it suitable for collaborative projects and high-speed backup/restoration.
PCIe Gen 4 Expandability: The NAS includes PCIe Gen 4 slots, allowing users to install additional network cards (up to 25GbE), QM2 cards, or entry-level graphics cards. This expandability enhances the system's capabilities, making it suitable for a wide range of applications, from virtualization to multimedia editing.
Comprehensive Data Protection and Management: Running on the ZFS-based QuTS hero operating system, the TVS-h874-i5-32G offers advanced data protection features such as block-level inline data deduplication, compression, and near-limitless snapshots. It also supports real-time SnapSync, ensuring efficient data backup and recovery, which is crucial for maintaining data integrity and availability.
Model | TVS-h874-i5-32G |
CPU | Intel Core i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel UHD Graphics 730 |
System Memory | 32 GB SODIMM DDR4 (2 x 16 GB) |
Maximum Memory | 64 GB ( 2 x 32 GB) |
Memory Slot | 2 x SODIMM DDR4 |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
10 Gigabit Ethernet Port | Optional via PCIe expansion card |
PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 |
USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps |
HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
Form Factor | Tower |
LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
Buttons | Power, Reset, USB Copy |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Power Supply Unit | 250W, 100-240V |
Power Consumption | Disk Standby Mode: 58.127 Operating Mode: 81.865 W |
Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
System Warning | Buzzer |
Standard Warranty | 3 Years |
Dimensions | 188.2 × 329.3 × 280.8 mm |
Package Contents | TVS-h874 Ethernet cable x 1 Power cord x 1 Flat head screw (for 3.5" HDD) x 32 Flat head screw (for 2.5" HDD) x 24 M.2 SSD Heatsink x 2 Drive tray keys x 2 Quick installation guide (QIG) |
