SAPPHIRE A520M-E AMD Ryzen AM4 Micro-ATX Motherboard
SAPPHIRE A520M-E AMD Ryzen AM4 Micro-ATX Motherboard
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🔧 AMD AM4 Compatibility Supports AMD Ryzen 5000, 4000, and 3000 Series desktop processors, making it a reliable platform for everyday computing and system upgrades.

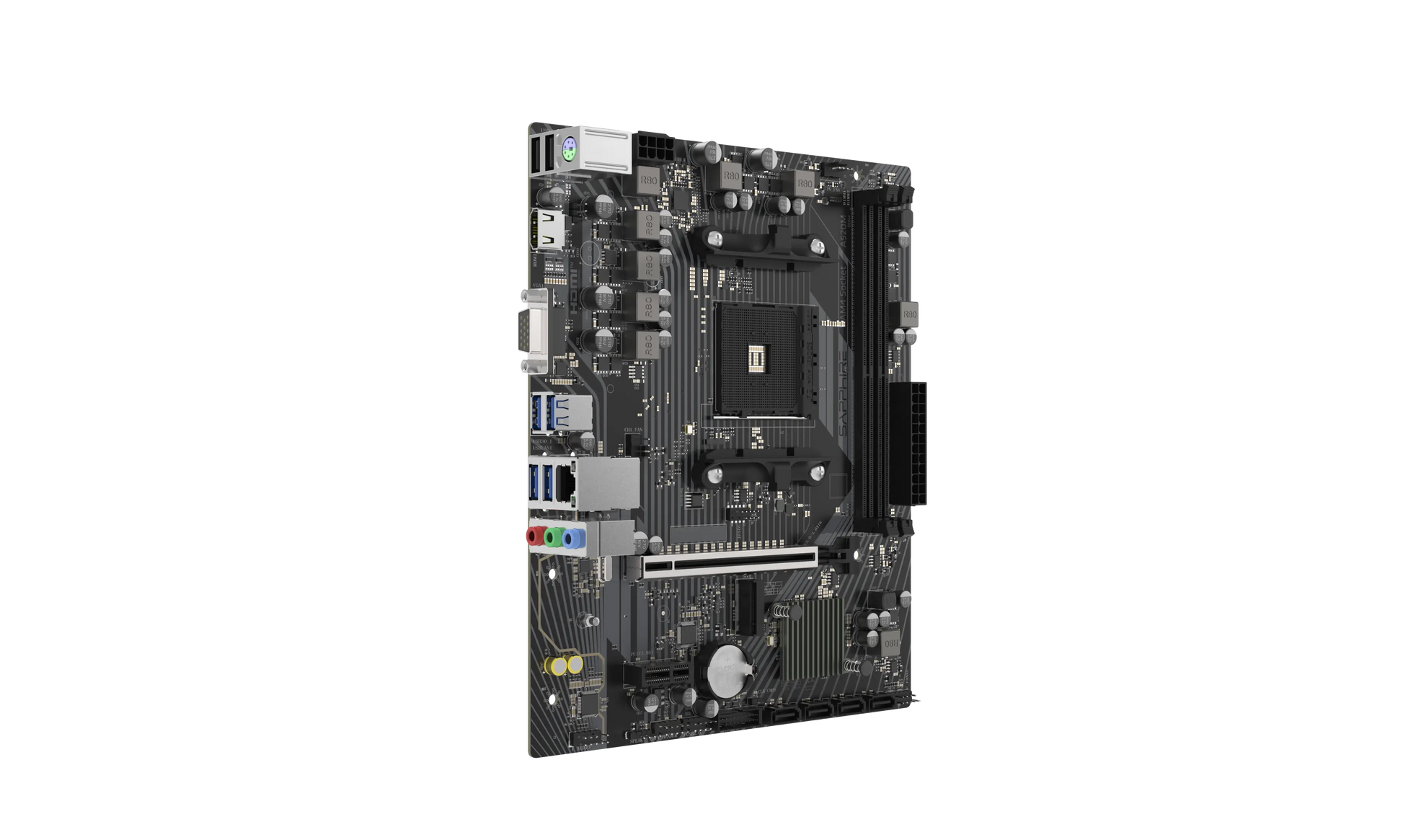

💾 Dual Channel DDR4 Memory Support Features 2 DIMM slots with support for up to 64GB DDR4 memory to help improve multitasking and overall system responsiveness.
⚡ PCIe 3.0 Expansion Ready Includes one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot for graphics cards and expansion devices.
🚀 Flexible Storage Options Equipped with one PCIe 3.0 M.2 slot and four SATA ports for SSD and HDD storage configurations.
🌐 Gigabit Ethernet Connectivity Realtek RTL8111M Gigabit LAN provides stable wired network performance for work, browsing, and online gaming.
🖥️ Essential Display & I/O Ports Offers HDMI and VGA outputs along with multiple USB 3.2 Gen 1 ports for convenient peripheral connectivity.

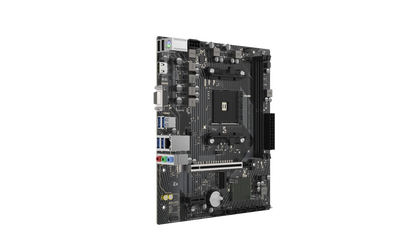

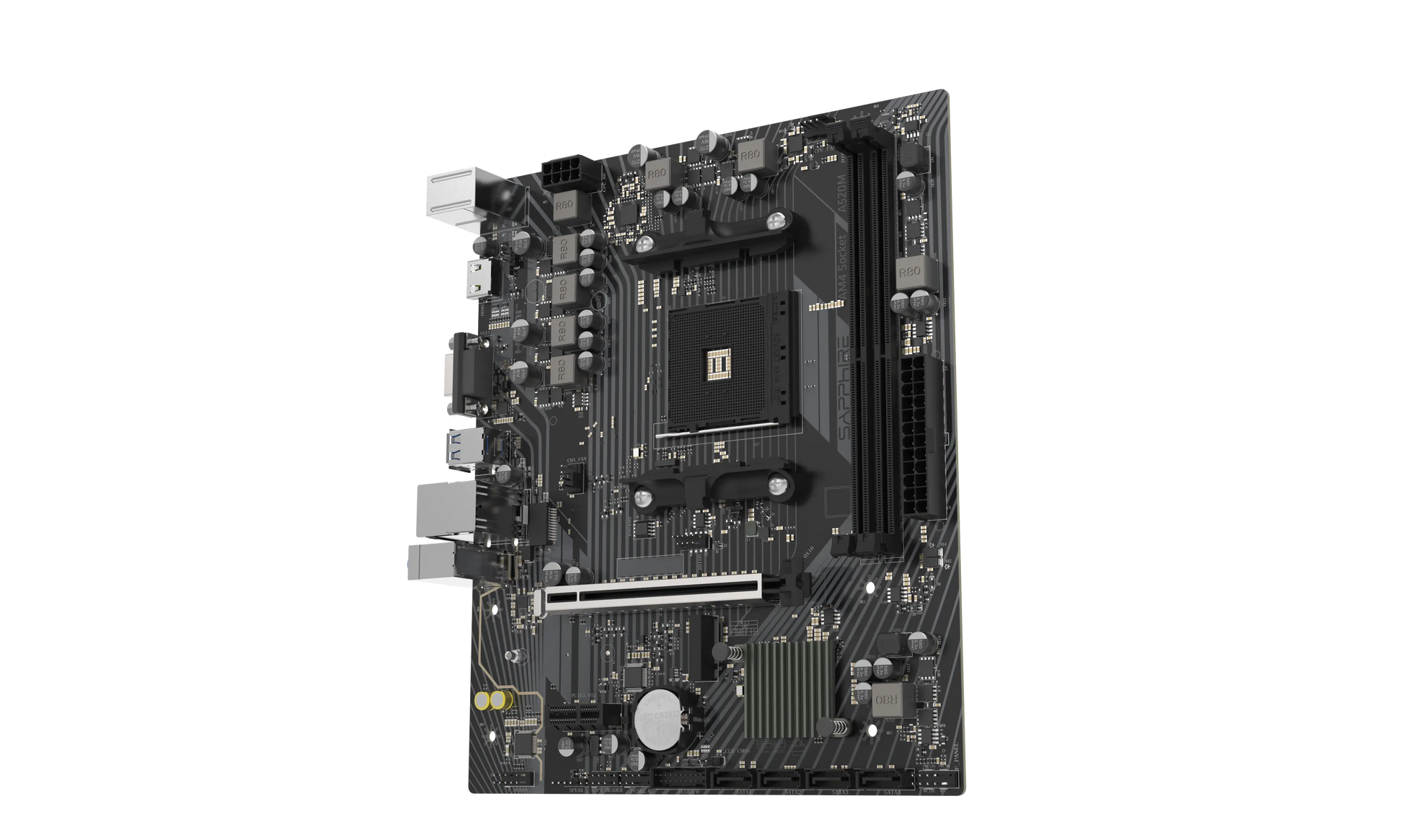

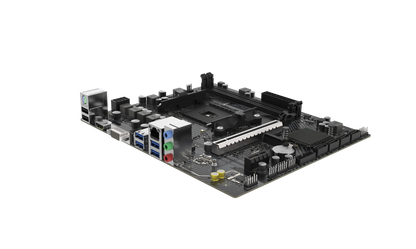

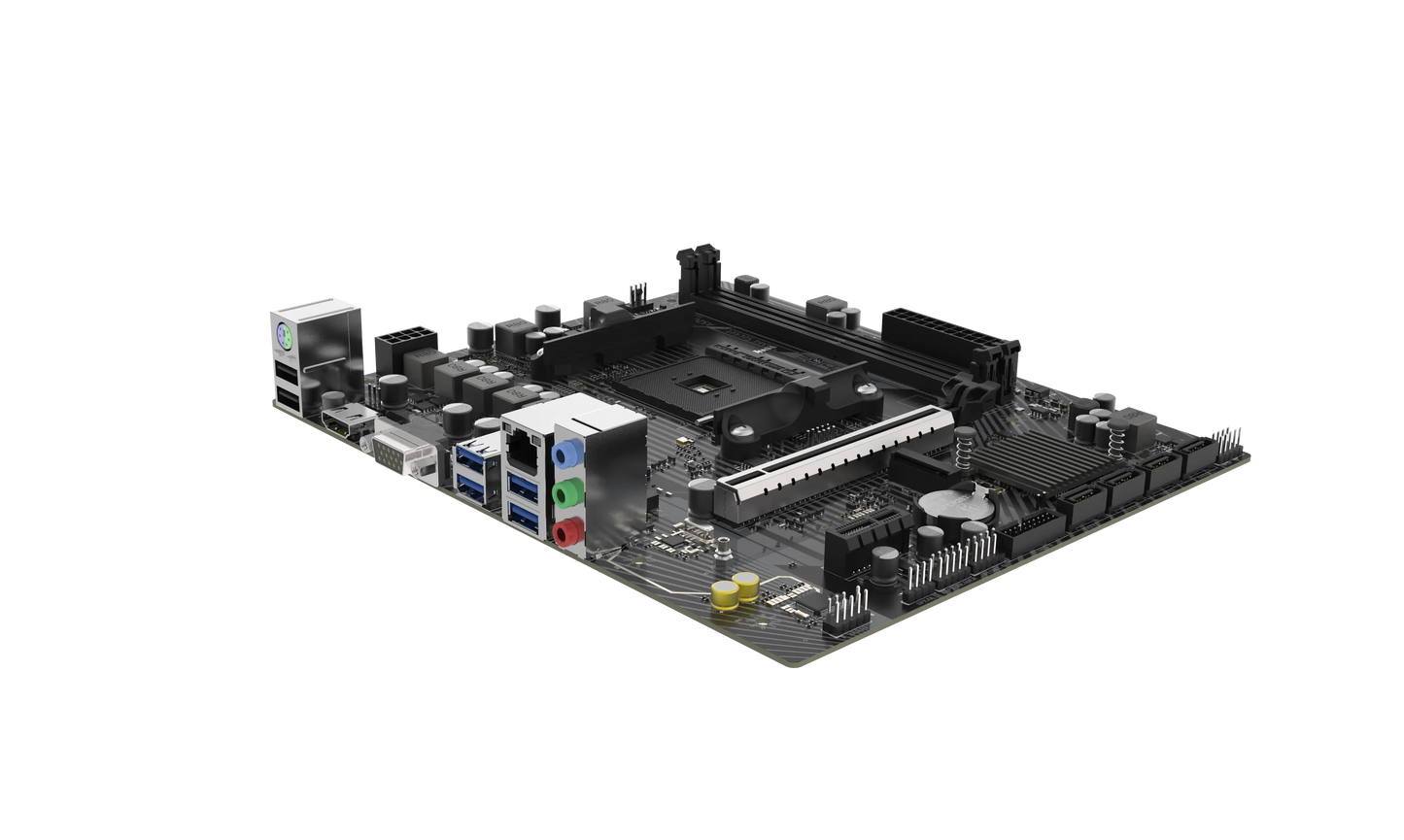

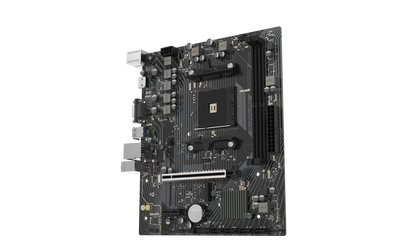

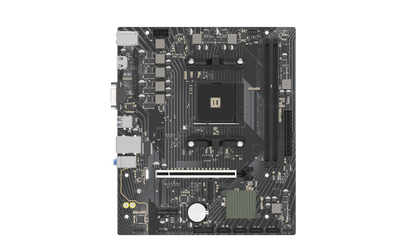

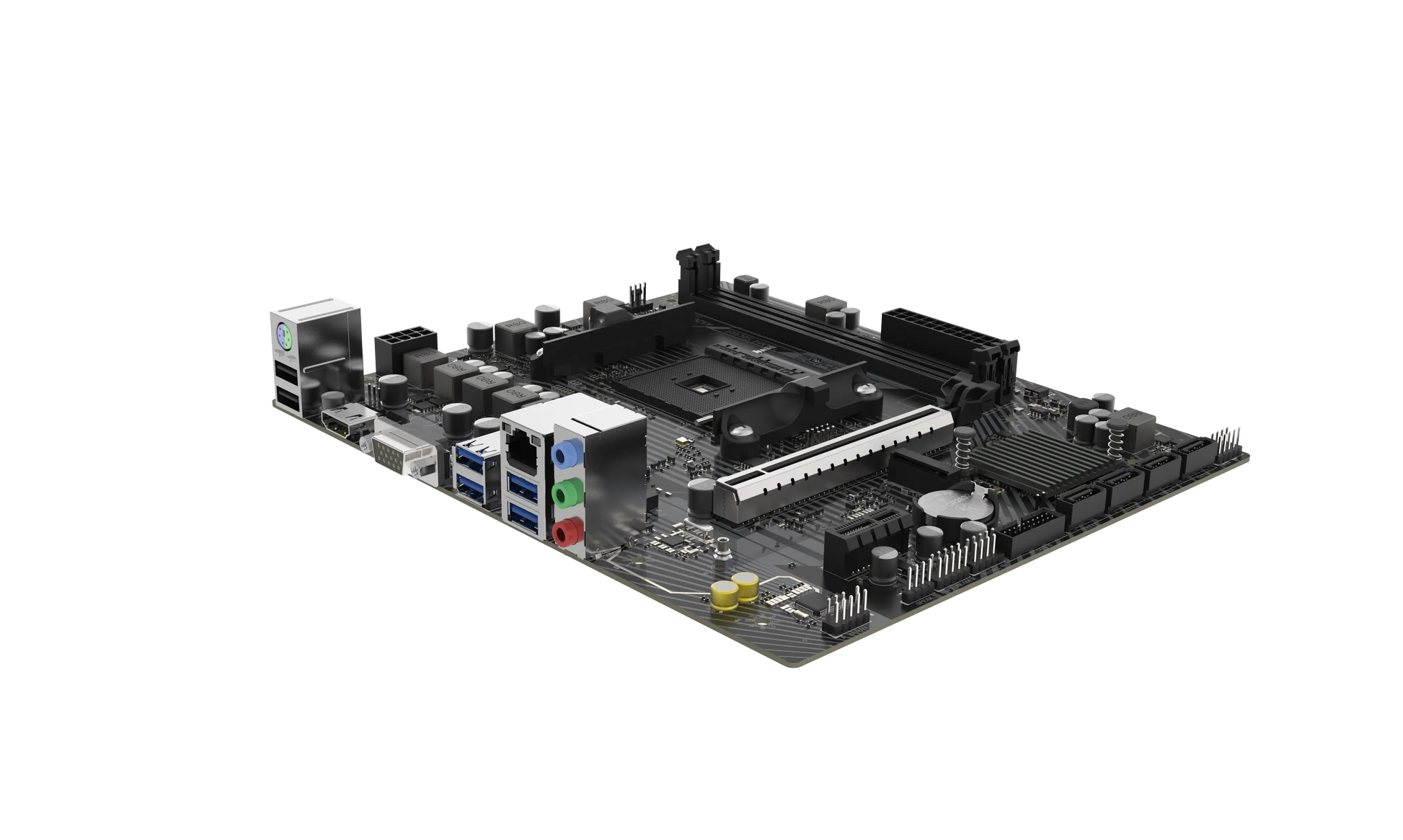

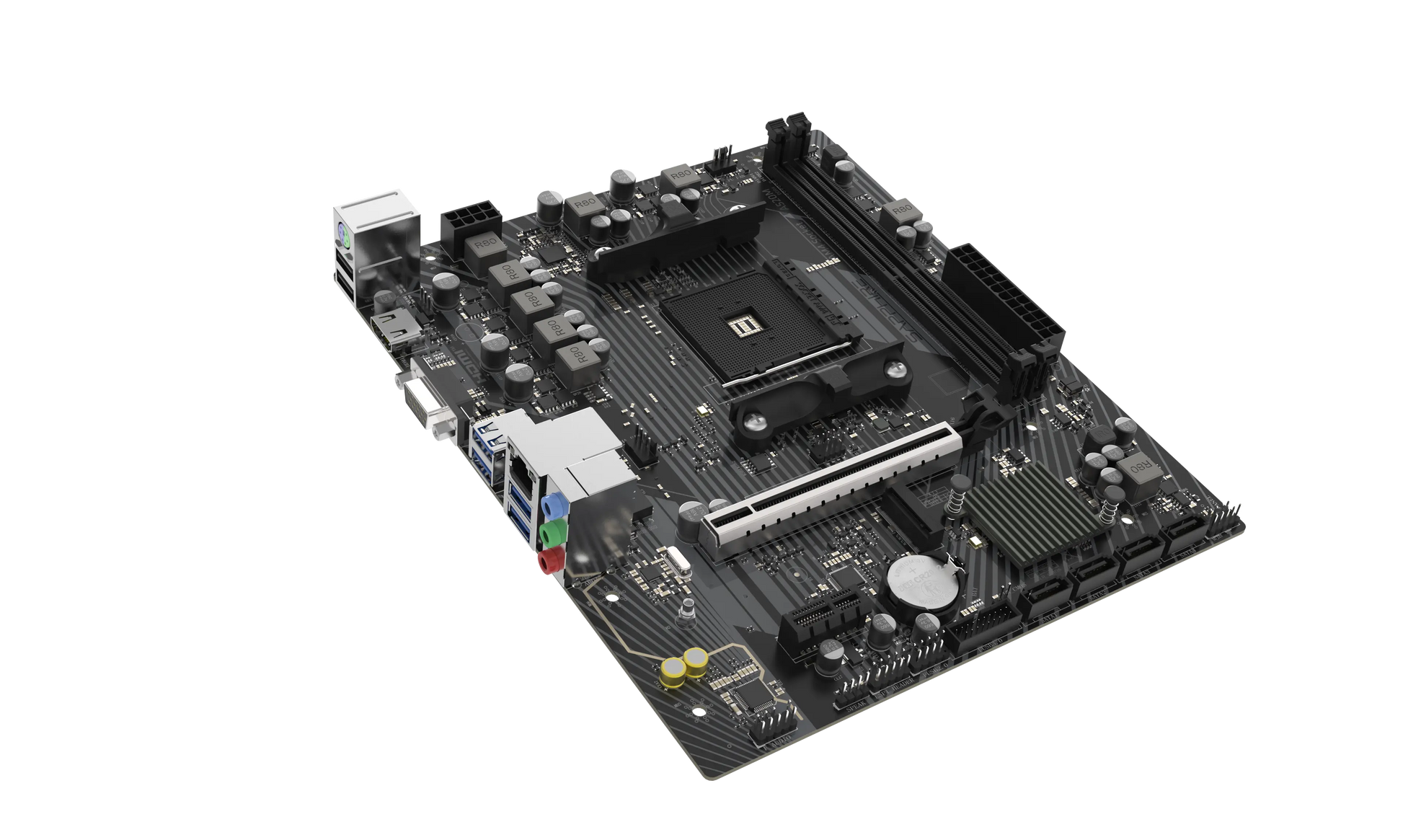

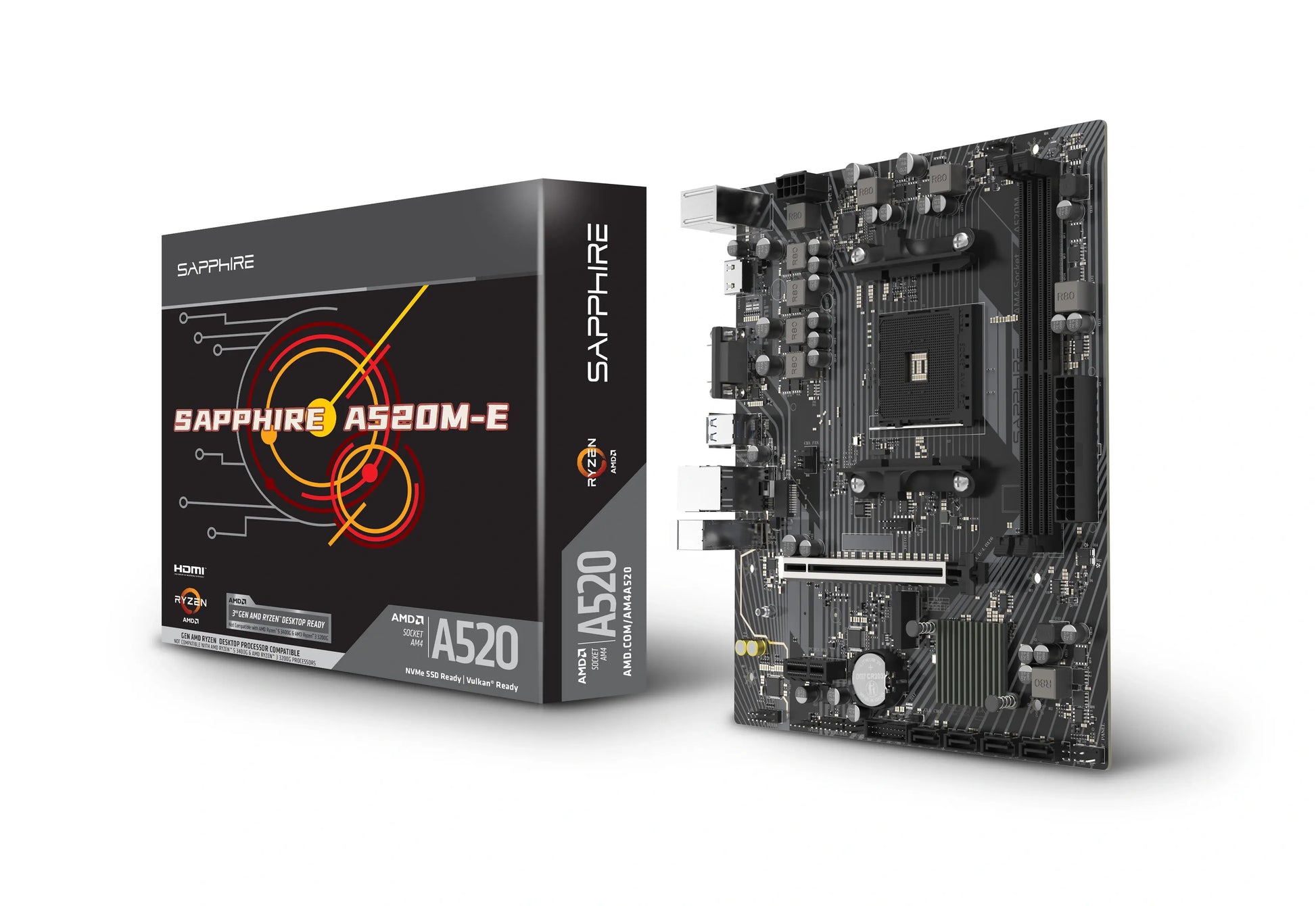

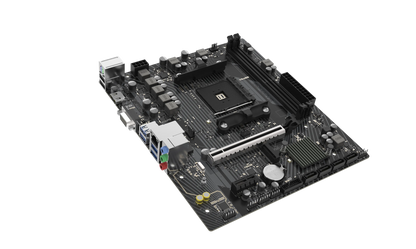

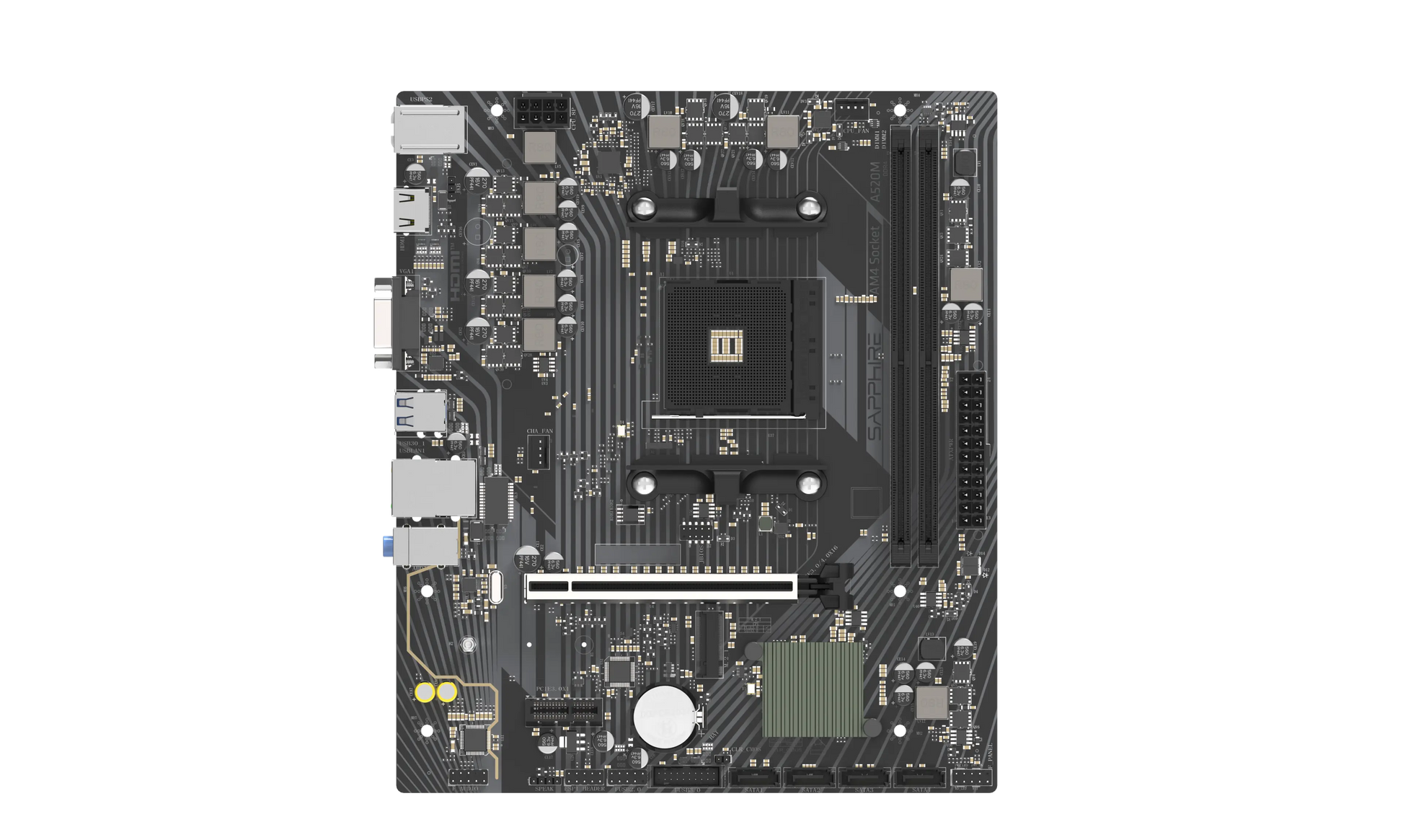

The SAPPHIRE A520M-E is a Micro-ATX motherboard built around the AMD A520 chipset and AM4 socket. Designed for AMD Ryzen 5000, 4000, and 3000 Series processors, it supports up to 64GB DDR4 memory, PCIe 3.0 expansion, M.2 SSD storage, and Gigabit Ethernet connectivity. Its compact form factor makes it ideal for home PCs, office systems, and budget-focused custom builds that require dependable performance and essential connectivity
Product Specifications:
| Specification | Details |
|---|---|
| Brand | SAPPHIRE |
| Model | A520M-E |
| Product Type | Micro-ATX Motherboard |
| Chipset | AMD A520 |
| CPU Socket | AMD Socket AM4 |
| Supported Processors | AMD Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 Series Desktop Processors |
| Form Factor | Micro-ATX |
| Memory Slots | 2 x DDR4 DIMM Slots |
| Maximum Memory | Up to 64GB DDR4 |
| Memory Architecture | Dual Channel |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| M.2 Slot | 1 x M.2 Socket (PCIe 3.0 x4 / SATA) |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Realtek RTL8111M Gigabit Ethernet |
| Audio | Realtek ALC897 5.1-Channel HD Audio |
| Video Outputs | 1 x HDMI, 1 x VGA (D-Sub) |
| Rear USB Ports | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| Front USB Headers | 1 x USB 3.2 Gen 1 Header, 1 x USB 2.0 Header |
| PS/2 Port | 1 x PS/2 Keyboard/Mouse Combo Port |
| Network Port | 1 x RJ45 Gigabit LAN |
| Audio Ports | 3 x Audio Jacks |
| Power Connectors | 24-pin ATX Power Connector, 8-pin CPU Power Connector |
| Operating System Support | Windows 10 64-bit |
| Country of Origin | China |
| Warranty | 3 Years by Manufacturer |
| Product Weight | 820gm |
