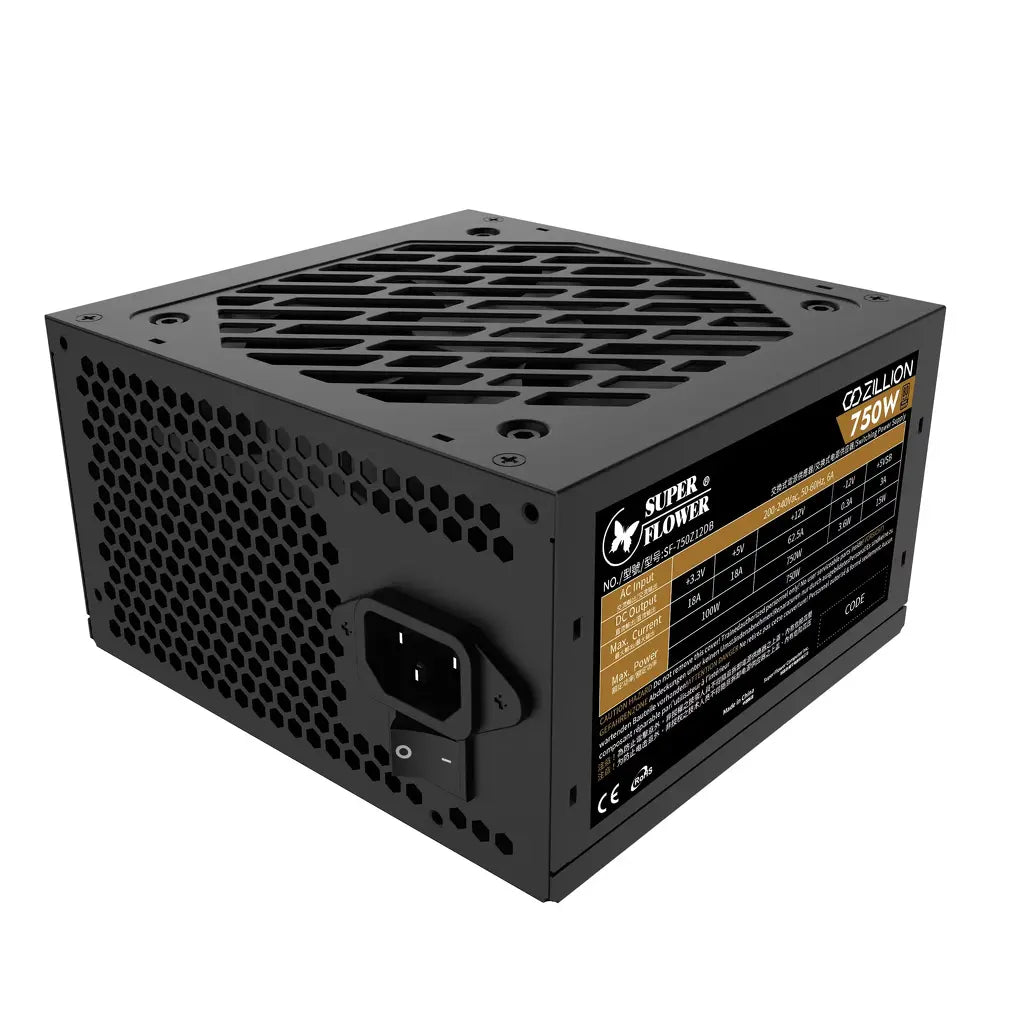

Super Flower Zillion DB 750W Bronze High Efficiency ATX Non Modular Power Supply
Super Flower Zillion DB 750W Bronze High Efficiency ATX Non Modular Power Supply
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Product Description:
⚡ 80 PLUS® Bronze Certified – Delivers up to 88% efficiency, ensuring optimal power usage and reduced heat.
🧠 ATX 3.1 & EPS 2.92 Compliant – Future-ready design for modern Intel/AMD CPUs and high-performance motherboards.
🎮 PCIe 5.0 Ready – Includes 12VHPWR connector for next-gen GPUs alongside standard 6+2 PCIe connectors.
🌬️ Silent Cooling System – Features a 120mm sleeve fan for quiet and efficient thermal management.
🔒 Full Protection Suite – Equipped with OVP, OCP, OTP, SCP, OPP, NLP for safe and stable operation.
The Super Flower Zillion DB 750W Bronze SMPS is built for high-performance gaming and workstation systems. With 80 PLUS® Bronze certification, it offers excellent efficiency across all loads. Its ATX 3.1 compliance and PCIe 5.0 support make it ideal for next-gen builds. The unit features flat cables for improved airflow and easy cable management. A 105°C Taiwanese capacitor ensures long-term reliability. Backed by multiple safety protections, it’s a robust and future-proof power solution.
| Feature | Details |
| Model | Zillion DB Bronze 750W ATX3.1 (SF-750Z12DB) |
| Wattage | 750W |
| Efficiency | 85% @ 20%, 88% @ 50%, 85% @ 100% (115V Internal) |
| Certification | 80 PLUS® Bronze |
| Compliance | ATX 12V v3.1, EPS 12V v2.92 |
| CPU Compatibility | Intel / AMD Multi-Core |
| Motherboard Support | ATX / BTX |
| GPU Support | NVIDIA® SLI™, ATI CrossFireX™, PCIe 5.0 GPUs |
| PCI-E Connectors | 2 × 6+2 Pin, 1 × 12VHPWR |
| Fan Size | 120mm Sleeve Fan |
| Dimensions (L×W×H) | 140mm × 150mm × 86mm |
| Cable Type | All Flat Cables |
| Main Capacitor | 105°C Taiwanese Capacitor |
| Protections | OVP, OCP, OTP, SCP, OPP, NLP |
| Safety Certifications | TÜV, CB, CE, RoHS, FCC |
| AC Input | 100–240V~, 10A, 50–60Hz |
| DC Output Rails | +3.3V: 18A, +5V: 18A, +12V: 62.5A, -12V: 0.3A, +5VSB: 3A |
| Combined Wattage | +3.3V & +5V: 100W, +12V: 750W, -12V: 3.6W, +5VSB: 15W |
| Warranty | 5 Years Warranty from Brand |
