Synology DS1525neo+ 5-Bay NAS Storage Server with High-Speed 2.5GbE Networking
Synology DS1525neo+ 5-Bay NAS Storage Server with High-Speed 2.5GbE Networking
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
🚀 High-Speed Network Connectivity: Built-in dual 2.5GbE ports help deliver faster access to shared files, while an optional 10GbE upgrade provides room for higher-bandwidth workloads.
💾 Flexible 5-Bay Storage: Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs, giving businesses and professionals flexibility when building their storage system.
⚡ NVMe Cache or Storage Expansion: Two M.2 2280 NVMe SSD slots support faster storage configurations for workloads that benefit from improved responsiveness.
📈 Scalable for Growing Data Needs: Expand from 5 internal bays to up to 15 drive bays with compatible Synology DX525 expansion units.
🔐 Built for Centralized Data Management: Suitable for multi-endpoint backup, file sharing and synchronization, collaborative workloads, and IP camera management.

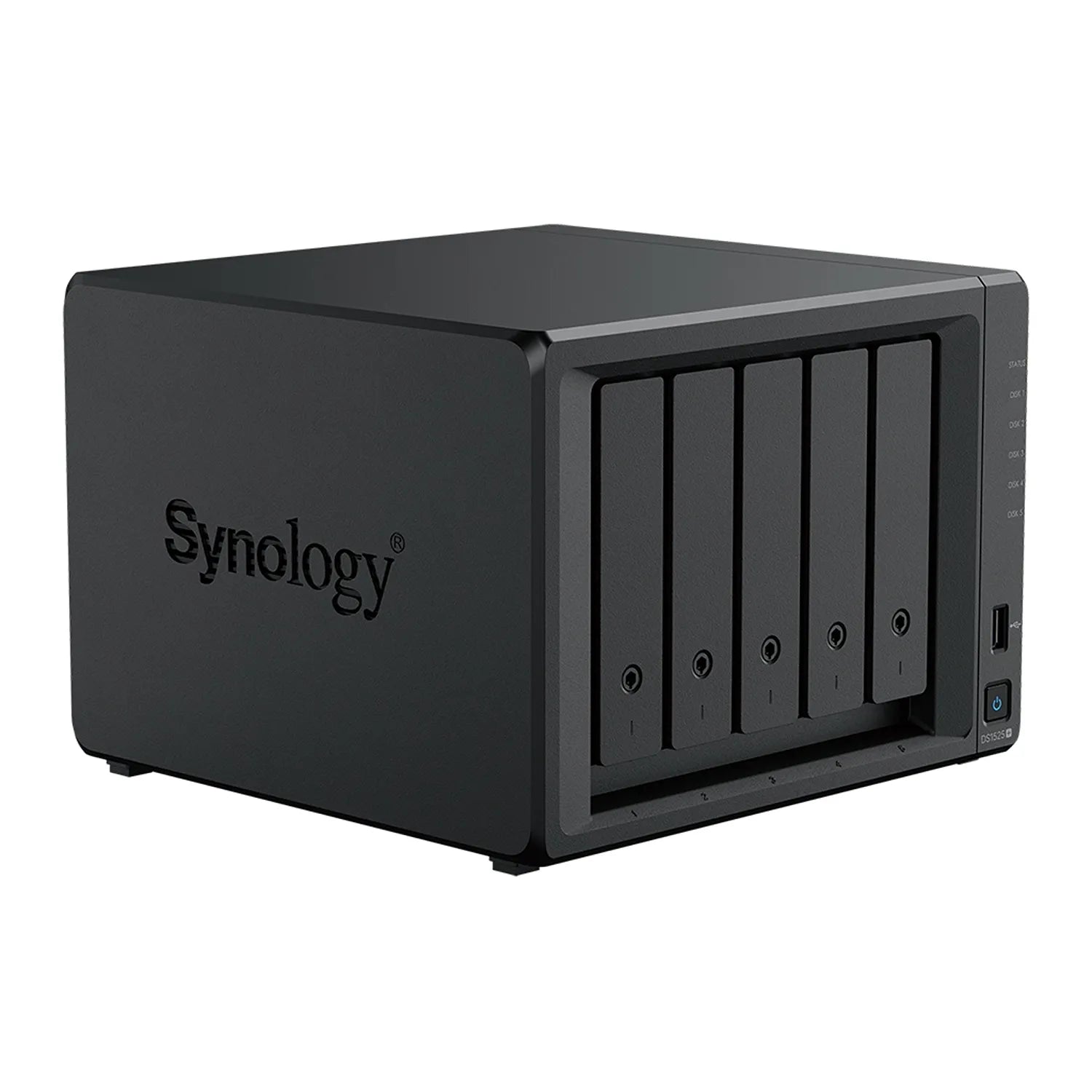

The Synology DS1525neo+ is a 5-bay NAS storage server designed for centralized file storage, backup, sharing, and growing business data needs. Powered by an AMD Ryzen V1500B processor, it features dual 2.5GbE networking, two M.2 NVMe slots, and support for SATA HDDs and SSDs. With expansion capability up to 15 drive bays, it is well suited for professional users, teams, offices, backup environments, and centralized data management.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Synology |
| Model | DS1525neo+ |
| Product Type | Network Attached Storage (NAS) |
| System Memory | 4 GB DDR4 non-ECC SODIMM |
| Processor | AMD Ryzen V1500B |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Threads | 8 |
| CPU Architecture | 64-bit |
| Processor Frequency | 2.2 GHz |
| System Memory | 4 GB DDR4 non-ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB × 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB × 2) |

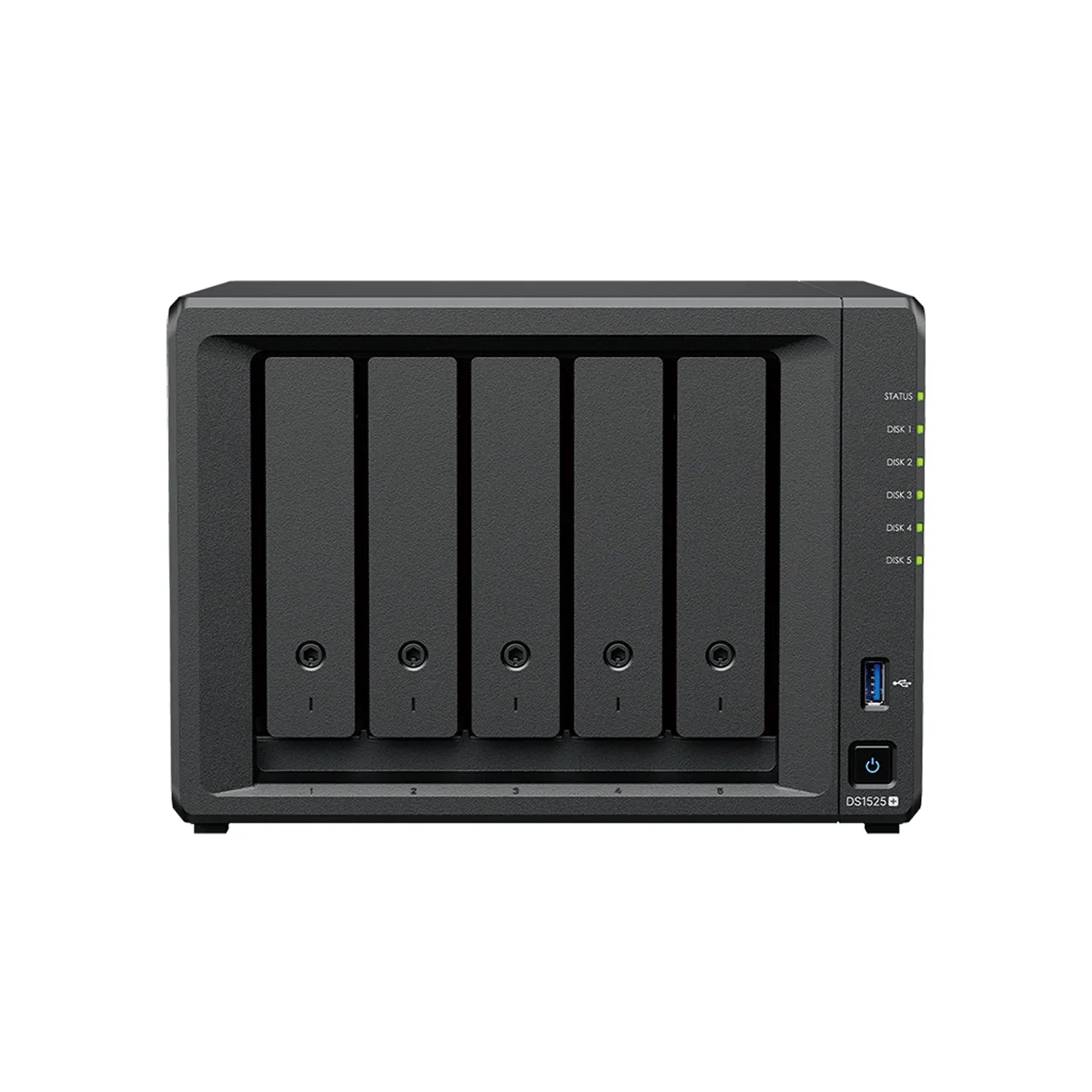

| Drive Bays | 5 |
| Maximum Drive Bays with Expansion Unit | 15 |

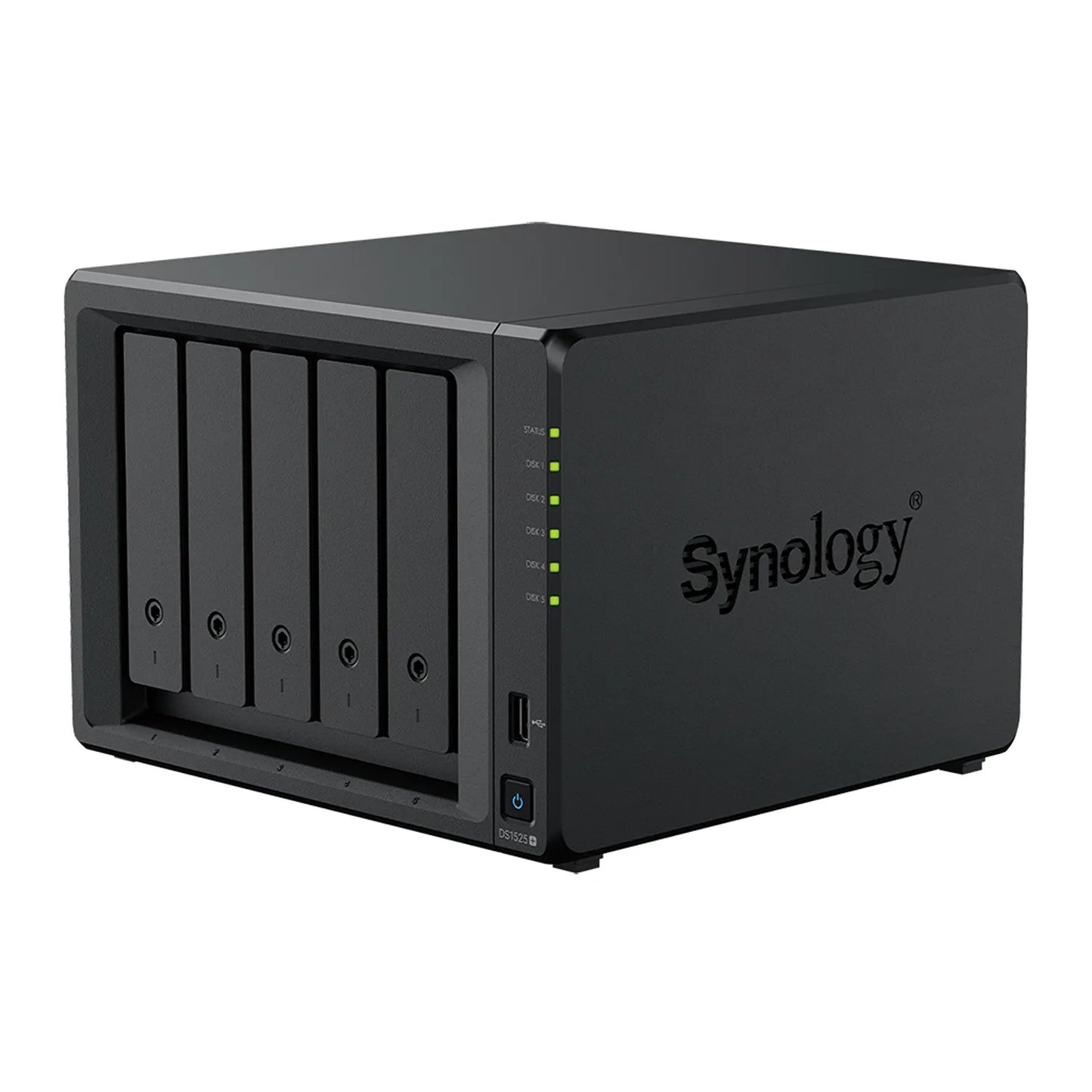

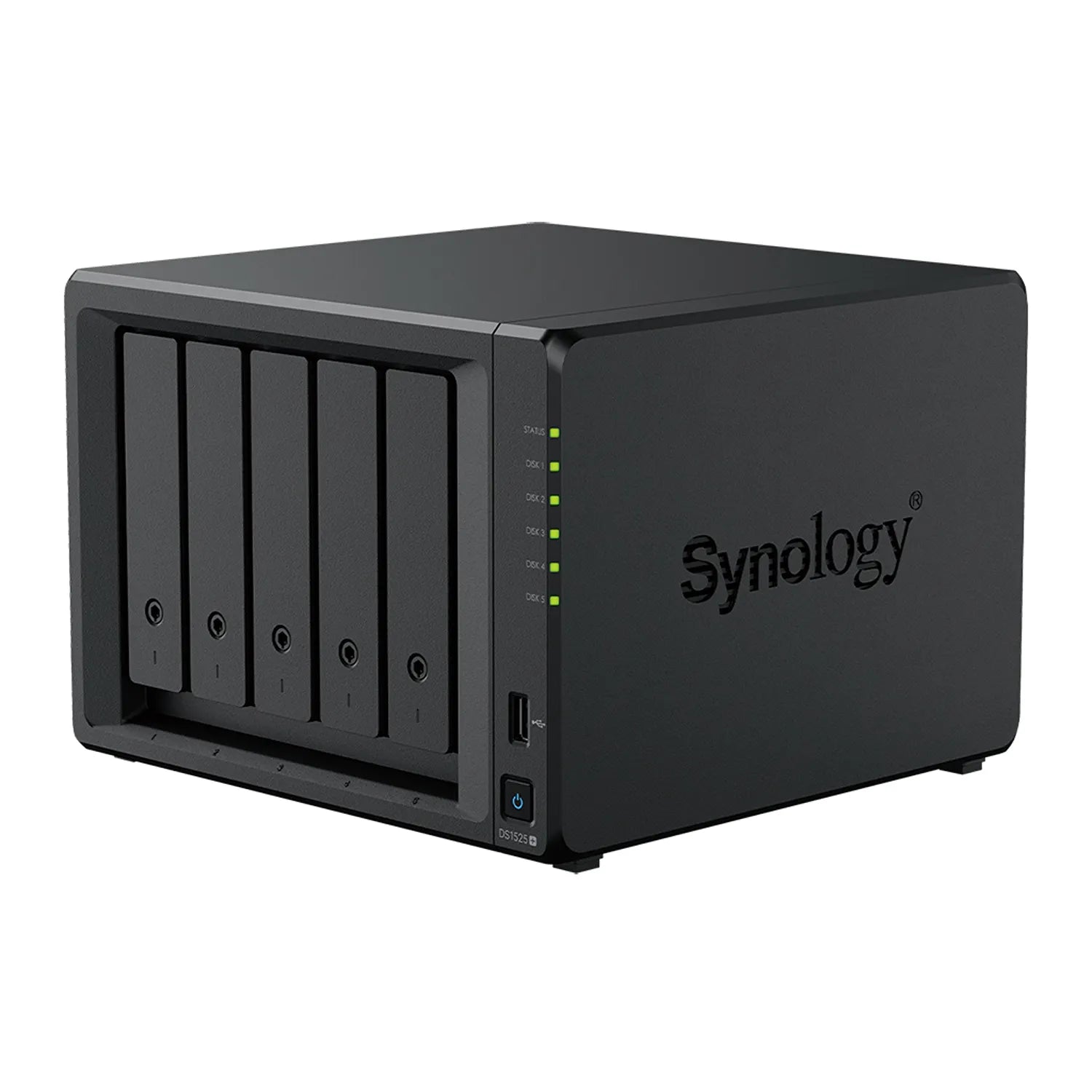

| Hot Swappable Drive | Yes |
| Form Factor | Desktop |
| Drive Bays | 5 |
| Drive Type | 3.5-inch SATA HDD / 2.5-inch SATA SSD |
| Maximum Drive Bays | 15 |
| Maximum Single Volume Size | 200 TB with 32 GB memory / 108 TB by default |
| Maximum Internal Volume Number | 32 |
| RAID Support | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |

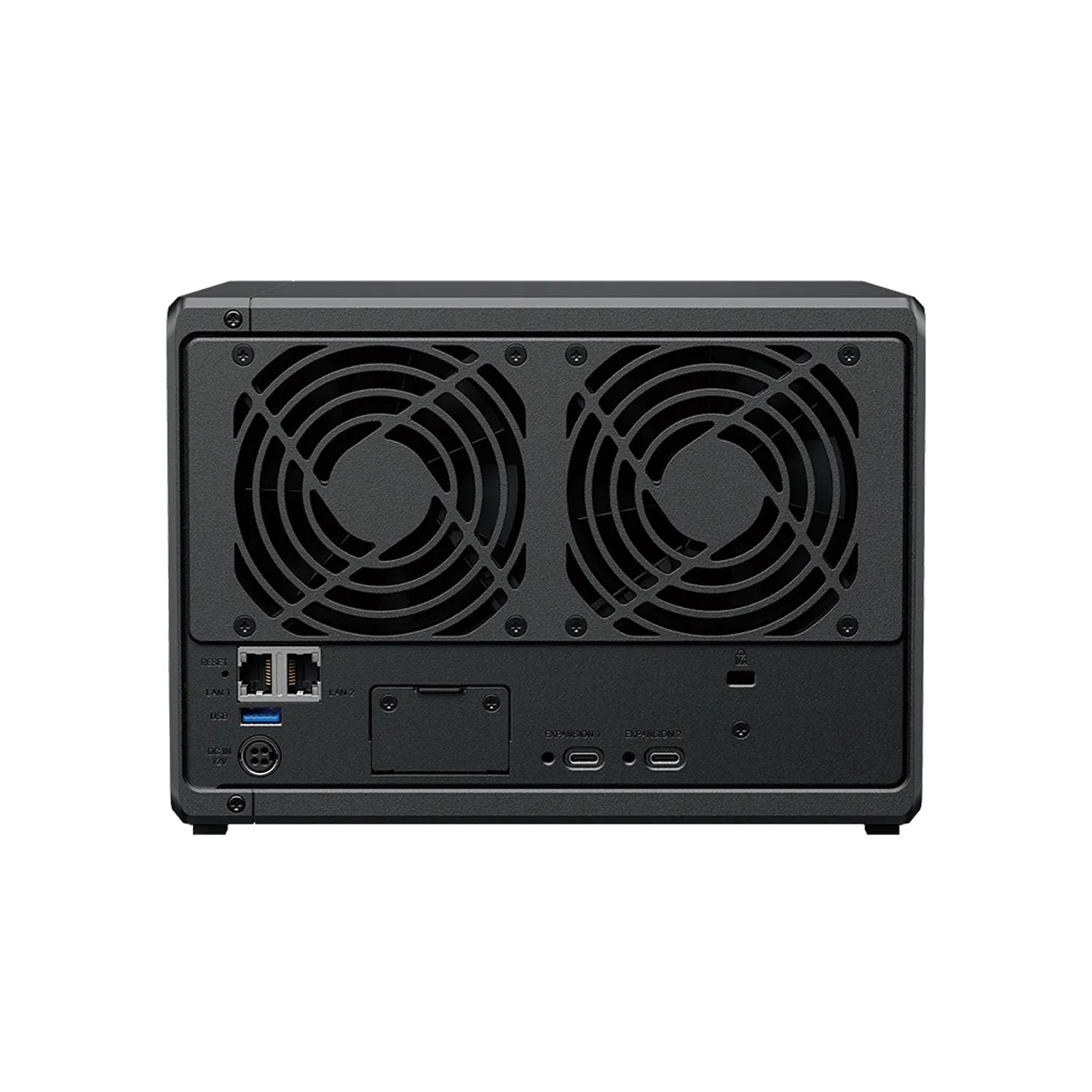

| Network Ports | 2 × 2.5GbE RJ-45 |
| PCIe Expansion | 1 × PCIe Gen3 ×2 slot |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Port | 2 × eSATA |
| Power Supply | Internal 120 W power supply |
| Noise Level | 22.60 dB(A) |
| Dimensions (H × W × D) | 166 mm × 230 mm × 243 mm |
| Operating System | Synology DiskStation Manager (DSM) |
| Part Number | DS1525neo+ |
| Country of Origin | Taiwan |
| Net Weight | 2.67 kg |
| Warranty | 3-year hardware warranty |
