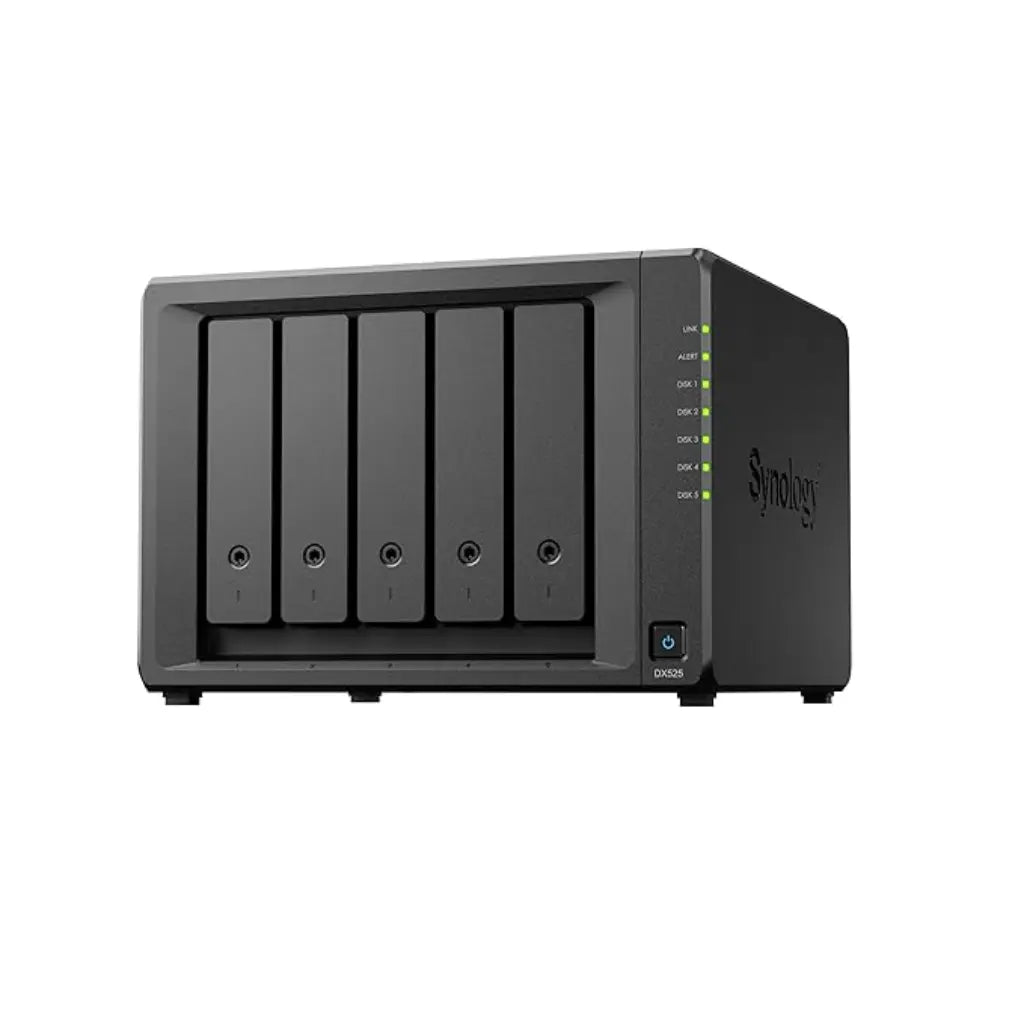

Synology DX525 5-Bay Desktop Expansion Unit (Diskless) for DiskStation
Synology DX525 5-Bay Desktop Expansion Unit (Diskless) for DiskStation
Couldn't load pickup availability

🚀 Seamless Storage Expansion: Effortlessly add 5 additional drive bays to your compatible Synology DiskStation without any system downtime.
🔌 Plug-and-Play Design: Features an easy-to-use setup with a dedicated expansion cable (USB-C), ensuring instant volume availability through DSM.
🔄 Hot-Swappable Bays: Supports both 3.5" SATA HDDs and 2.5" SATA SSDs with hot-swap capability for uninterrupted data access and maintenance.
🛡️ Reliable Backup Solution: Functions as a dedicated local backup destination when configured as a separate volume, enhancing your data redundancy.

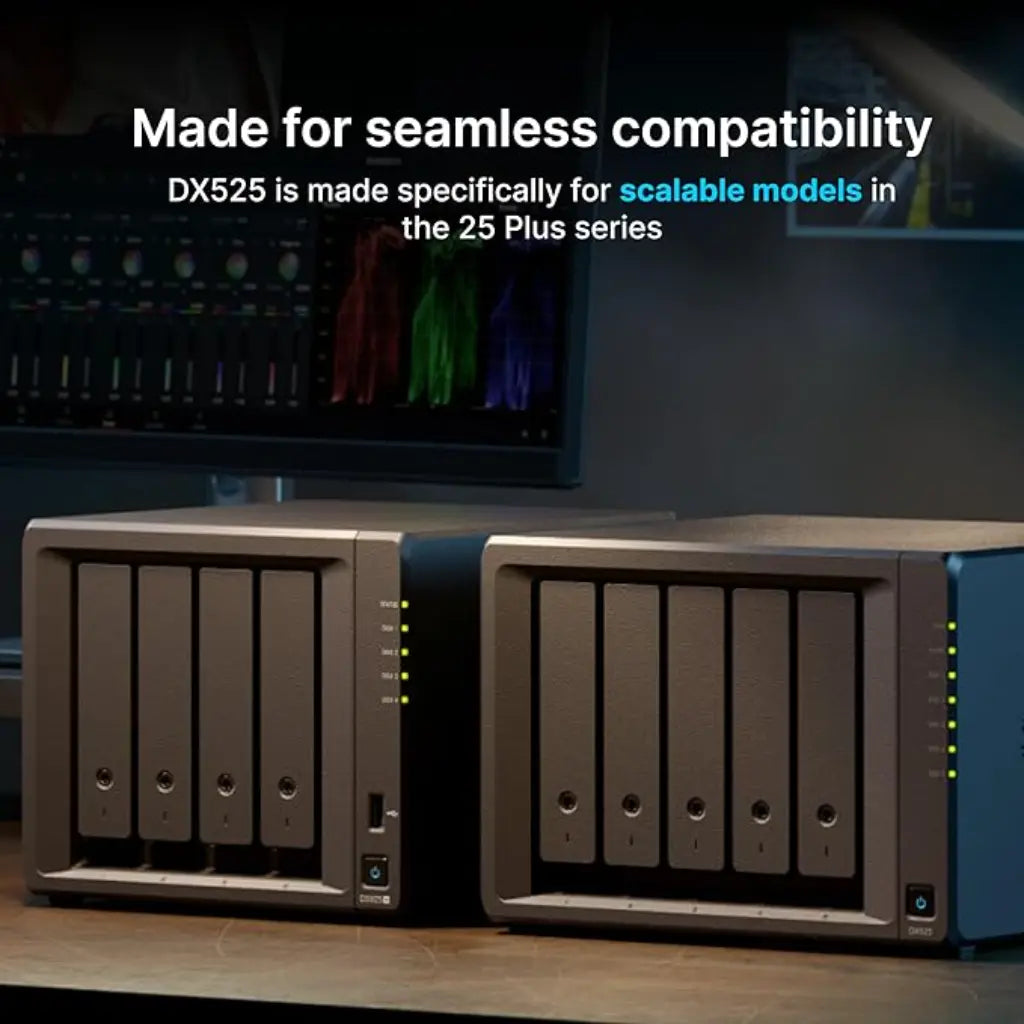

⚡ High-Performance Ready: Optimized for Synology 25-series models to deliver consistent throughput and deep hardware-software integration.
🏢 Enterprise-Grade Reliability: Backed by a 3-year hardware warranty and synchronized power management with the host NAS for energy efficiency.
Expand your storage potential effortlessly with the diskless Synology DX525. Designed specifically for Synology’s 25-series desktop models, this 5-bay expansion unit allows you to scale up your data capacity on the fly without interrupting existing services. Whether you need extra space for growing media libraries or a dedicated local backup volume, the DX525 delivers enterprise-level reliability. With its plug-and-play USB-C connectivity and synchronized power recovery, managing your expanding digital infrastructure has never been simpler or more secure.
| Product Type | NAS Expansion Unit |
| Drive Bays | 5 Bays |
| Supported Drive Size | 3.5″ SATA HDD, 2.5″ SATA HDD / SSD |
| Drive Hot Swap | Yes |
| RAID Management | Managed via Synology DSM |

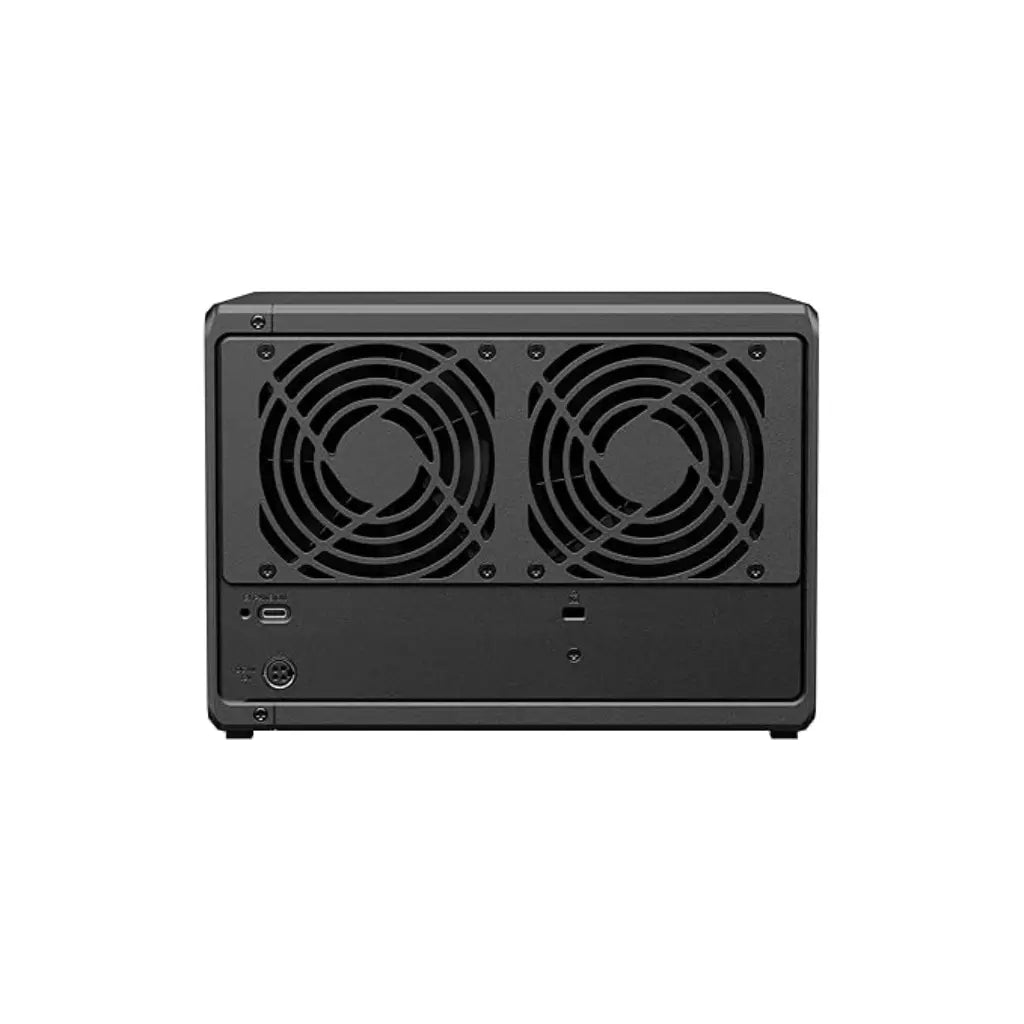

| Expansion Interface | 1 × USB‑C Expansion Port |
| Compatible Models | 25 Series: DS1825+, DS1525+, DS925+, DS725+ |
| Dimensions (H × W × D) | 166 × 230 × 223 mm |
| Power Supply | 90 W Adapter |
| Power Consumption | 35.37 W (Access), 7.0 W (HDD Hibernation) |
| Operating Temperature | 0°C to 40°C |
| Noise Level | 20.4 dB(A) |
| Certifications | FCC, CE, BSMI, UKCA, EAC, VCCI, RCM, KC, BIS |
| Country of Origin | Taiwan |
| Net Weight | 2.46 kg |
| Warranty | 3 Years Limited Hardware Warranty |
| Part Number | DX525 |
