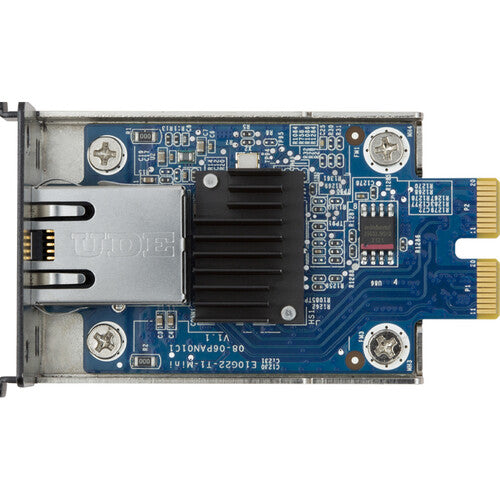

Synology E10G22-T1 Mini 10GbE RJ-45 Network Upgrade Module for Compact Synology Servers

Synology E10G22-T1 Mini 10GbE RJ-45 Network Upgrade Module for Compact Synology Servers

Brand: Synology
Rs. 17,999.00
65% off Rs. 17,999.00 Sale Sold out Rs. 50,000.00
Taxes included. Free Shipping.

Product Description:

Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. 1 Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.

Throughput
Expand system capabilities with 10GbE connectivity

Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility
Designed for maximum performance and reliability in Synology systems

Multi-gig support
Integrates easily into any network using standard Ethernet cabling. Autonegotiation automatically determines the best data rate (between 10, 5, 2.5, 1 Gbps, and 100 Mbps) for your network environment, simplifying network setup.

Model E10G22-T1-Mini
Host Bus Interface PCIe 3.0 x2
Data Transfer Rates 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Supported Features 9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
TCP Segmentation Offload (TSO)
Large Send Offload (LSO)
Receive Side Scaling (RSS)
Generic Receive Offload (GRO)
Generic Segmentation Offload (GSO)
Applied Models 23 series:DS923+, DS723+
22 series:RS422+, DS1522+
DSM version requirement 7.1.1-42962 Update 4 or later version
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Dimensions 26.37 mm x 45.38 mm x 75.7 mm
Warranty 3 Years
