Product Description:
🚀 10GbE High‑Speed Networking: Delivers blazing‑fast data transfer speeds up to 10Gbps for demanding workloads.
🔌 Standard RJ45 Ethernet Port: Uses familiar copper cabling with auto‑negotiation for 10/5/2.5/1Gbps and 100Mbps.
⚙️ PCIe 3.0 x4 Interface: Ensures high bandwidth and low latency integration with compatible Synology systems.
🧠 CPU Offloading & Load Balancing: Reduces processor workload while maintaining stable, efficient network performance.
🧩 Built for Synology NAS & Servers: Fully validated and optimized for seamless compatibility with Synology platforms.
🛡️ Enterprise‑Grade Reliability: Backed by Synology’s 5‑year limited warranty for long‑term peace of mind.

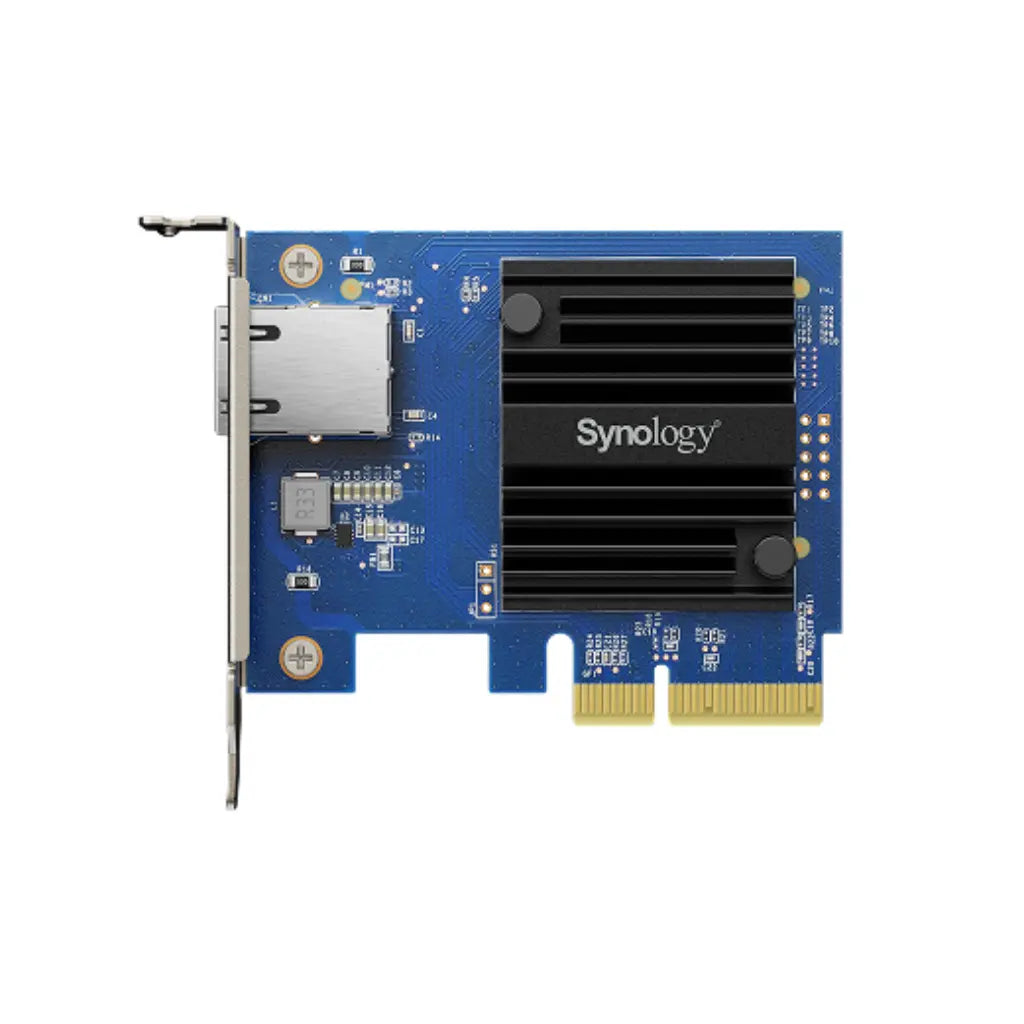

The Synology E10G30‑T1 is a single‑port 10GbE PCIe network interface card designed to dramatically enhance network performance of compatible Synology NAS and servers. Featuring RJ45 copper connectivity with auto‑negotiation support, it enables seamless upgrades to high‑speed networking without replacing existing infrastructure. With PCIe 3.0 x4 support, CPU offloading, and load balancing, the E10G30‑T1 is ideal for virtualization, backups, and high‑throughput data workloads.
| Product Type | 10GbE Network Interface Card |
| Port Configuration | 1 x 10GbE RJ45 |
| Data Transfer Rate | 10 / 5 / 2.5 / 1 Gbps, 100 Mbps |
| Network Standards | IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3x |
| Interface | PCI Express 3.0 x4 |
| Bracket Support | Low‑profile & Full‑height |
| Jumbo Frame Support | Up to 9 KB |
| Supported Features | TCP/UDP/IP Checksum Offloading, GRO, RSS |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | ‑20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Compatibility | Synology NAS & Servers (DSM 7.1.1‑42962 Update 5 or later) |
| Part Number | E10G30‑T1 |
| Country of Origin | Taiwan |
| Approximate Weight | 52 g |
| Warranty | 5 Years Limited Warranty |
