Synology E10M20-T1 M.2 SSD 10GbE Adapter Card for NAS
Synology E10M20-T1 M.2 SSD 10GbE Adapter Card for NAS
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
🚀 10GbE Network Performance: Provides up to 10 Gbps full-duplex Ethernet connectivity to increase network bandwidth on compatible Synology NAS systems.

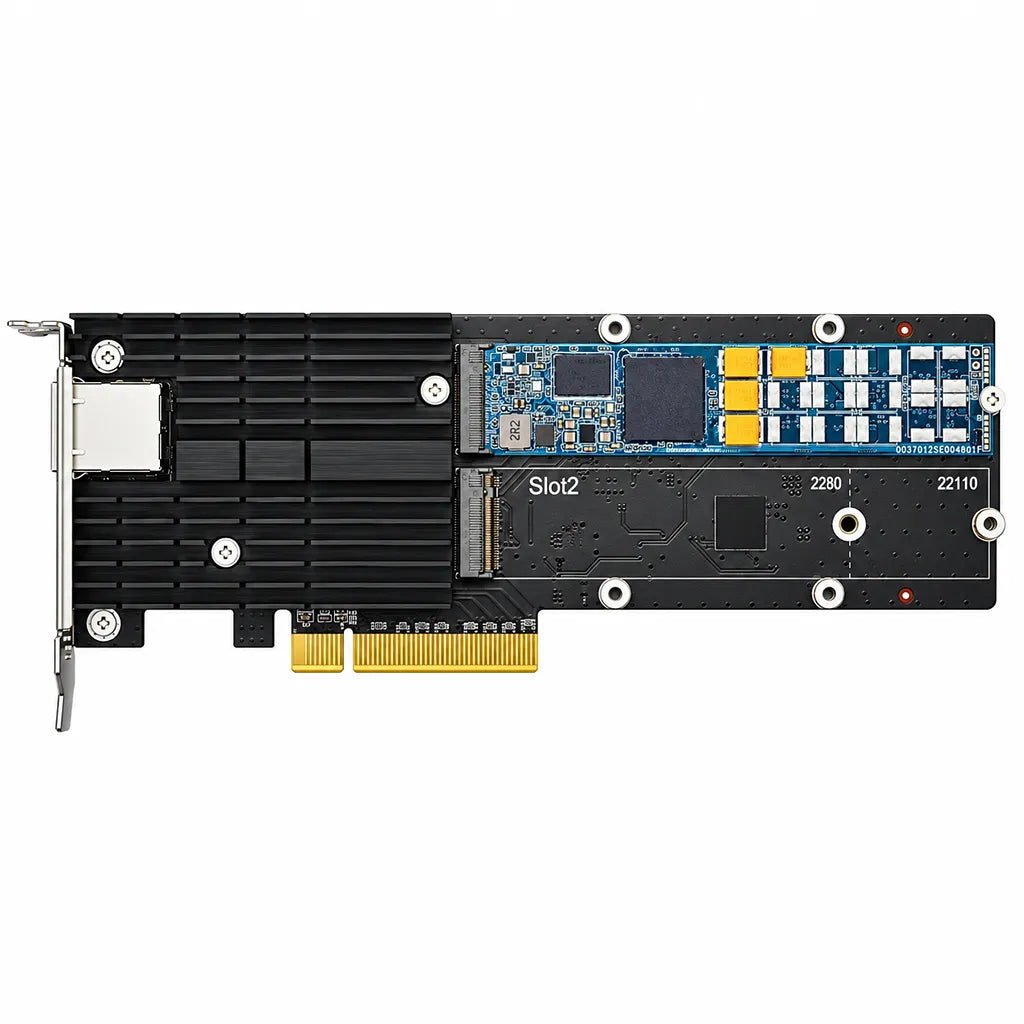

⚡ Dual M.2 NVMe Slots: Supports two M.2 2280 or 22110 NVMe SSDs for SSD cache acceleration while keeping primary drive bays available for storage.
🔌 Single PCIe Expansion Solution: Combines M.2 SSD caching and 10GbE networking through one PCIe 3.0 x8 expansion card.
🌐 Multi-Speed Ethernet Support: Supports auto-negotiation across 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps network speeds.
🛠️ Synology NAS Compatibility: Designed for selected Synology NAS models and supports DSM 6.2.3-25426 or later, with specific models requiring DSM 7.0.1 or later.

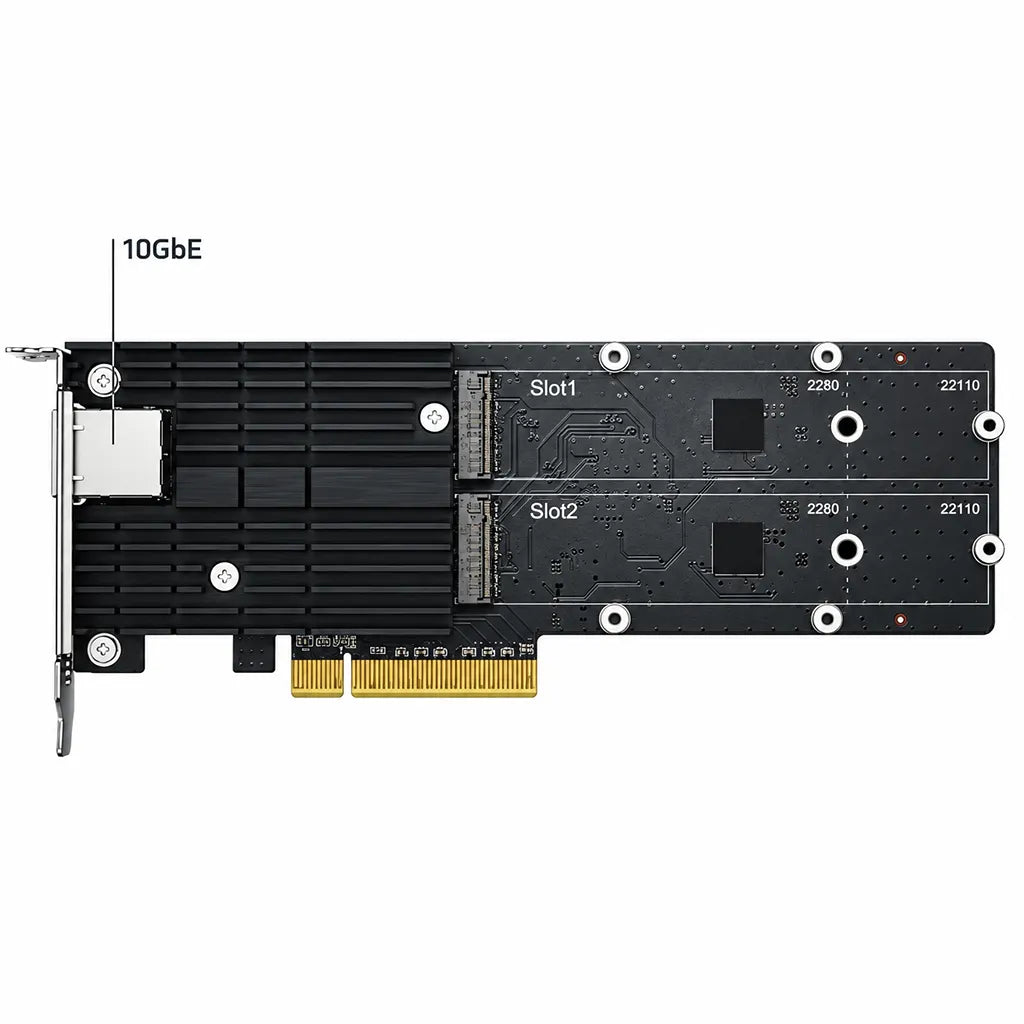

The Synology E10M20-T1 is an M.2 SSD and 10GbE combo adapter card designed to improve both NAS network bandwidth and I/O responsiveness. It features two M.2 NVMe SSD slots supporting 2280 and 22110 form factors, along with 10GbE connectivity through a PCIe 3.0 x8 interface. It is suitable for compatible Synology NAS deployments requiring faster networking and dedicated SSD cache acceleration.
Product Specifications:| Brand | Synology |
| Model | E10M20-T1 |
| Product Type | M.2 SSD & 10GbE Combo Adapter Card |
| Host Bus Interface | PCIe 3.0 x8 |
| Network Interface | 10GbE |
| Network Connector | RJ45 Copper |
| Supported Network Speeds | 100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps |
| Network Operation Mode | Full Duplex |
| Storage Interface | PCIe NVMe |
| M.2 Slots | 2 |
| M.2 Connector | M-Key |
| Supported M.2 Form Factors | 2280 / 22110 |
| Compatible SSD | Synology SNV3000 Series NVMe SSD |
| Supported Features | 9 KB Jumbo Frame, TCP/UDP/IP Checksum Offloading, TSO, LSO, RSS, GRO, GSO |
| Bracket Height | Low Profile / Full Height |
| Dimensions | 71.75 x 200.05 x 17.70 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5% to 95% RH |
| DSM Requirement | DSM 6.2.3-25426 or later |
| Warranty | 5 Years Manufacturer's Warranty |
