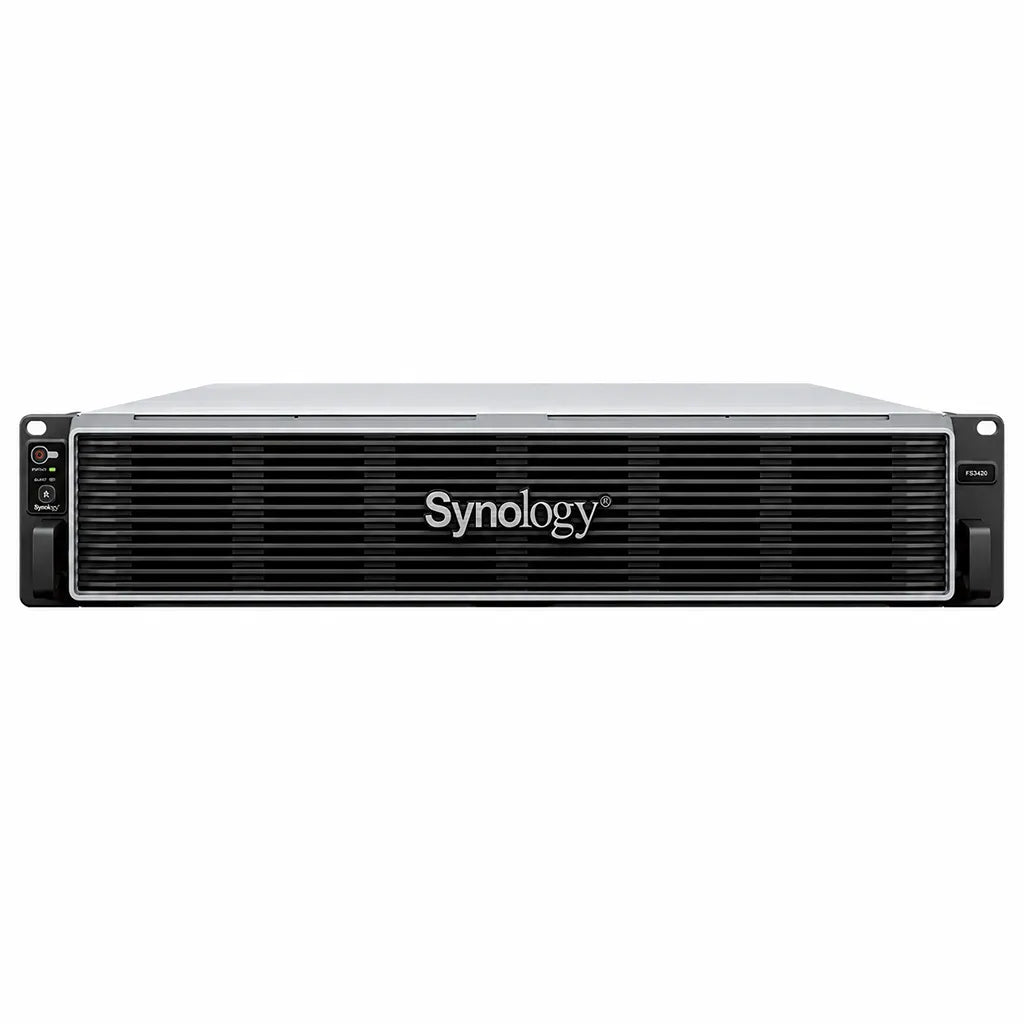

• Synology FS3420 24-Bay All-Flash Rackmount NAS front view with premium enterprise storage chassis -tpstech.in

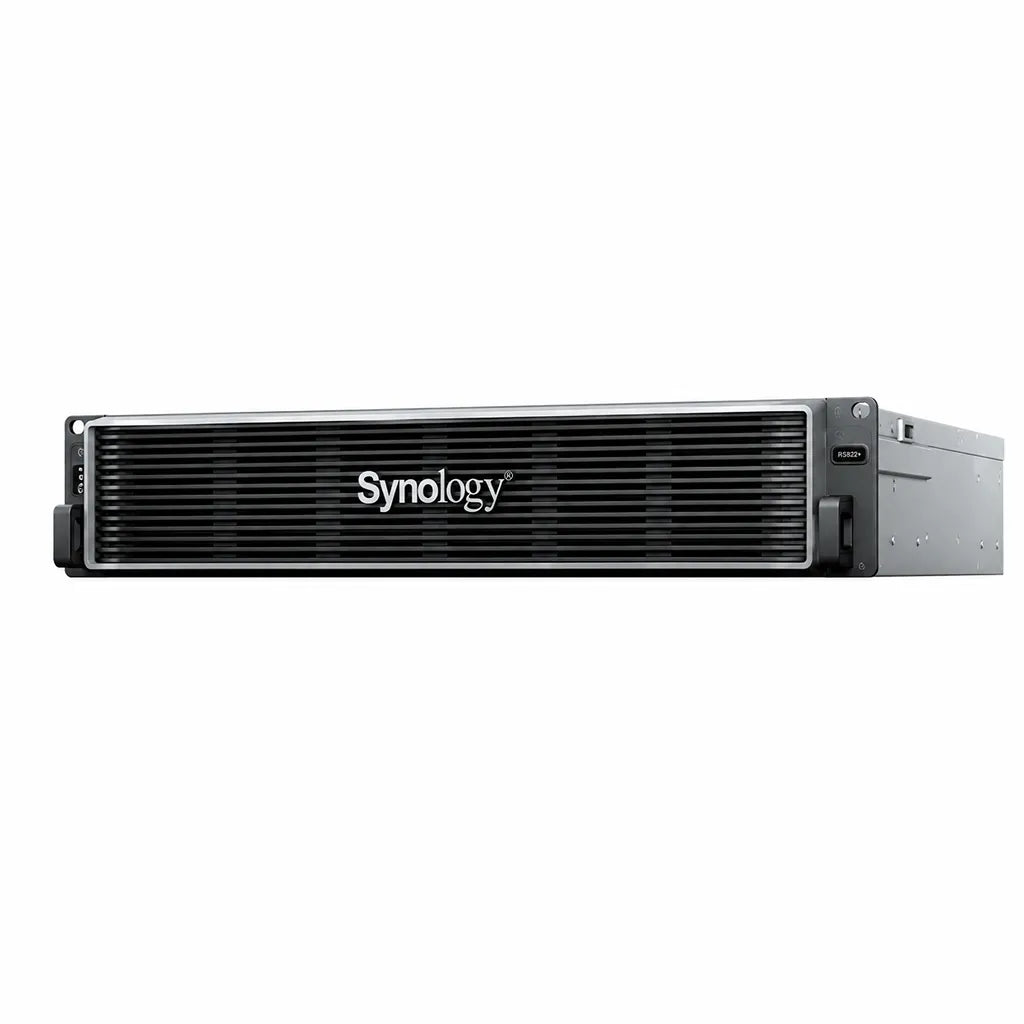

  • Synology FS3420 24-Bay All-Flash Rackmount NAS right front angle view with enterprise SSD storage design -tpstech.in

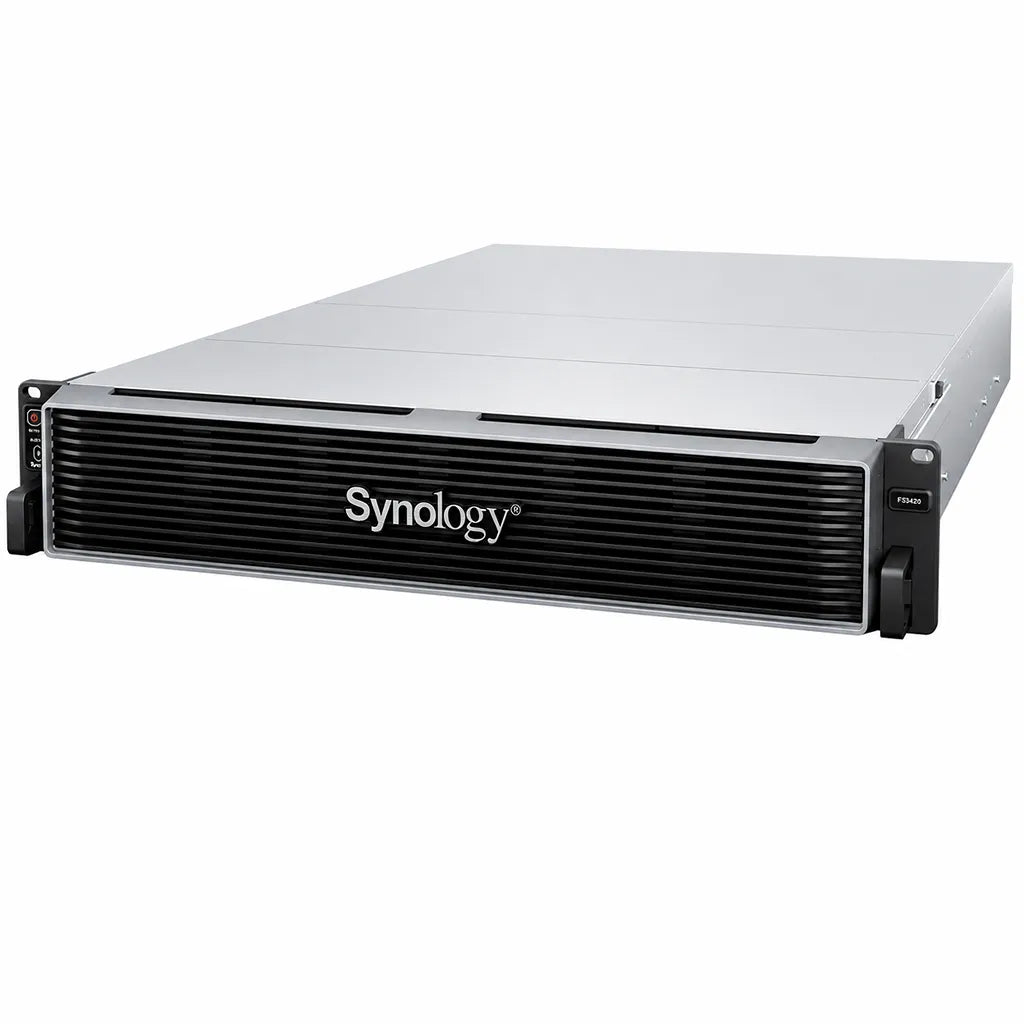

  • Synology FS3420 24-Bay All-Flash Rackmount NAS front left perspective for enterprise storage solutions -tpstech.in

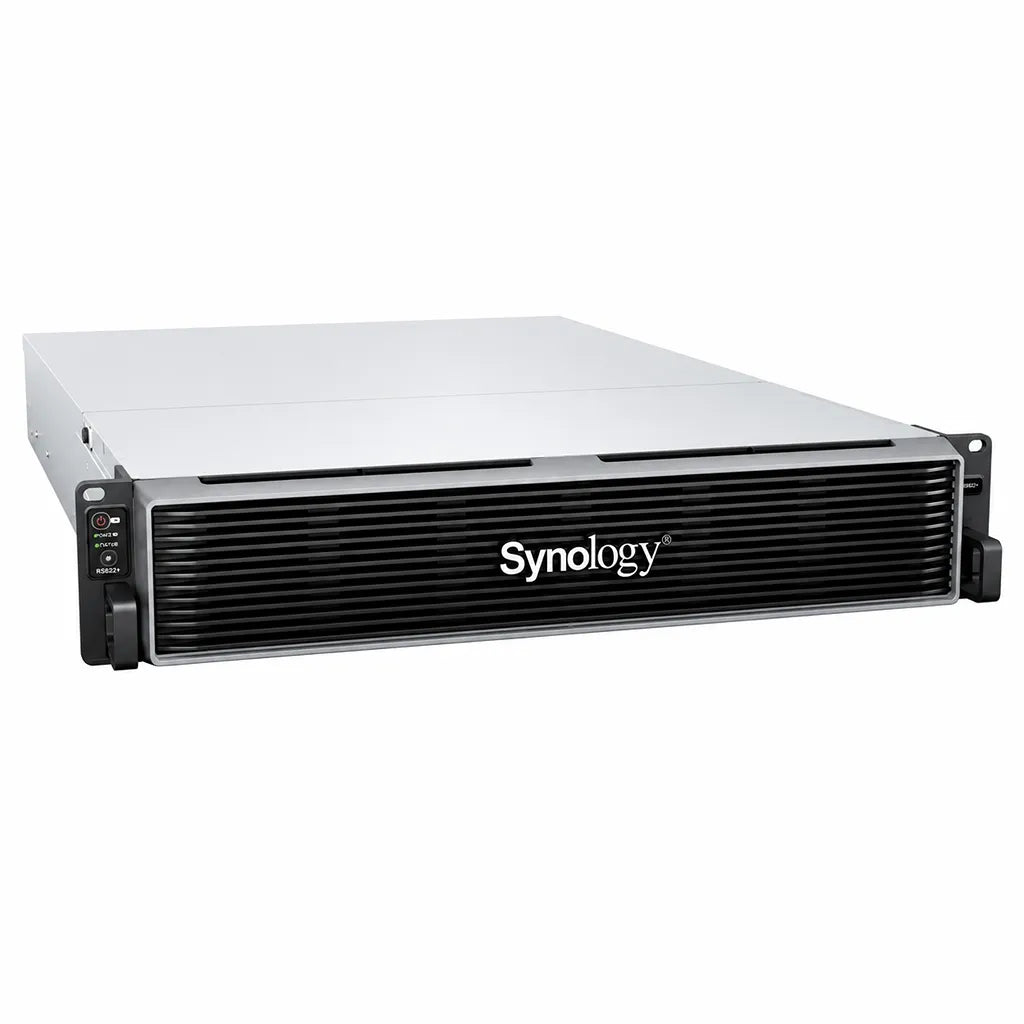

  • Synology FS3420 24-Bay All-Flash Rackmount NAS front right angle showing compact 2U enterprise chassis -tpstech.in

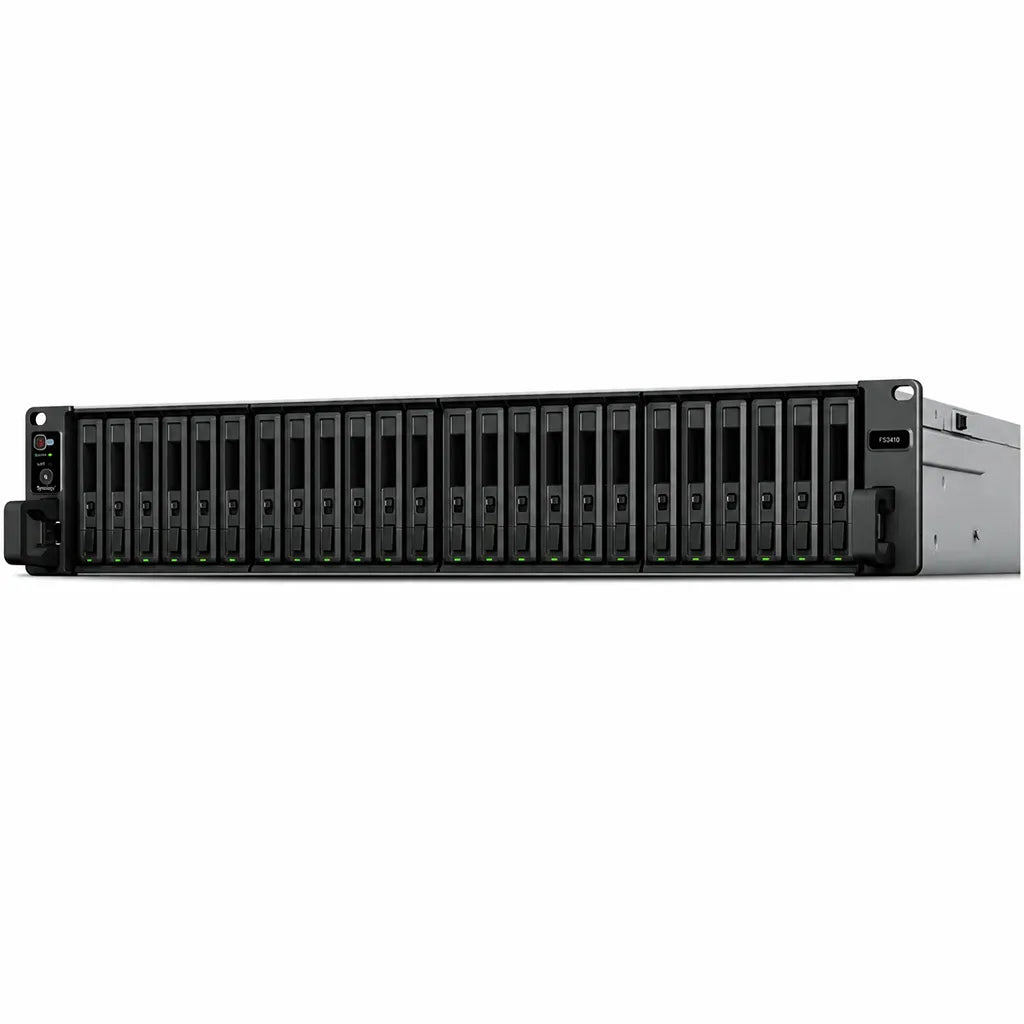

  • Synology FS3420 24 hot-swappable SATA SSD drive bays front view for enterprise NAS storage -tpstech.in

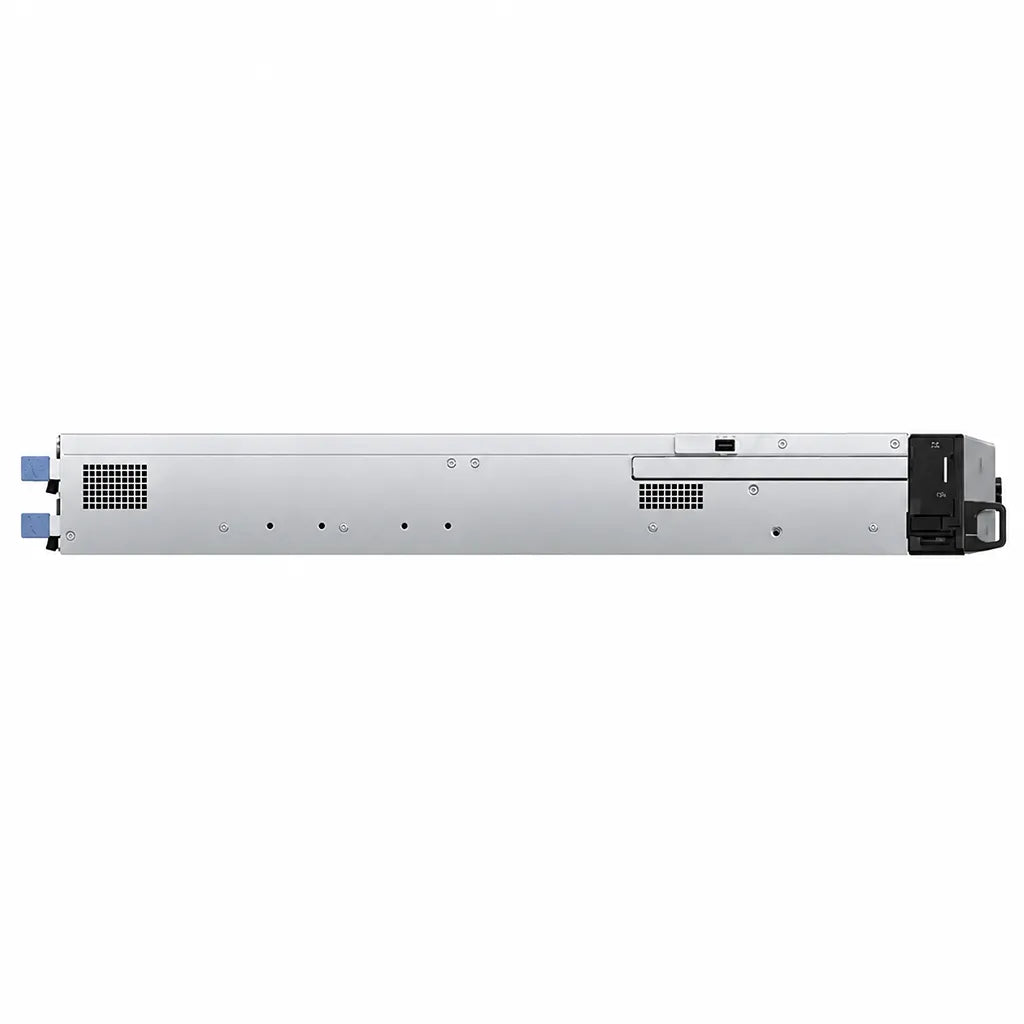

  • Synology FS3420 2U Rackmount NAS side profile showing enterprise metal chassis and rackmount design -tpstech.in
1 6

Synology FS3420 24-Bay All-Flash NAS for High-IOPS Enterprise Storage

Synology FS3420 24-Bay All-Flash NAS for High-IOPS Enterprise Storage

Brand: Synology
Get Price on WhatsApp

Or on email sales@tpstech.in


Product Description:

📦 24-Bay All-Flash Storage Store and manage large business datasets with 24 hot-swappable SATA SSD bays, making upgrades and drive replacement quick and hassle free.

👥 Built for Growing Organizations Supports up to 10,240 local user accounts and 512 shared folders, making it ideal for businesses with large teams and centralized file management.

⚡ Enterprise Performance & Expansion Powered by an 8-core Intel Xeon processor with expandable memory up to 192GB and dual PCIe Gen4 slots for future networking upgrades.

🛡️ Reliable Data Protection Protect critical business data with RAID support, Snapshot Replication, Hyper Backup, immutable snapshots, and redundant power supplies for maximum uptime.

🌐 Ready for Modern IT Environments Dual 10GbE connectivity and certified support for VMware, Microsoft Hyper-V, Citrix XenServer, and OpenStack make deployment easy in virtualized environments.

🎯 Ideal for Large enterprises, virtualization infrastructure, business-critical databases, VDI environments, backup servers, private cloud deployments, and organizations that require high-speed all-flash storage with enterprise-grade reliability.

The Synology FS3420 is a 24-bay all-flash rackmount NAS built for businesses that need fast, reliable, and always-available storage. It supports up to 24 SATA SSDs, 192GB ECC memory, 10,240 user accounts, and multiple RAID configurations to handle growing business demands with confidence. With dual 10GbE networking, enterprise virtualization support, advanced backup tools, and built-in data protection, the FS3420 is an excellent choice for virtualization, centralized file storage, business applications, databases, and secure enterprise backup environments.

Product Specifications:

Specification Details
Brand Synology
Model FS3420
Product Type 24-Bay All-Flash Rackmount NAS
System Memory 32 GB DDR4 ECC RDIMM
Processor Intel Xeon D-1739
CPU Quantity 1
CPU Cores 8
CPU Threads 16
CPU Architecture 64-bit
Processor Frequency 3.0 GHz (Base), up to 3.5 GHz (Turbo)
System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 1 × 32 GB DDR4 ECC RDIMM
Total Memory Slots 6
Maximum Memory Capacity 192 GB (6 × 32 GB DDR4 ECC RDIMM)
Drive Bays 24
Hot Swappable Drive Yes
Form Factor 2U Rackmount
Drive Bays 24
Drive Type 24 × 2.5-inch SATA SSD
Maximum Drive Bays 24
Maximum Local User Accounts 10,240
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Maximum Single Volume Size 1 PB (under supported conditions)
Maximum Internal Volume Number 32
RAID Support RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Network Ports 2 × 10GbE RJ-45, 1 × Out-of-Band Management LAN
PCIe Expansion 2 × PCIe Gen4 x8 Slots (x8 Link)
USB Ports 2 × USB 3.2 Gen 1
Power Supply Dual Redundant Power Supplies (100–240V AC, 50/60Hz)
Dimensions (H × W × D) 88 × 482 × 724 mm
Operating System Synology DiskStation Manager (DSM)
Part Number FS3420
Country of Origin Taiwan
Net Weight 15.0 kg
Warranty 5 Years Manufacturer Warranty
