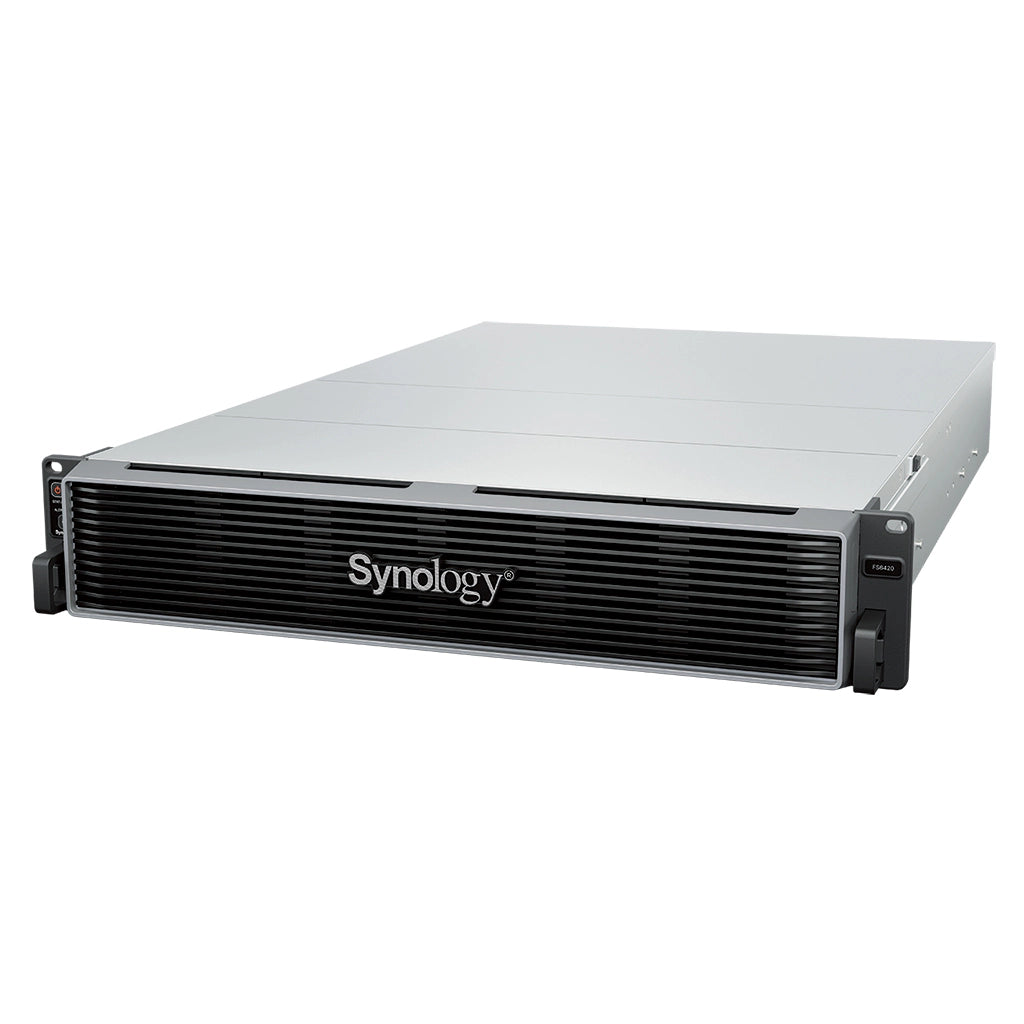

• Synology FS6420 24-bay all-flash rackmount NAS front angled view with enterprise storage chassis for virtualization and business data storage -tpstech.in

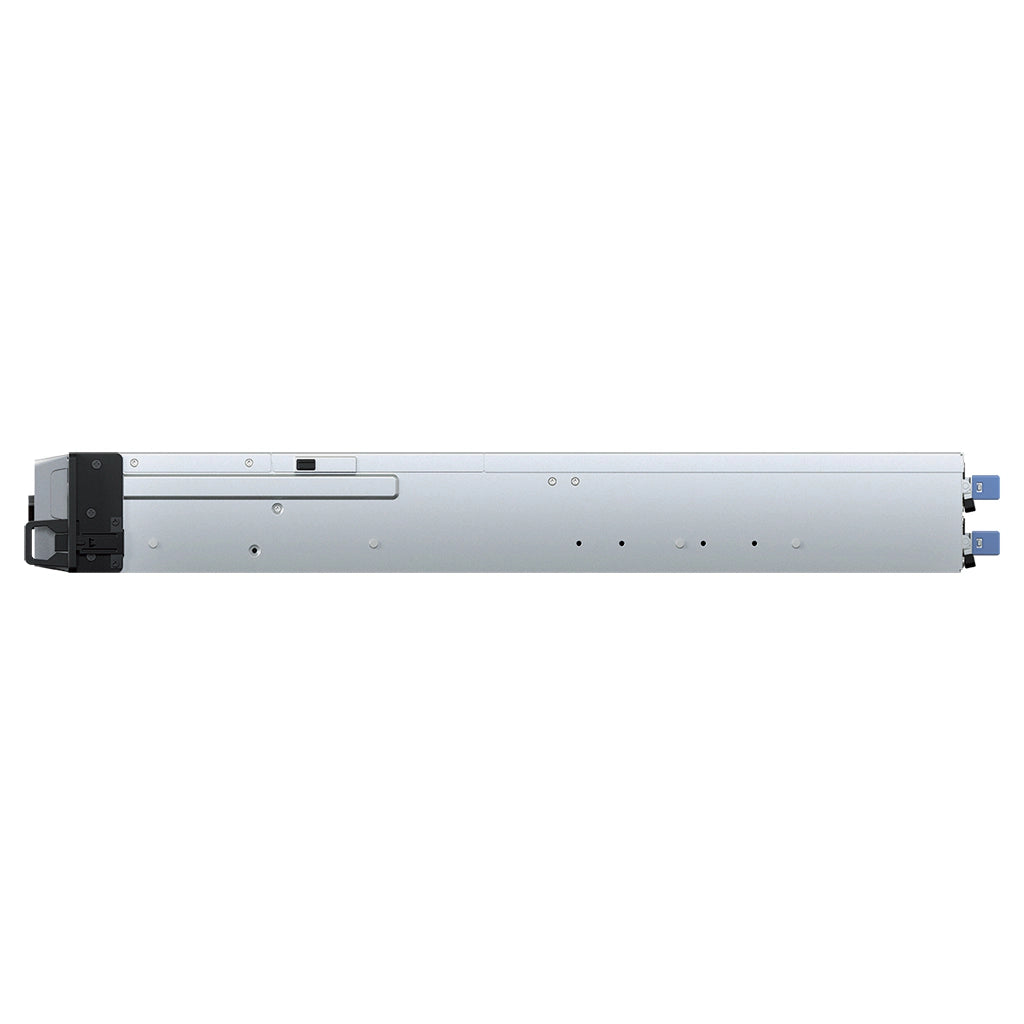

  • Synology FS6420 enterprise 24-bay all-flash NAS left side profile showing 2U rackmount design -tpstech.in

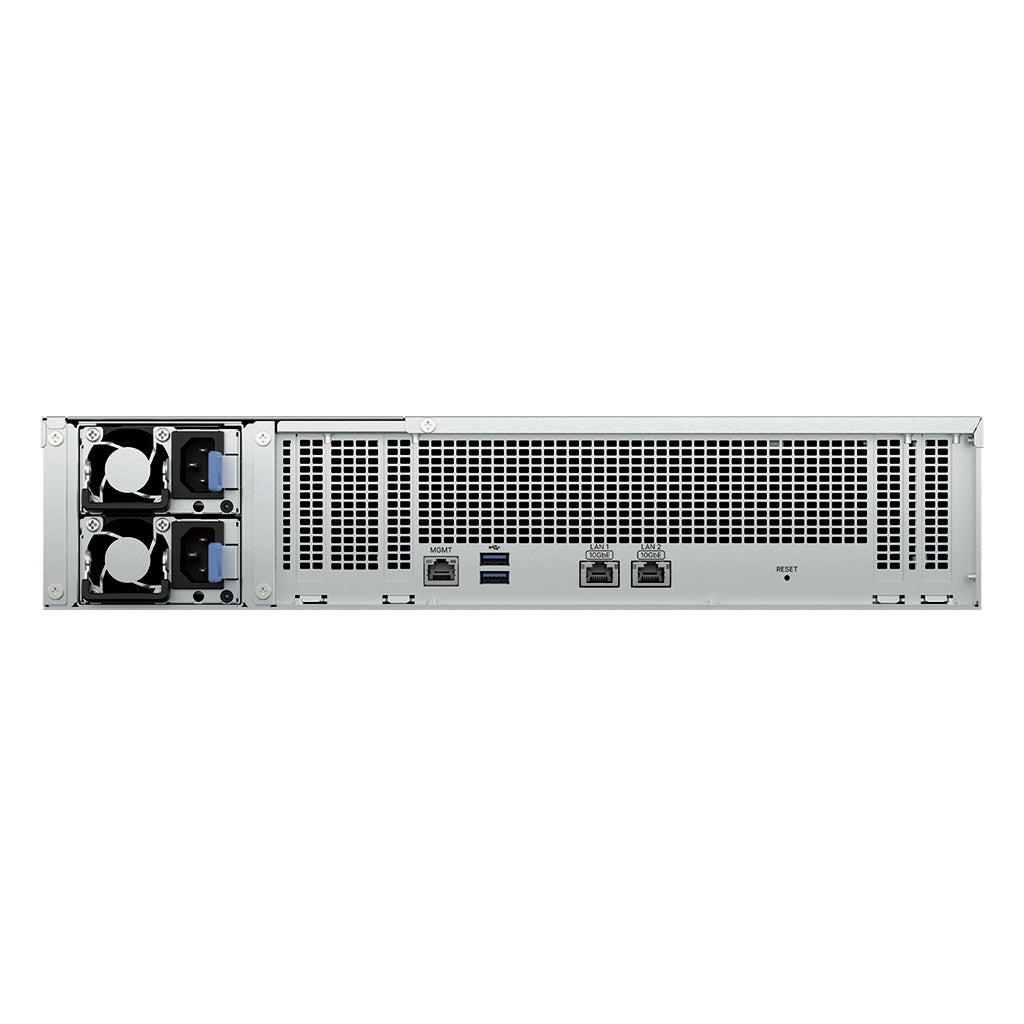

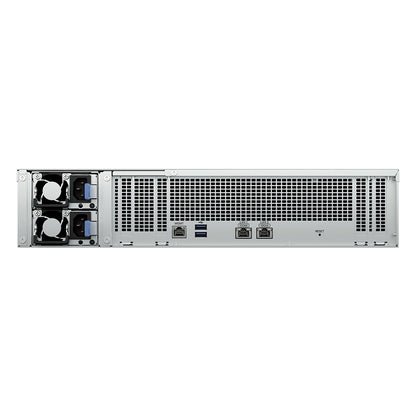

  • Rear view of Synology FS6420 all-flash rackmount NAS featuring dual 10GbE ports, management LAN, USB ports, and redundant power supplies -tpstech.in

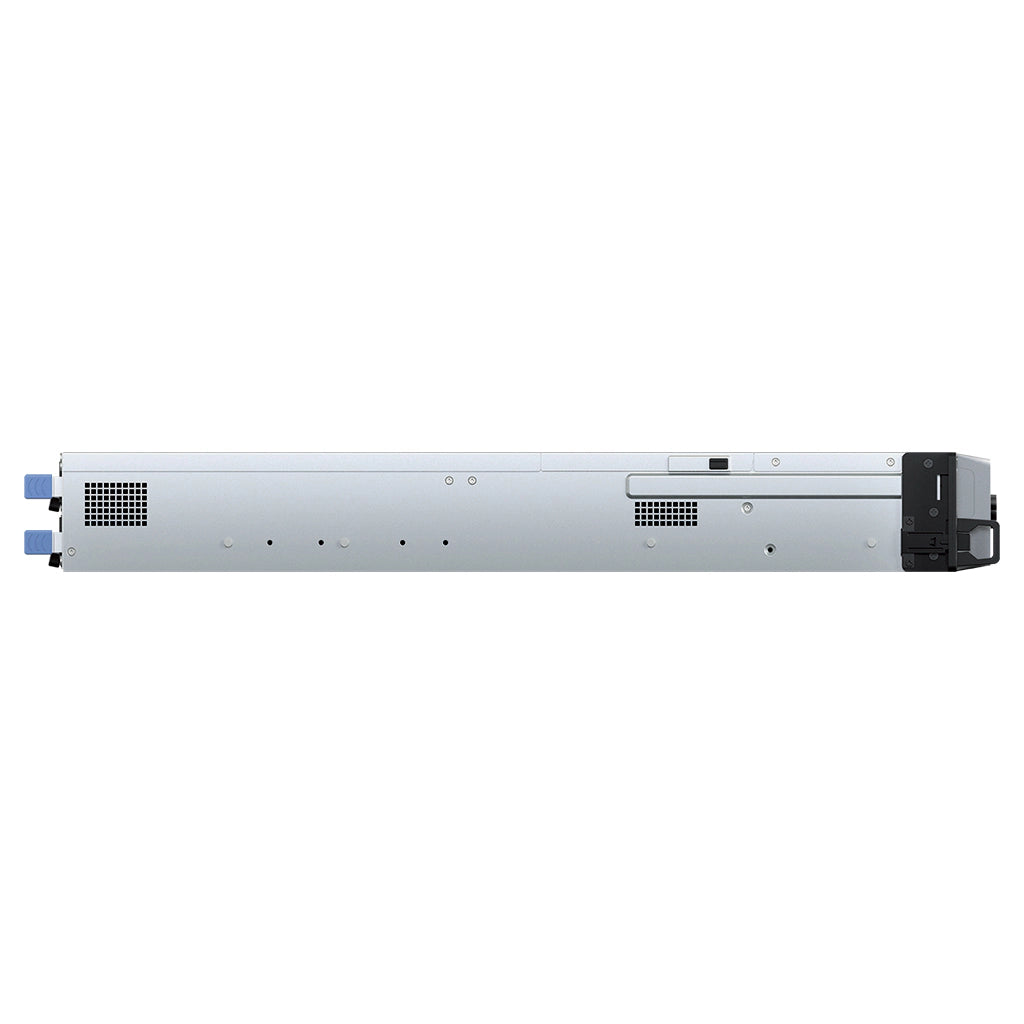

  • Synology FS6420 24-bay all-flash NAS right side view showing enterprise 2U rackmount enclosure -tpstech.in

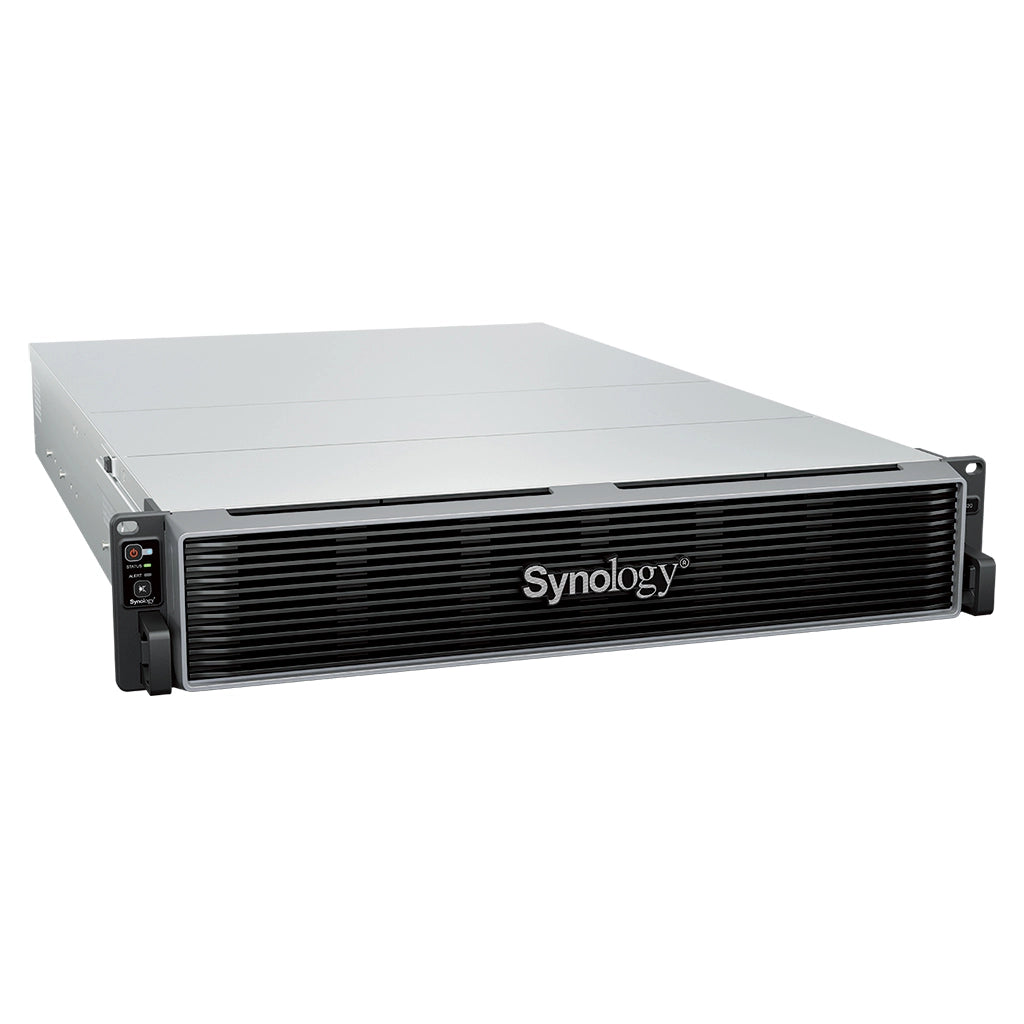

  • Synology FS6420 enterprise all-flash rackmount NAS front perspective designed for business storage and virtualization workloads -tpstech.in

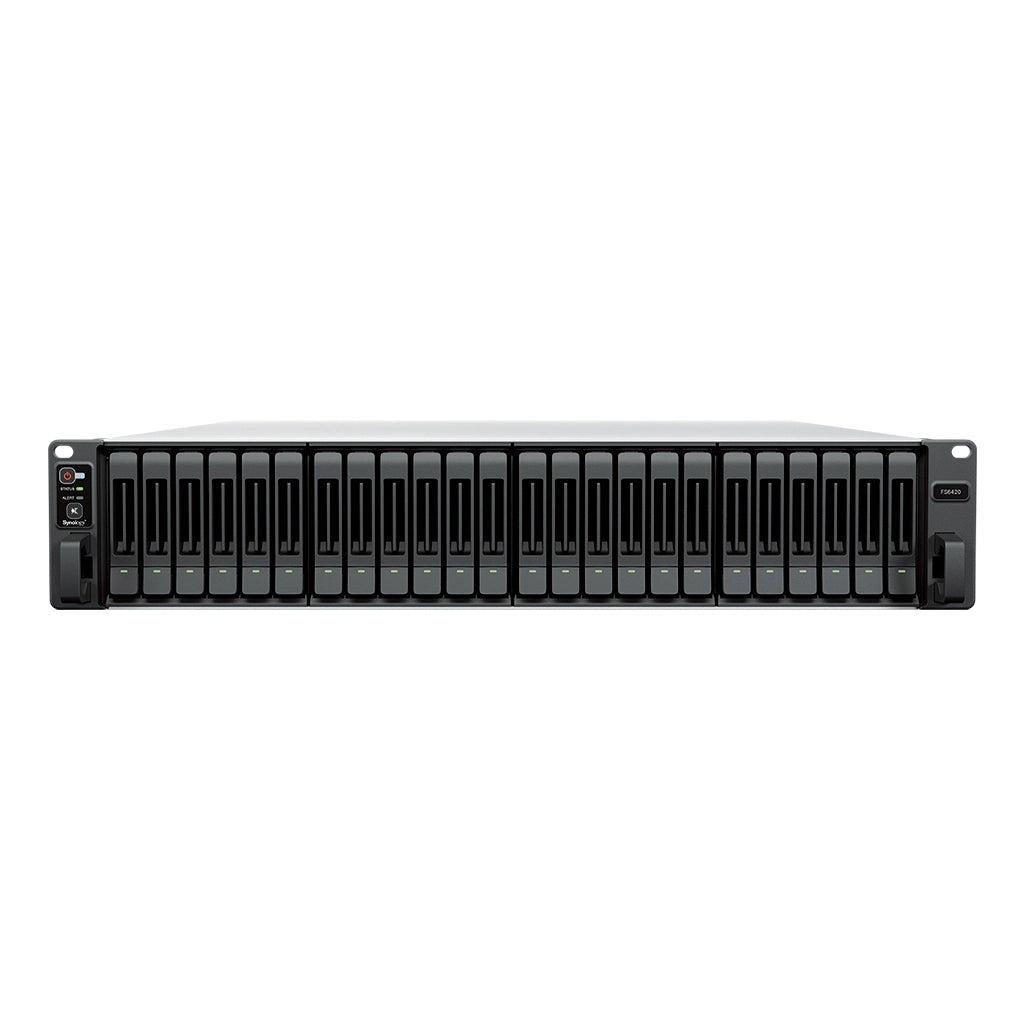

  • Synology FS6420 24-bay SATA SSD rackmount NAS front view displaying hot-swappable drive bays for enterprise storage -tpstech.in

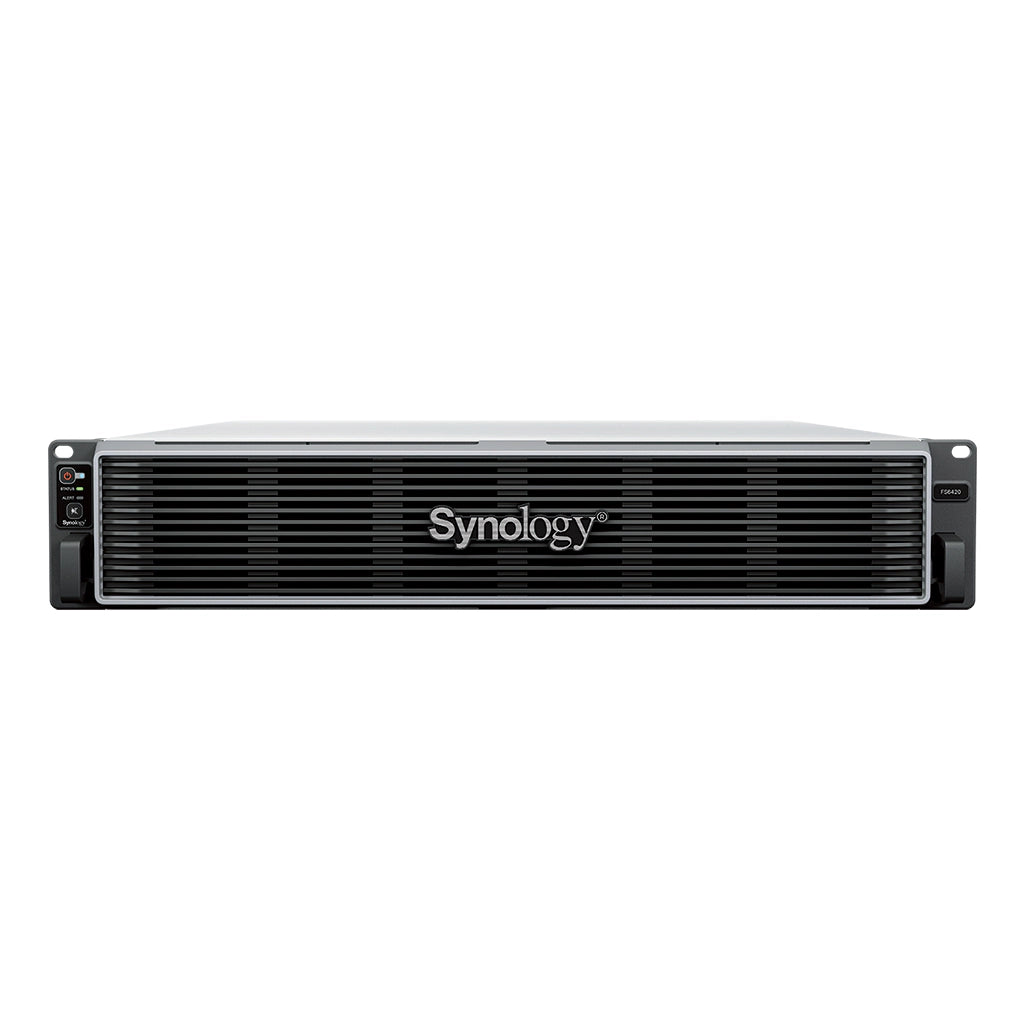

  • Front panel of Synology FS6420 24-bay all-flash rackmount NAS with enterprise-grade storage enclosure -tpstech.in
1 7

Synology FS6420 24-Bay All Flash Rackmount NAS Storage

Synology FS6420 24-Bay All Flash Rackmount NAS Storage

Brand: Synology
Get Price on WhatsApp

Or on email sales@tpstech.in


Product Description:

📦 24-Bay Enterprise Storage Supports up to 24 x 2.5-inch SATA SSDs, giving businesses a high-capacity all-flash platform for fast, centralized data storage.

👥 Built for Large Organizations Supports up to 15,360 local user accounts and 10,000 simultaneous SMB connections, making it ideal for growing teams and enterprise file sharing.

🛡️ Reliable Business Protection Hot-swappable drives, redundant power supplies, Snapshot Replication, and Synology High Availability help keep your data and services available.

🖥️ Ready for Virtualization Certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack, making it an excellent choice for virtual machine storage.

🏢 Ideal For Medium to large enterprises, virtualization environments, databases, VDI, business-critical applications, and organizations that need high-speed all-flash storage with continuous availability.

The Synology FS6420 is a 24-bay all-flash rackmount NAS built for organizations that need dependable, high-performance storage for business-critical operations. It supports 24 SATA SSDs, up to 1TB ECC memory, dual 10GbE networking, and PCIe expansion for future growth. With enterprise features such as Snapshot Replication, Synology High Availability, virtualization certification, and intelligent storage tiering, the FS6420 is an excellent solution for virtualization, databases, file sharing, backup, and modern enterprise workloads where speed, uptime, and data protection are essential.

Product Specifications:
Specification Details
Brand Synology
Model FS6420
Product Type 24-Bay All-Flash Rackmount NAS
System Memory 64GB DDR4 ECC RDIMM
Processor AMD EPYC 7303
CPU Quantity 1
CPU Cores 16
CPU Threads 32
CPU Architecture 64-bit
Processor Frequency 2.4 GHz (Base), Up to 3.4 GHz (Turbo)
System Memory 64GB DDR4 ECC RDIMM
Memory Module Pre-installed 64GB (1 × 64GB)
Total Memory Slots 16
Maximum Memory Capacity 1024GB (16 × 64GB)
Drive Bays 24
Maximum Drive Bays with Expansion Unit Not Supported
Hot Swappable Drive Yes
Form Factor 2U Rackmount
Drive Bays 24 x 2.5-inch
Drive Type 2.5-inch SATA SSD
Maximum Drive Bays 24
Maximum Local User Accounts 15,360
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Maximum Single Volume Size Up to 1PB (RAID 6 configuration)
Maximum Internal Volume Number 32
RAID Support RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Network Ports 2 × 10GbE RJ45, 1 × Out-of-Band Management LAN
PCIe Expansion 2 × PCIe Gen4 x16 Slots
USB Ports 2 × USB 3.2 Gen 1
Expansion Port None
Power Supply Dual Redundant 550W Power Supplies
Noise Level 53.0 dB(A)
Dimensions (H × W × D) 88 × 482 × 724 mm
Operating System Synology DiskStation Manager (DSM)
Part Number FS6420
Country of Origin Verify with supplier before publishing.
Net Weight 15.5 kg
Warranty 5 Years Limited Warranty
