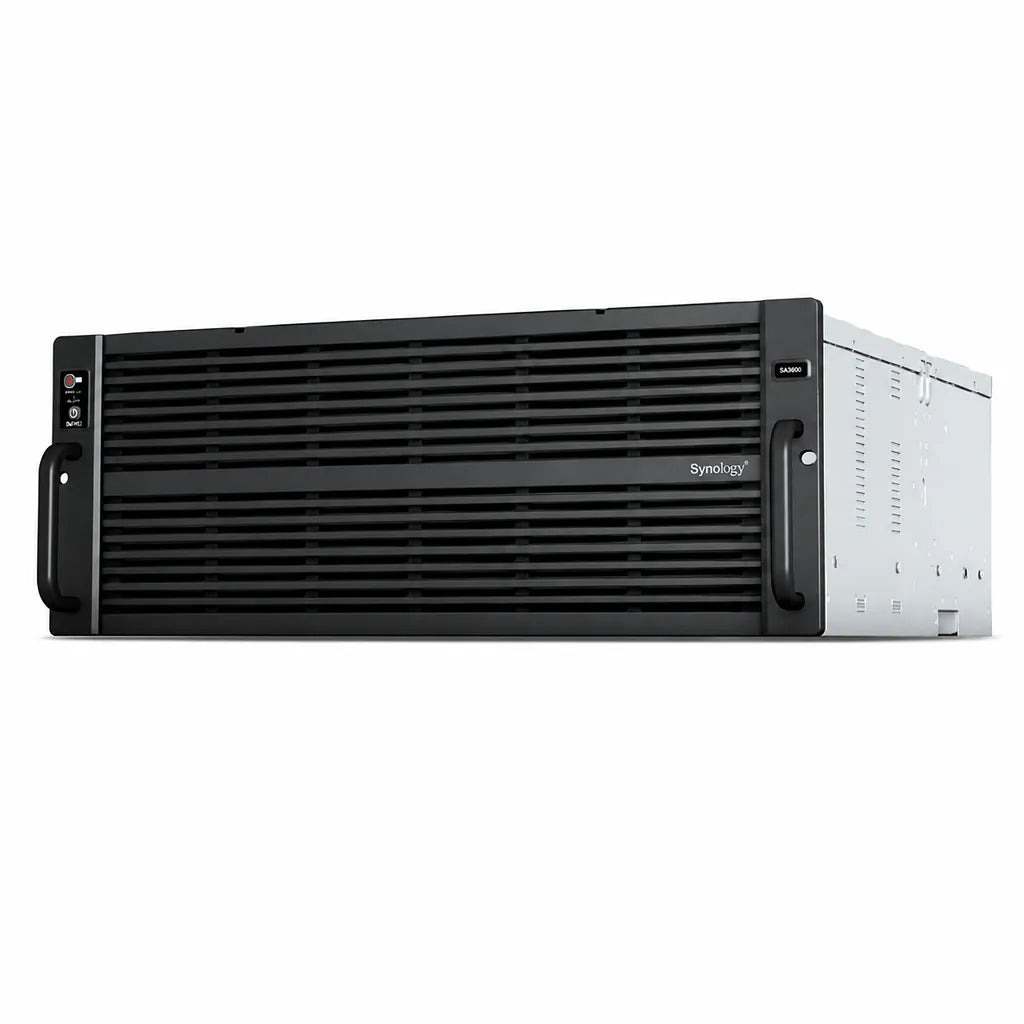

  • Synology SA6400 4U rackmount NAS front view designed for enterprise storage and centralized data management -tpstech.in

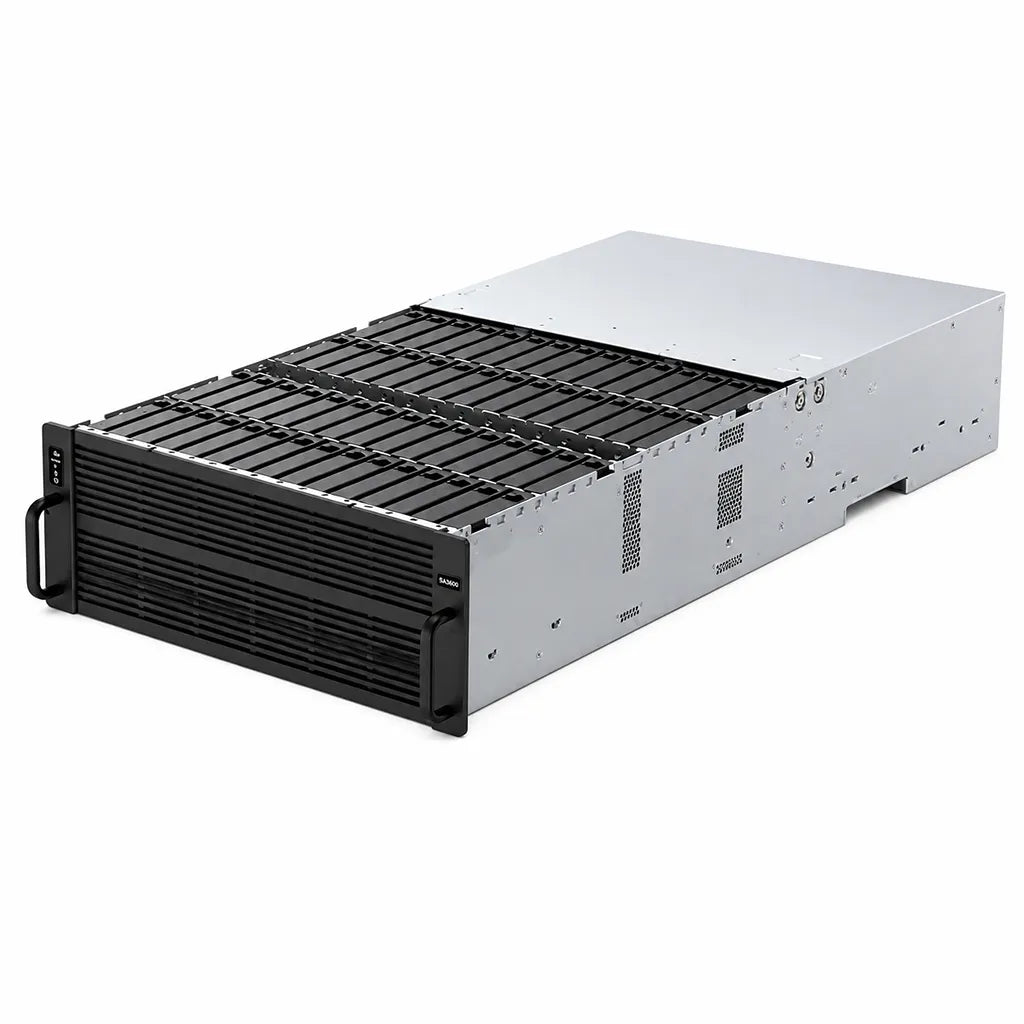

  • Synology SA6400 rackmount NAS top perspective showing high-density drive bay configuration for enterprise storage -tpstech.in

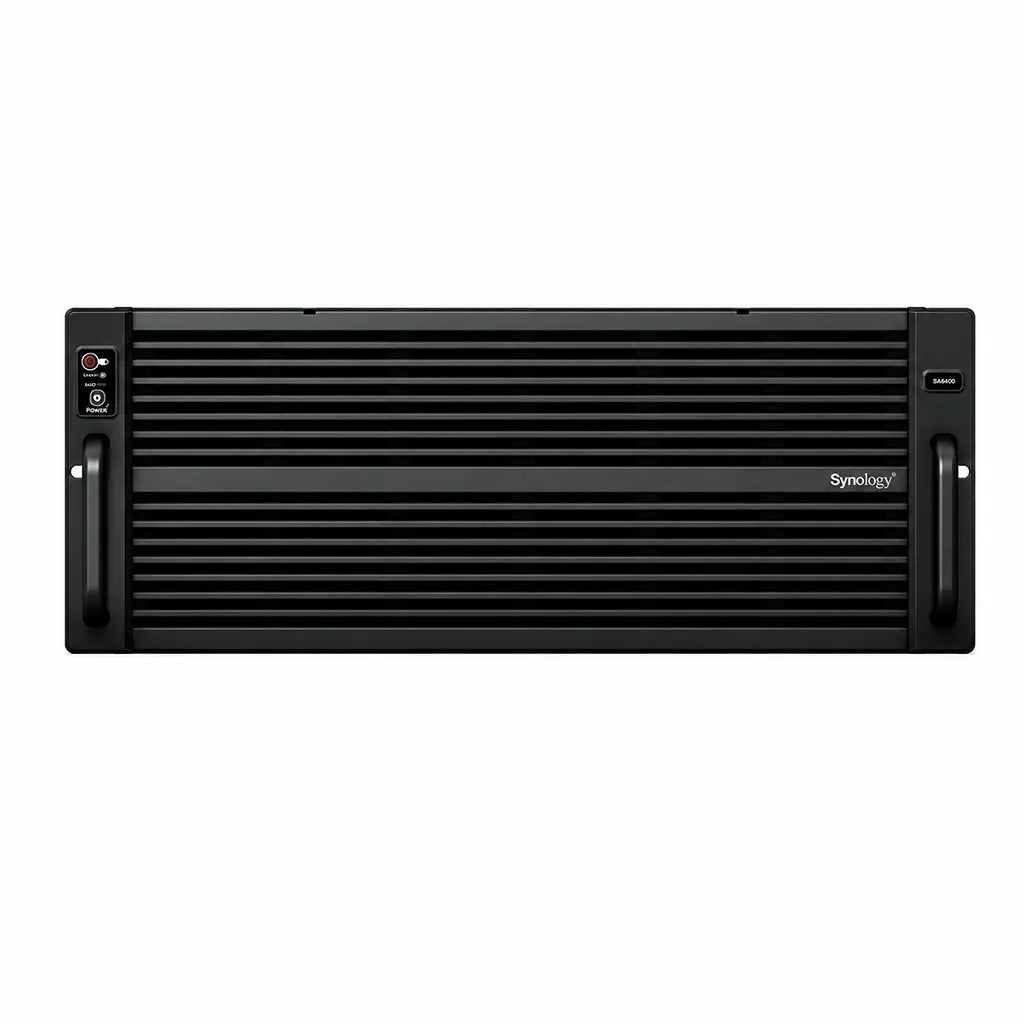

  • Synology SA6400 enterprise rackmount NAS straight front view with professional 4U server chassis -tpstech.in

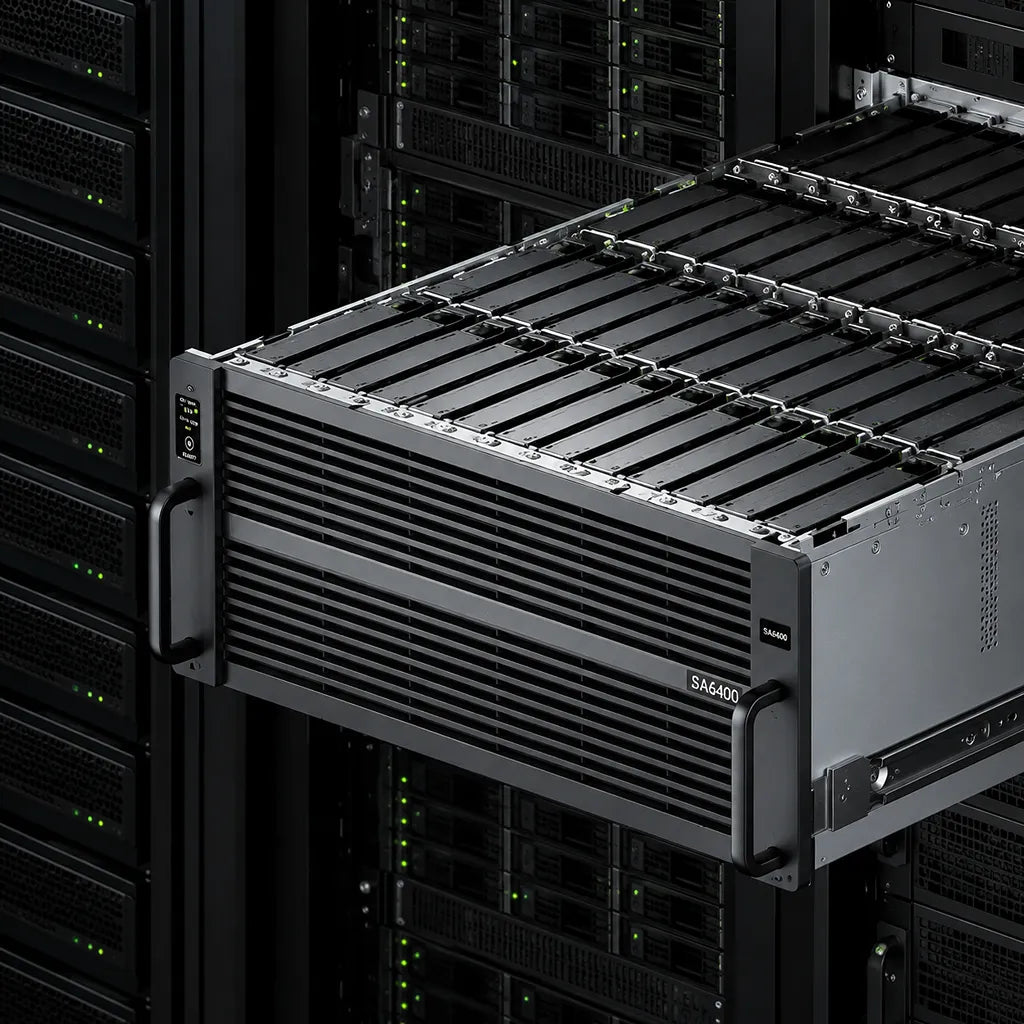

  • Synology SA6400 enterprise rackmount NAS installed in a server rack for scalable business data storage -tpstech.in

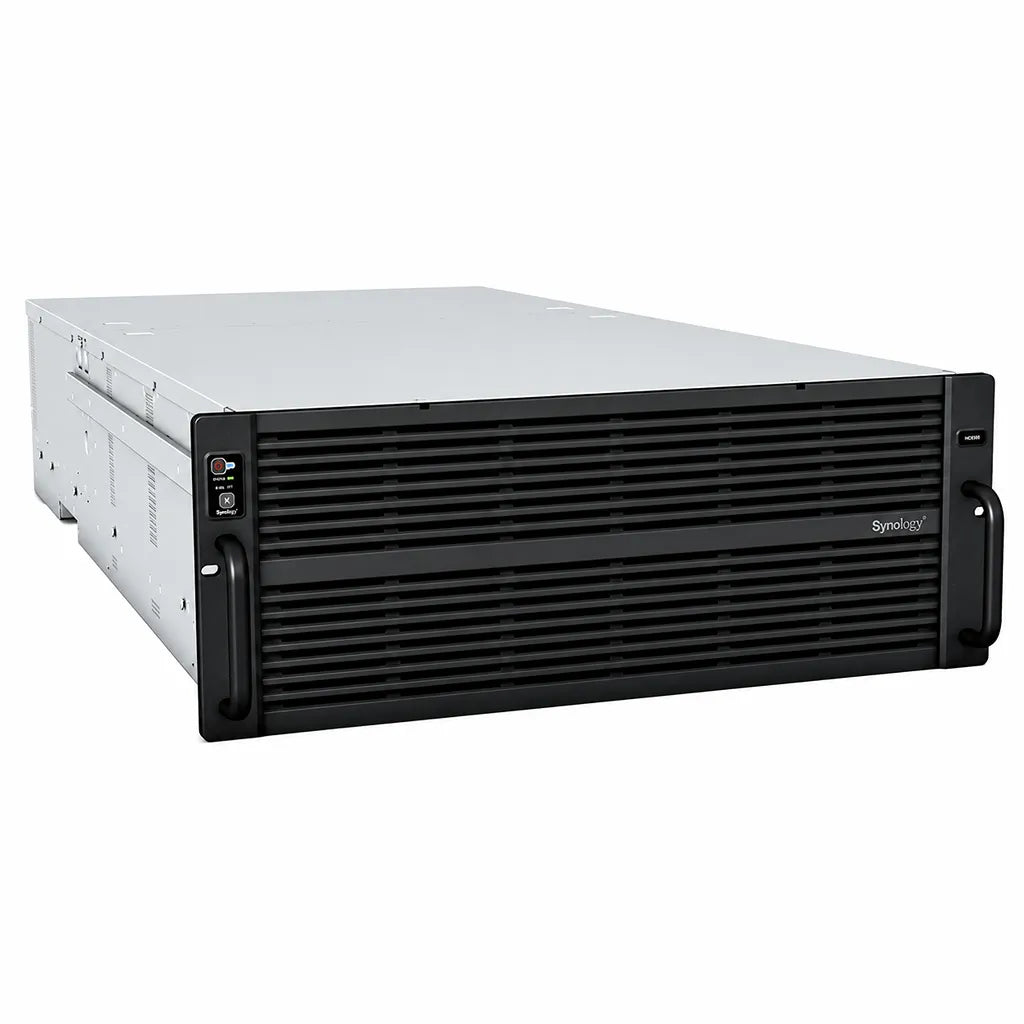

  • Synology SA6400 4U rackmount NAS front right angle view for enterprise backup and centralized storage -tpstech.in
1 6

Synology HD6500 High Density Rackmount NAS Storage Server

Synology HD6500 High Density Rackmount NAS Storage Server

Brand: Synology
Get Price on WhatsApp

Or on email sales@tpstech.in


Product Description:

🚀 Scale Without Limits Start with 60 drive bays and expand up to 300 bays to keep pace with growing business data.

👥 Built for Large Teams Supports up to 15,360 user accounts and 10,000 SMB connections, making it ideal for enterprise-wide file access.

🛡️ Reliable Data Protection Btrfs, Snapshot Replication, and Active Backup Suite help protect important business data from accidental loss and ransomware.

⚡ Ready for Heavy Workloads Delivers over 6,500 MB/s sequential read and 6,800 MB/s sequential write performance for demanding storage applications.

🏢 Best Suited for Ideal for enterprises, data centers, virtualization, centralized backups, large surveillance deployments, and multi-petabyte storage environments.

The Synology HD6500 is a high-density enterprise NAS designed for organizations that need reliable, scalable storage for rapidly growing data. With 60 drive bays, expandable capacity up to 300 drives, and support for 15,360 users and 10,000 SMB connections, it easily handles large business workloads. Built-in data protection, centralized backup, virtualization support, and high-speed networking make it a dependable choice for data centers, enterprise file storage, surveillance, and long-term archive management.


Product Specifications:

Specification Details
Brand Synology
Model HD6500
Product Type High Density Rackmount NAS
System Memory 64 GB DDR4 ECC RDIMM
Processor Intel Xeon Silver 4210R
CPU Quantity 2
CPU Cores 10 per CPU
CPU Architecture 64-bit
Processor Frequency 2.4 GHz (Base), Up to 3.2 GHz (Turbo)
System Memory DDR4 ECC RDIMM
Memory Module Pre-installed 64 GB (32 GB × 2)
Total Memory Slots 16
Maximum Memory Capacity 512 GB (32 GB × 16)
Drive Bays 60
Maximum Drive Bays with Expansion Unit 300 (with 4 × RX6025sas Expansion Units)
Hot Swappable Drive Yes
Form Factor 4U Rackmount
Drive Type 3.5" SAS HDD, 2.5" SATA SSD (optional trays required)
Maximum Drive Bays 300
Maximum Local User Accounts 15,360
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Maximum Single Volume Size 1 PB (RAID 6 Peta Volume) / 200 TB
Maximum Internal Volume Number 256
RAID Support Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Network Ports 2 × 10GbE RJ45, 2 × 1GbE RJ45, 1 × Out-of-Band Management LAN
PCIe Expansion 2 × PCIe Gen3 x16, 2 × PCIe Gen3 x8
USB Ports 2 × USB 3.2 Gen 1
Expansion Port 2 × SAS Expansion Ports
Power Supply Dual Redundant 1600 W Power Supplies
Noise Level 60.8 dB(A)
Dimensions (H × W × D) 176 × 482 × 1020 mm
Operating System Synology DiskStation Manager (DSM)
Part Number HD6500
Country of Origin Taiwan
Net Weight 37.9 kg
Warranty 5 Years Limited Warranty
