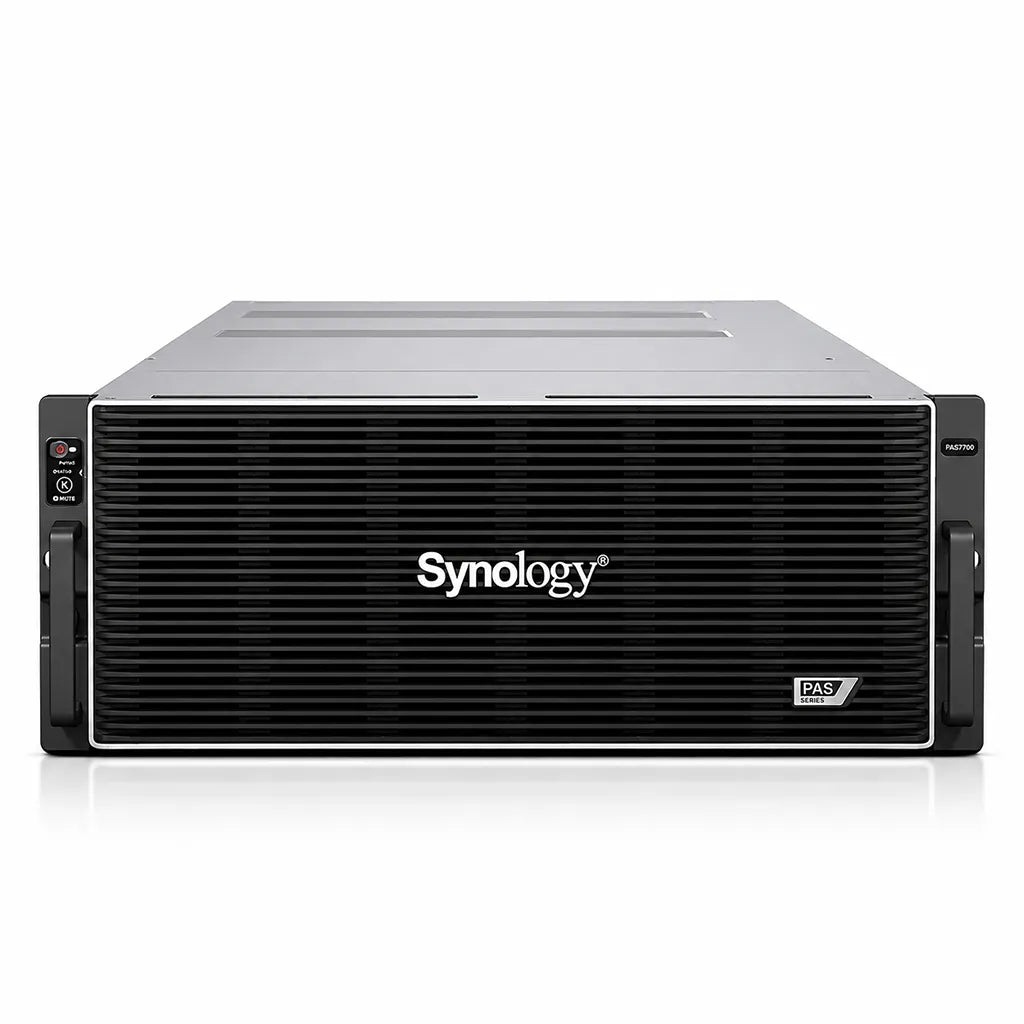

• Synology PAS7700 4U rackmount enterprise NVMe storage system front perspective view -tpstech.in

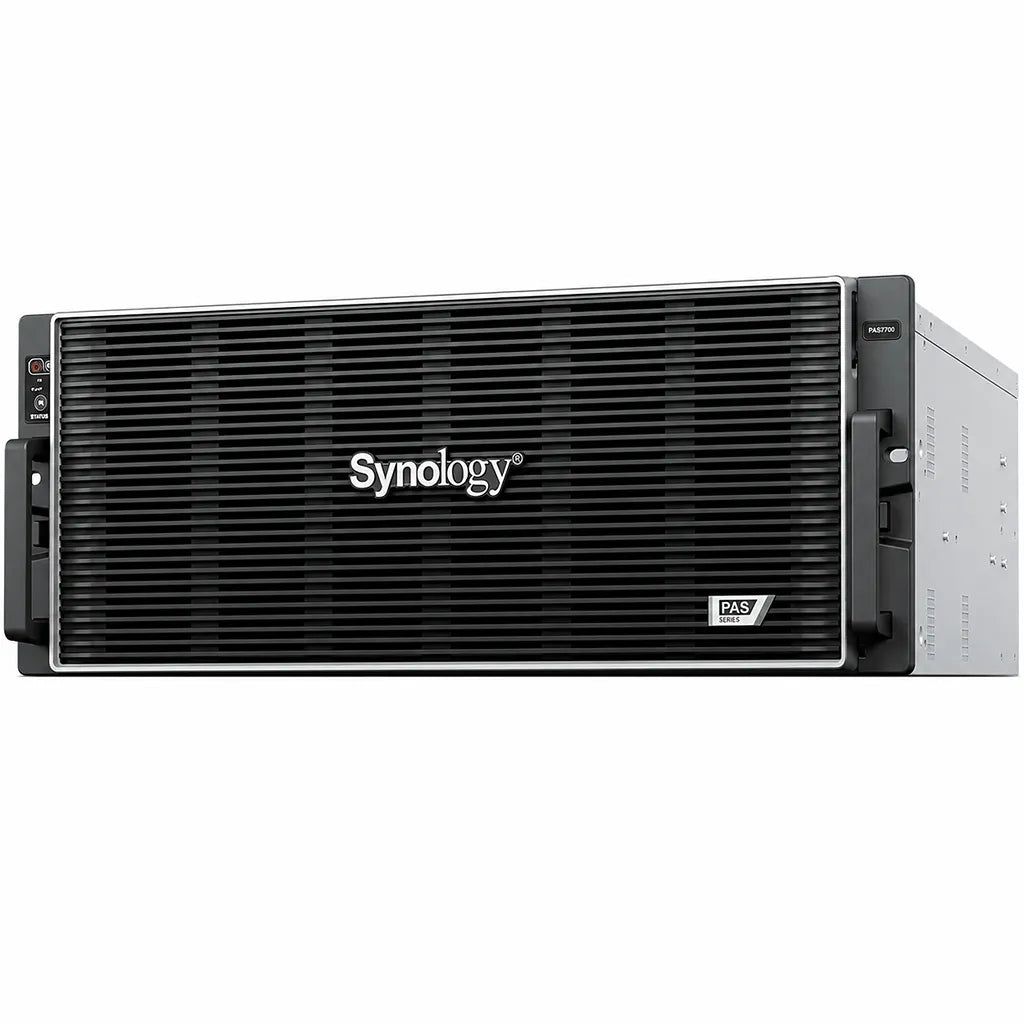

  • Synology PAS7700 enterprise NVMe storage system front left angle view showing 4U rackmount chassis -tpstech.in

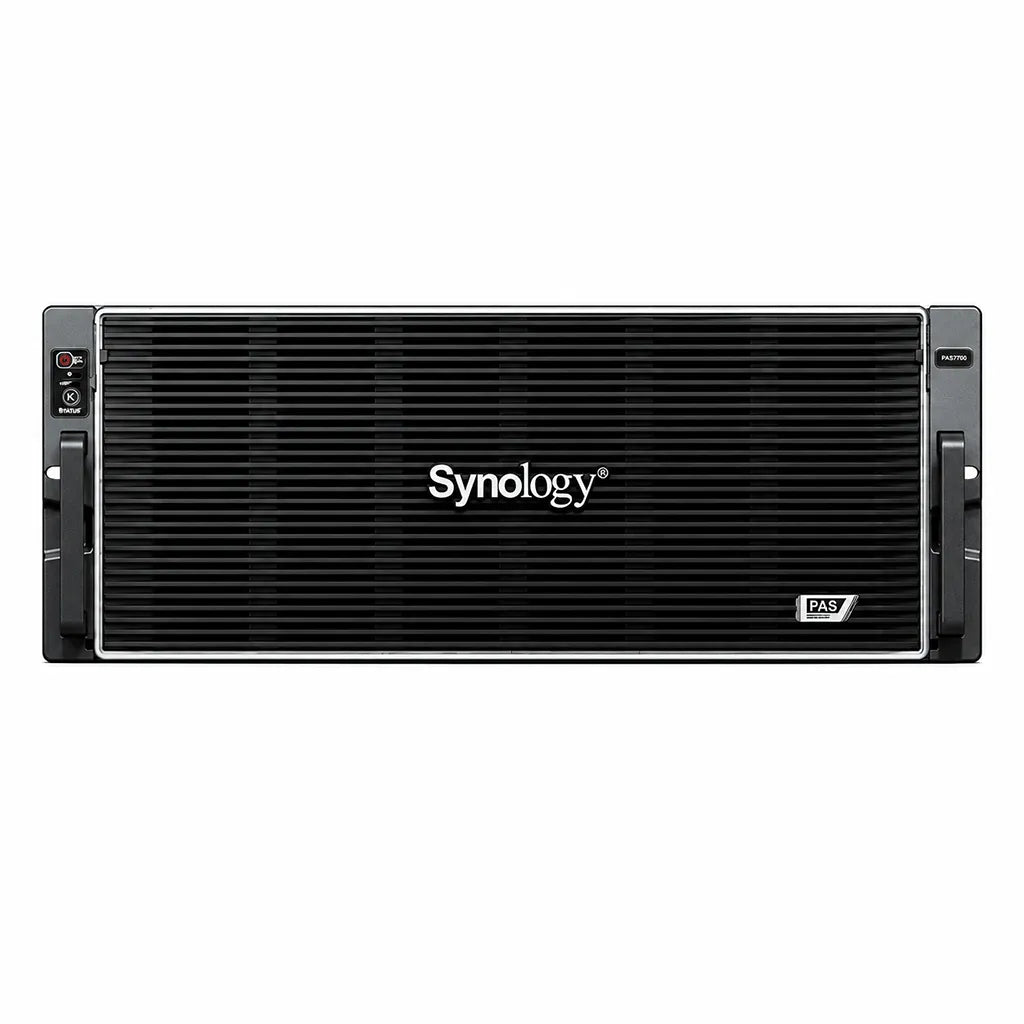

  • Synology PAS7700 48-bay enterprise NVMe storage system front view with active-active architecture for mission-critical workloads -tpstech.in

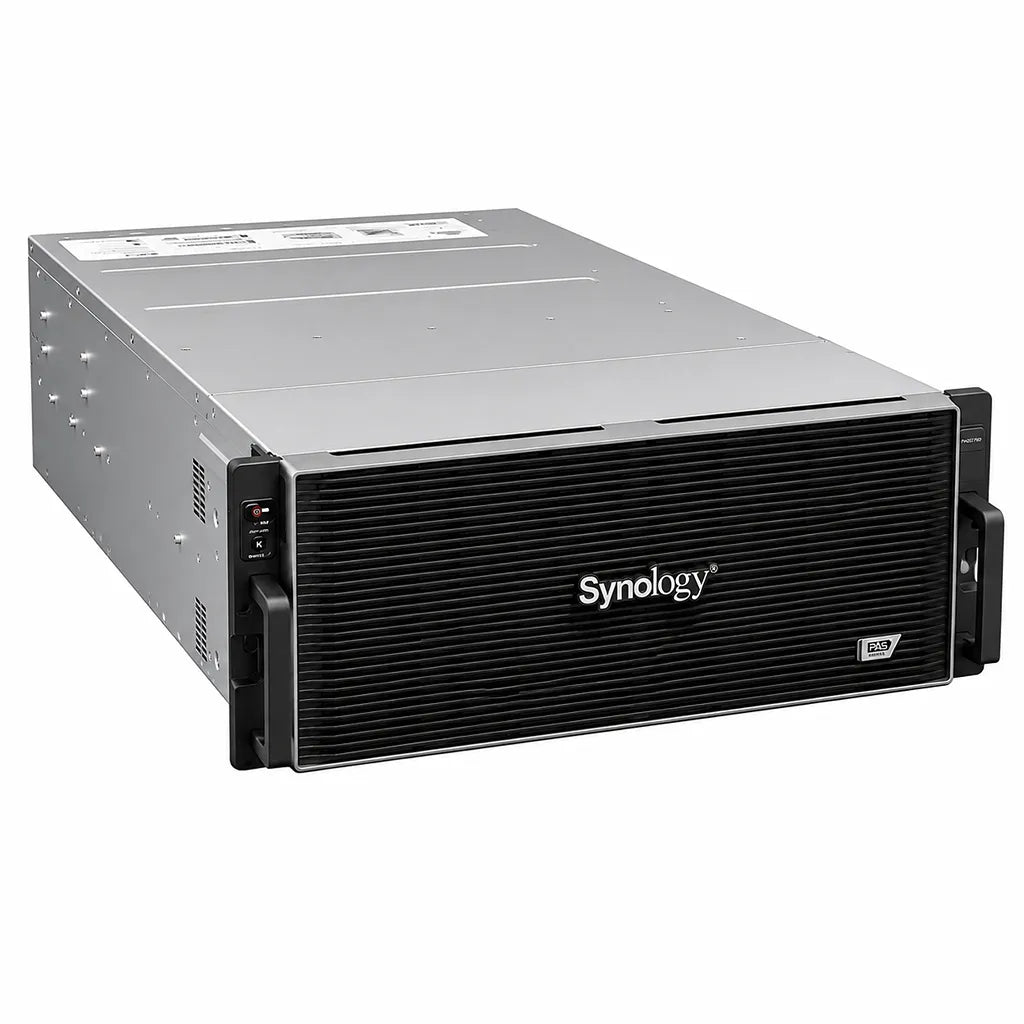

  • Synology PAS7700 enterprise NVMe storage system front right angle view with rackmount enclosure -tpstech.in

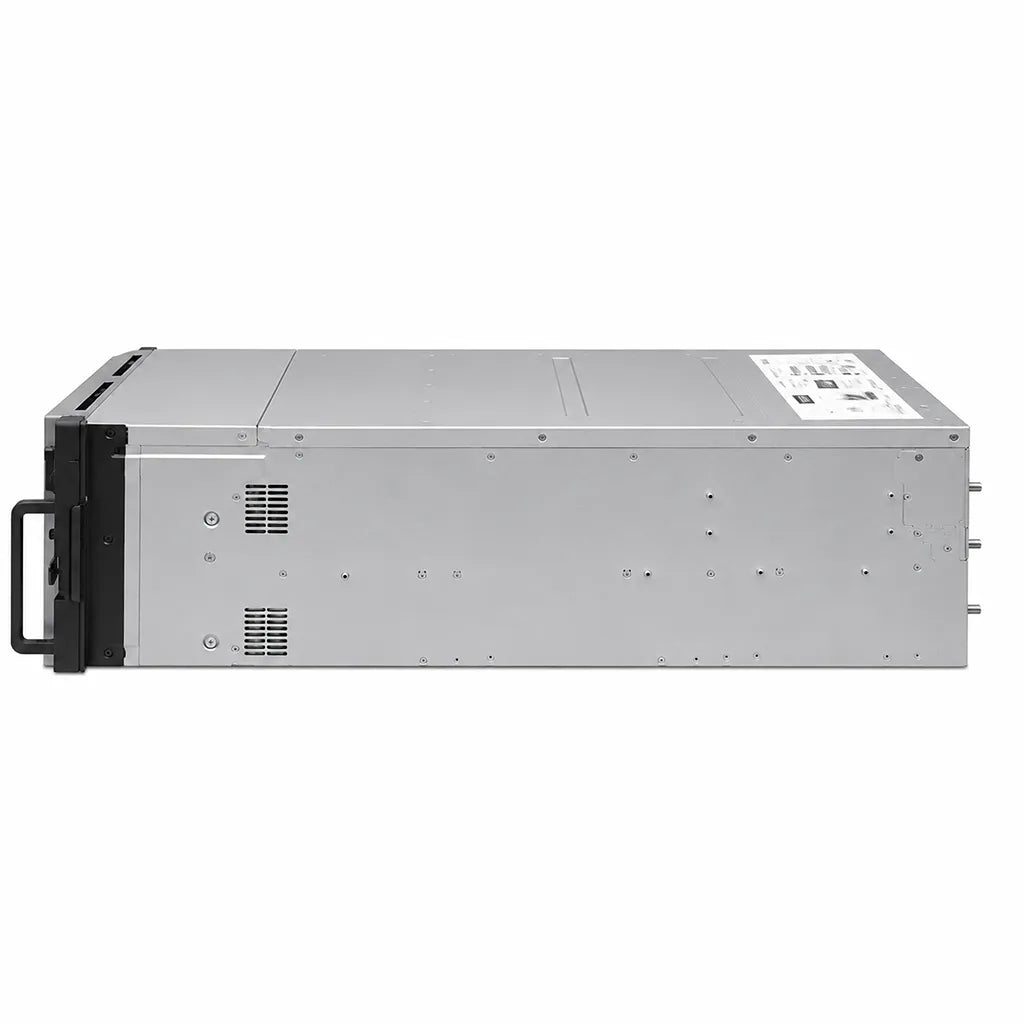

  • Synology PAS7700 48-bay enterprise NVMe storage system side profile for rackmount installation -tpstech.in

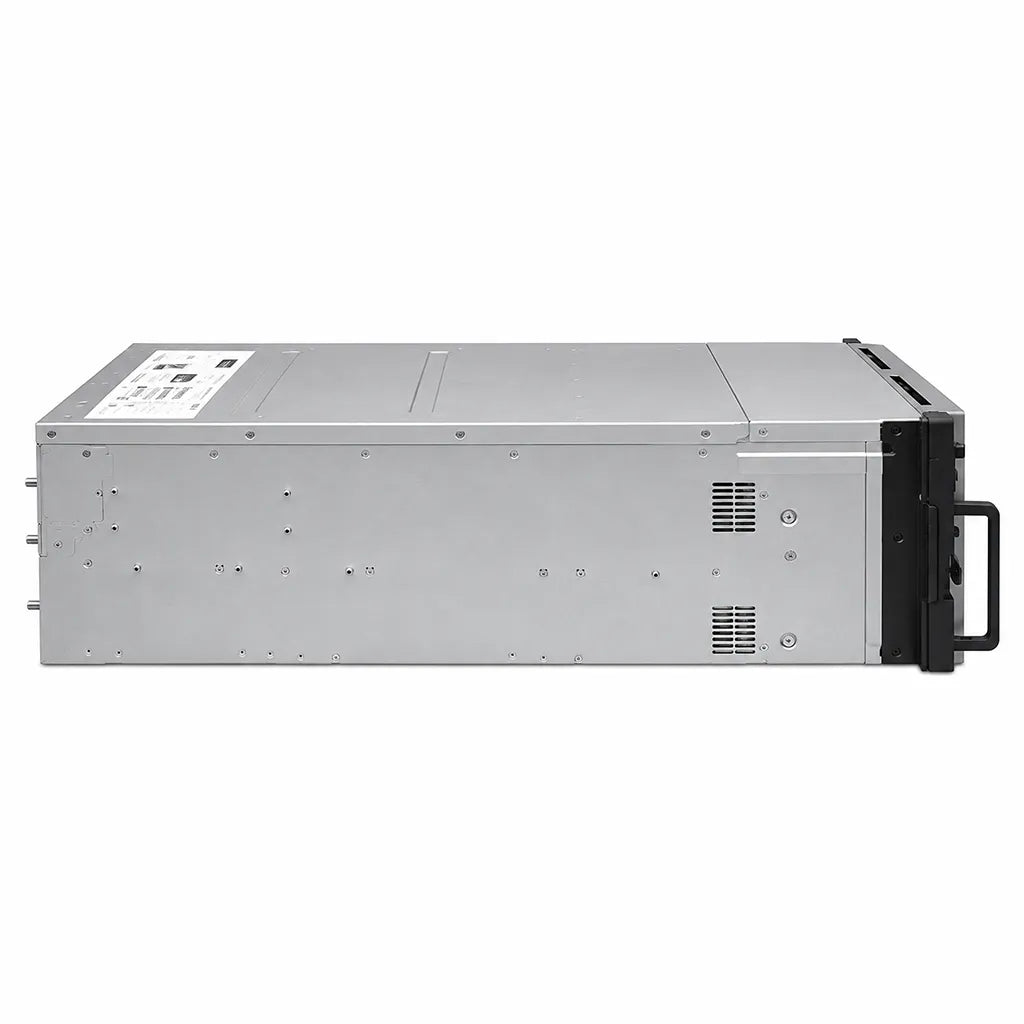

  • Synology PAS7700 enterprise NVMe storage system left side profile showing 4U rackmount chassis -tpstech.in

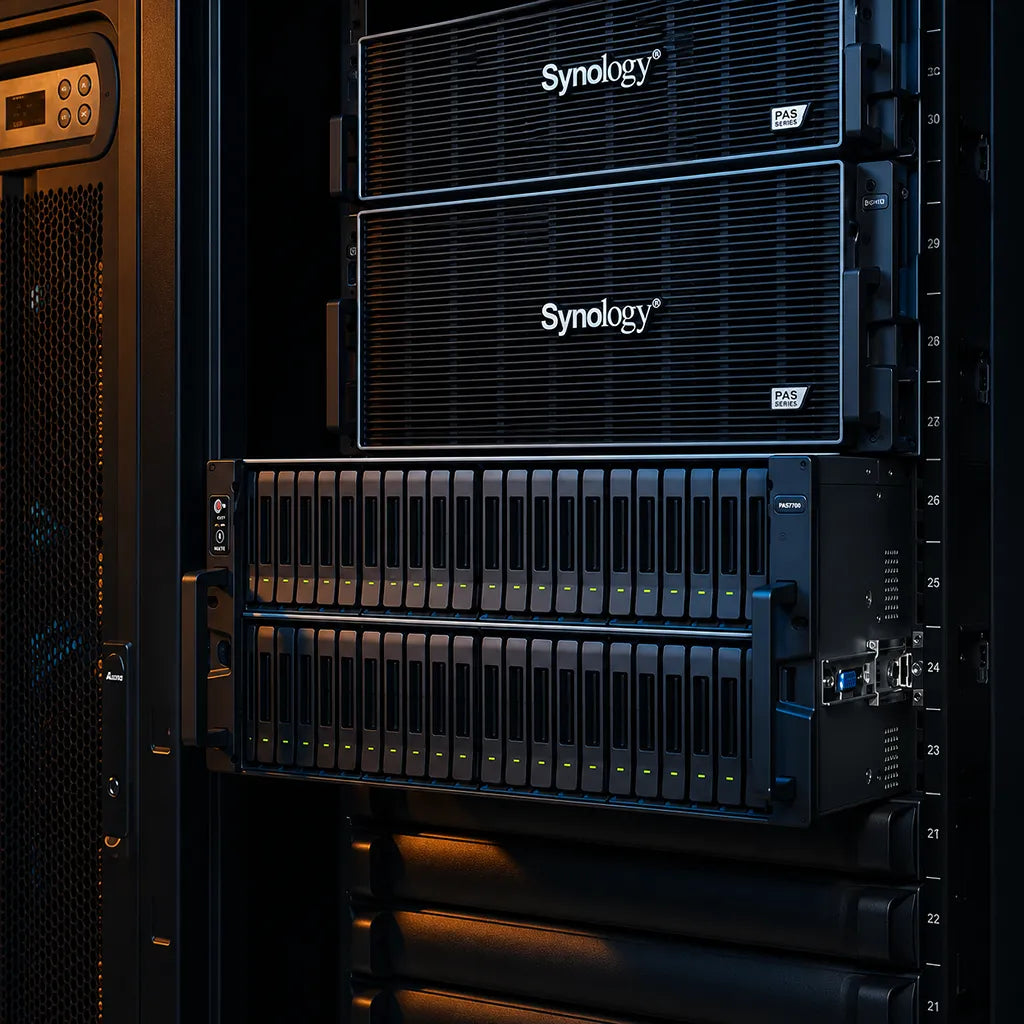

  • Synology PAS7700 enterprise NVMe storage system with hot-swappable drive bays installed in a server rack -tpstech.in

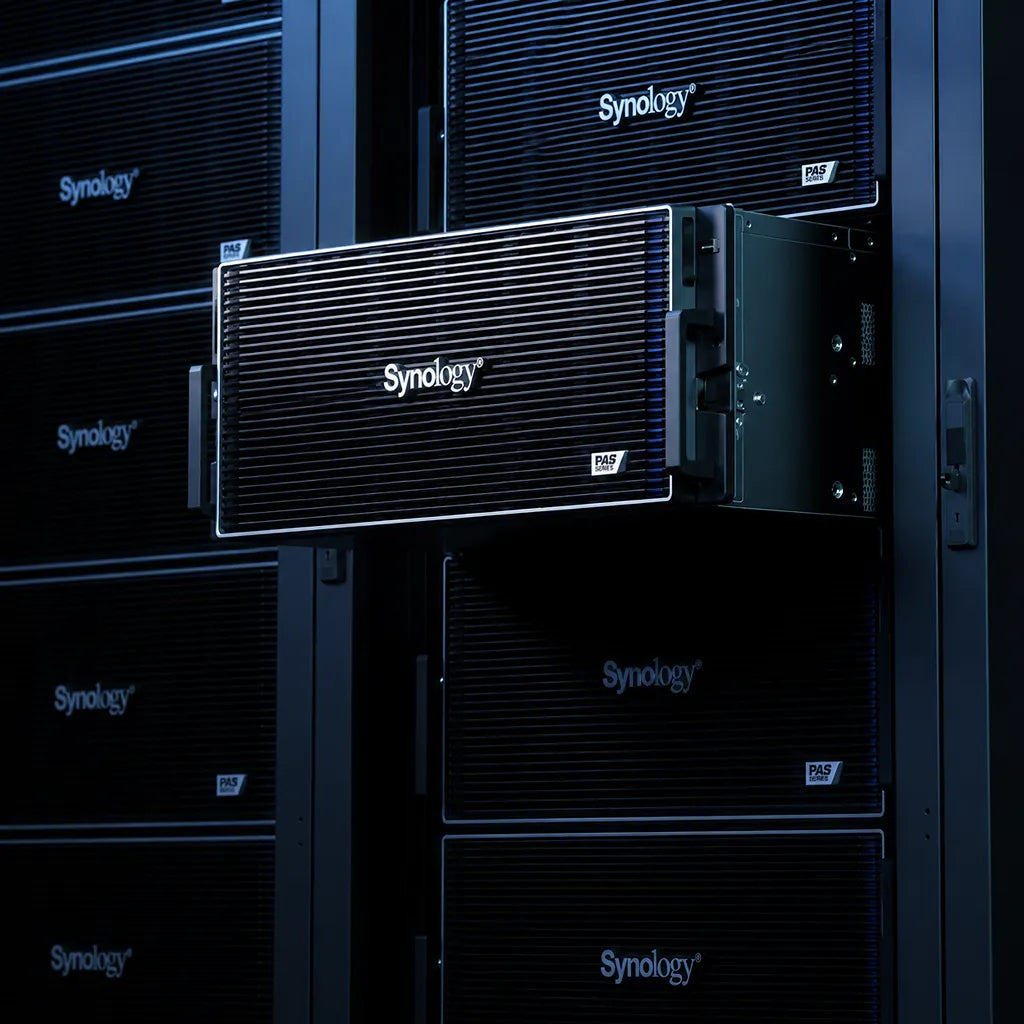

  • Synology PAS7700 enterprise NVMe storage system installed in a data center rack for enterprise storage deployments -tpstech.in
1 8

Synology PAS7700 48-Bay NVMe Enterprise Storage System

Synology PAS7700 48-Bay NVMe Enterprise Storage System

Brand: Synology
Get Price on WhatsApp

Or on email sales@tpstech.in


Product Description:

📦 48-Bay Expandable Storage: Start with 48 NVMe drive bays and expand up to 216 bays as your storage needs grow.

👥 Built for Large Teams: Supports up to 16,000 users, 512 groups, and 512 shared folders for enterprise-wide collaboration.

🔄 Always-On Performance: Active-active controllers help keep your storage online with minimal downtime during updates and maintenance.

🛡️ Reliable Data Protection: RAID 5, RAID 6, RAID TP, snapshots, and Self-Encrypting Drive support help keep critical data secure.

🌐 Works with Enterprise Environments: Supports SMB, NFS, iSCSI, Fibre Channel, NVMe-FC, and NVMe-TCP for flexible deployment.

✅ Ideal For: Large enterprises, data centers, virtualization, AI workloads, Kubernetes, and mission-critical business applications.

The Synology PAS7700 is an enterprise-class 48-bay NVMe storage system built for organizations that need reliable, scalable, and always-available storage. With expansion up to 216 drive bays, support for 16,000 users, and enterprise protocols including SMB, NFS, iSCSI, Fibre Channel, and NVMe-oF, it easily fits growing IT environments. Active-active controllers, advanced RAID options, and comprehensive data protection help businesses keep critical applications running while securely managing large volumes of data.


Product Specifications:
Specification Details
Brand Synology
Model PAS7700
Product Type Enterprise NVMe Storage System
System Memory 64GB DDR4 ECC RDIMM (Per Controller)
Processor AMD EPYC 7443P
CPU Cores 24-core
CPU Architecture 64-bit
Processor Frequency 2.85 GHz (Base) / 4.0 GHz (Turbo)
Memory Module Pre-installed 64GB (64GB × 1) Per Controller
Total Memory Slots 16 (Per Controller)
Maximum Memory Capacity 1024GB (64GB × 16) Per Controller
Drive Bays 48
Maximum Drive Bays with Expansion Unit 216 (Using 7 × Synology PAX224 Expansion Units)
Hot Swappable Drive Yes
Form Factor 4U Rackmount
Maximum Drive Bays 216
Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
RAID Support RAID 5, RAID 6, RAID TP
Network Ports 1 × 1GbE RJ45, 2 × 10GbE RJ45, 1 × Out-of-Band Management LAN (Per Controller)
PCIe Expansion 1 × PCIe Gen4 x16, 2 × PCIe Gen4 x8 (Per Controller)
USB Ports Not Specified
Expansion Port 7 × Mini-SAS HD (Per Controller)
Power Supply 2700W Redundant Power Supply
Noise Level 66.1 dB(A)
Dimensions (H × W × D) 175.8 × 480.5 × 771 mm
Operating System DSM Enterprise
Part Number PAS7700
Country of Origin Not Specified
Net Weight 38.2 kg
Warranty 5-Year Limited Warranty

View full details
