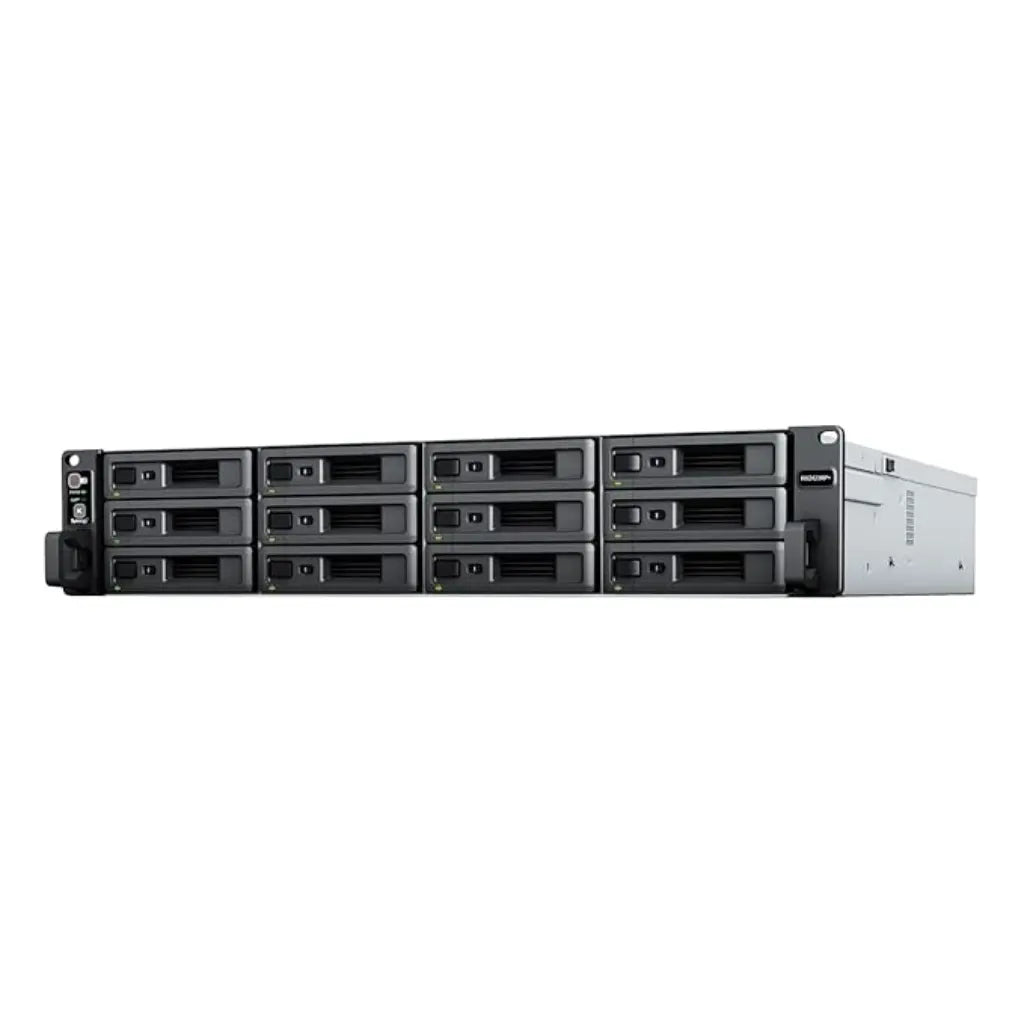

Synology RackStation RS2423RP+II Diskless 12‑Bay 2U NAS
Synology RackStation RS2423RP+II Diskless 12‑Bay 2U NAS
Couldn't load pickup availability

🗄️ 12‑Bay Scalable Architecture – Supports up to 24 drive bays with RX1223RP expansion for future growth
🔗 Built‑in 10GbE Networking – Integrated 10GbE and dual 1GbE ports ensure fast and reliable data transfer
🔒 Advanced Data Protection – Snapshot Replication, Hyper Backup, and Synology Hybrid RAID for maximum data security
🔄 Redundant Power Supply – Dual hot‑swappable PSUs ensure uninterrupted uptime for mission‑critical applications
🧠 Powered by AMD Ryzen – Equipped with AMD Ryzen V1780B CPU and ECC memory for enterprise‑grade reliability
The Synology RackStation RS2423RP+II is a powerful 12‑bay 2U NAS designed for growing business environments. Powered by an AMD Ryzen processor with ECC memory, it offers high‑speed performance, built‑in 10GbE connectivity, and scalable storage up to 24 bays. With redundant power supplies and Synology DSM’s advanced data protection tools, it delivers reliable, secure, and efficient storage for virtualization, backup, and file sharing workloads.
| Product Type | Rackmount Network Attached Storage (NAS) |
| Form Factor | 2U Rackmount |
| Drive Bays | 12 × 3.5″ / 2.5″ SATA HDD/SSD |
| Maximum Drive Bays | 24 Bays (with RX1223RP expansion) |
| Processor | AMD Ryzen V1780B Quad‑Core |
| Processor Frequency | 3.35 GHz (Base), up to 3.6 GHz (Turbo) |
| System Memory | 8 GB DDR4 ECC UDIMM |
| Maximum Memory | Up to 32 GB DDR4 ECC |
| RAID Support | SHR, Basic, JBOD, RAID 0, 1, 5, 6, 10 |
| Network Ports | 1 × 10GbE RJ‑45, 2 × 1GbE RJ‑45 |
| PCIe Expansion | 1 × PCIe Gen 3 x8 (x4 link) |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Port | Mini‑SAS HD |
| Power Supply | Dual Hot‑Swappable Redundant PSU |
| Noise Level | 56.2 dB(A) |
| Dimensions (H × W × D) | 88 × 482 × 578 mm |
| Operating System | Synology DiskStation Manager (DSM) |
| Part Number | RS2423RP+II |
| Country of Origin | Taiwan |
| Net Weight | 11.9 kg |
| Warranty | 3 Years Manufacturer Warranty |
Pick drives, plan your RAID, add cache, memory and setup. The more you add, the more you save.
Ordered on quote
Tell us your capacity and use case. We plan the drives, RAID and setup, and arrange payment and delivery.
Plan your storage
Set your bays and RAID, then pick a drive. Each drive shows the usable capacity it gives.
Choose a drive
Add SSD cache or an NVMe pool
Add a memory upgrade
Add installation and setup
Our engineers set up RAID, volumes, users and backups, on site or remote. Choose one.
Review your solution
Here is everything you have configured.
Compatibility is taken from each manufacturer datasheet and official list. “Compatible” parts meet the model spec but are not on the brand verified list.
