Synology RX6022sas 60-Bay SAS Expansion Unit for HD6500
Synology RX6022sas 60-Bay SAS Expansion Unit for HD6500
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🗄️ High-Density 60-Bay Expansion: Add up to 60 Synology SAS HDDs or SATA SSDs to expand storage capacity for large-scale deployments.
⚡ Fast, Convenient Expansion: Plug-and-play deployment and DSM unified management simplify storage expansion with minimal disruption.
🔄 Reliable Data Paths: SAS multipathing provides alternate physical paths to help maintain connectivity if a primary path fails.
🔧 Hot-Swappable Drives: Hot-swappable drive trays support easier maintenance and replacement without requiring unnecessary system downtime.
🛡️ Enterprise-Oriented Reliability: Dual power supplies, replaceable system fans and Synology drive validation help support demanding storage environments.

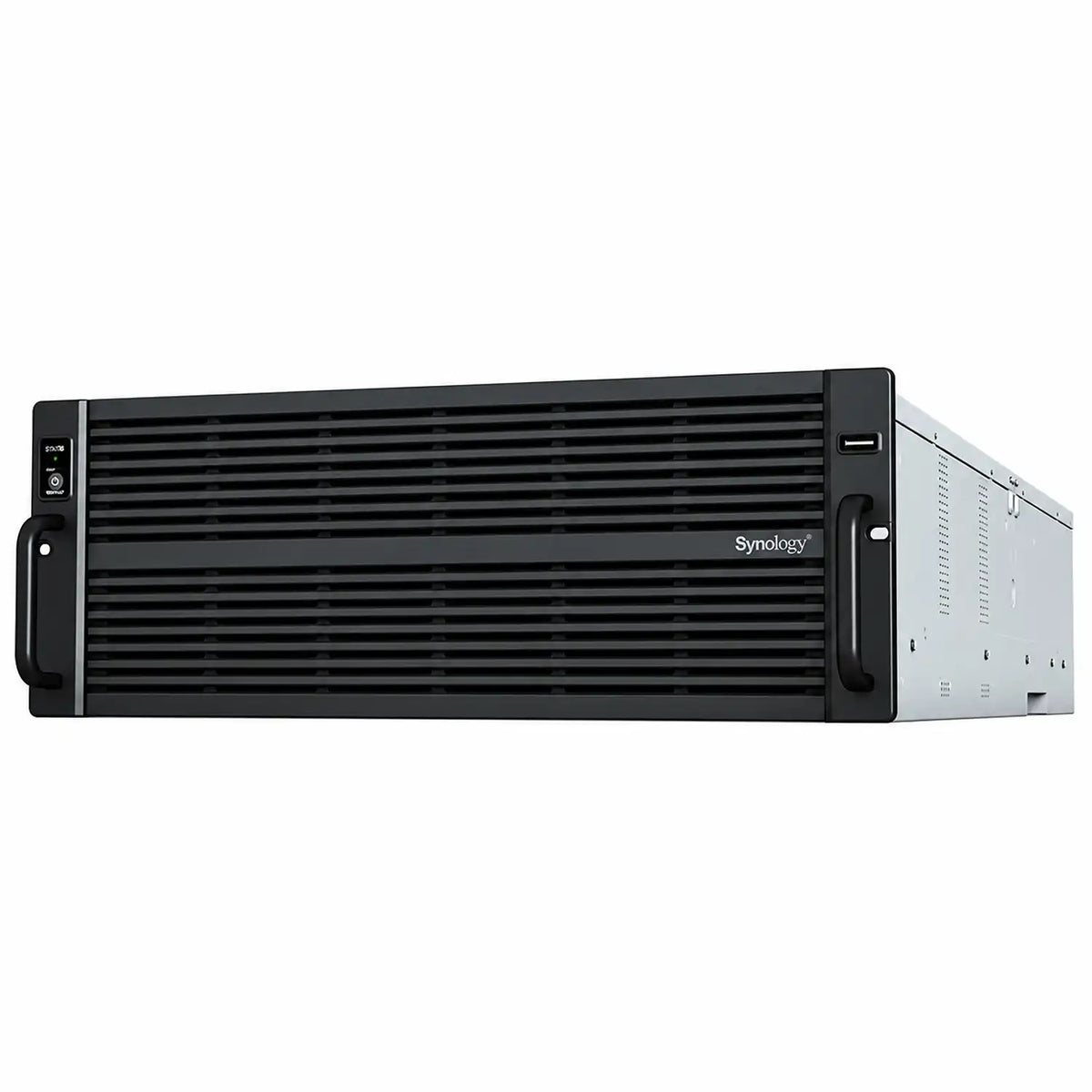

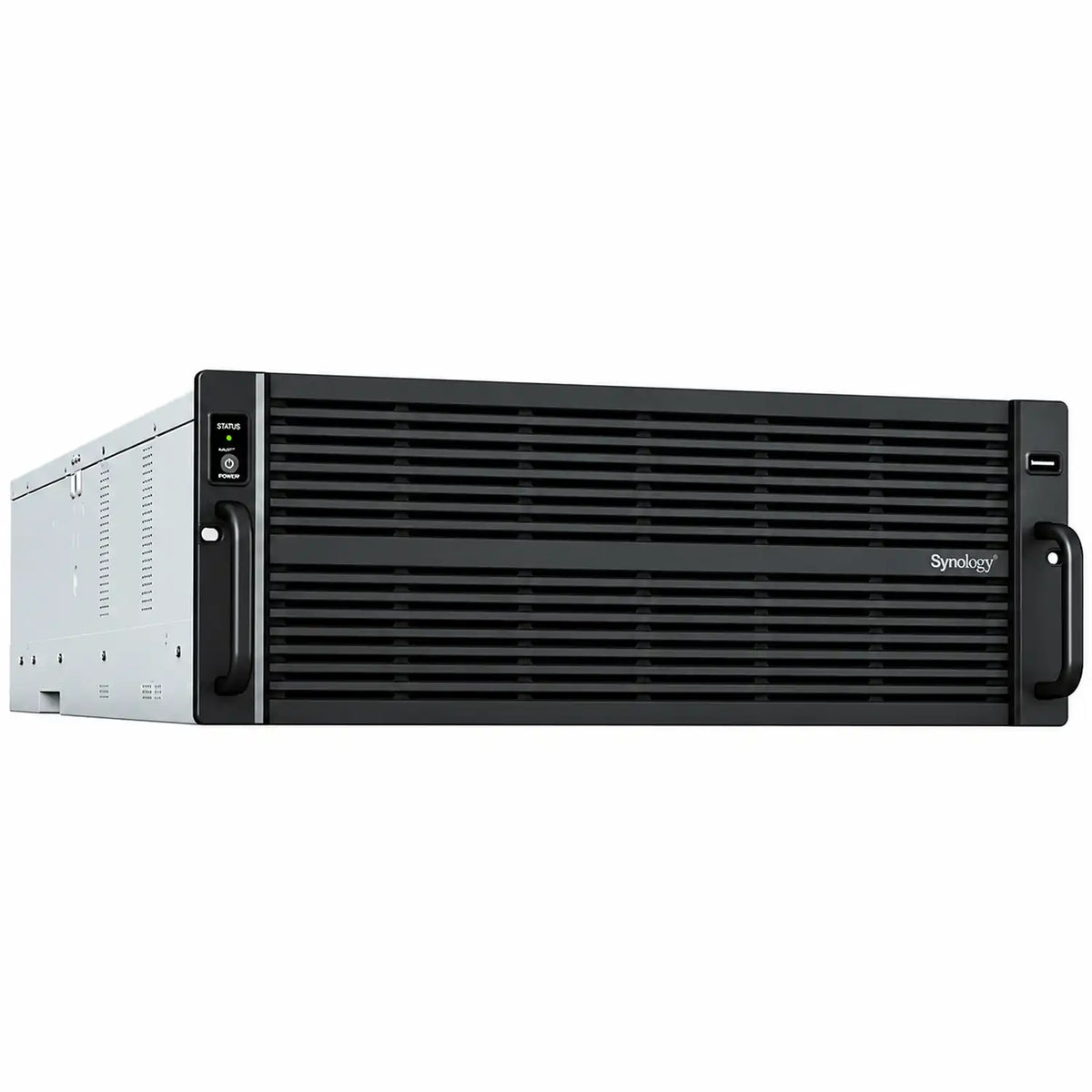

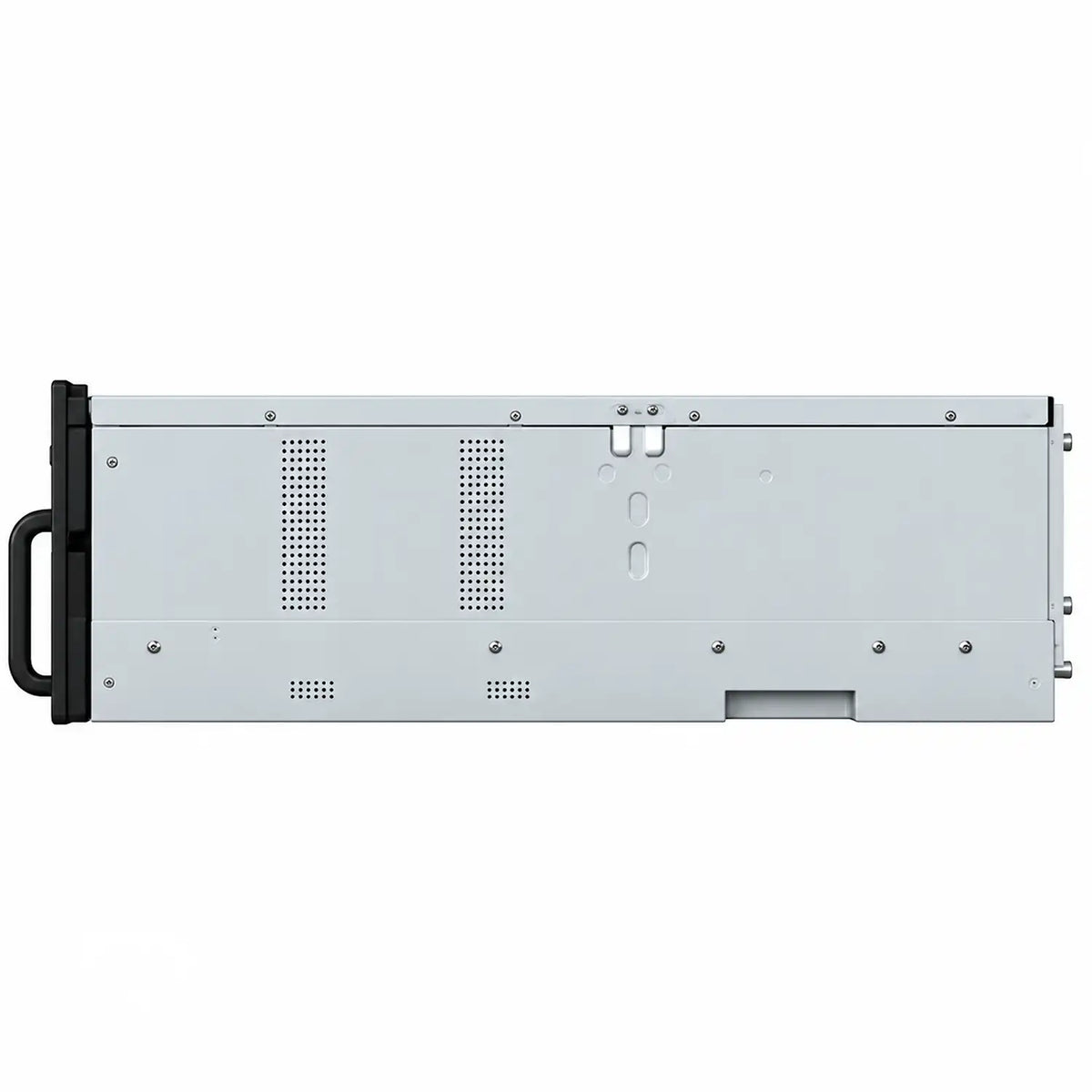

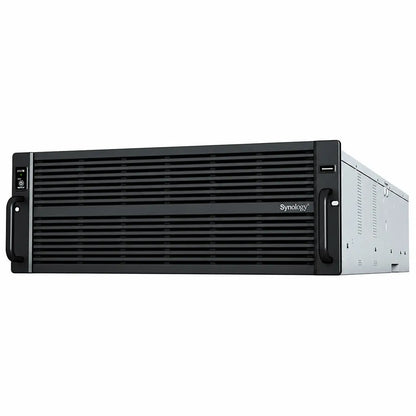

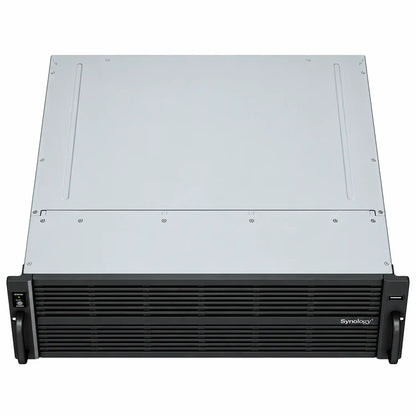

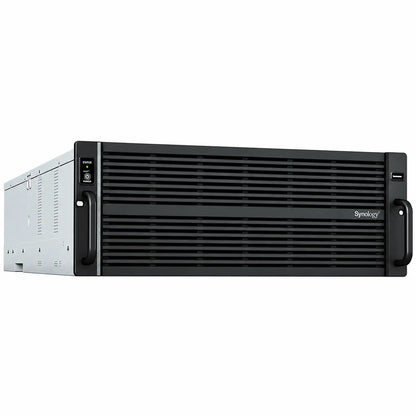

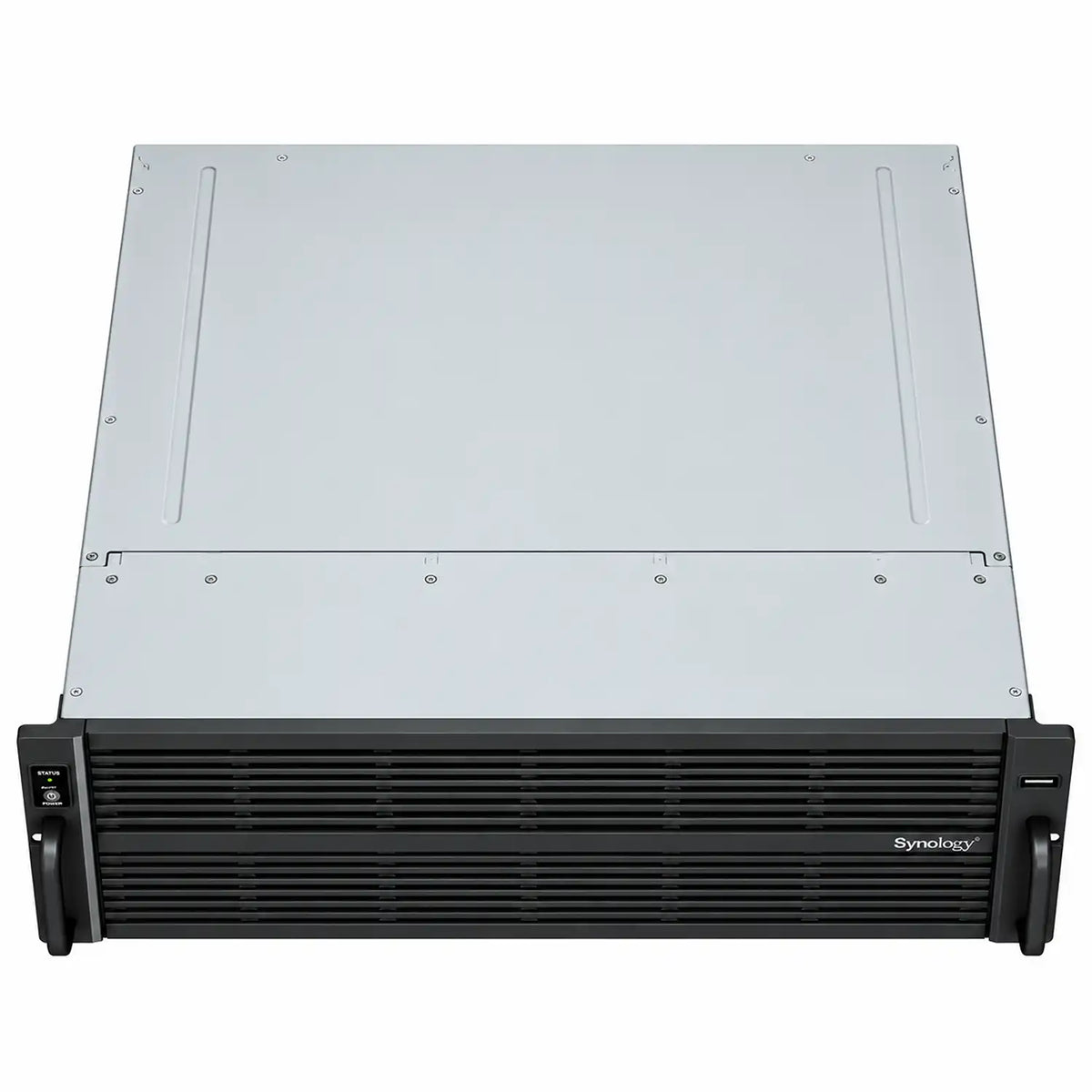

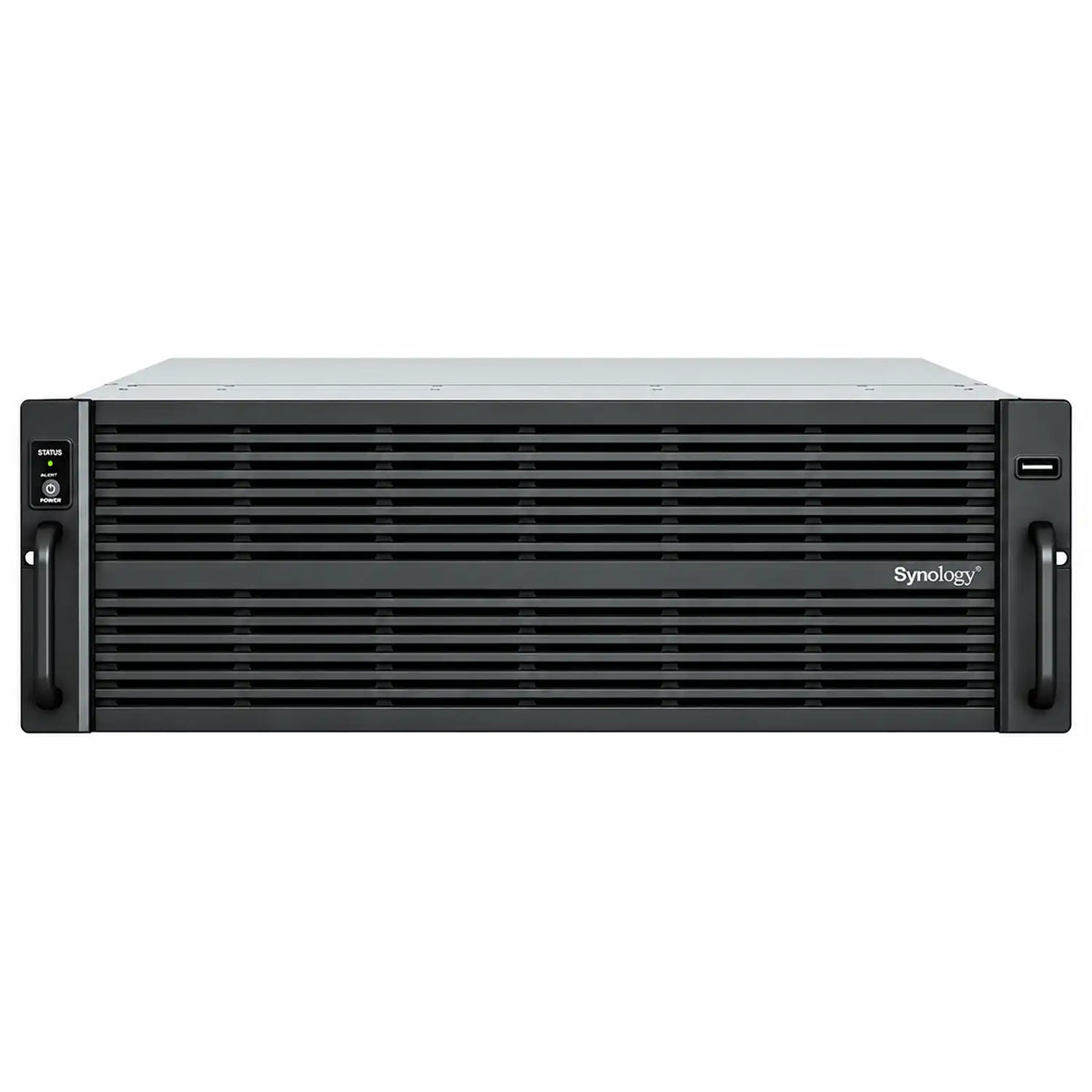

Synology RX6022sas is a 60-bay 4U SAS expansion unit built for the Synology HD6500, providing scalable storage for enterprise workloads. It supports 3.5-inch Synology SAS HDDs and 2.5-inch Synology SATA SSDs, with hot-swappable drives, SAS multipathing, redundant power supplies and DSM integration. With support for up to four RX6022sas units, it is suitable for large-scale warm or cold storage applications.
Product Specifications:
| Brand | Synology |
| Model | RX6022sas |
| Product Type | Expansion Unit |
| Form Factor | 4U Rackmount |
| Drive Bays | 60 |
| Compatible Drive Types | 3.5" Synology SAS HDD or 2.5" Synology SATA SSD |
| Drive Support | Synology drives listed on the compatibility list |
| Drives Included | No |
| Hot-Swappable Drives | Yes |
| External Ports | 1 x SAS IN, 1 x SAS OUT |
| Port Type | Mini-SAS HD |
| SAS Multipathing | Supported |
| Compatible Host | Synology HD6500 |
| Maximum Expansion Units | Up to 4 RX6022sas units with Synology HD6500 |
| System Fans | 4 x 80 x 80 x 38 mm |
| Power Input Voltage | 200 V to 240 V AC |
| Power Frequency | 50/60 Hz, single phase |
| Dimensions | 176 x 438 x 985 mm |
| Dimensions with Server Handles | 176 x 482 x 1,020 mm |
| Weight | 33.9 kg |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Storage Humidity | 5% to 95% RH |
| Maximum Operating Altitude | 5,000 m (16,400 ft) |
| Environmental Compliance | RoHS compliant |
| Optional 3.5" SAS HDD | Synology HAS5300 Series |
| Optional 2.5" SATA SSD | Synology SAT5200 Series |
| 2.5" SSD Tray Requirement | Optional 2.5" drive trays (R5) required |
| Package Contents | 1 x RX6022sas main unit, 1 x RKS-03 sliding rail kit, 2 x AC power cord, 2 x expansion cable, 1 x accessory pack, 1 x Quick Installation Guide |
| Warranty | 5 years limited warranty |
