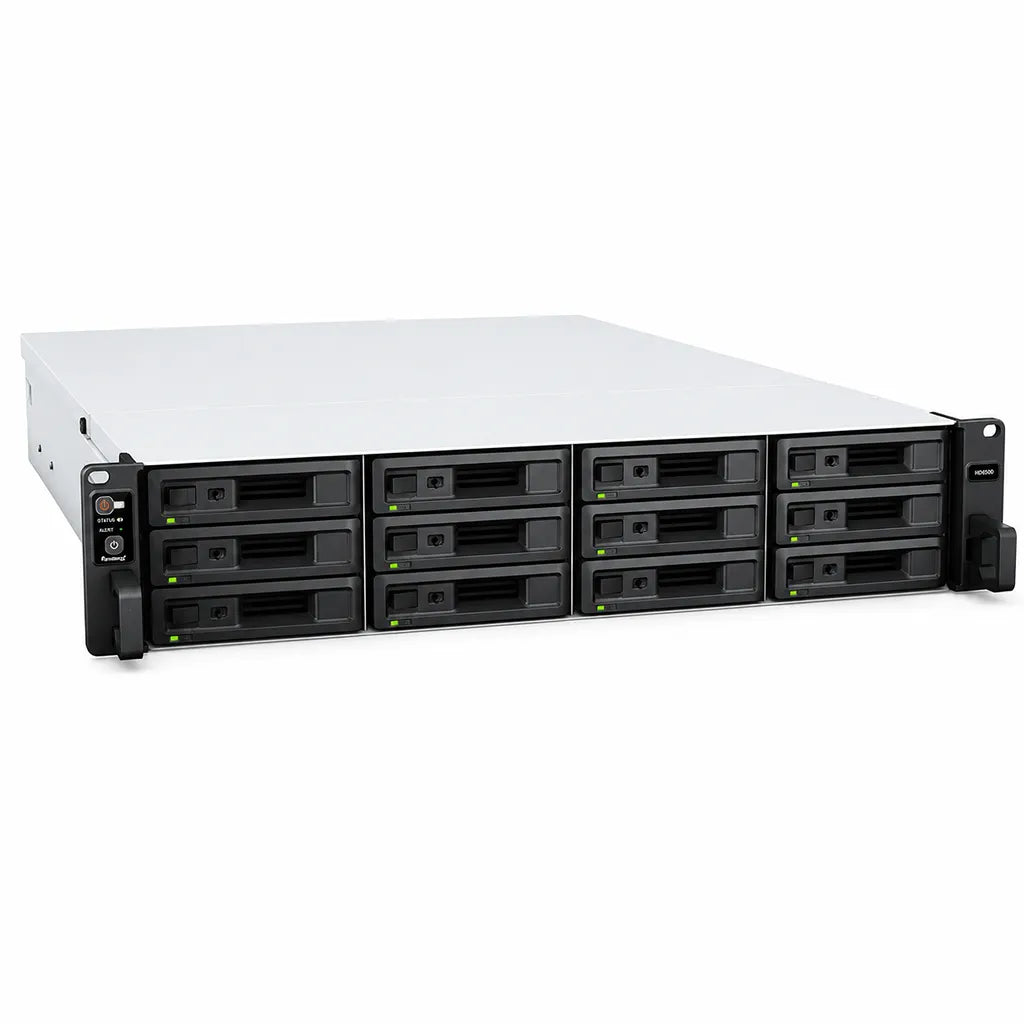

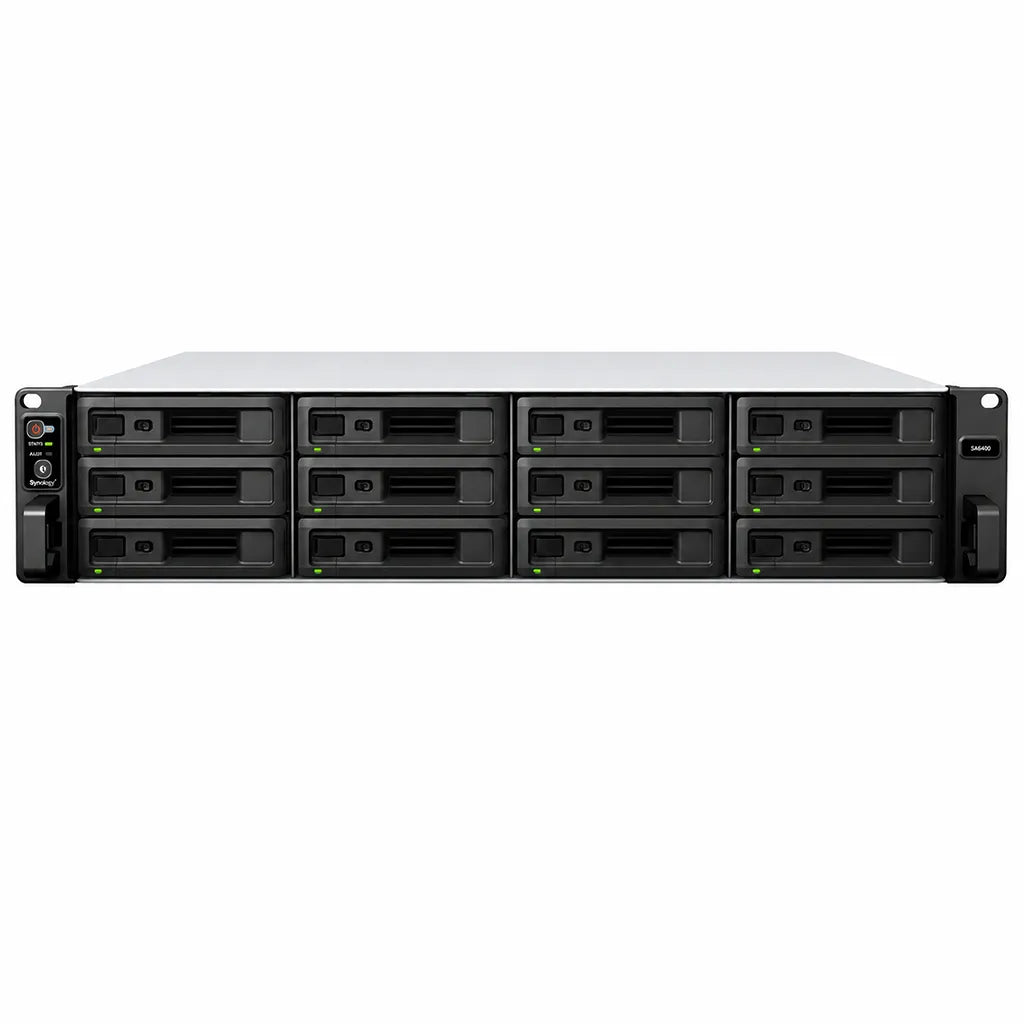

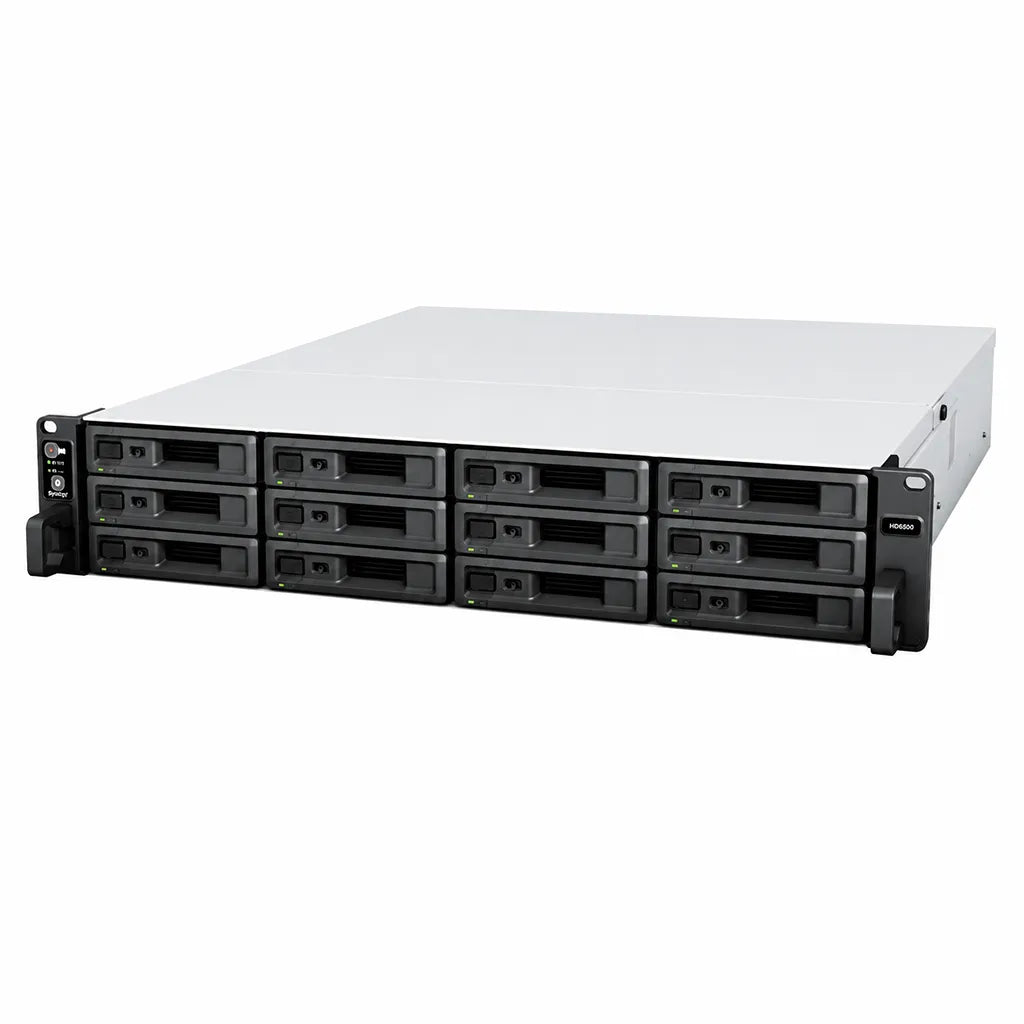

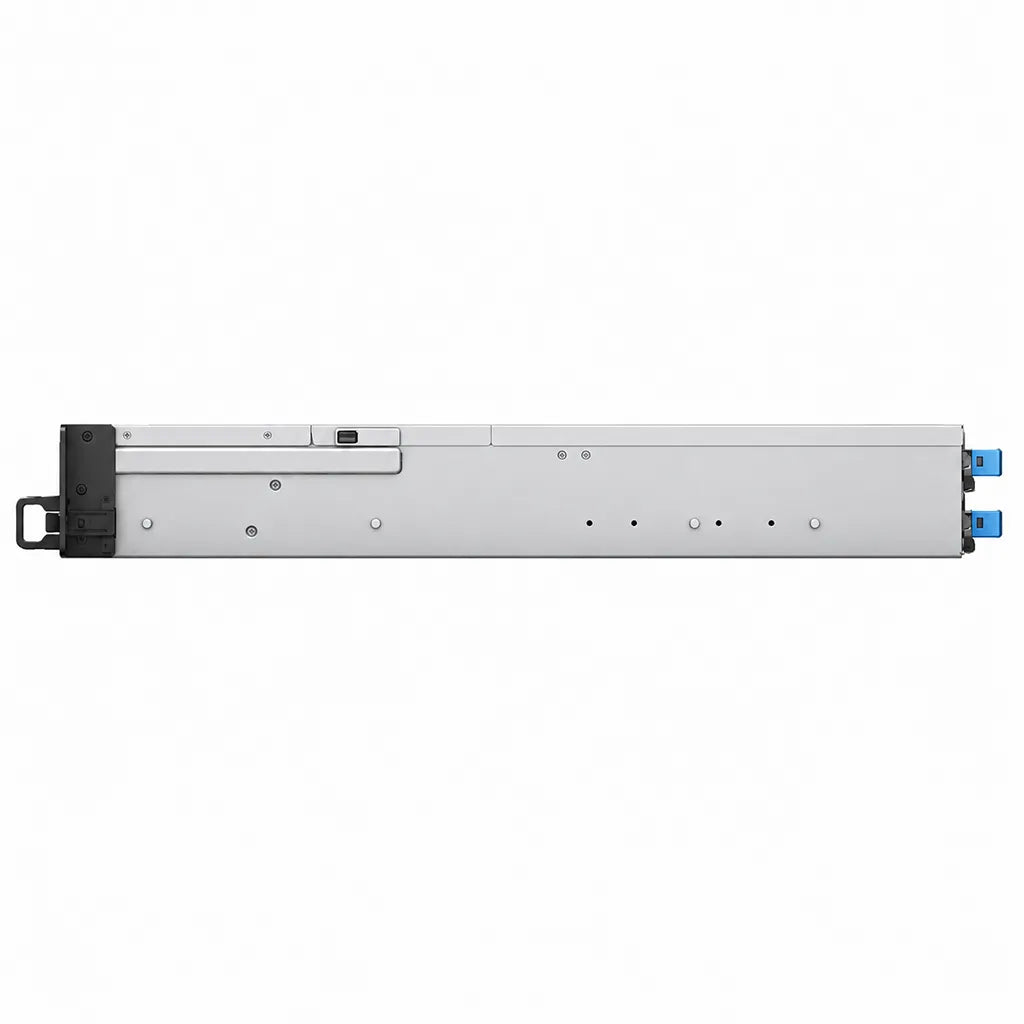

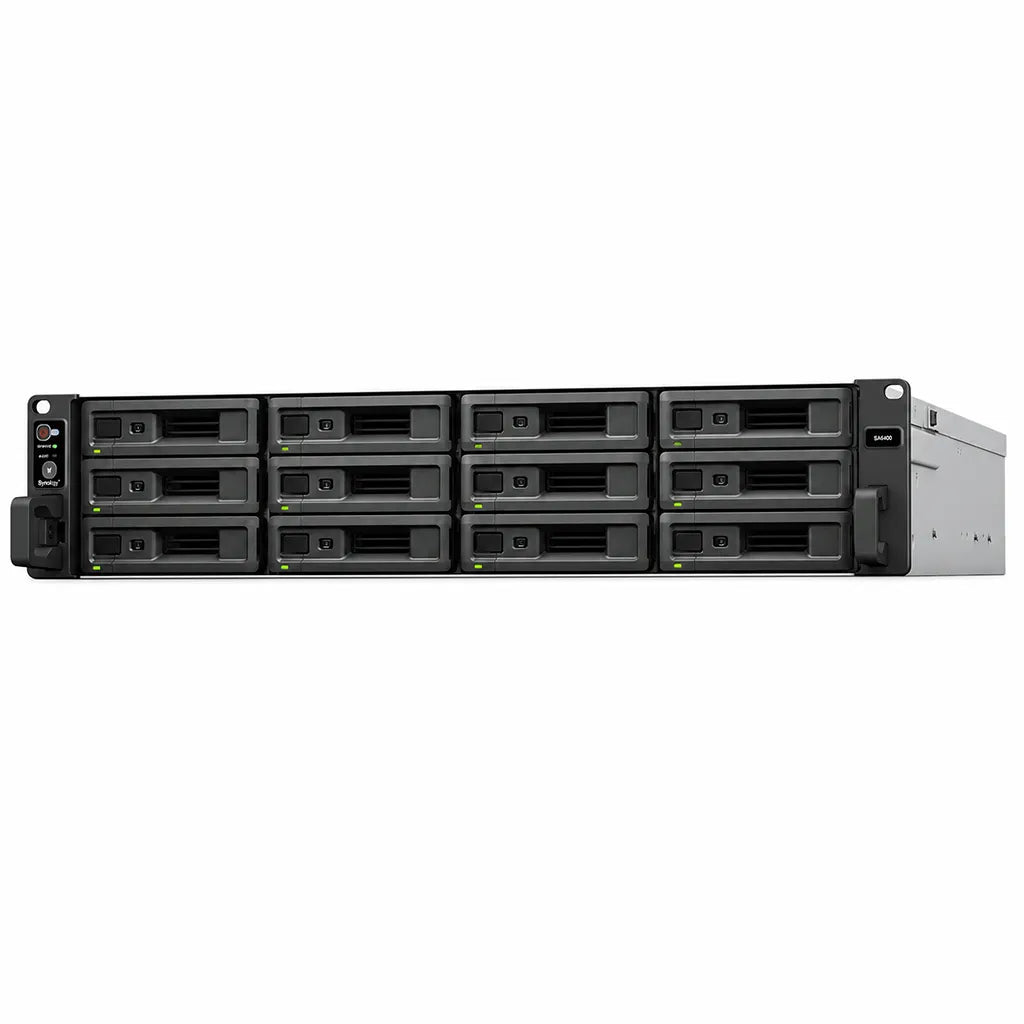

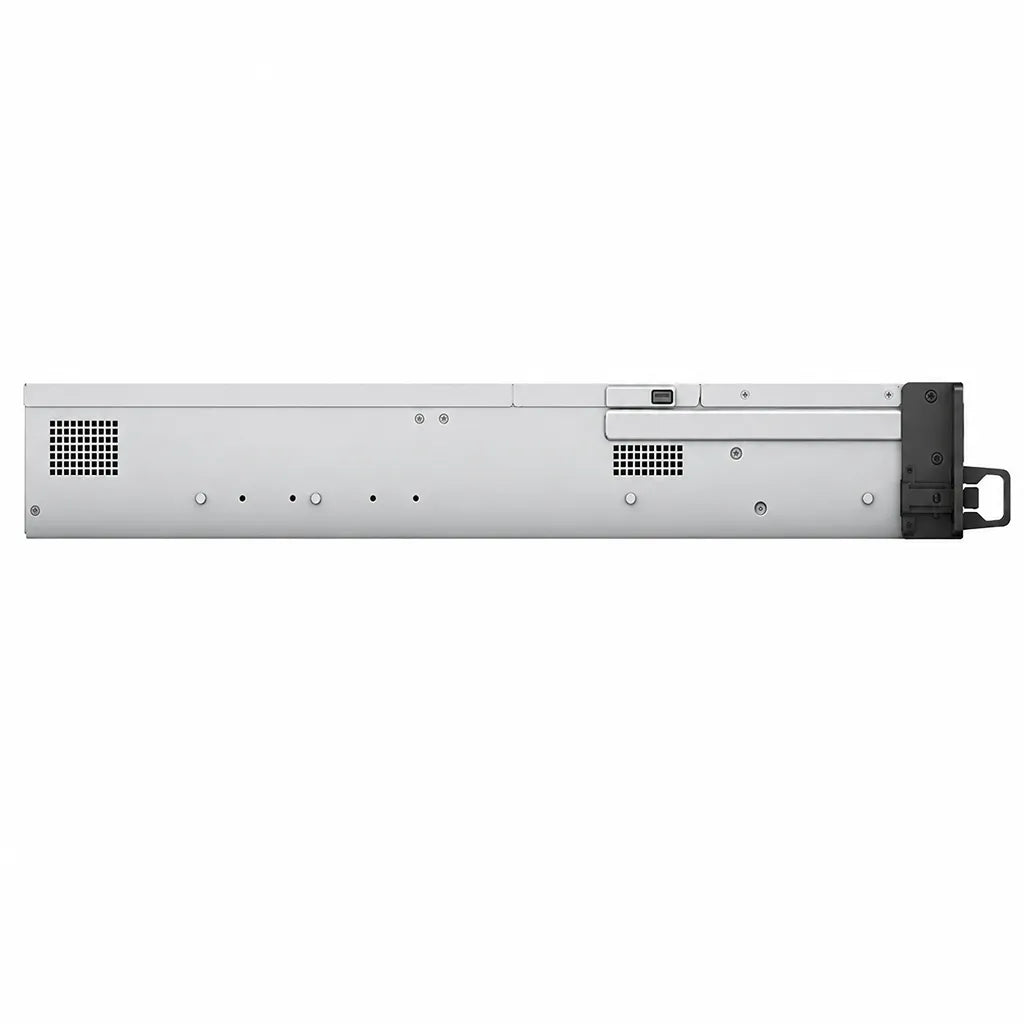

Synology SA6400 12-Bay Rackmount NAS Storage Server

Synology SA6400 12-Bay Rackmount NAS Storage Server

Brand: Synology

Product Description:

🚀 Built for Growing Storage Needs Start with 12 drive bays and expand up to 108 bays, giving your business the flexibility to scale storage as data grows.

👥 Supports Large Organizations Designed to handle up to 15,360 local user accounts and 512 shared folders, making it ideal for enterprise-wide file storage and collaboration.

🛡️ Keeps Business Data Protected Built-in High Availability, Snapshot Replication, and Hyper Backup help safeguard critical data and reduce service interruptions.

☁️ Ready for Modern IT Environments Works seamlessly with VMware, Microsoft Hyper-V, Citrix XenServer, and OpenStack for virtualization and centralized storage deployment.

🏢 Best Suited for Ideal for enterprise data centers, media production studios, educational institutions, retail chains, hospitality businesses, and organizations managing large volumes of business-critical data.

The Synology SA6400 is a 12-bay enterprise rackmount NAS designed for organizations that need reliable, scalable, and centralized data storage. It supports expansion up to 108 drive bays, making it a smart choice for businesses expecting rapid data growth without replacing existing infrastructure. With support for 15,360 local users, advanced data protection, virtualization platforms, and high-availability features, the SA6400 helps keep business operations running smoothly. It is well suited for enterprise file sharing, virtualization storage, backup, disaster recovery, and large-scale business environments where reliability and future expansion are essential.

Product Specifications:

Specification Details
Brand Synology
Model SA6400
Product Type Rackmount NAS Storage Server
System Memory 32 GB DDR4 ECC RDIMM
Processor AMD EPYC 7272
CPU Quantity 1
CPU Cores 12
CPU Architecture 64-bit
Processor Frequency 2.9 GHz (Base), 3.2 GHz (Turbo)
System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB × 1
Total Memory Slots 16
Maximum Memory Capacity 1024 GB (64 GB × 16)
Drive Bays 12
Maximum Drive Bays with Expansion Unit 108 (with 8 × RX1223RP Expansion Units)
Hot Swappable Drive Yes
Form Factor 2U Rackmount
Drive Bays 12
Drive Type 3.5-inch SATA HDD, 2.5-inch SATA SSD
Maximum Drive Bays 108
Maximum Local User Accounts 15,360
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Maximum Single Volume Size Up to 1 PB (64 GB memory required, RAID 6 groups only)
Maximum Internal Volume Number 256
RAID Support RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

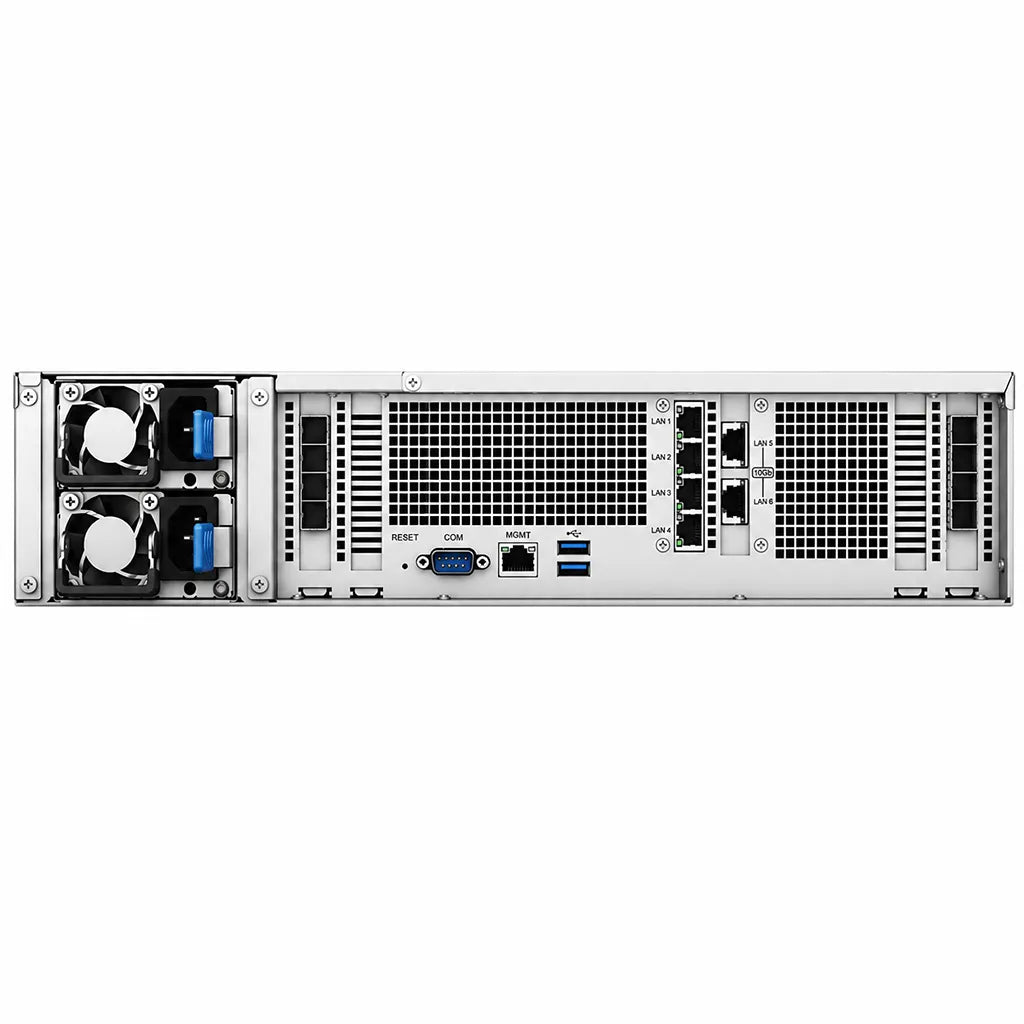

Network Ports 4 × 1GbE RJ-45, 2 × 10GbE RJ-45, 1 × Out-of-Band Management LAN
PCIe Expansion 2 × PCIe Gen3 x8 Slots (x8 Link)
USB Ports 2 × USB 3.2 Gen 1
Expansion Port 8 × Expansion Ports
Power Supply Redundant Power Supply Units
Noise Level Not specified by the manufacturer
Dimensions (H × W × D) 88 × 482 × 724 mm
Operating System Synology DiskStation Manager (DSM)
Part Number SA6400
Country of Origin Taiwan
Net Weight 16.5 kg
Warranty 5 Years Limited Warranty
