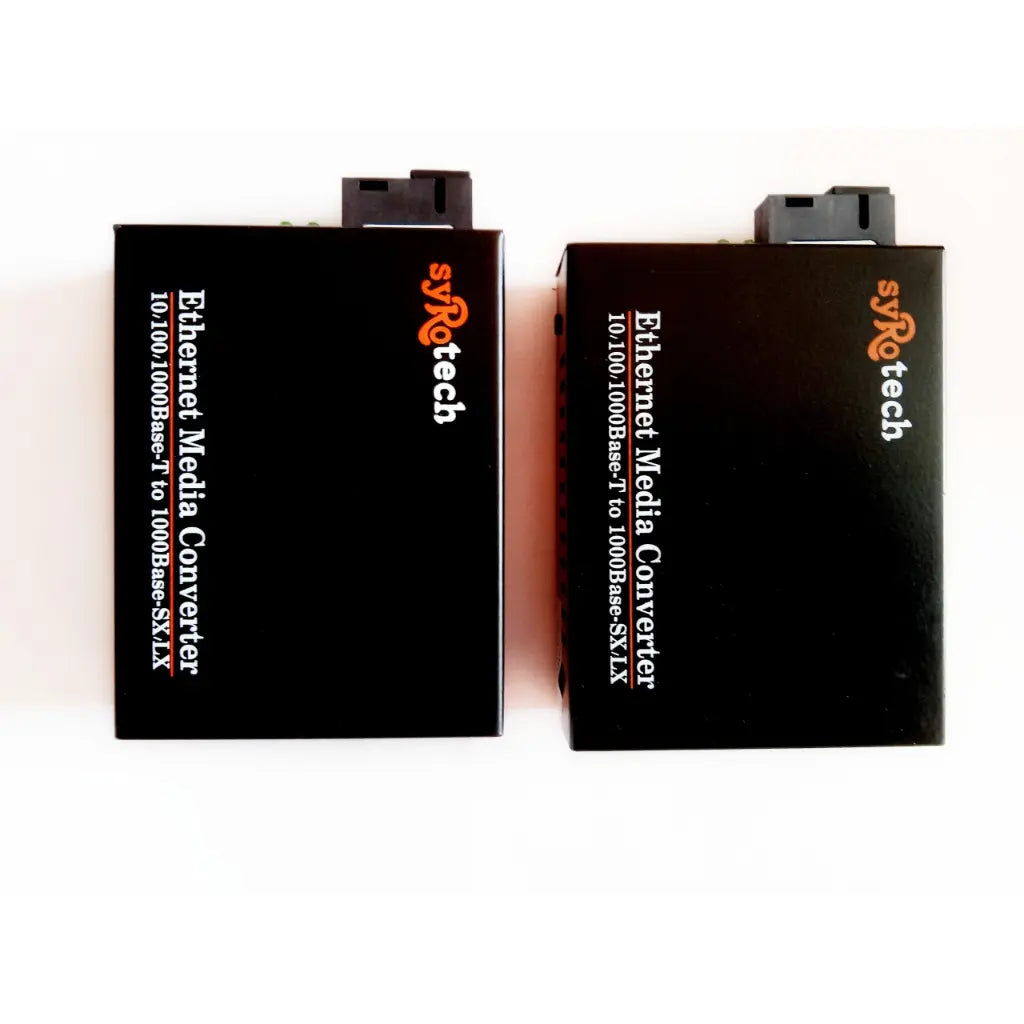

Syrotech GOMC-BI3512-20 & GOMC-BI5312-20 Gigabit S/F 10/100/1000Mbps Media Converter 20Km
Syrotech GOMC-BI3512-20 & GOMC-BI5312-20 Gigabit S/F 10/100/1000Mbps Media Converter 20Km
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
š Interface: Converts 10/100/1000Base-T (RJ45) to 1000Base-FX (SC) over single fiber
š Speed & Performance: Supports auto-sensing 10/100/1000Mbps with store-and-forward & cut-through transmission
š Distance: Extends network reach up to 20Km using single-mode fiber (TX1310/RX1550nm)
š”ļø Advanced Features: Supports VLAN, VoIP, QoS, Jumbo Frames (up to 9K), and STP for redundancy
š Power Efficient: Operates on <3W power with optional internal/external DC/AC supply
š§± Flexible Installation: Desktop, wall-mounted, chassis, and DIN-rail mounting supported
The Syrotech GOMC-BI3512-20 & GOMC-BI5312-20 is a high-performance Gigabit Single Fiber Media Converter designed to bridge copper and fiber networks seamlessly. Supporting auto-negotiation for 10/100/1000Mbps speeds, it extends transmission up to 20Km using single-mode fiber. With robust features like VLAN, QoS, Jumbo Frame support, and low power consumption, it ensures reliable and efficient data communication. Ideal for FTTH, FTTB, ISP backhaul, and enterprise networking environments.
Product Specifications:
| Specification | Details |
| Standard Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Data Rate | Copper: 10/100/1000Mbps; Fiber: 1.25Gbps |
| Copper Port | 1 Ć RJ45, up to 100m |
| Fiber Port | 1 Ć SC (default), 1310/1550nm, up to 20Km |
| LED Indicators | PWR, FL/A, FDX, TL/A, 100, FX |
| Power Supply | DC 5V 1A; AC 100ā240V or DC -36~72V |
| Power Consumption | <3W |
| Operating Temp. | -10Ā°C to 55Ā°C |
| Storage Temp. | -40Ā°C to 85Ā°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (External) | 94mm Ć 70mm Ć 26mm |
| Weight (Gross) | 0.4kg (External), 0.5kg (Internal) |
| Applications | FTTH, FTTB, FTTx, ISP Backhaul, Network Communication |
| Country of Origin | China |
| Model Number | GOMC-BI3512-20 & GOMC-BI5312-20 |
| Warranty | 1 Year Manufacturer Warranty |
| Weight | 0.4kg |
