Product Description:
📶 High-Speed Performance: Supports data rates up to 10.3Gbps – ideal for 10GBASE-LR/LW and Fiber Channel applications.
🌐 Extended Range: Dual fiber transceiver with 1310nm wavelength – delivers up to 20km transmission distance.
🔧 Advanced Diagnostics: Real-time monitoring of temperature, voltage, laser bias, TX/RX optical power via SFF-8472 interface.
🌡️ Reliable Operation: Operates efficiently between 0°C to 70°C with low power dissipation (max 1.5W).
♻️ Eco-Friendly Build: RoHS compliant and lead-free – meets global environmental standards.
🔌 Universal Compatibility: Compliant with SFF-8431 and IEEE802.3ae – fits seamlessly into existing SFP+ slots.

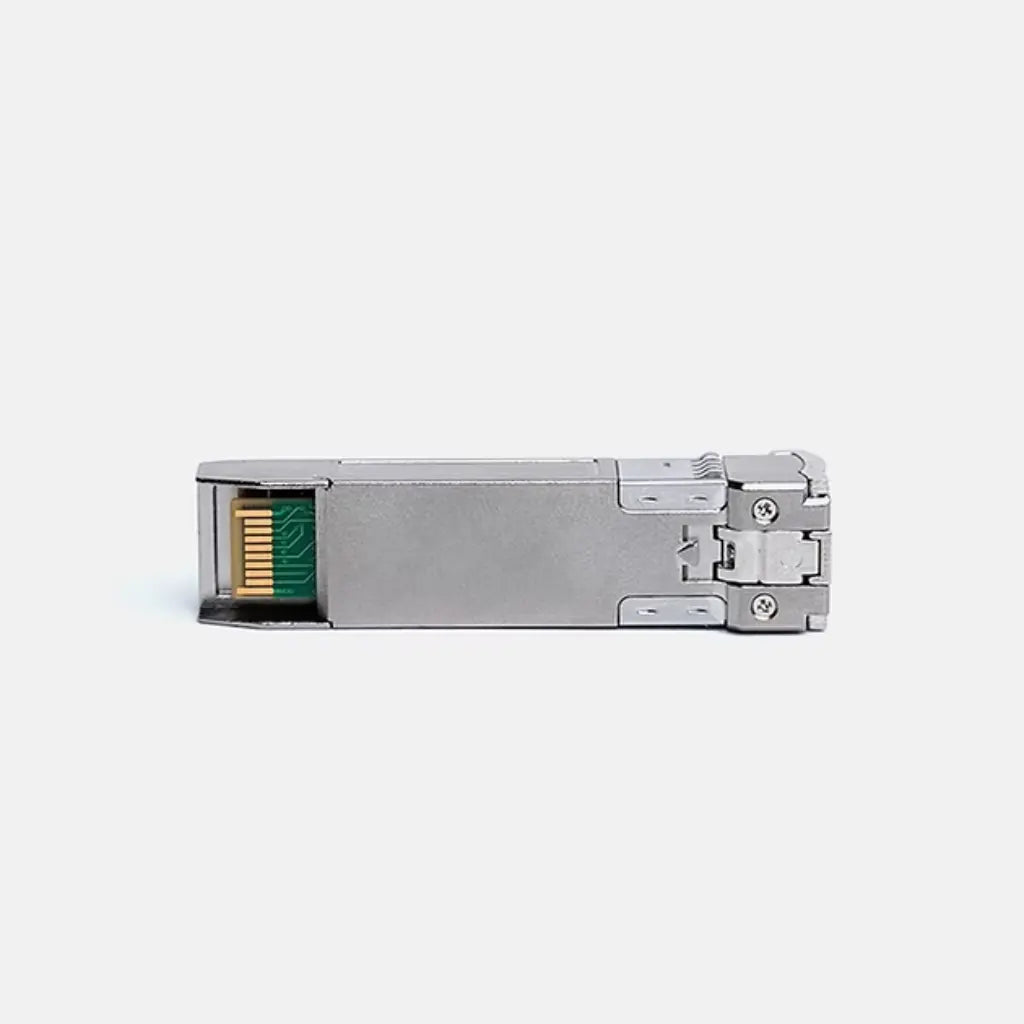

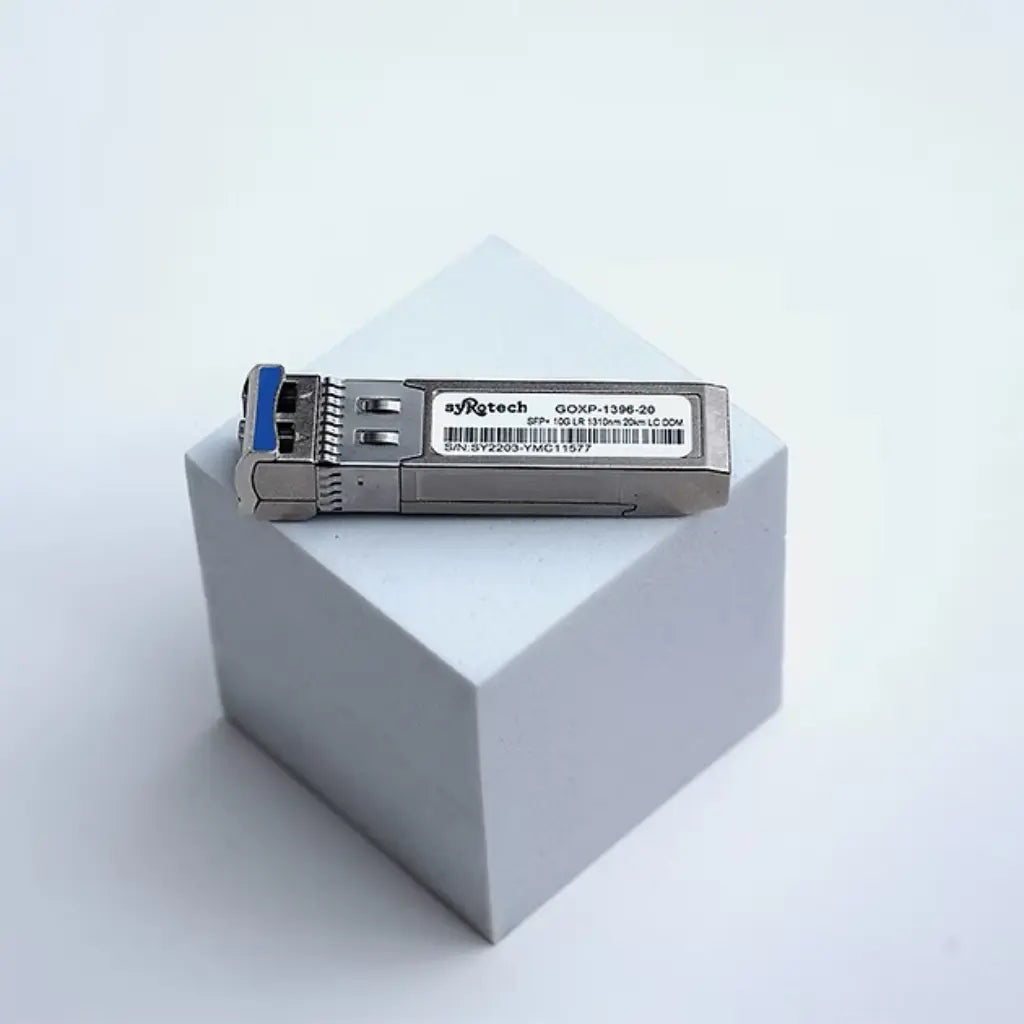

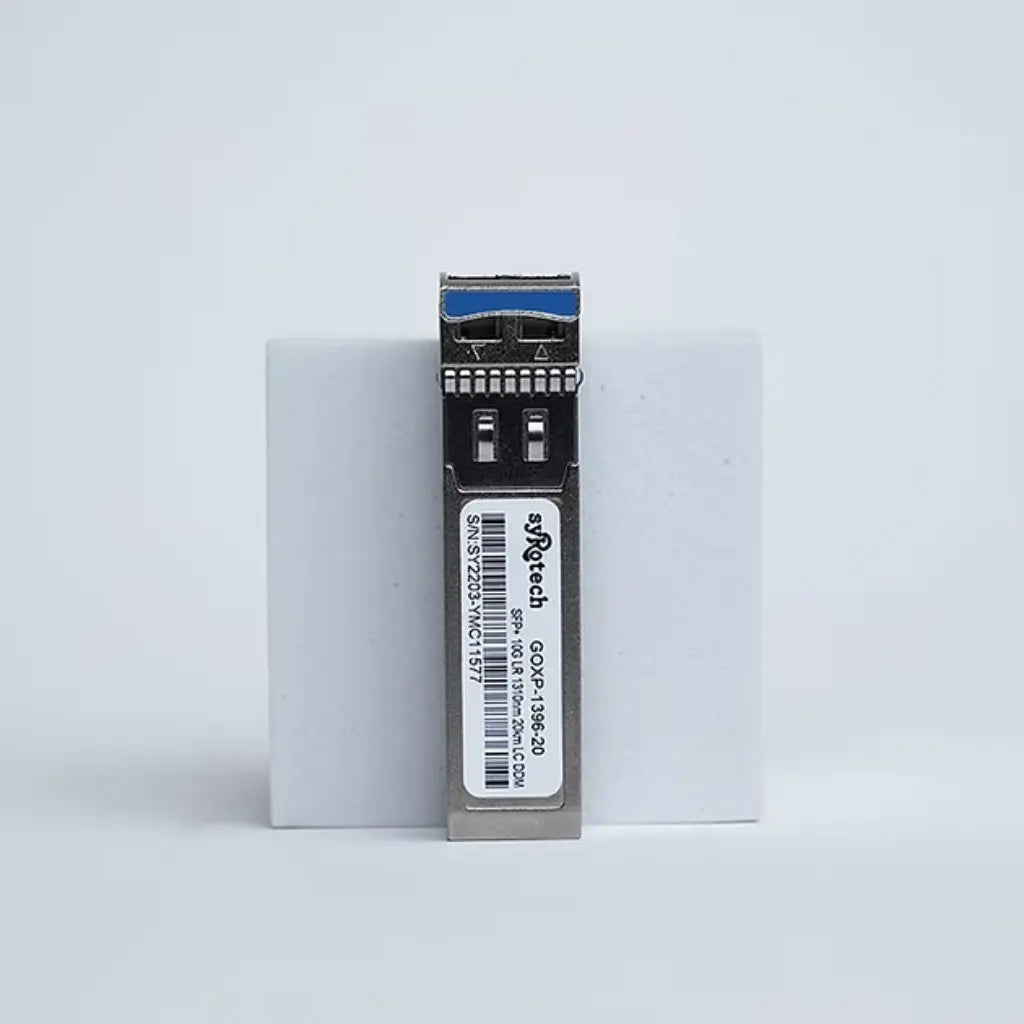

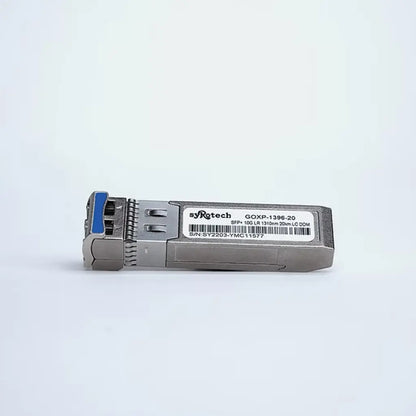

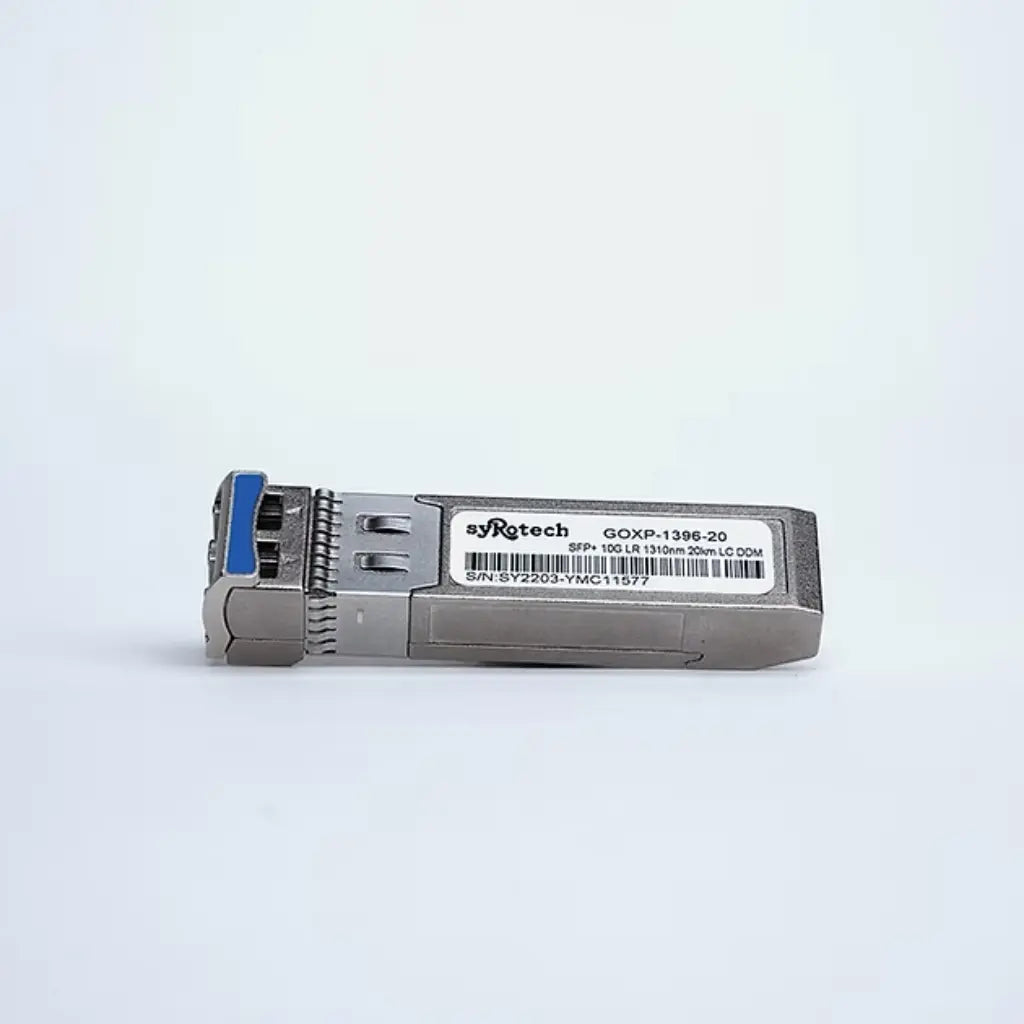

The Syrotech GOXP-1396-20 is a high-performance 10G SFP+ LR optical transceiver designed for long-range data transmission over dual fiber. Operating at a 1310nm wavelength, it supports up to 20km link length and ensures stable connectivity with low power consumption. Equipped with advanced diagnostics and compliant with industry standards, it’s ideal for 10GBASE-LR/LW, SDH/SONET, and Fiber Channel networks. Its robust design and eco-friendly build make it a reliable choice for enterprise-grade networking.
Product Specifications:
| Specification | Details |
| Form Factor | SFP+ LR |
| Data Rate | Up to 10.3Gbps |
| Transmission Distance | Up to 20km |
| Wavelength | 1310nm |
| Transmitter Type | Cooled EML |
| Receiver Type | PIN Photodiode |
| Operating Temperature | 0°C to 70°C |
| Power Supply | Single 3.3V |
| Power Dissipation | Max 1.5W |
| Compliance | SFF-8431, IEEE802.3ae, RoHS |
| Diagnostics | SFF-8472 compliant |
| Applications | 10GBASE-LR/LW, SDH/SONET, Fiber Channel |
| Country of Origin | China |
| Model Number | GOXP-1396-20 |
| Warranty | 3 Year |
| Weight | 100 g |
