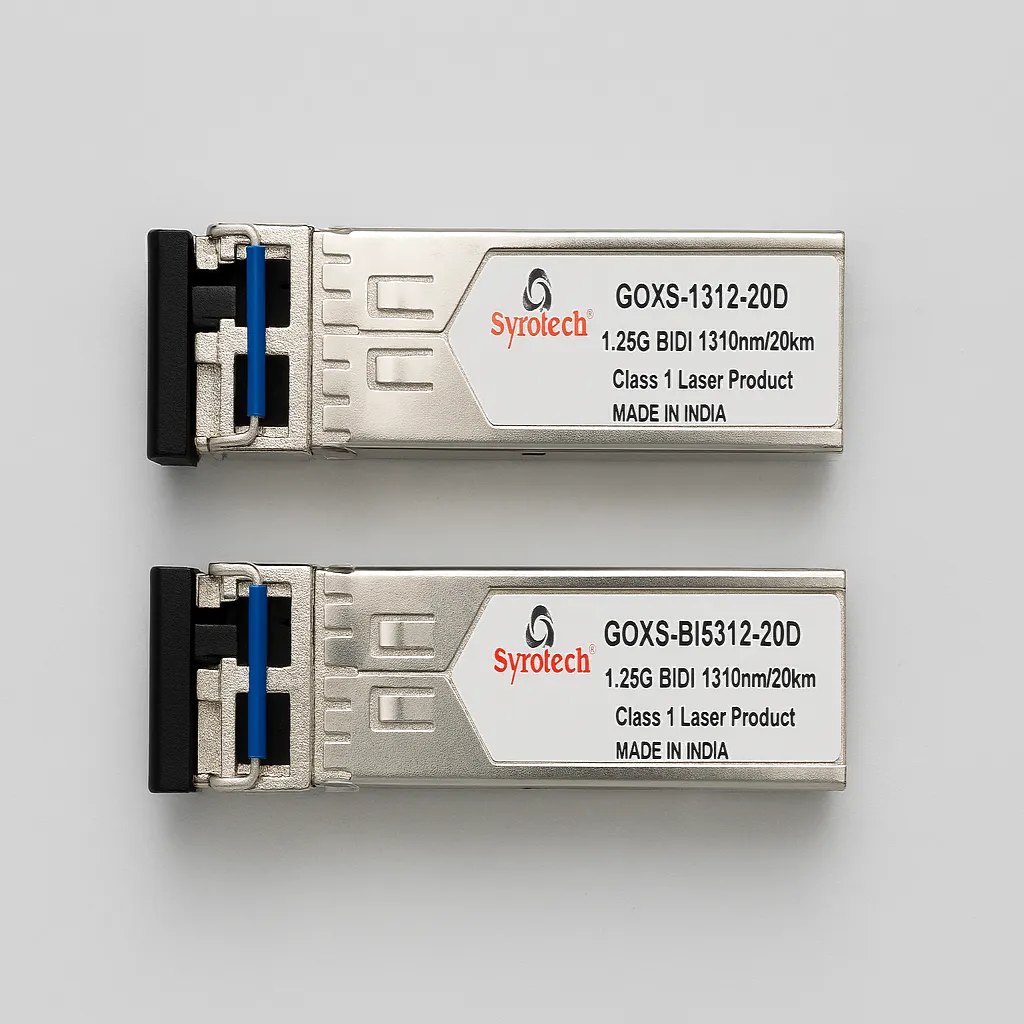

Syrotech GOXS-BI1312-20D & GOXS-BI5312-20D 1.25Gbps SFP Transceiver Module 1310nm Single Mode 20km LC Duplex
Syrotech GOXS-BI1312-20D & GOXS-BI5312-20D 1.25Gbps SFP Transceiver Module 1310nm Single Mode 20km LC Duplex
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
š¹ High-Speed Transmission: Supports dual data rates of 1.25Gbps/1.063Gbps for reliable and fast data transfer.
š¹ Long-Distance Reach: 1310nm FP laser enables up to 20km transmission over single-mode fiber.
š¹ Advanced Diagnostics: Integrated Digital Diagnostic Monitoring (DDM) with internal/external calibration.
š¹ Broad Compatibility: Compliant with SFP MSA, SFF-8472, SONET OC-24-LR-1, and RoHS standards.
š¹ Efficient Power Usage: Operates on a single +3.3V power supply with low power consumption.
š¹ Versatile Applications: Ideal for Gigabit Ethernet, Fiber Channel, switch-to-switch, router/server interfaces.
The Syrotech GOXS-1312-20D & GOXS-BI5312-20D is a high-performance SFP optical transceiver designed for seamless data transmission over long distances. Operating at 1.25Gbps with a 1310nm FP laser, it supports up to 20km reach on single-mode fiber. With built-in Digital Diagnostic Monitoring and compliance with industry standards like SFP MSA and RoHS, it ensures reliability and compatibility across various networking environments. Perfect for enterprise-grade Ethernet, Fiber Channel, and telecom applications.
Product Specifications:
| Specification | Details |
| Data Rate | 1.25Gbps / 1.063Gbps |
| Wavelength | 1310nm |
| Transmission Distance | Up to 20km |
| Connector Type | LC Duplex |
| Laser Type | FP Laser |
| Receiver Type | PIN Photodiode |
| DDM Support | Yes (Internal/External Calibration) |
| Operating Temperature | 0Ā°C to +70Ā°C |
| Power Supply Voltage | +3.3V |
| Compliance | SFP MSA, SFF-8472, RoHS |
| Applications | Gigabit Ethernet, Fiber Channel, Switch/Router Interfaces |
| Country of Origin | India |
| Model Number | GOXS-BI1312-20D & GOXS-BI5312-20D |
| Warranty | 3 Year |
| Weight | 100g |
