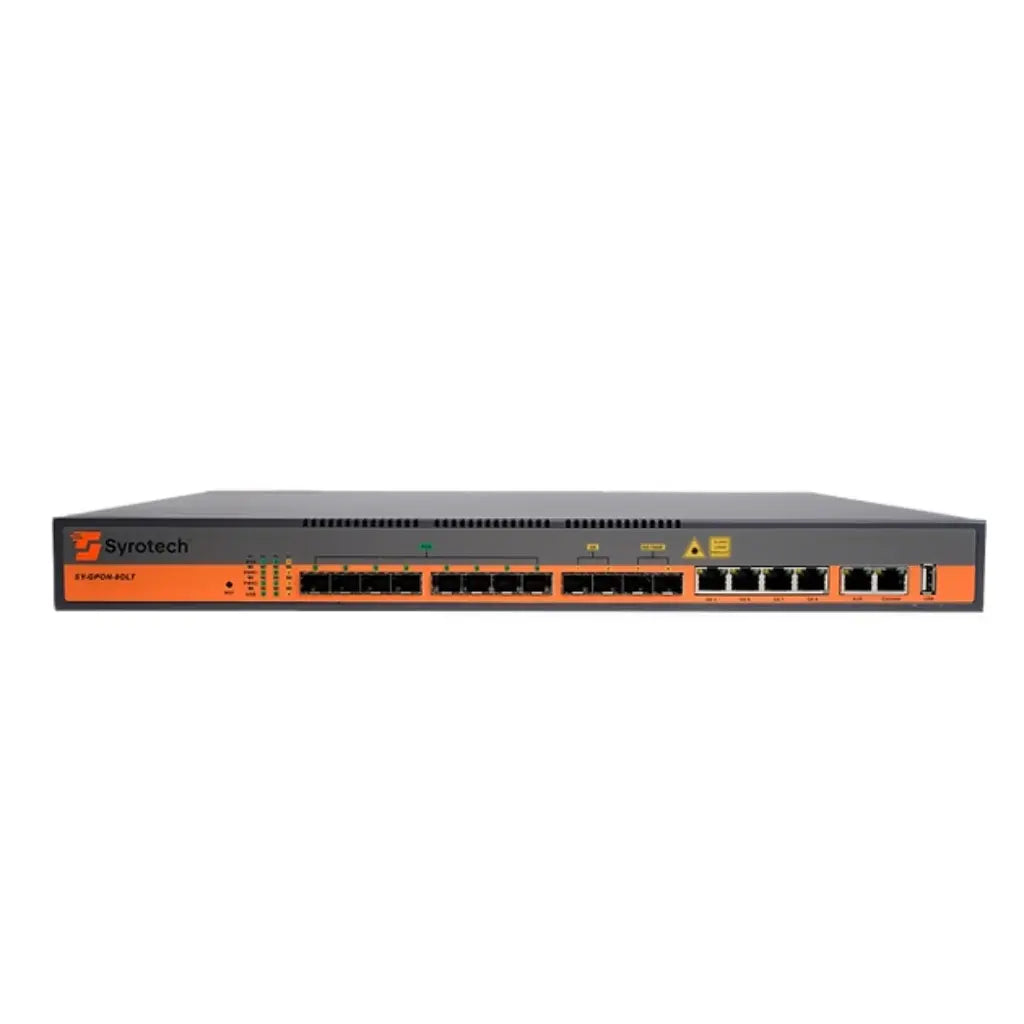

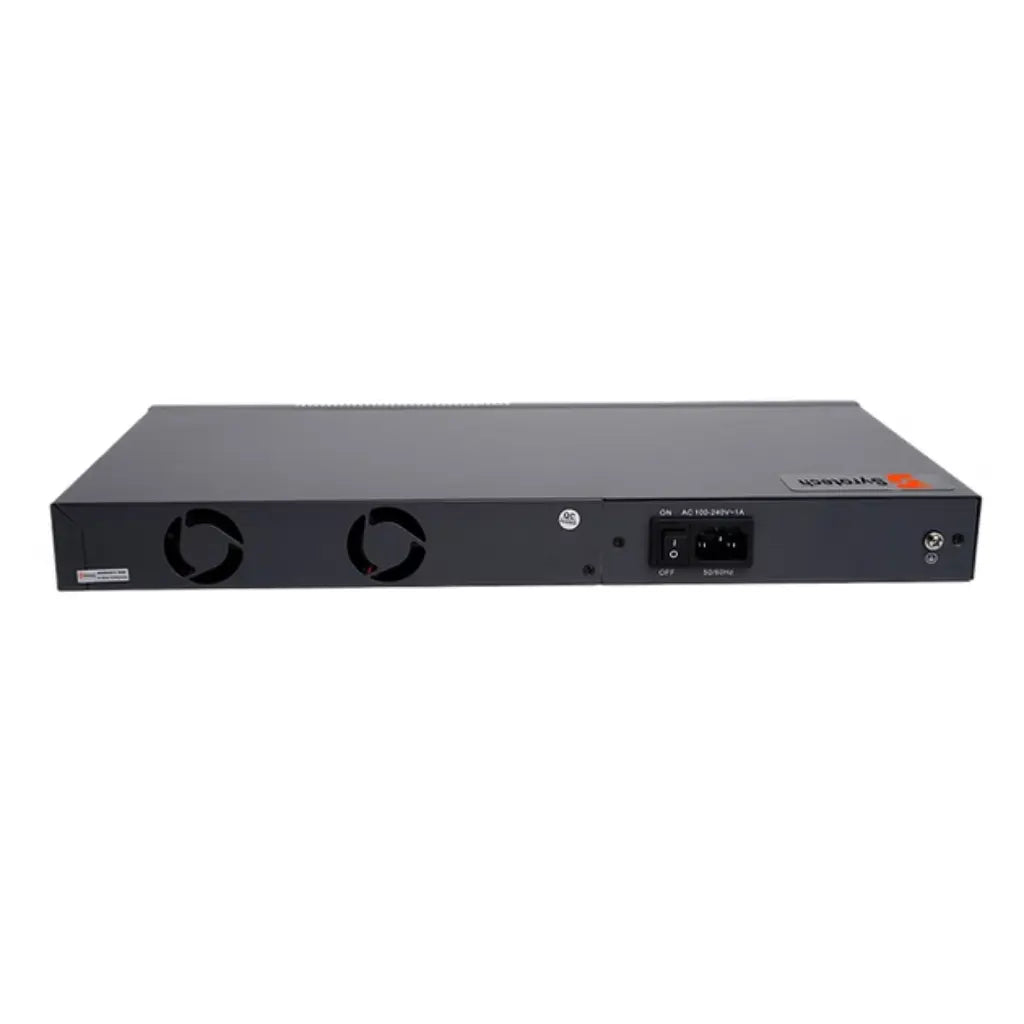

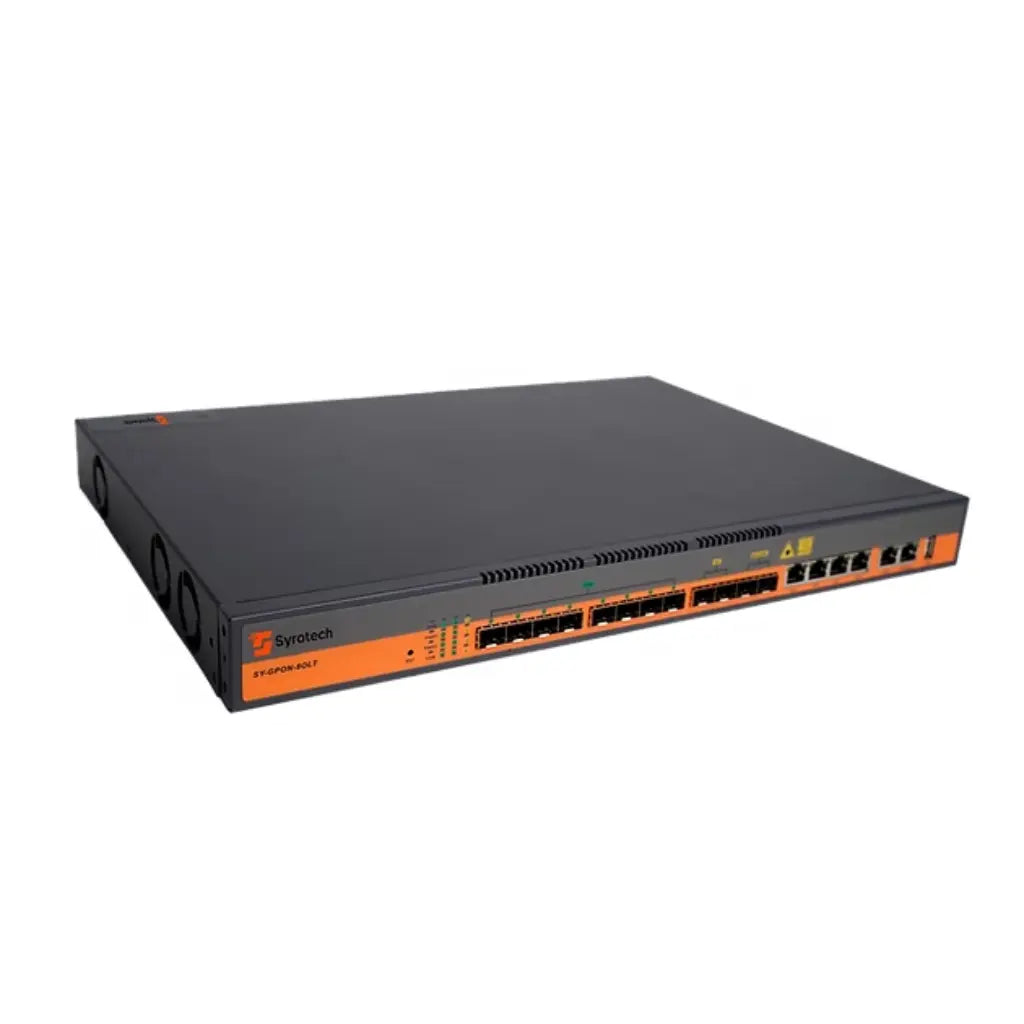

Syrotech GPON OLT 8 Ports SY-GPON-8OLT Rack Mount with CTC2.0 Support
Syrotech GPON OLT 8 Ports SY-GPON-8OLT Rack Mount with CTC2.0 Support
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🔌 Ports & Uplink Options: 8 PON ports, 2×1G SFP, 2×1/10G SFP/SFP+, and 4×1G Copper ports – supports 850/1310/1550nm transceivers
🚀 High-Speed Transmission: Downlink at 2.5Gbps and uplink at 1.25Gbps with Class B+ and Class C+ GPON modules
🔐 Advanced Security: ONU authentication, ACL access control, TACACS+ support, and encrypted PON interface
📶 Robust Network Features: VLAN (Port-based, QinQ), IGMP/MLD Snooping, DHCP Server/Relay/Snooping, and Optical Path Protection
⚙️ Flexible Management: CLI, SNMP, TELNET, EMS support with TFTP-based software upgrades and debug output
🧊 Rack-Mount Design: 1U chassis, 19-inch rack mountable, dual power input (AC/DC), hot-swappable modules.
The SYROTECH SY-GPON-8OLT is a high-density GPON OLT solution designed for scalable fiber deployments. With 8 fixed PON ports and versatile uplink options, it supports up to 1:128 splitting ratio and seamless interoperability with ONUs from various vendors. Engineered for carrier-grade reliability, it complies with ITU-T G.984/G.988 standards and offers advanced features like QoS, VLAN, multicast, and secure ONU authentication. Its compact 1U rack-mount chassis and dual power support make it ideal for modern network environments.
Product Specifictions:
| Specification | Details |
| Model Number | SY-GPON-8OLT |
| PON Ports | 8 Fixed Slots |
| Uplink Ports | 2×1G SFP + 2×1/10G SFP/SFP+ + 4×1G Copper |
| Transmission Rate | Downlink 2.5Gbps / Uplink 1.25Gbps |
| Coupling Ratio | Up to 1:128 |
| Backplane Bandwidth | 104Gbps |
| Switching Capacity | 88Gbps |
| MAC Table Capacity | 32K |
| VLAN Support | Port-based VLAN, QinQ, 4K VLAN |
| Multicast Support | IGMP Snooping, MLD Snooping |
| QoS Features | IEEE 802.1p, WRR, SP, FIFO, Rate Limiting |
| Security Features | ONU Auth, ACL, TACACS+, Encrypted PON Interface |
| Management Modes | CLI, SNMP, TELNET, EMS, TFTP Upgrade |
| Reliability Features | Hot Swap, Optical Path Protection, UDLD |
| Power Supply | AC 90–240V / DC 36–72V, Dual Input, Hot Swap |
| Dimensions (W×D×H) | 442.5 × 304 × 44 mm |
| Installation | 19-inch Rack Mount |
| Operating Temp | 0°C to 45°C |
| Storage Temp | -40°C to 80°C |
| Weight | 5.25 Kg |
| Warranty | 3 Year |
| Country of Origin | China |
