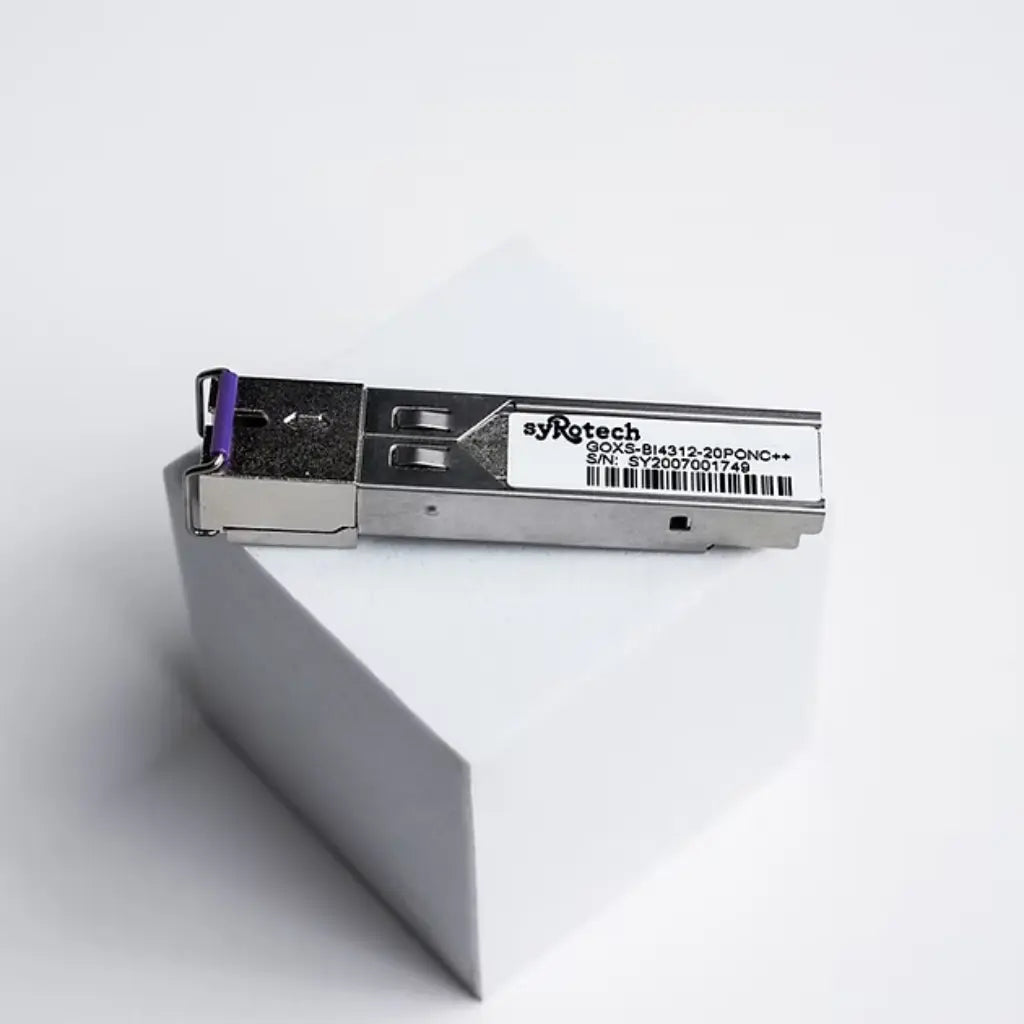

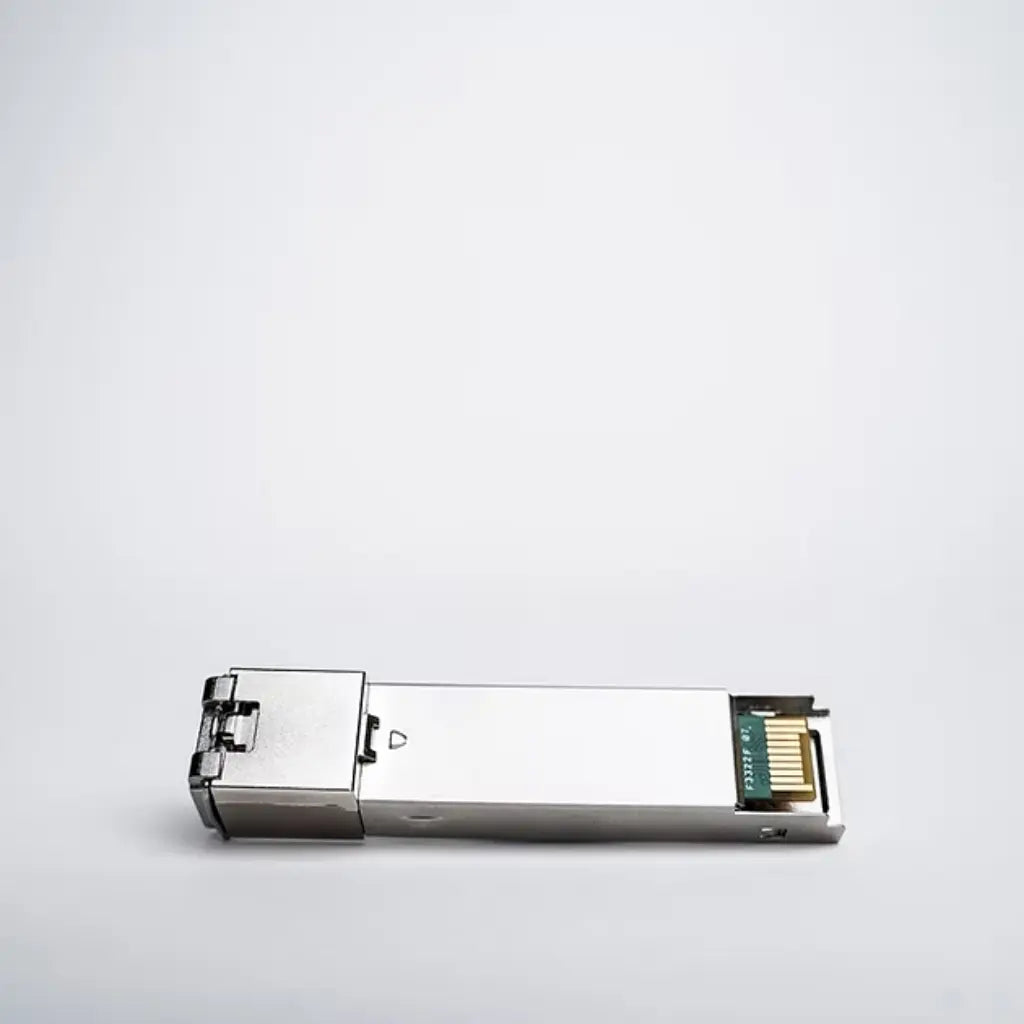

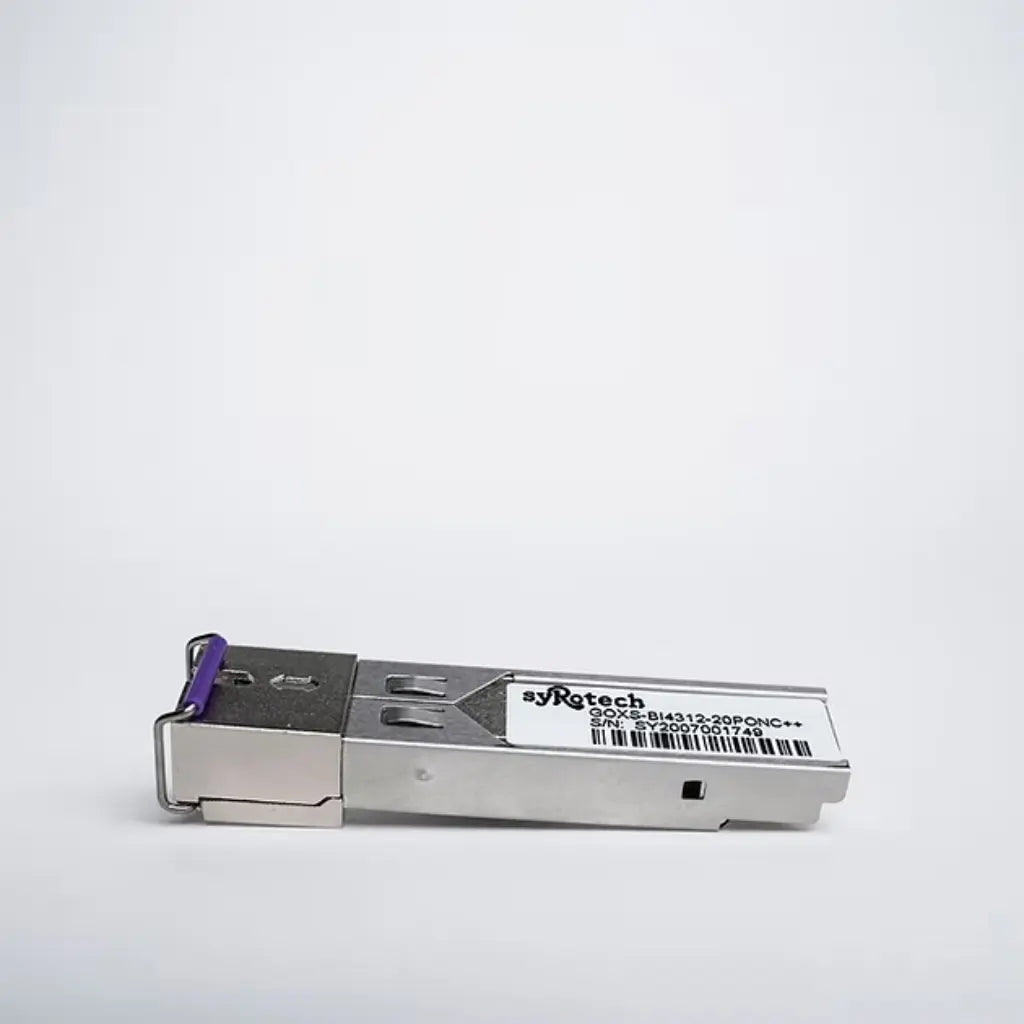

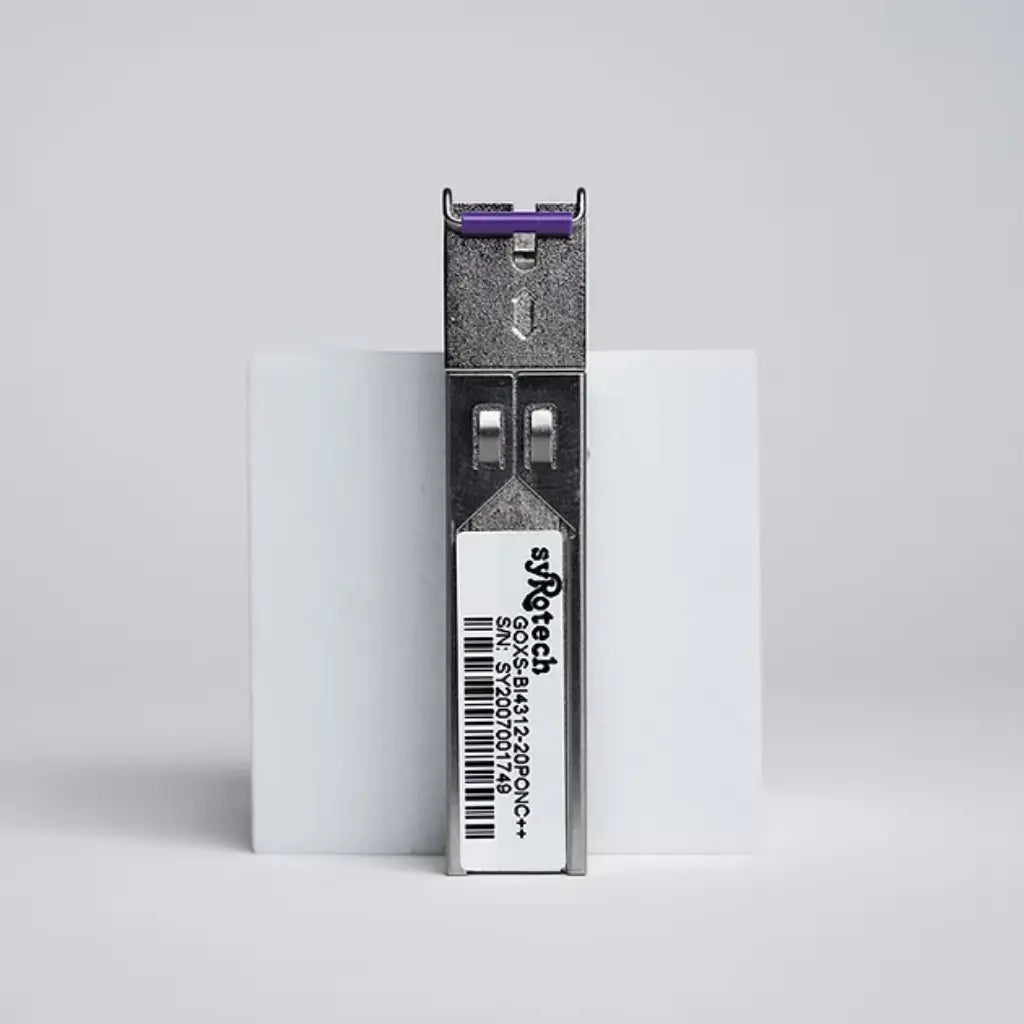

Syrotech GOXS BI4312 20PONC+++ GPON SFP Module SC Connector 1490nm Tx 1310nm Rx 20km C+++
Syrotech GOXS BI4312 20PONC+++ GPON SFP Module SC Connector 1490nm Tx 1310nm Rx 20km C+++
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 Connector Type: Equipped with SC/PC connector for seamless integration into GPON OLT systems
🚀 High-Speed Transmission: Supports 2.488 Gbps downstream and 1.244 Gbps upstream data rates
🌡️ Wide Operating Range: Operates efficiently in temperatures from 0°C to 70°C with Class C+++ link budget
📊 Digital Diagnostics: SFF-8472 compliant with real-time monitoring of temperature, voltage, and optical power
🌱 Eco-Friendly Design: Fully RoHS compliant, ensuring environmentally safe operation
🔧 Robust Build: Features 1490nm DFB Tx with isolator and 1310nm APD Rx for reliable long-distance performance
The Syrotech GOXS-BI4312-20PONC+++ is a high-performance GPON Class C+++ SFP OLT transceiver designed for FTTx applications. With support for 2.5Gbps downstream and 1.25Gbps upstream, it ensures fast and stable data transmission over distances up to 20km. Its SC/PC connector, digital diagnostics, and compliance with ITU-T G.984.2 make it ideal for modern fiber networks. Built to operate in demanding environments, it delivers both reliability and efficiency.
Product Specifications:
| Specification | Details |
| Transmitter Wavelength | 1490 nm (DFB with isolator) |
| Receiver Wavelength | 1310 nm (APD) |
| Transmission Rate (Tx/Rx) | 2.488 Gbps / 1.244 Gbps |
| Connector Type | SC/PC |
| Distance Support | Up to 20 km |
| Digital Diagnostics | SFF-8472 Compliant |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.1V – 3.5V |
| Power Consumption | Max 500 mA |
| Compliance | ITU-T G.984.2, RoHS |
| Country of Origin | China |
| Model Number | GOXS-BI4312-20PONC+++ |
| Warranty | 3 Year |
| Weight | 100 g |
