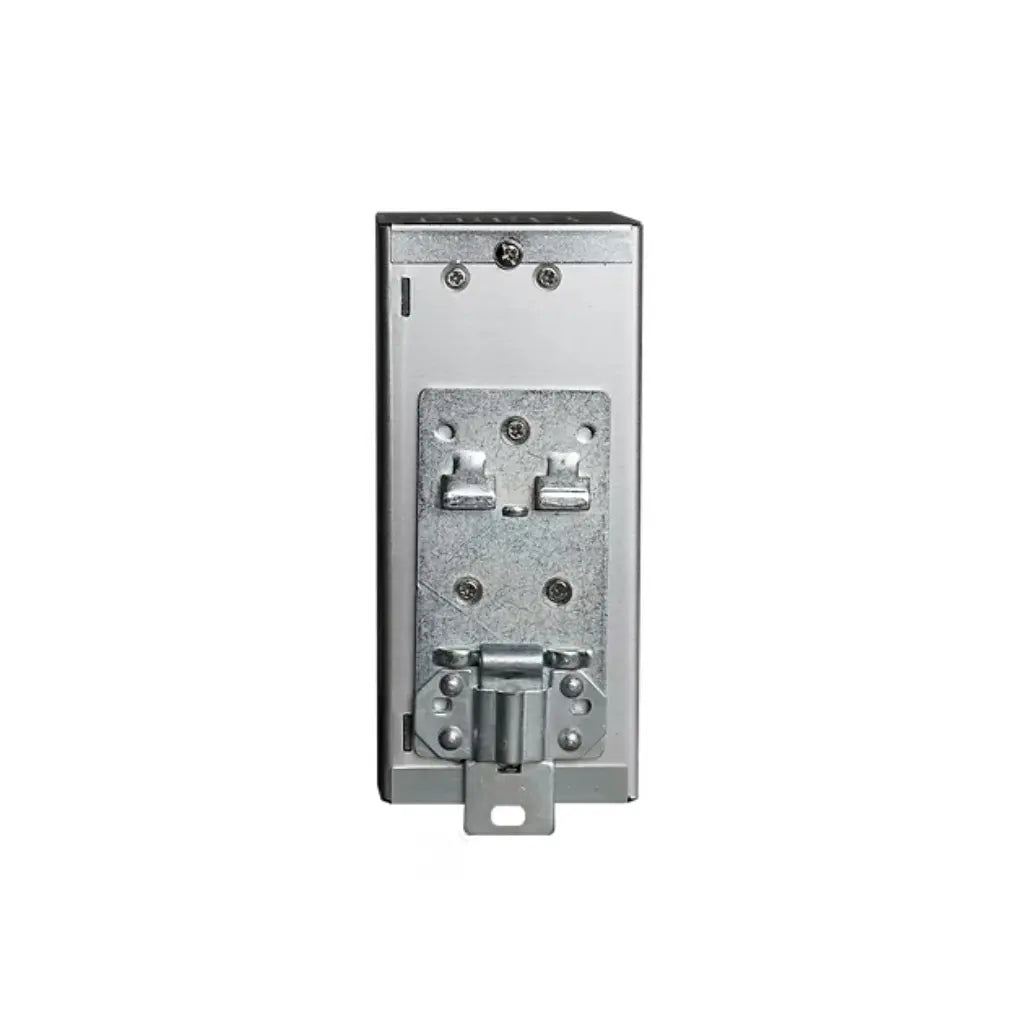

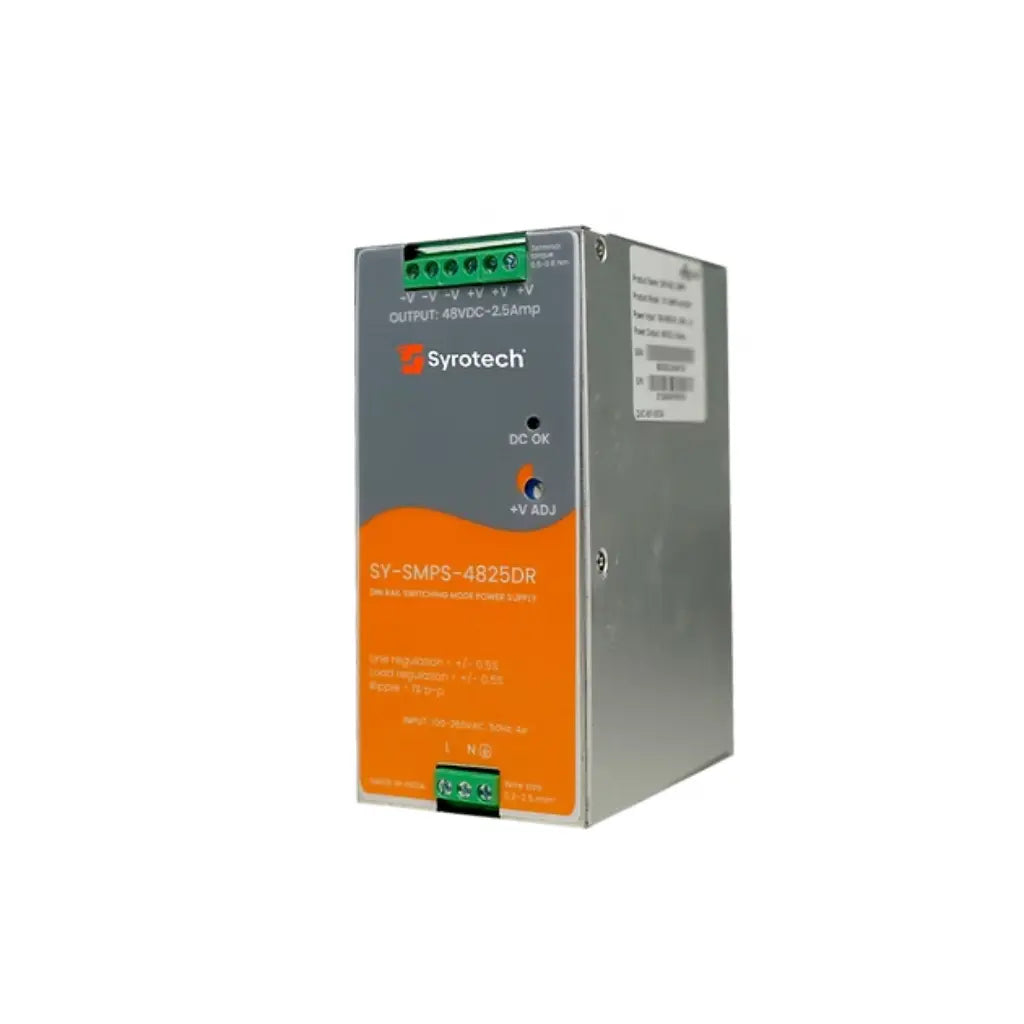

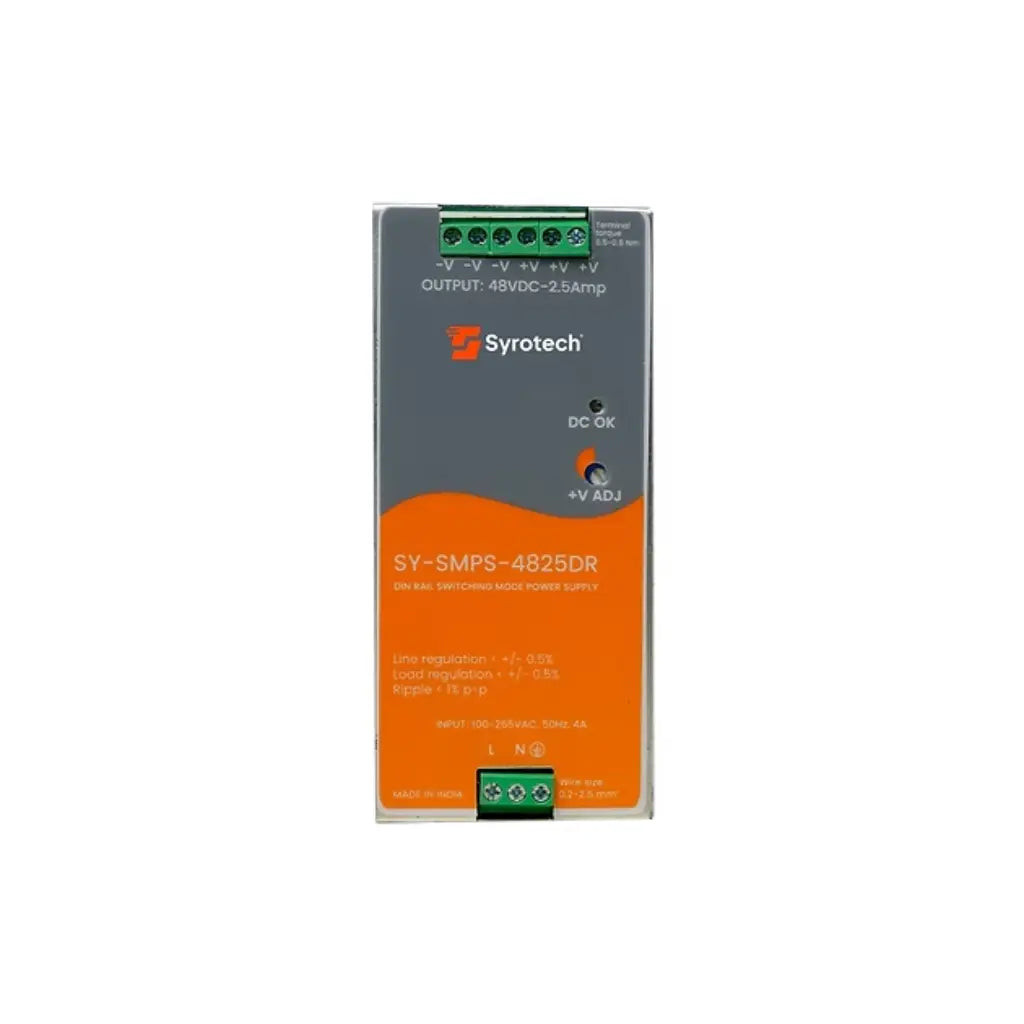

Syrotech SY‑SMPS‑4825DR 48V 2.5A DIN Rail Industrial 120W Power Supply
Syrotech SY‑SMPS‑4825DR 48V 2.5A DIN Rail Industrial 120W Power Supply
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🌟 Compact & Lightweight Design – New‑generation SMPS engineered for space‑saving DIN‑rail installations.
⚡ Universal AC Input (100–265VAC) – Supports wide voltage range with high efficiency >81%.
🛡️ Advanced Protection Circuitry – Built‑in OVP, OLP, SCP & soft‑start inrush current limiting for safety.
🔋 Stable 48V 2.5A Output – Adjustable 48–56VDC output with <±0.5% load/line regulation.
🔧 Industrial‑Grade Reliability – Operates from 0°C to 70°C with excellent derating performance.
🔌 Green LED Status Indication – DC OK and overload indication for quick visual diagnostics.
Syrotech SY‑SMPS‑4825DR is a high‑performance DIN‑rail mounted industrial SMPS designed to deliver a stable 48VDC, 2.5A power output for automation, telecom, and networking applications. With universal AC input, high efficiency, and multiple layers of protection, it ensures reliable operation even under demanding conditions. Its compact form, soft‑start circuitry, and LED status indication make it ideal for professional setups requiring consistent 120W output with excellent thermal handling.
| Input Voltage | 100–265VAC |
| Frequency | 45–60Hz |
| Inrush Current | <38A |
| AC Current Consumption | 4A |
| Input Protection | 4A Sub‑miniature fuse (Time‑lag type) |
| Transient Surge Protection | Yes (Varistor) |
| Filter | EMI/RFI |
| Buffer Time | >20ms at full load |
| Efficiency | >81% |
| Nominal Voltage | 48VDC |
| Adjustable Voltage Range | 48–56VDC |
| Nominal Current | 2.5A @ 48VDC |
| Maximum Output Power | 120W |
| Line Regulation | <±0.5% |
| Load Regulation | <±0.5% |
| Ripple & Noise | <±1% P‑P |
| LED Indication | Green LED (DC OK / Overload) |
| Parallel Connection | Yes (with diode ORing) |
| Series Connection | Yes |
| Protections | Over‑voltage, Over‑load, Short‑circuit |
| Storage Temperature | 0°C to +80°C |
| Relative Humidity | 95% @ 25°C non‑condensing |
| Cooling | Natural convection |
| Safety Standard | IS13252 (Part‑1), IEC60950‑1 |
| Insulation Voltage I/P‑O/P | 3.0KVAC |
| Insulation Voltage I/P‑PE | 1.5KVAC |
| Insulation Voltage O/P‑PE | 500VAC |
| Isolation Resistance | >100MΩ @ 500VDC |
| Installation | DIN Rail TS35/7.5 or 15 |
| Connection Type | Screw terminal (0.2–2.5 sq. mm) |
| Dimensions (L×W×H) | 57 × 102 × 127 mm |
| Weight | 0.6 kg |
| Country of Origin | India |
| Warranty | 1 Year |
| Part Number | SY‑SMPS‑4825DR |
