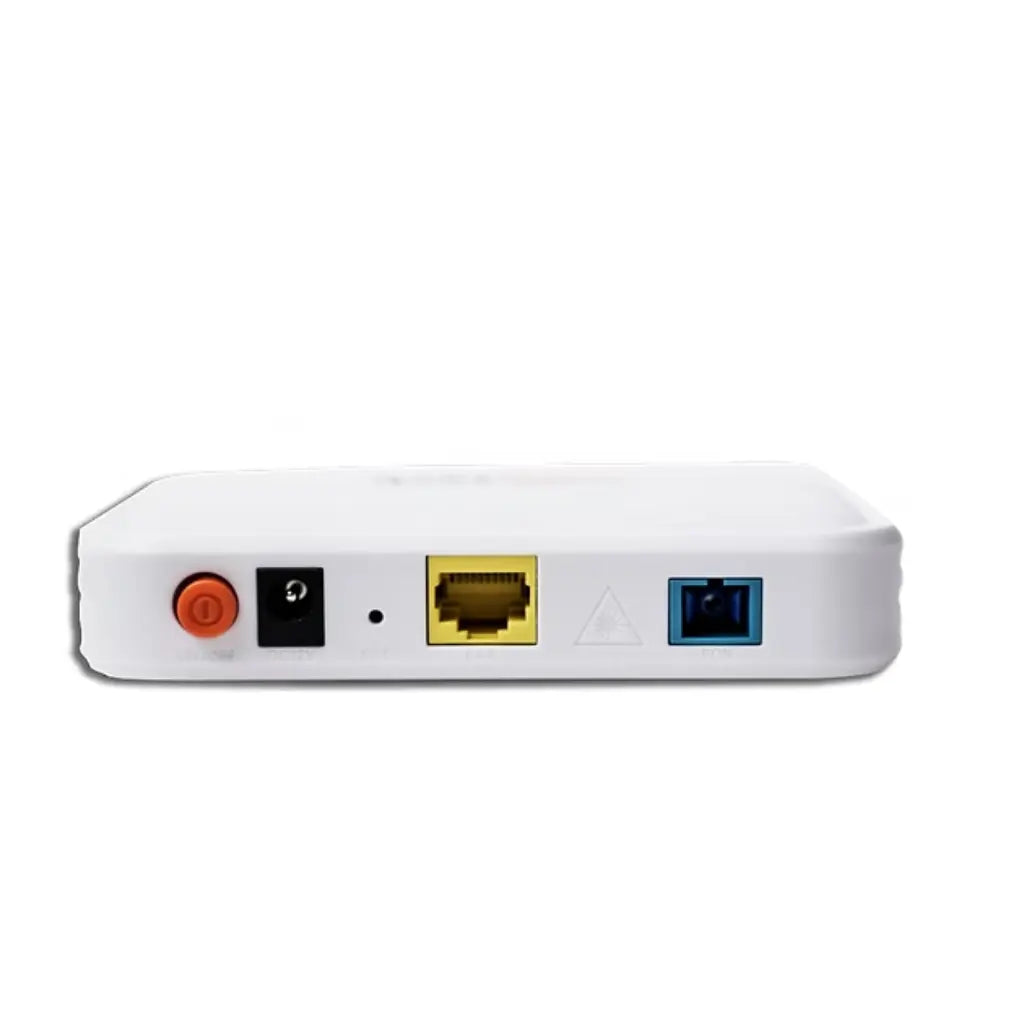

Syrotech SYGPON1000R DONT XPON ONU Without WiFi 1GE Port SCPC Connector FTTH FTTO Compatible
Syrotech SYGPON1000R DONT XPON ONU Without WiFi 1GE Port SCPC Connector FTTH FTTO Compatible
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 1GE Ethernet Port: Equipped with one auto-negotiating Gigabit Ethernet port for seamless high-speed connectivity.
🌐 XPON Compatibility: Supports EPON, GPON, and P2P modes with ZTE/Realtek chipset for wide interoperability.
🔒 Advanced Security: AES128 encryption and rogue ONT detection ensure secure and reliable data transmission.
📶 High Performance: Downlink speed of 2.488Gbps and uplink speed of 1.244Gbps with bidirectional FEC support.
🛠️ Robust Management: Offers OMCI, WEB management, and supports PLOAM, OMCI, and dying-gasp reporting.
🧊 Compact & Efficient: Lightweight plastic casing with <3W power consumption and external 12V adapter.
The Syrotech SYGPON1000R DONT is a high-performance XPON ONU designed for FTTH and FTTO applications. Powered by ZTE/Realtek chipset, it supports EPON/GPON/P2P modes and complies with ITU-T G.984 standards. With a single GE port and SC/PC optical interface, it ensures reliable data and video transmission. Its compact design, low power consumption, and advanced management features make it ideal for residential and business broadband deployments.
Product Specifications:
| Specification | Details |
| PON Port | 1×GPON SC/PC, Class B+, ITU-T G.984.2 compliant |
| Ethernet Port | 1×GE RJ45, Auto-negotiation, Full/Half Duplex |
| Downstream Rate | 2.488Gbps |
| Uplink Rate | 1.244Gbps |
| Transmission Distance | Up to 30KM (PON), 100M (Ethernet) |
| Power Supply | External 12V 0.5A DC Adapter |
| Power Consumption | <3W |
| Management | OMCI, WEB, Alarm, Log, Configuration |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Storage Humidity | 5% to 95% (Non-condensing) |
| Dimensions | 110mm × 70mm × 30mm |
| Material | Plastic casing |
| Country of Origin | China |
| Model Number | SYGPON1000R DONT |
| Warranty | 3 Year |
| Weight | 0.1kg |
