TP-Link Beam Bridge 5 UR KIT 5GHz 867Mbps Long-Range Wireless Bridge
TP-Link Beam Bridge 5 UR KIT 5GHz 867Mbps Long-Range Wireless Bridge
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
📡 Ultra-Range 15 km Wireless Link: 23 dBi dual-polarized directional antennas enable long-distance 5 GHz point-to-point connectivity for remote sites.
⚡ Preconfigured Plug-and-Play Kit: The bridge pair supports automatic PtP pairing, helping you establish connectivity with minimal manual configuration.
📱 App-Guided Alignment: Omada app tools provide visual antenna alignment and speed testing to help verify installation performance.
🔌 Flexible PoE Deployment: One Gigabit PoE-in port supports 802.3af PoE and 24V/48V passive PoE for flexible installation options.
🌦️ Outdoor-Ready Construction: IP65 weatherproofing, ±6 kV Ethernet lightning protection and a -40°C to 70°C operating range support demanding outdoor deployments.
TP-Link Beam Bridge 5 UR KIT is a 5 GHz 867 Mbps ultra-range wireless bridge designed for long-distance point-to-point networking up to 15 km. Its 23 dBi directional antennas, preconfigured auto-pairing, app-guided alignment and Gigabit PoE connectivity simplify deployment. With IP65 protection and Omada management support, it suits construction sites, power infrastructure, remote monitoring, forests and other outdoor locations.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Model | Beam Bridge 5 UR KIT |
| Product Type | 5 GHz Ultra-Range Indoor/Outdoor Wireless Bridge |
| Wireless Technology | IEEE 802.11 a/n/ac |
| Wireless Frequency | 5 GHz |
| Wireless Speed | Up to 867 Mbps |
| Transmission Distance | Up to 15 km (9.3 mi) |
| Wireless Mode | Point-to-Point (PtP) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas |
| Antenna Gain | 23 dBi at 5 GHz |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Bandwidth | 20 MHz / 40 MHz / 80 MHz |

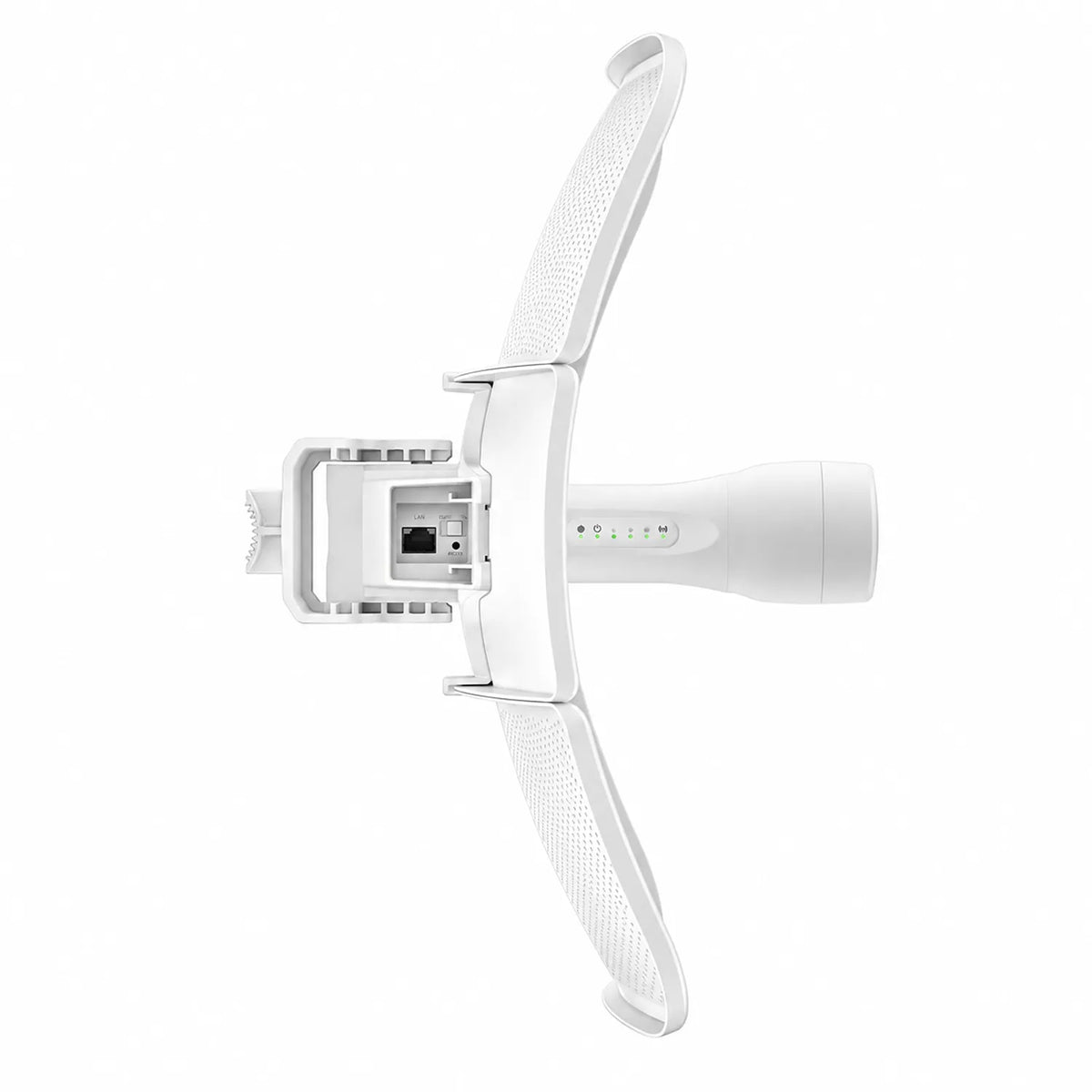

| Ethernet Interface | 1 × 10/100/1000 Mbps Gigabit Ethernet Port (RJ45), PoE In |
| PoE Support | 802.3af PoE; 24V or 48V Passive PoE |
| Passive PoE Adapter | Included |
| Weatherproof Rating | IP65 |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Management | Omada App, Web-based Management |
| Centralized Management | Omada Central, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes, requires Omada Controller |
| Antenna Alignment | Yes |
| Speed Test | Yes |
| MU-MIMO | 5G 2×2 MU-MIMO DL |
| Maximum Associated STAs | 8 |

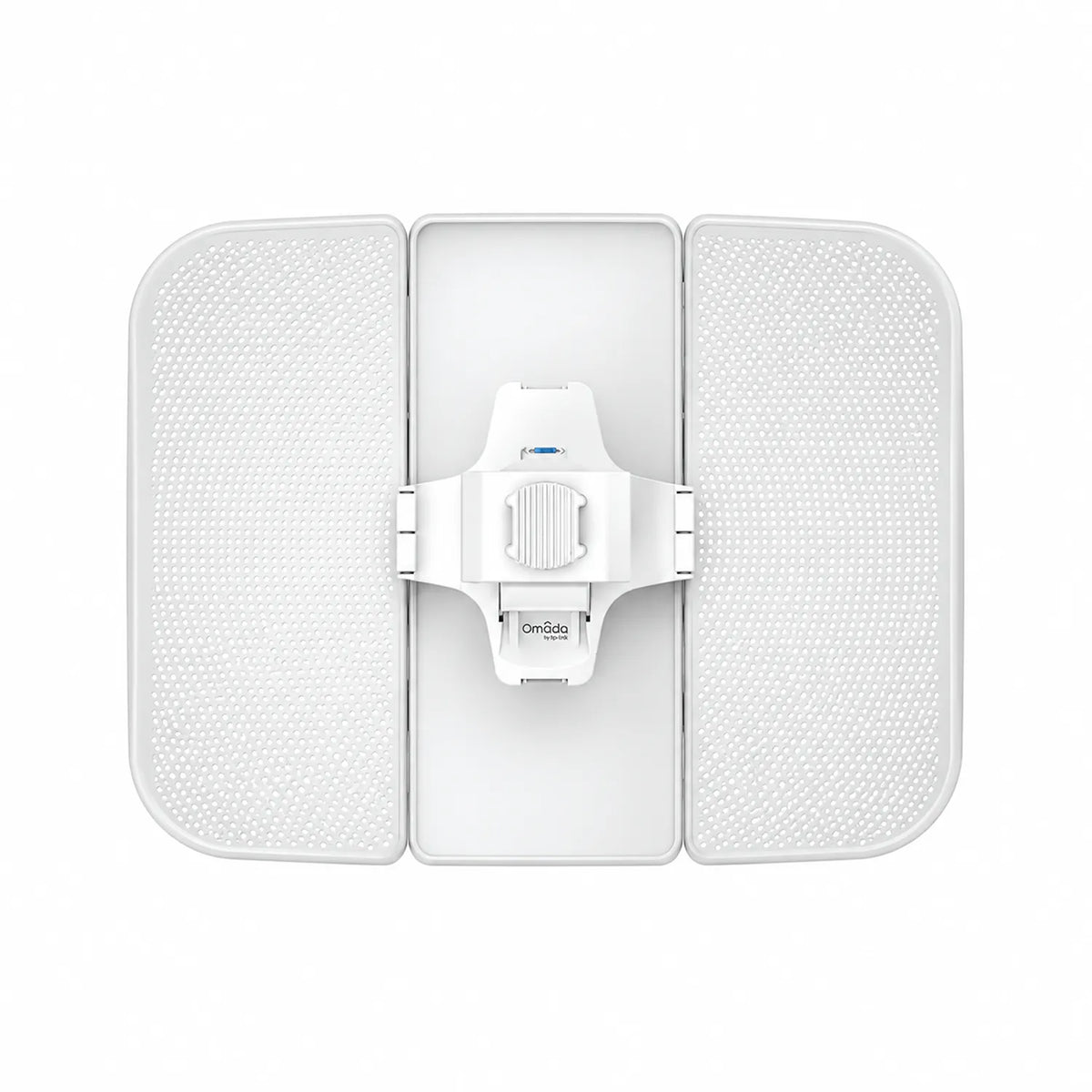

| Mounting | Pole Mounting, kits included |
| Dimensions | 366 × 280 × 207 mm |
| Weight | 1.1 kg |
| Certifications | CE, FCC, RoHS |
| Package Contents | Beam Bridge 5 UR KIT, Installation Guide, Mounting Kit, Passive PoE Adapter, Power Cord |
| Weight | 1.1 kg |
| Warranty | 2-year manufacturer warranty |
