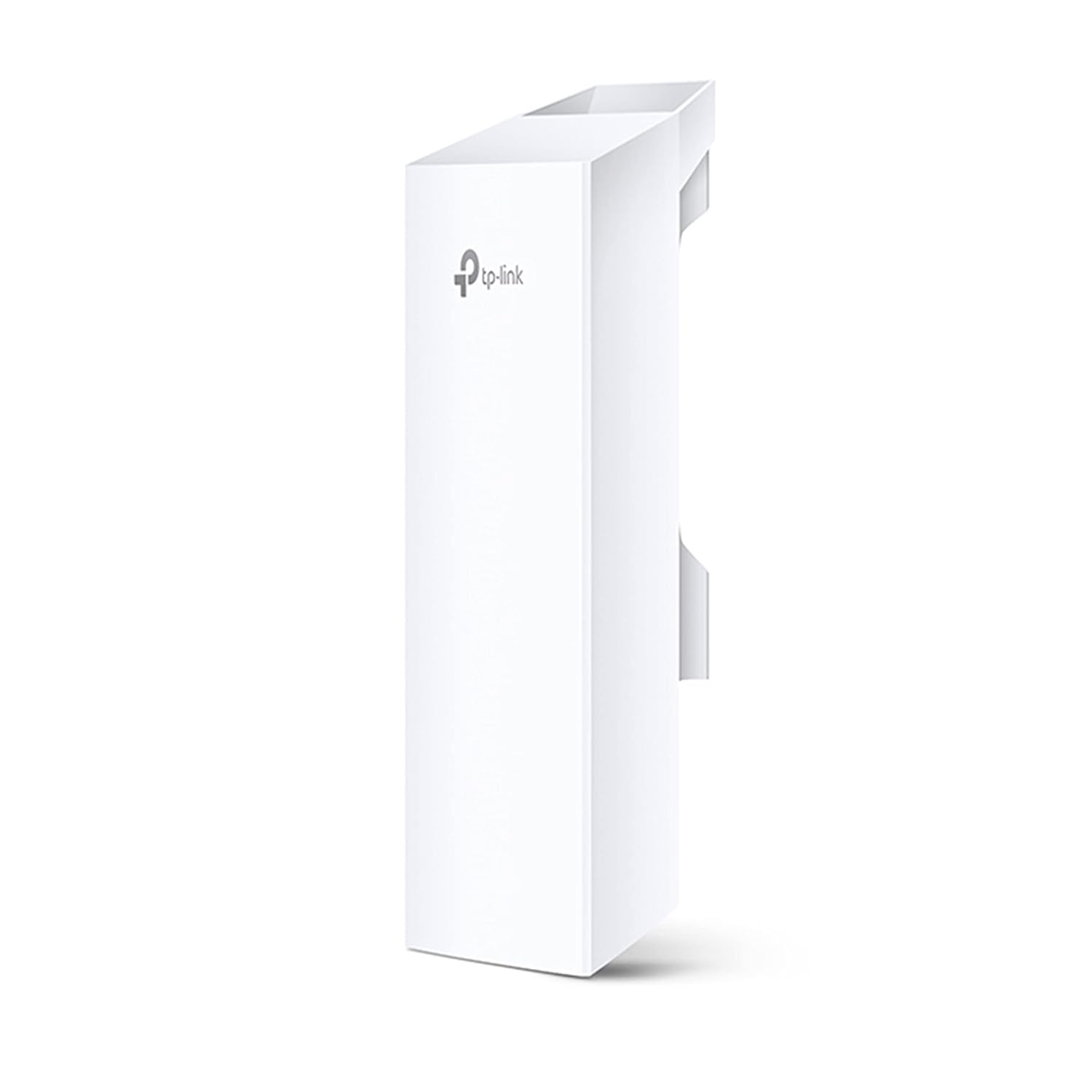

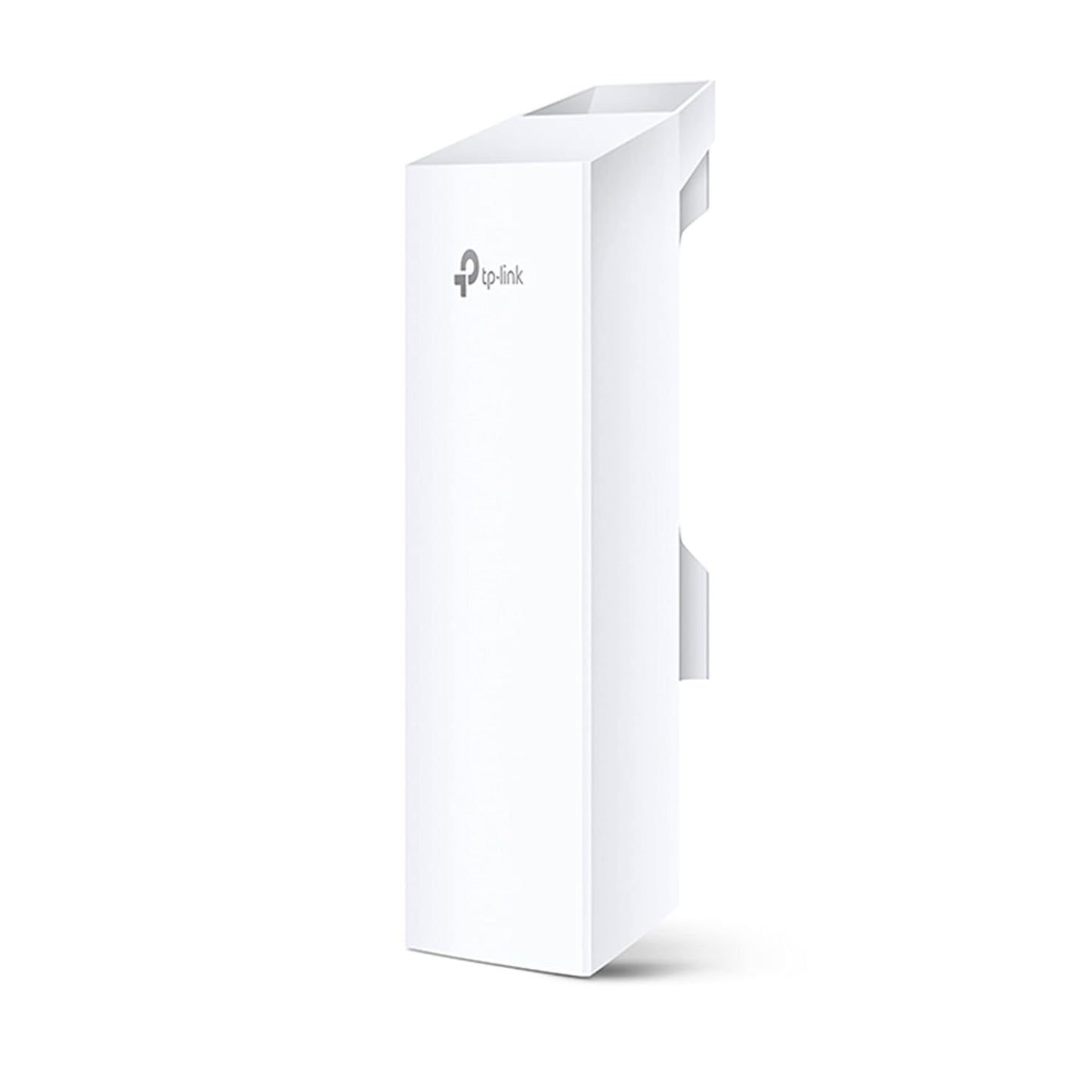

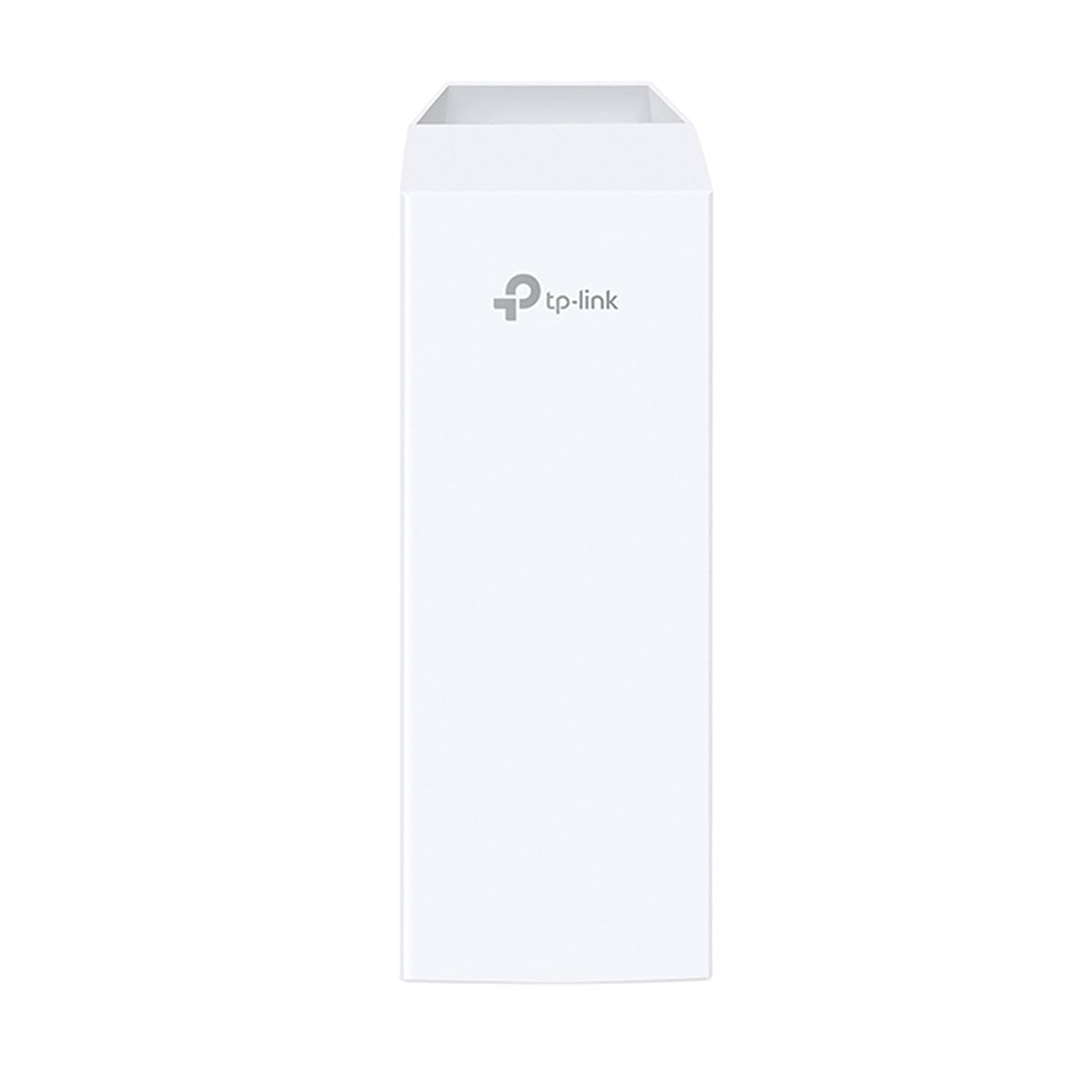

TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point
TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point
- Free Pan-India Shipping
- Easy 7-Day Returns
- GST Invoice on Every Order
- 100% Genuine, Brand New & Sealed
- Original Manufacturer Warranty
- Trusted Since 2014 · 15 Lakh+ Orders
Couldn't load pickup availability
High Gain Antenna: The CPE510 features a robust 13dBi 2x2 dual-polarized directional MIMO antenna, which significantly boosts signal strength and coverage, making it ideal for long-distance wireless communication.
Extended Range: Designed for long-range transmission, the CPE510 can reliably transmit data over distances exceeding 15 kilometers, making it perfect for extensive outdoor networking scenarios.
Advanced TDMA Technology: With TP-Link's MAXtream TDMA technology, the CPE510 enhances throughput, capacity, and latency performance, making it well-suited for point-to-multipoint (PtMP) applications.
Multiple Operation Modes: The device supports various operation modes, including Access Point (AP), Client, AP Router, and AP Client Router (WISP), offering flexibility to meet different networking needs.
Durable Outdoor Design: Built to withstand harsh outdoor conditions, the CPE510 operates effectively in temperatures ranging from -30°C to +70°C and includes 6KV lightning protection, ensuring reliable performance in diverse weather environments.
| Model | CPE510 |
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |

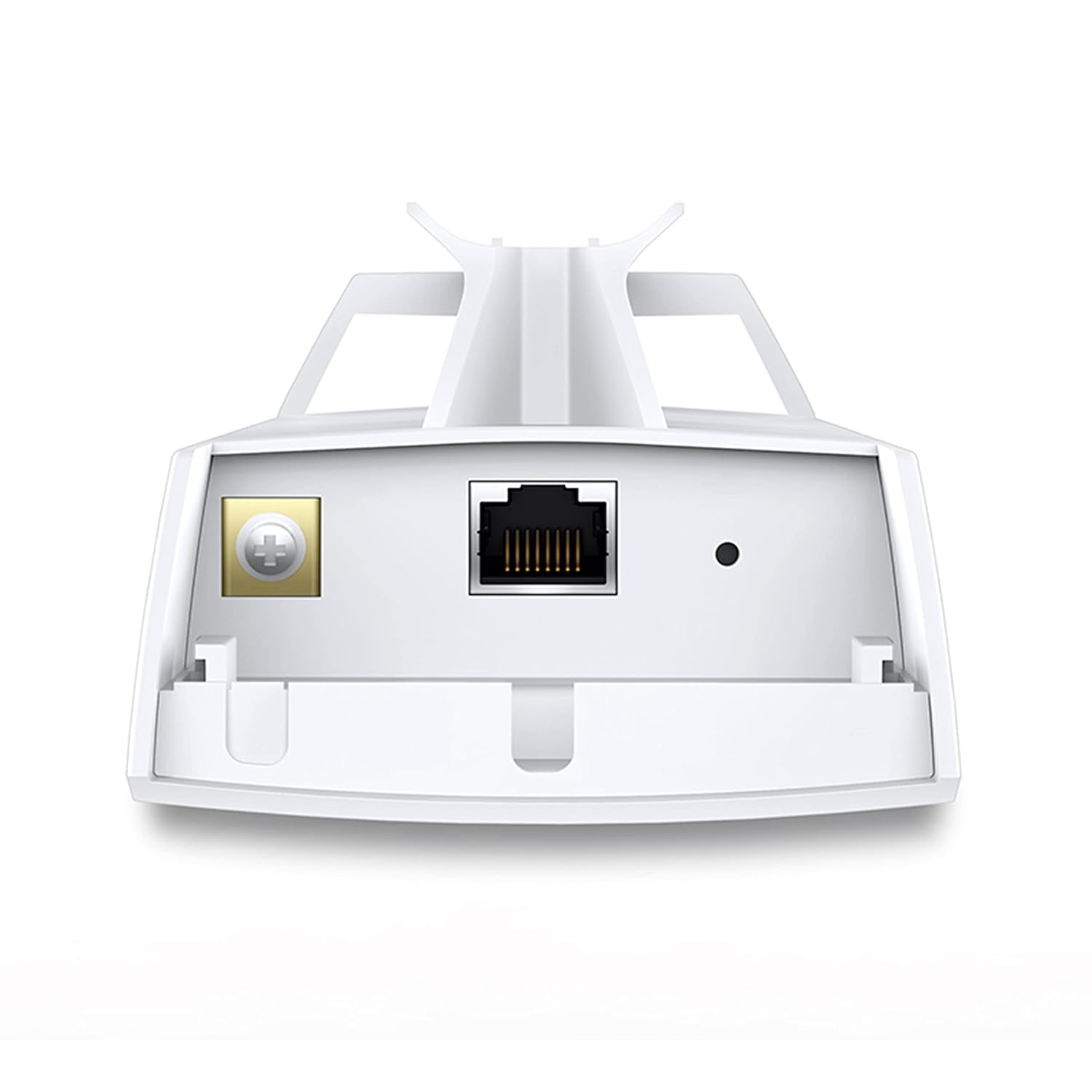

| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Max. Power Consumption | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Antenna |
Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Dimensions | 4.3 x 2.2 x 1.3 in |
| Package Content | Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Warranty | 1 Year Brand Warranty |
