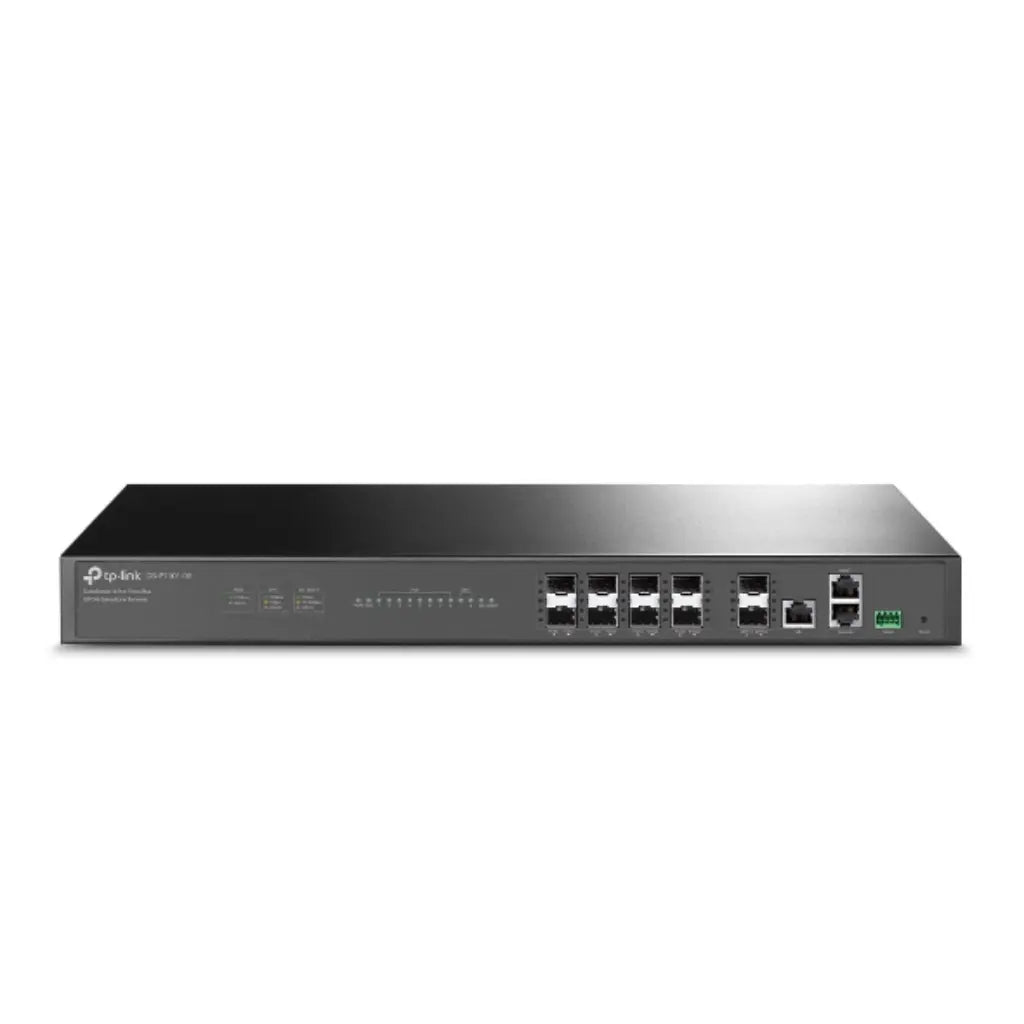

• TP-Link DS-P7001-04 DeltaStream GPON OLT 4 Port Pizza Box Optical Line Terminal-tpstech.in

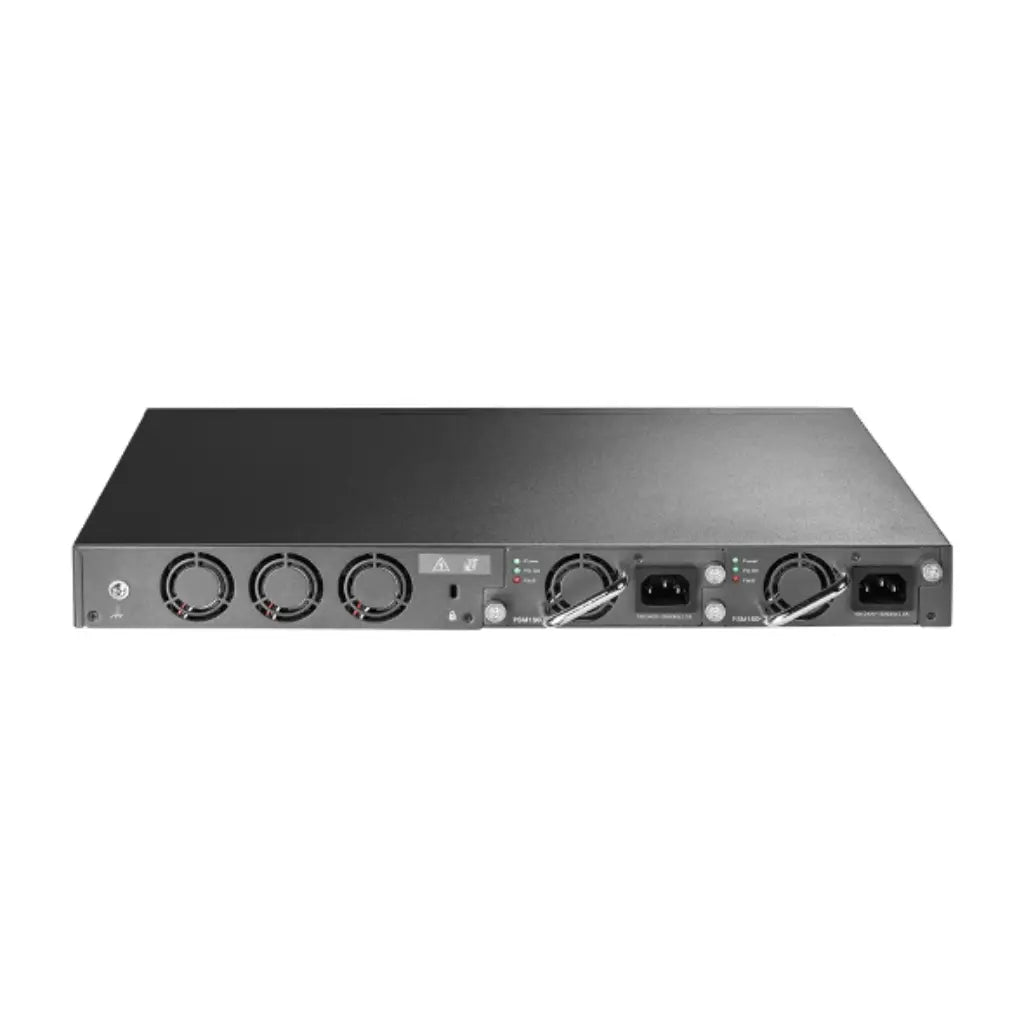

  • TP-Link DS-P7001-04 DeltaStream GPON OLT 4 Port Pizza Box Optical Line Terminal-tpstech.in

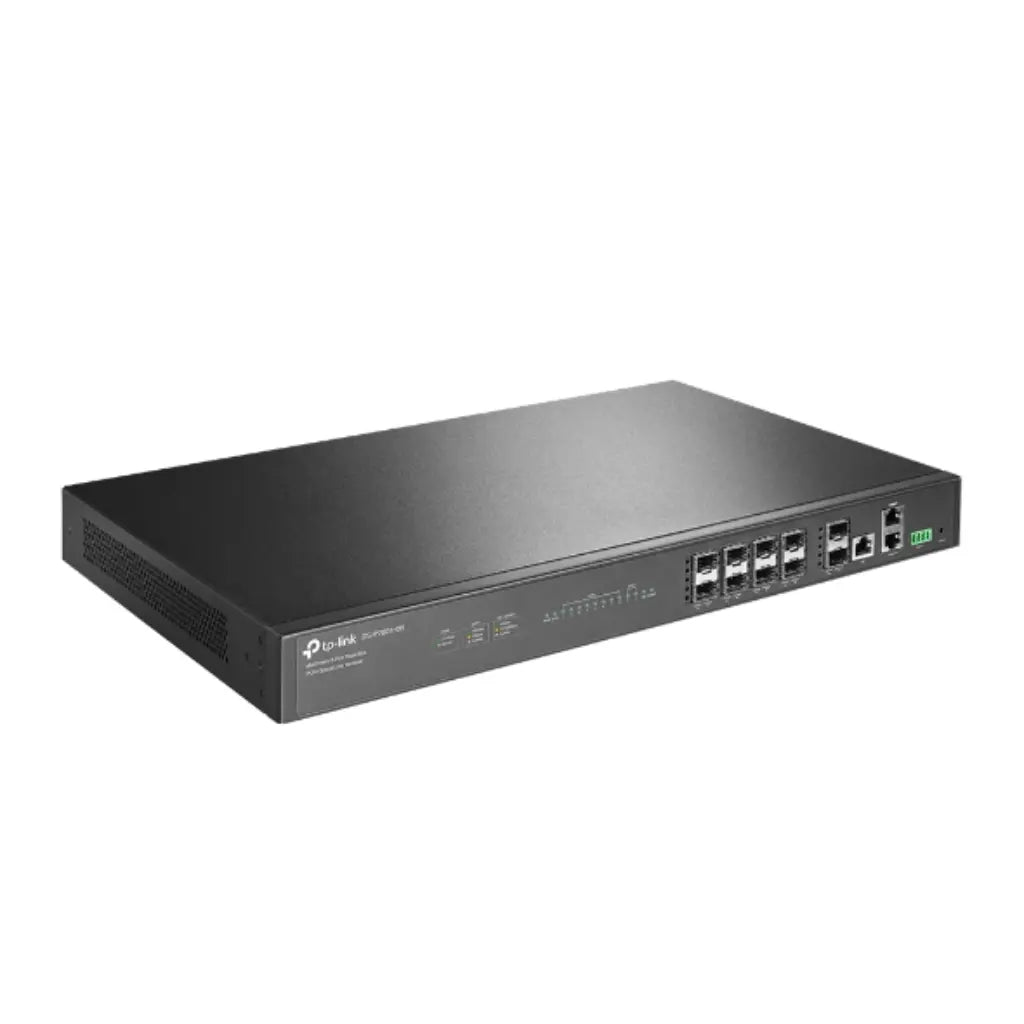

  • TP-Link DS-P7001-04 DeltaStream GPON OLT 4 Port Pizza Box Optical Line Terminal-tpstech.in
1 3

TP-Link DS-P7001-04 DeltaStream GPON OLT 4 Port Pizza Box Optical Line Terminal

TP-Link DS-P7001-04 DeltaStream GPON OLT 4 Port Pizza Box Optical Line Terminal

Brand: TP-Link
Rs. 66,800.00
33% off Rs. 98,999.00 Rs. 66,800.00
Sale Sold out
  • 100% Genuine Product
  • Highly โญ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled

Product Description:

๐Ÿ”Œ 4 GPON Ports: Supports 1:128 split ratio per port, enabling up to 512 ONTs for high-capacity deployments.

๐Ÿš€ High-Speed Uplink: Equipped with 1ร—10GE SFP+ port and 1ร—Gigabit RJ45 uplink port for ultra-fast connectivity.

๐Ÿ”‹ Redundant Dual Power Supply: Built-in AC (100โ€“240V) and DC (-38.4V to -72V) inputs ensure carrier-class reliability.

๐Ÿ›  Centralized Management: Manage easily via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

๐ŸŒ Advanced L2/L3 Features: Includes Static Routing, IGMP Snooping, QoS, and DHCP Server for versatile network control.

๐Ÿ“ฆ Compact Rack-Mount Design: 19-inch pizza-box form factor for flexible deployment in small to medium-scale networks.

The TP-Link DS-P7001-04 DeltaStream GPON OLT is a compact, high-performance optical line terminal designed for small and medium ISPs. Featuring 4 GPON ports with a 1:128 split ratio, it supports up to 512 ONTs for scalable fiber networks. With dual power redundancy, advanced L2/L3 functions, and centralized management via DPMS, this OLT ensures reliability and simplified operations. Its rack-mount design makes deployment flexible and efficient.

Product Specifications:

Specifictaion Details
Model TP-Link DS-P7001-04
GPON Ports 4 ร— 2.5G PON Ports (SFP Slots)
Max Split Ratio 1:128 per port (up to 512 ONTs)
Uplink Ports 1 ร— 10GE SFP+, 1 ร— 1GE RJ45
Management Ports 1 ร— RJ45 Console, 1 ร— RJ45 MGMT
Transmission Distance Up to 20 km
Data Rate Downstream: 2.5Gbps; Upstream: 1.25Gbps
Fiber Type 9/125ฮผm SMF
Wave Length Tx: 1490nm, Rx: 1310nm
Power Supply Dual AC (100โ€“240V) & DC (-38.4V to -72V)
Power Consumption Max 58W
Dimensions 440 ร— 180 ร— 44 mm
Operating Temperature 0ยฐC ~ 50ยฐC
Country of Origin China
Model Number DS-P7001-04
Warranty 1 Year
Weight 3.5 kg
