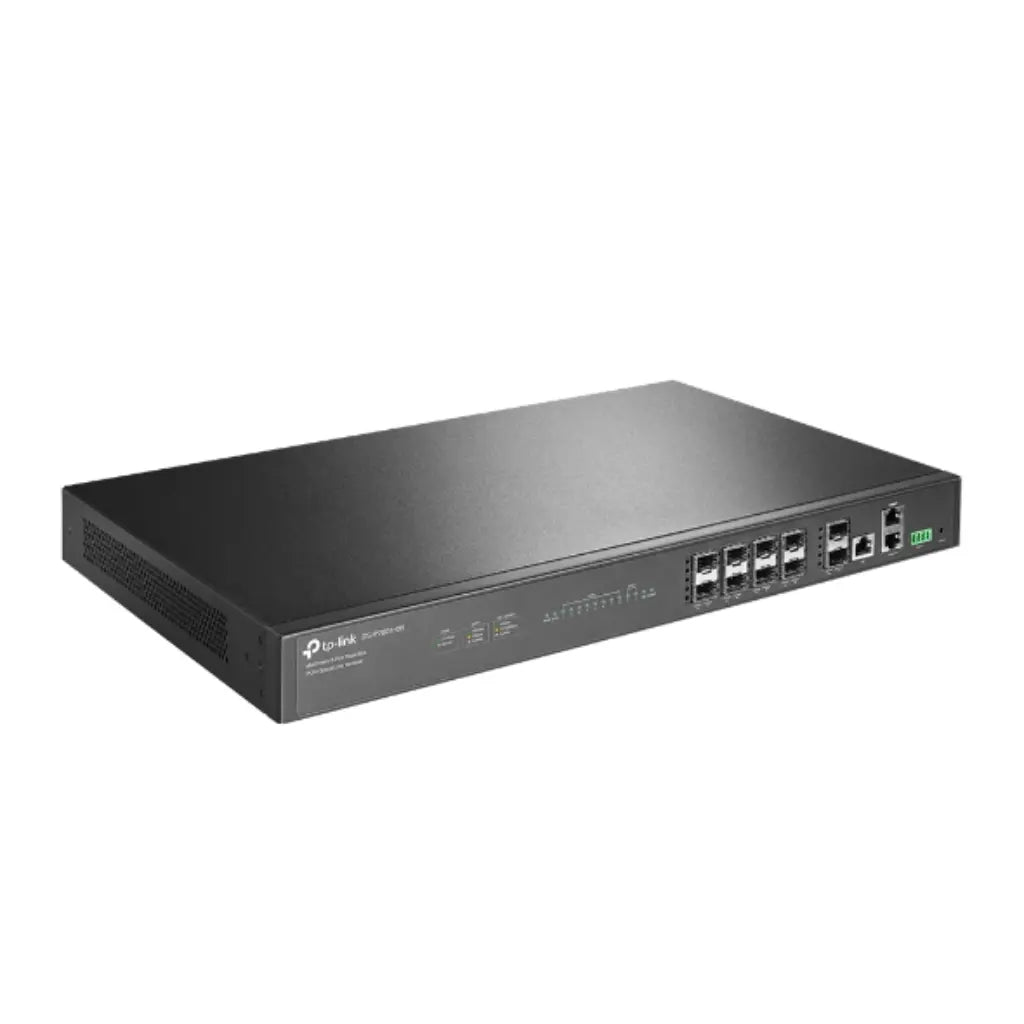

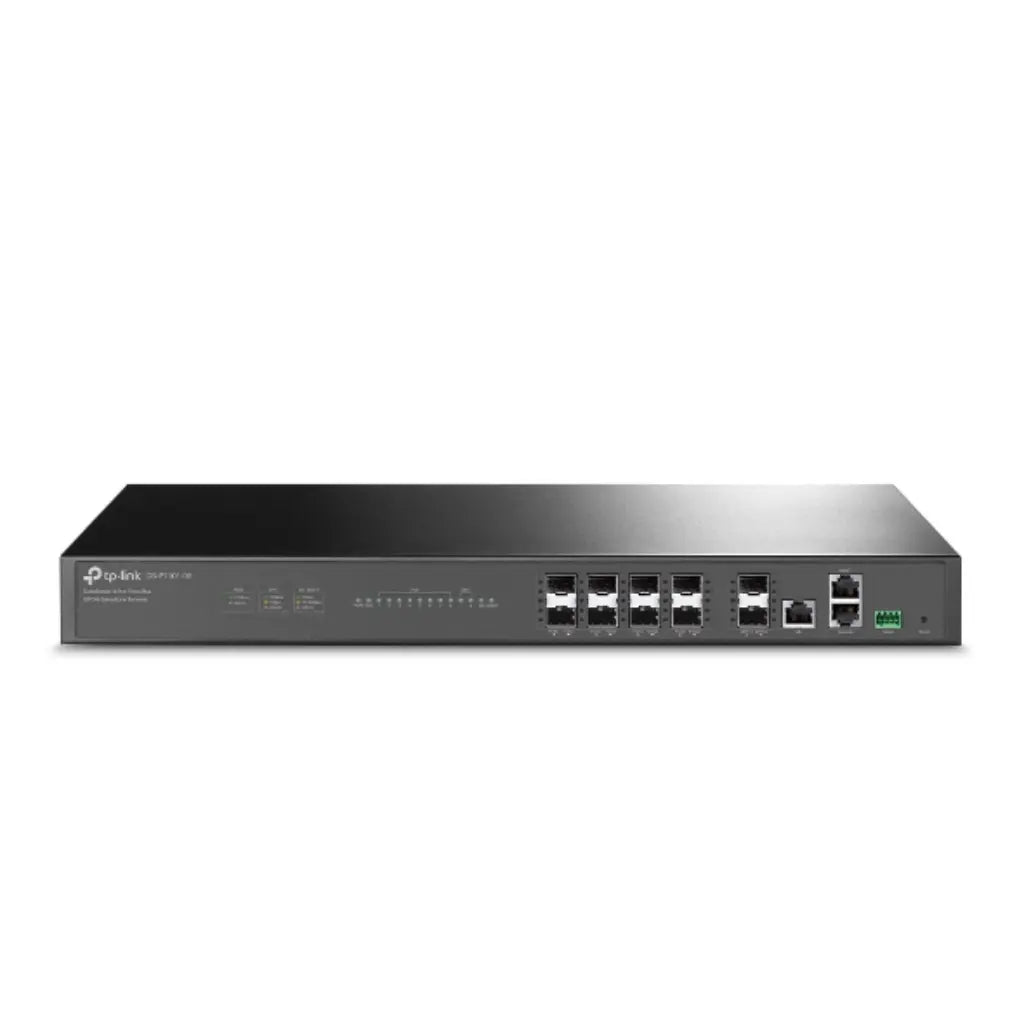

TP-Link DS-P7001-08 V1 DeltaStream 8-Port GPON Optical Line Terminal 2×10GE SFP+ Uplink
TP-Link DS-P7001-08 V1 DeltaStream 8-Port GPON Optical Line Terminal 2×10GE SFP+ Uplink
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 8 GPON Ports: Supports 1:128 split ratio per port, enabling up to 1024 ONTs for large-scale FTTH deployments.
⚡ High-Speed Uplink: Equipped with 2×10GE SFP+ uplink ports and 1×Gigabit RJ45 uplink port for seamless backbone connectivity.

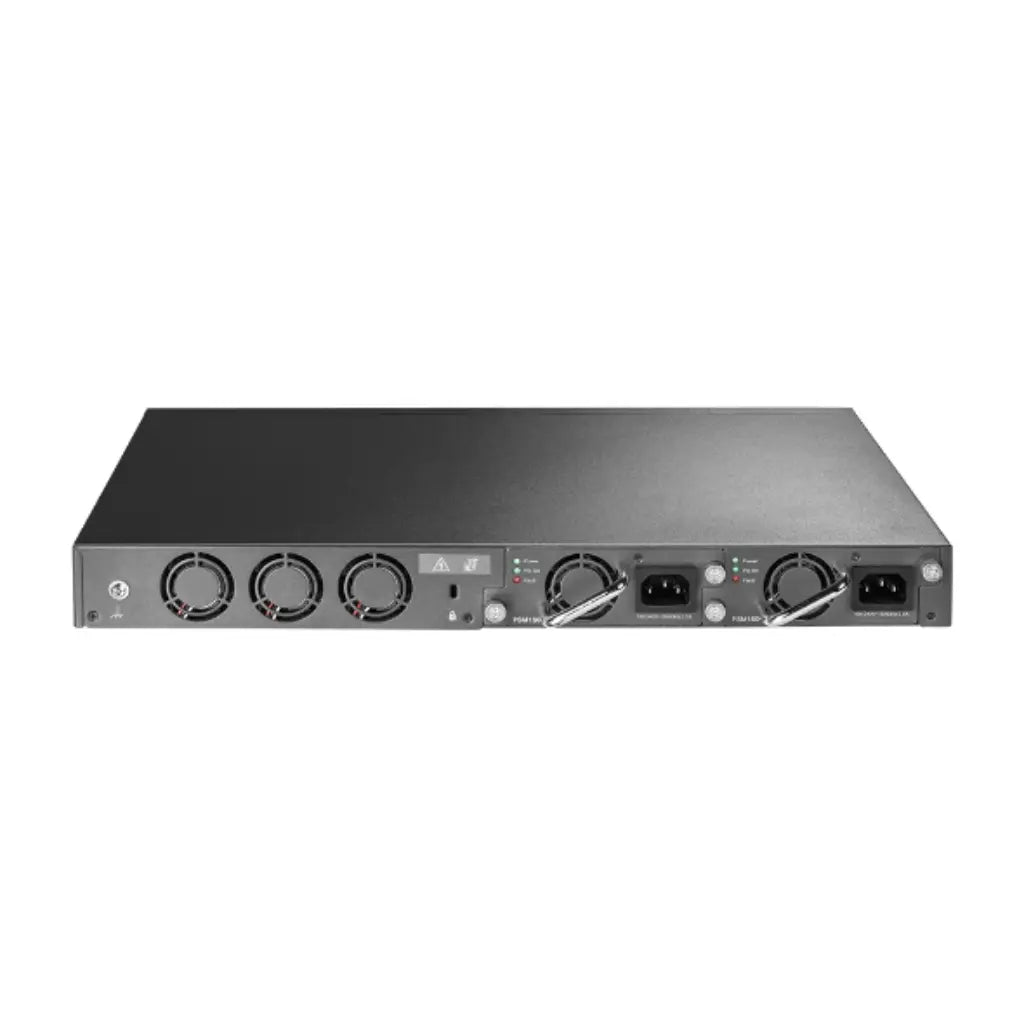

🔒 Carrier-Class Reliability: Dual hot-swappable AC+DC power supplies ensure uninterrupted service and maximum uptime.
🛠 Advanced L2/L3 Features: Includes Static Routing, IGMP Snooping, VLAN, QoS, and more for flexible network management.
🌐 Centralized Management: Manage easily via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
📏 Compact Rackmount Design: 19-inch pizza-box form factor for easy integration in telecom and ISP environments.
The TP-Link DS-P7001-08 V1 DeltaStream GPON Optical Line Terminal is a high-performance solution for FTTH networks. Featuring 8 GPON ports, dual 10GE uplinks, and carrier-grade reliability, it supports up to 1024 ONTs with advanced L2/L3 features for efficient traffic management. Its compact rackmount design and centralized management via DPMS make deployment and maintenance hassle-free for ISPs and service providers.
Product Specifications:
| Specification | Details |
| Model | TP-Link DS-P7001-08 V1 |
| Ports | 8× GPON (SFP), 2×10GE SFP+, 1×1GE RJ45 uplink, 1×RJ45 MGMT, 1×RJ45 Console |
| Split Ratio | 1:128 per port (up to 1024 ONTs) |
| Data Rate | Downstream: 2.5Gbps, Upstream: 1.25Gbps |
| Transmission Distance | Up to 20 km |
| Interface Type | SC/UPC |
| Wavelength | Tx: 1490nm, Rx: 1310nm |
| Power Supply | Dual AC+DC (Hot-swappable), AC: 100–240V, DC: -38.4V~-72V |
| Power Consumption | Max 70W |
| Dimensions | 440 × 260 × 44 mm |
| Operating Temp | 0°C ~ 50°C |
| Management | DPMS, SNMP, CLI, Web UI |
| Certifications | CE, FCC |
| Country of Origin | China |
| Model Number | DS-P7001-08 |
| Warranty | 3 Years |
| Weight | 2.5 kg |
