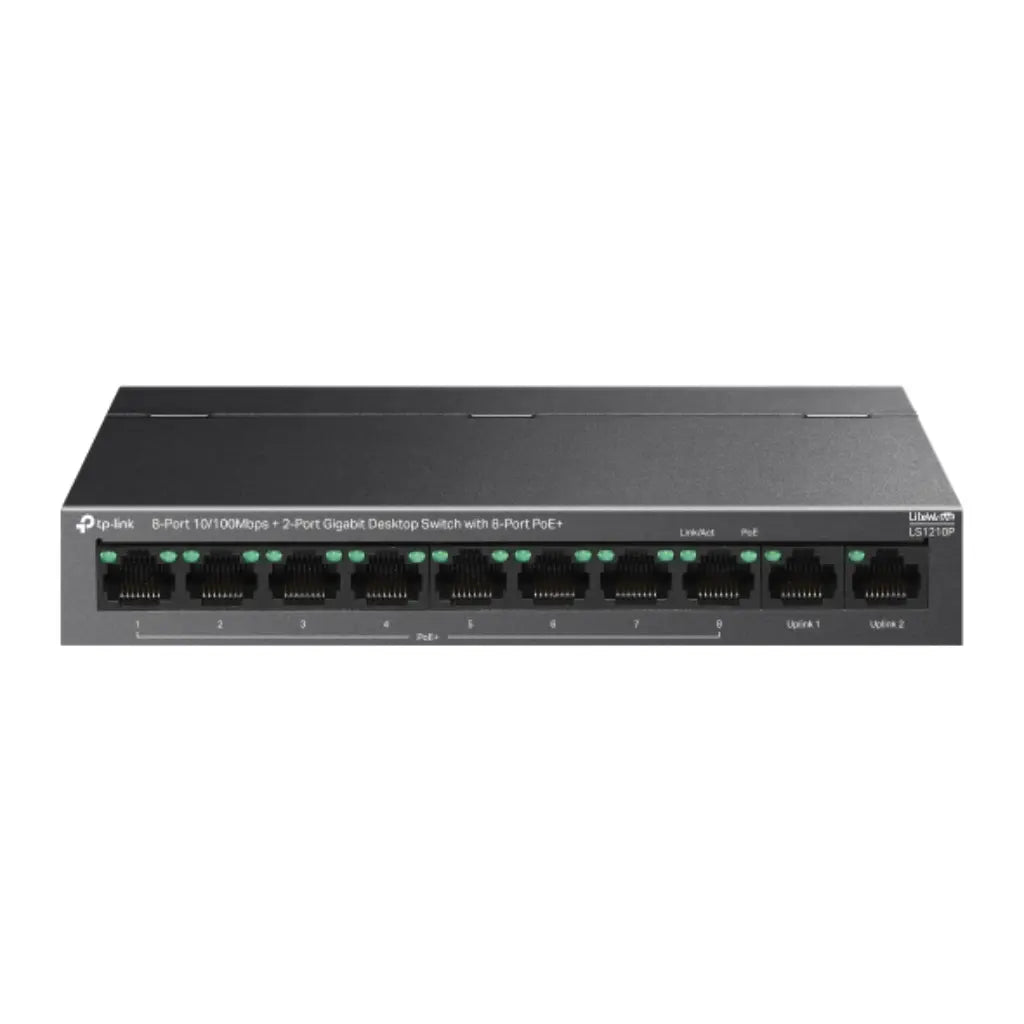

TP-Link LS1210P 10-Port Desktop Switch 8-Port PoE+ 2 Gigabit Uplink Ports
TP-Link LS1210P 10-Port Desktop Switch 8-Port PoE+ 2 Gigabit Uplink Ports
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
š 10-Port Design ā 8Ć 10/100 Mbps PoE+ ports and 2Ć Gigabit uplink ports for flexible connectivity.
ā” High PoE Power Budget ā 96W total PoE budget with up to 30W per port for powering IP cameras, APs, and more.
š Extended Range ā Up to 250m data and power transmission under Extend Mode for long-distance deployments.
š Enhanced Security ā Isolation Mode for one-click client traffic separation to prevent snooping and improve performance.
š PoE Auto Recovery ā Automatically reboots unresponsive PoE devices for stable operation.
š Silent Operation ā Fanless design ensures quiet performance, ideal for noise-sensitive environments.
The TP-Link LS1210P is a 10-Port Desktop Switch featuring 8 PoE+ ports and 2 Gigabit uplink ports, designed for small businesses and surveillance setups. With a 96W PoE budget and up to 30W per port, it powers IP cameras, access points, and VoIP phones effortlessly. Extend Mode supports up to 250m transmission, while Isolation Mode and PoE Auto Recovery ensure security and reliability. Its fanless design guarantees silent operation for noise-sensitive environments.
Product Specifications:
| Specification | Details |
| Model | TP-Link LS1210P |
| Ports | 8Ć 10/100 Mbps PoE+ RJ45 Ports, 2Ć 10/100/1000 Mbps RJ45 Ports |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 96W Total, up to 30W per port |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 2 Mbit |
| Jumbo Frame | 2 KB |
| Extend Mode | Up to 250m (Ports 1ā8) |
| Isolation Mode | Supported |
| PoE Auto Recovery | Supported |
| Power Supply | External Adapter (Input: 220ā240V AC, Output: 53.5V DC / 1.92A) |
| Max Power Consumption | 99.52W |
| Fan | Fanless |
| LED Indicators | Power, Link/Act, PoE Status |
| Dimensions | 171 Ć 98 Ć 27 mm |
| Mounting | Desktop / Wall-Mount |
| Certifications | CE, RoHS |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%ā90% non-condensing |
| Storage Humidity | 5%ā90% non-condensing |
| Country of Origin | China |
| Model Number | LS1210P |
| Warranty | 3 Years Warranty |
| Weight | 0.620 kg |
