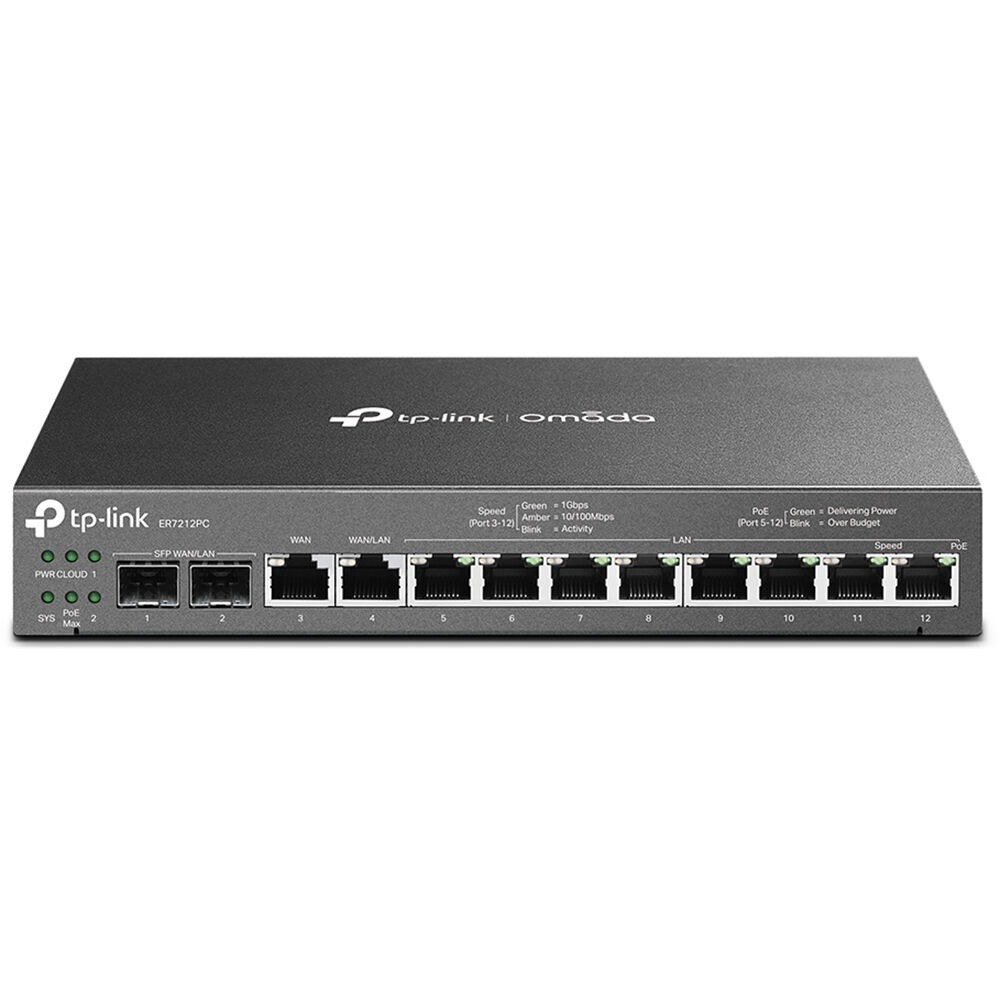

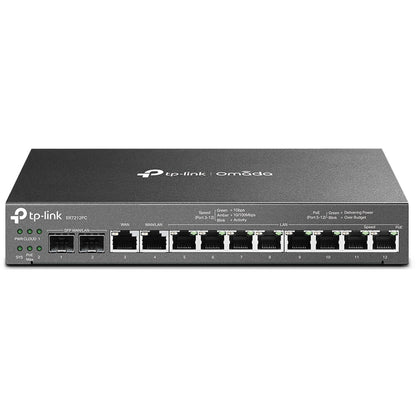

TP-Link Omada ER7212PC 3-in-1 12 Port PoE+ Compliant Gigabit VPN Router

TP-Link Omada ER7212PC 3-in-1 12 Port PoE+ Compliant Gigabit VPN Router

Brand: TP-Link
Regular price Rs. 18,980.00
Regular price 35% off Rs. 28,999.00 Sale price Rs. 18,980.00
Sale Sold out
Quantity
Loading Offers...
+ Offers

Product Description:

All-in-One Network Solution: Combines a high-performance Gigabit VPN router, an 8-port PoE+ switch (with a 110W power budget), and a built-in Omada SDN controller—streamlining deployment and reducing hardware clutter in small to medium-sized networks.

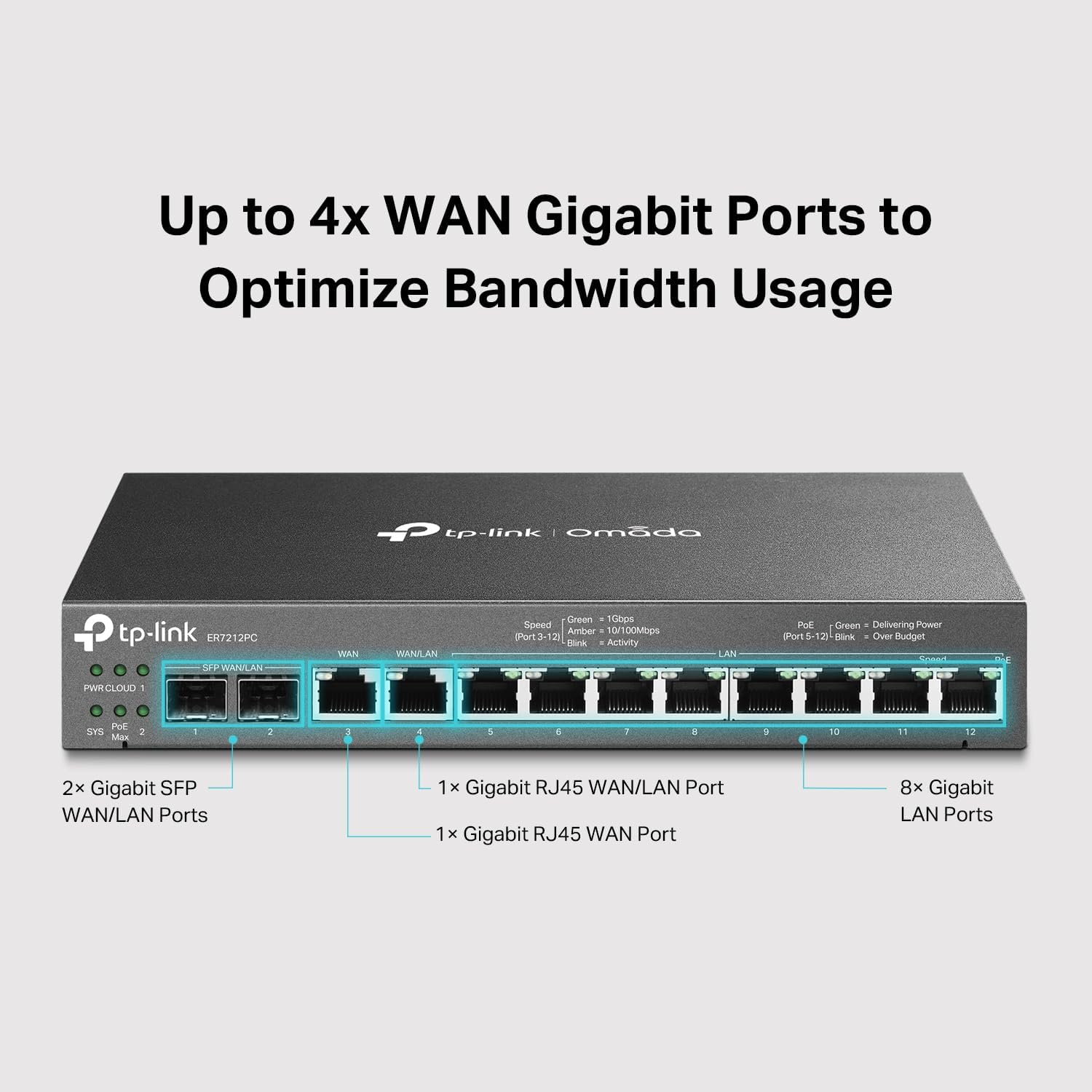

Versatile Port Configuration: Features 12 Gigabit ports including 8 PoE+ LAN ports, 2 SFP WAN/LAN ports, and 2 RJ45 WAN/LAN ports, supporting up to 4 WAN connections for load balancing and automatic failover to ensure uninterrupted internet access.

Integrated Omada SDN Controller: Manages up to 10 Omada access points and 2 Omada switches directly from the device, enabling centralized cloud-based or local network management without needing a separate controller.

Secure and Scalable VPN Support: Offers robust VPN capabilities including IPsec, OpenVPN, L2TP, and PPTP, allowing secure remote access and site-to-site connectivity for distributed teams and branch offices.

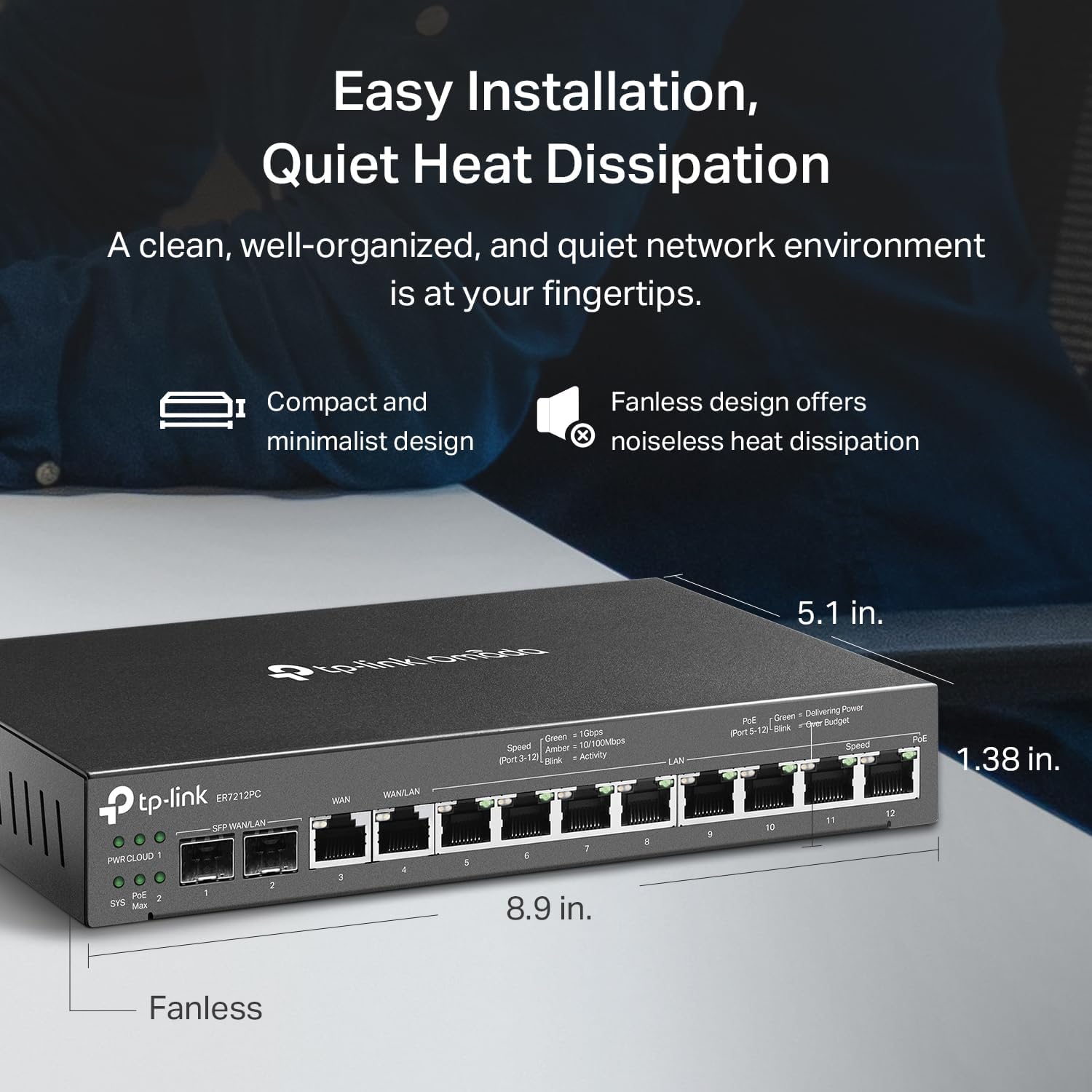

Silent and Space-Saving Design: Fanless, compact, and wall-mountable, the ER7212PC is ideal for quiet environments like offices, retail stores, or home setups where space and noise are concerns.

Model ER7212PC
Access Control Source
Destination IP Based Access Control
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ί STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ί STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 53.5VDC/2.43A Adapter
PoE Budget 8 ports PoE+ output, 110 W PoE Budget
Flash 8Mb Nor + 4 GB EMMC
DRAM 1 GB DDR3
LED PWR
SYS
CLOUD
PoE Max
SFP 1
SFP 2
WAN (Speed, Link/ActLAN (Speed, Link/Act)
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Mounting Desktop/Wall-mount
Max. Power Consumption • 133.2W with PoE Max
• 13.88W without PoE
Dimensions 226 × 131 × 35 mm
Package Content • ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
Warranty 3 Year Brand Warranty
View full details
