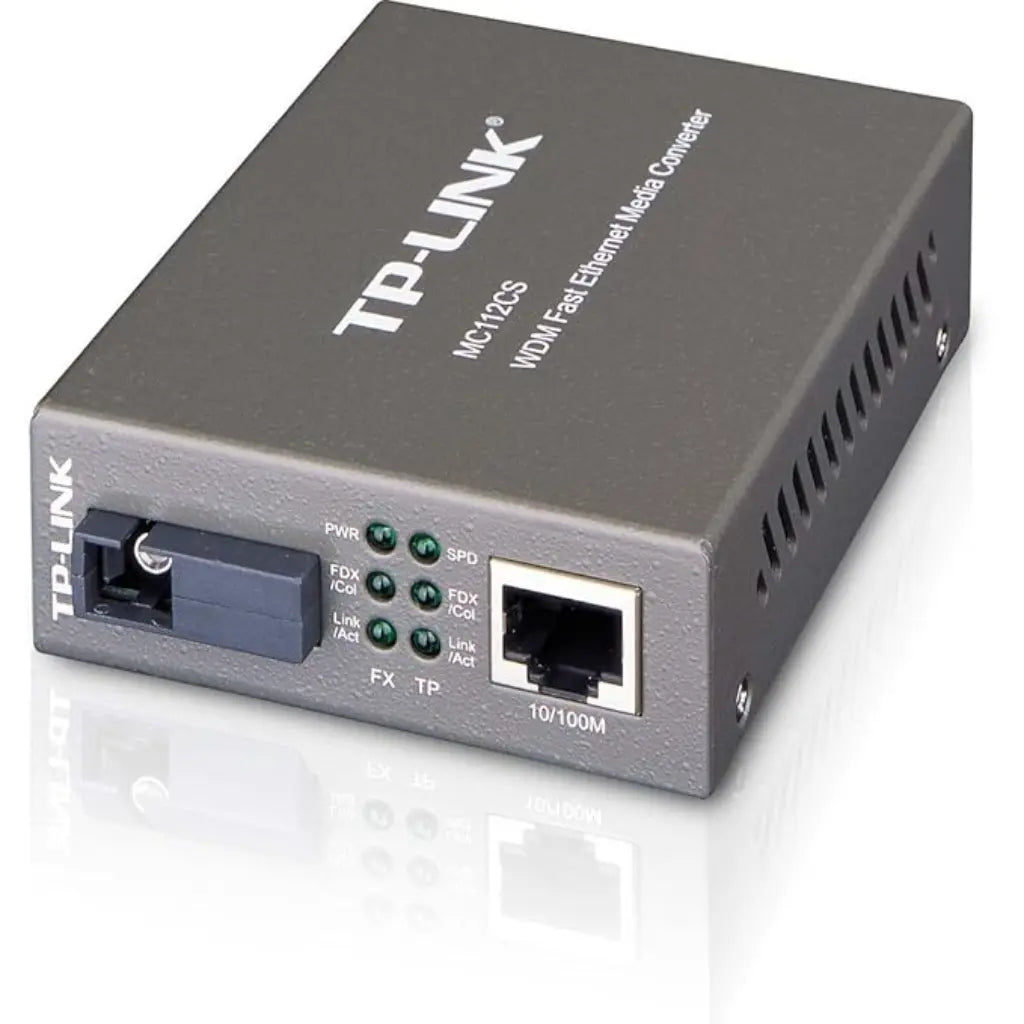

TP-Link Omada MC-112CS 10/100Mbps WDM Media Converter Single-Mode Fiber SC Connector
TP-Link Omada MC-112CS 10/100Mbps WDM Media Converter Single-Mode Fiber SC Connector
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🔌 WDM Technology for Efficient Transmission: Transmits and receives data over a single fiber cable, reducing cabling costs.
🌐 Dual Interface Support: Equipped with 1 × 100M SC fiber port and 1 × 10/100M RJ45 port (Auto MDI/MDIX).
📏 Extended Fiber Reach: Supports single-mode fiber transmission up to 20km for long-distance networking.
🔄 Auto-Negotiation & Duplex Modes: Automatically adjusts between Half/Full-Duplex for optimal performance.
💡 LED Indicators for Easy Monitoring: Includes PWR and Link/Act LEDs for quick status checks.
🔒 Certified for Safety & Reliability: Complies with FCC, CE, and RoHS standards for assured quality.
The TP-Link Omada MC-112CS is a compact and efficient media converter designed to bridge fiber and copper networks. Utilizing WDM technology, it transmits and receives data over a single fiber cable, significantly reducing infrastructure costs. With support for up to 20km transmission via single-mode fiber and auto-negotiation features, it ensures seamless integration into business environments. Ideal for extending network reach while maintaining high-speed data transfer and reliability.
Product Specifications:
| Specification | Details |
| Model | MC-112CS |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u |
| Interface | 1 × 100M SC/UPC port, 1 × 10/100M RJ45 port |
| Wavelength | TX: 1310nm, RX: 1550nm |
| Network Media | 10BASE-T: Cat 3/4/5 UTP/STP (≤100m) |
| 100BASE-T: Cat 5/5e UTP/STP (≤100m) | |
| 100BASE-FX: Single-mode Fiber | |
| Max. Fiber Distance | Up to 20km |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 2.41W |
| LED Indicators | PWR, Link/Act |
| Dimensions (W × D × H) | 95 × 73 × 27 mm (3.7 × 2.9 × 1.1 in) |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | Media Converter, Power Adapter, Installation Guide |
| Country of Origin | China |
| Warranty | 2 Years |
| Weight | 490 g |
