Product Description:
High-Speed Data Transfer: The MC210CS supports gigabit speeds, with 10/100/1000Mbps auto-negotiation, ensuring fast and efficient data transfer for high-demand network applications.
Standards Compliance: It adheres to IEEE 802.3ab (1000Base-T) and IEEE 802.3z (1000Base-LX) standards, guaranteeing compatibility with a wide range of network devices and configurations.
Long-Distance Transmission: This media converter is capable of extending network transmission distances up to 20 kilometers using single-mode fiber, making it suitable for extensive network setups.
Reliable Fiber Connections: Equipped with an SC-Type connector, the MC210CS is designed for use with single-mode fiber cables, providing a stable and reliable interface for fiber optic connections.
Efficient Data Handling: It supports longwave (LX) laser specifications at full wire speed forwarding, ensuring that data is transmitted efficiently and without bottlenecks, maintaining high performance across the network.
| Model | MC210CS |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex Full-Duplex transfer mode Extends fiber distance up to 20km |

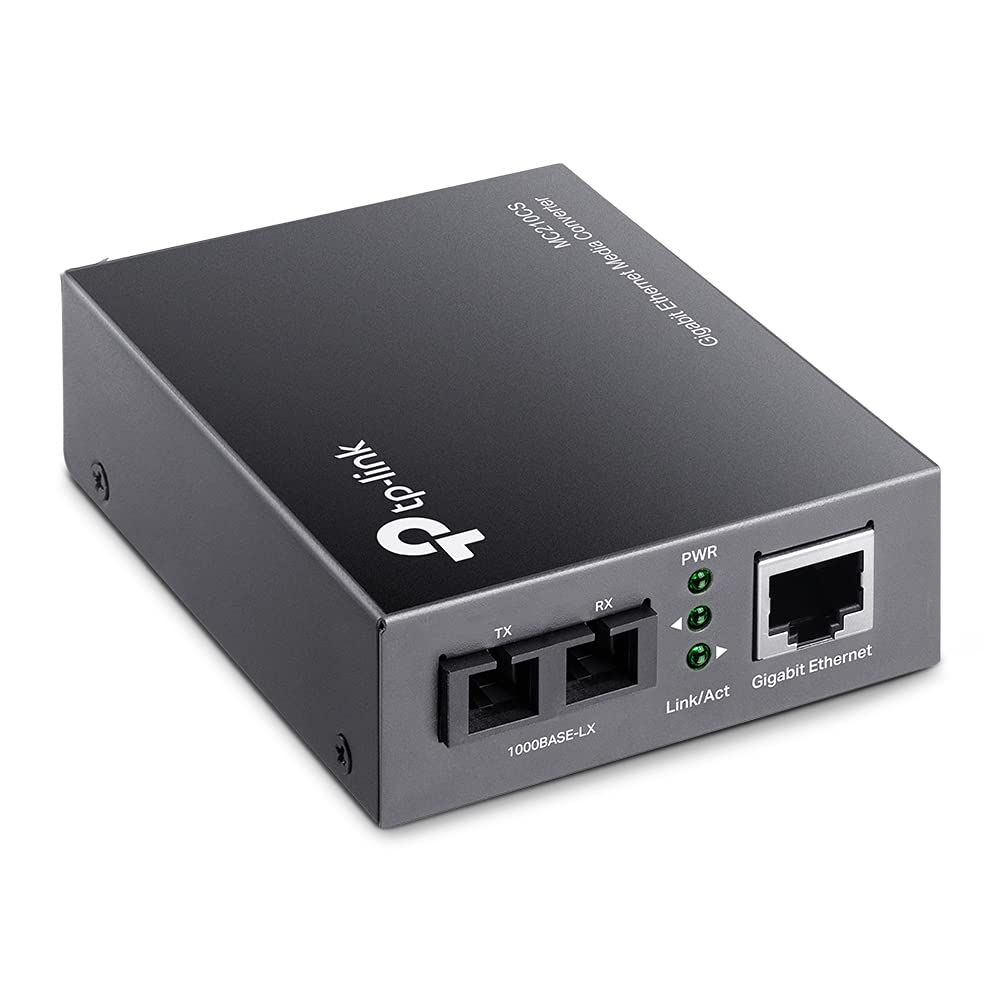

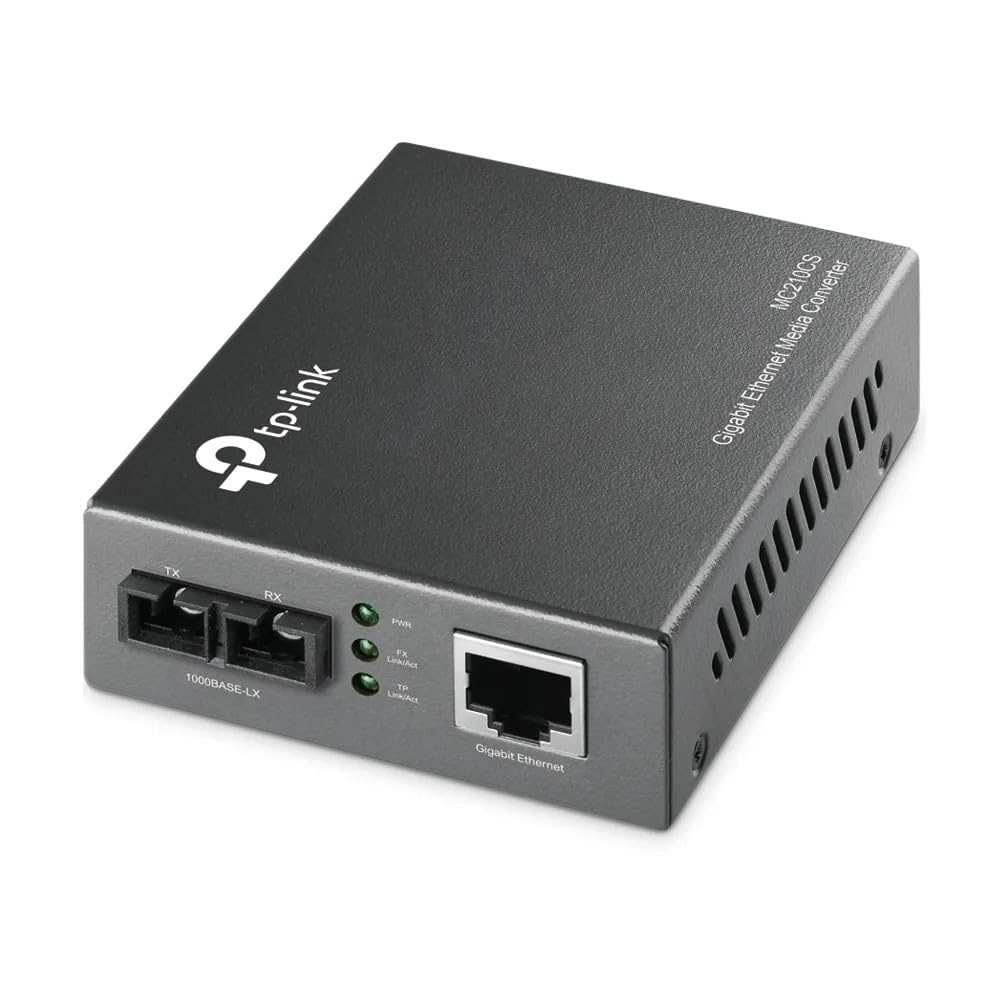

| Interface | 1× 1000M SC/UPC port 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| etwork Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |

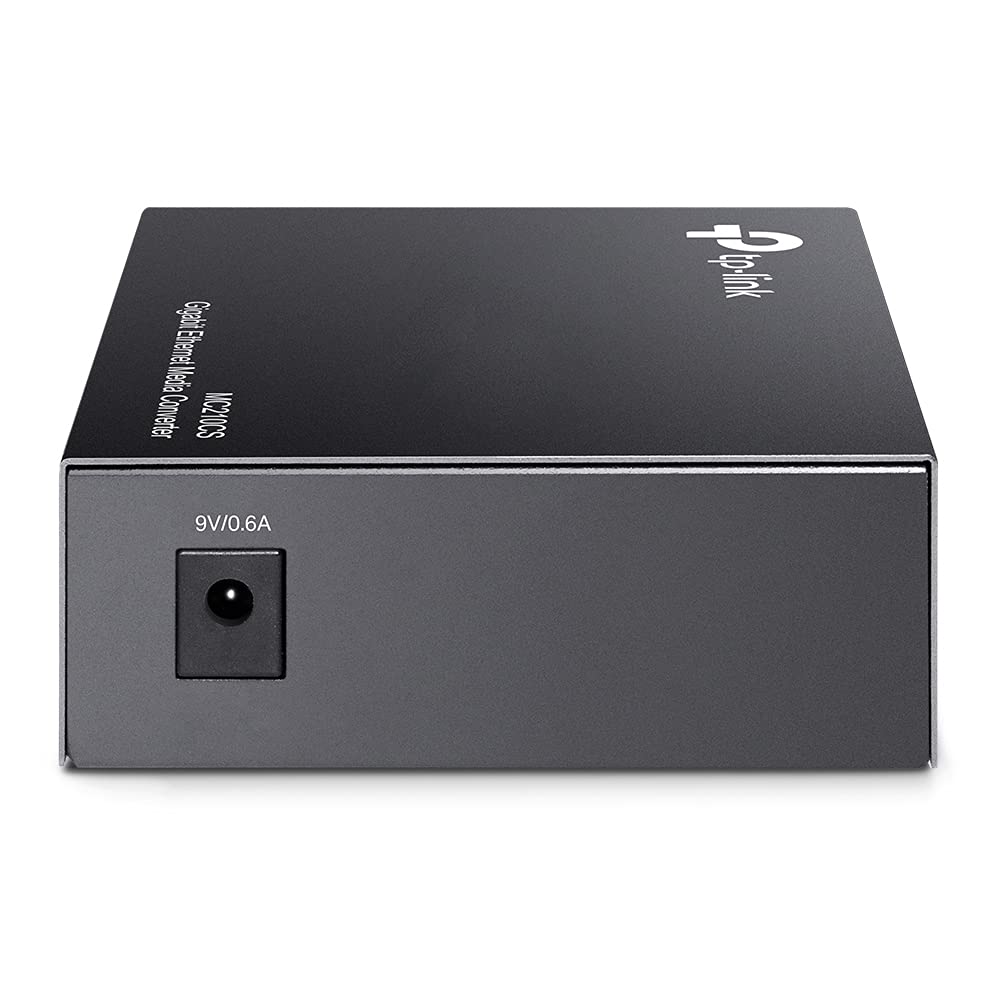

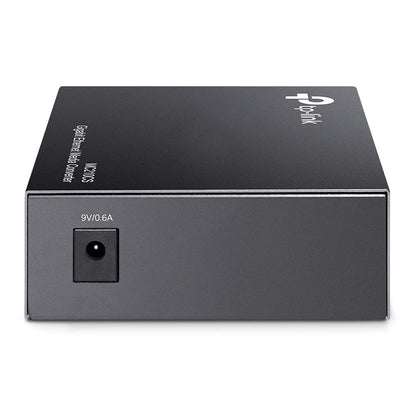

| Power Supply | External Power Adapter |

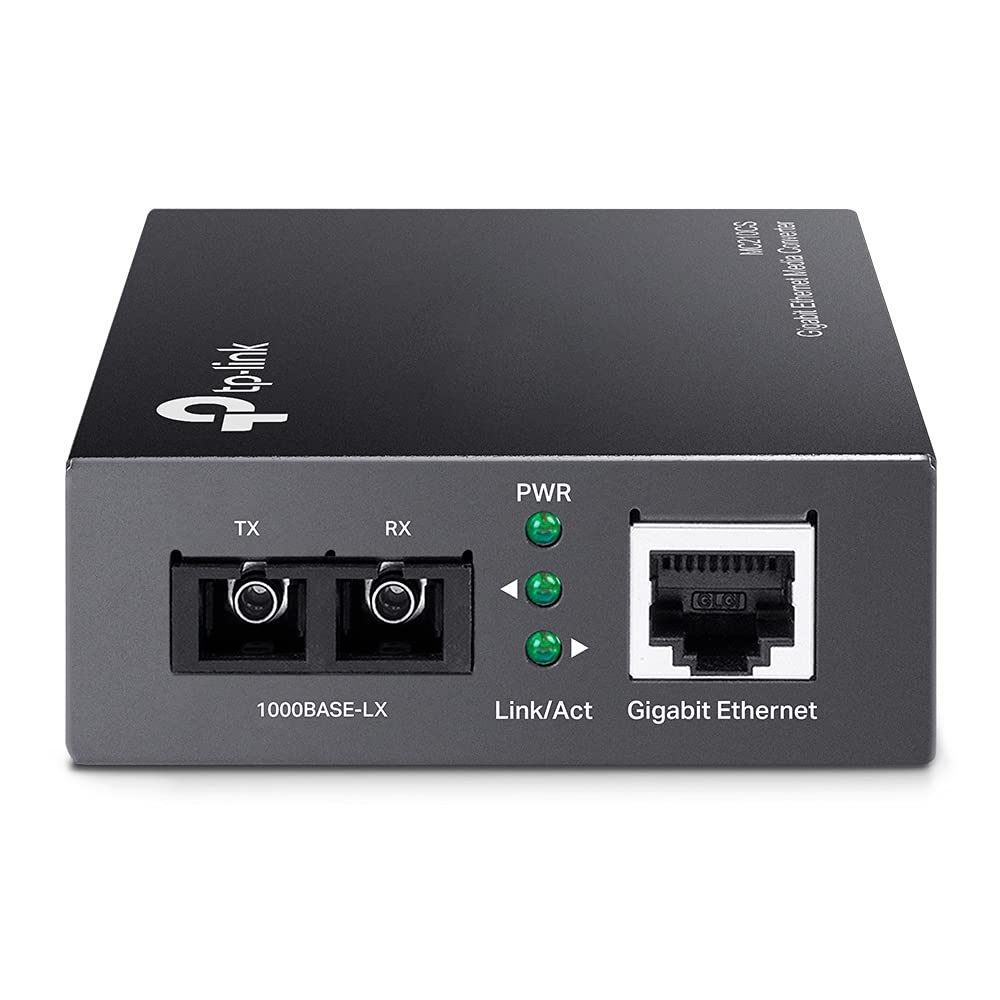

| LED | PWR, Link/Act |
| Max. Power Consumption | 1.8W |
| Dimensions | 94.5 x 73.0 x 27.0 mm |
| Package Content | Media Converter MC210CS Power Adapter Installation Guide |
| Warranty | 3 Year Brand Warranty |
