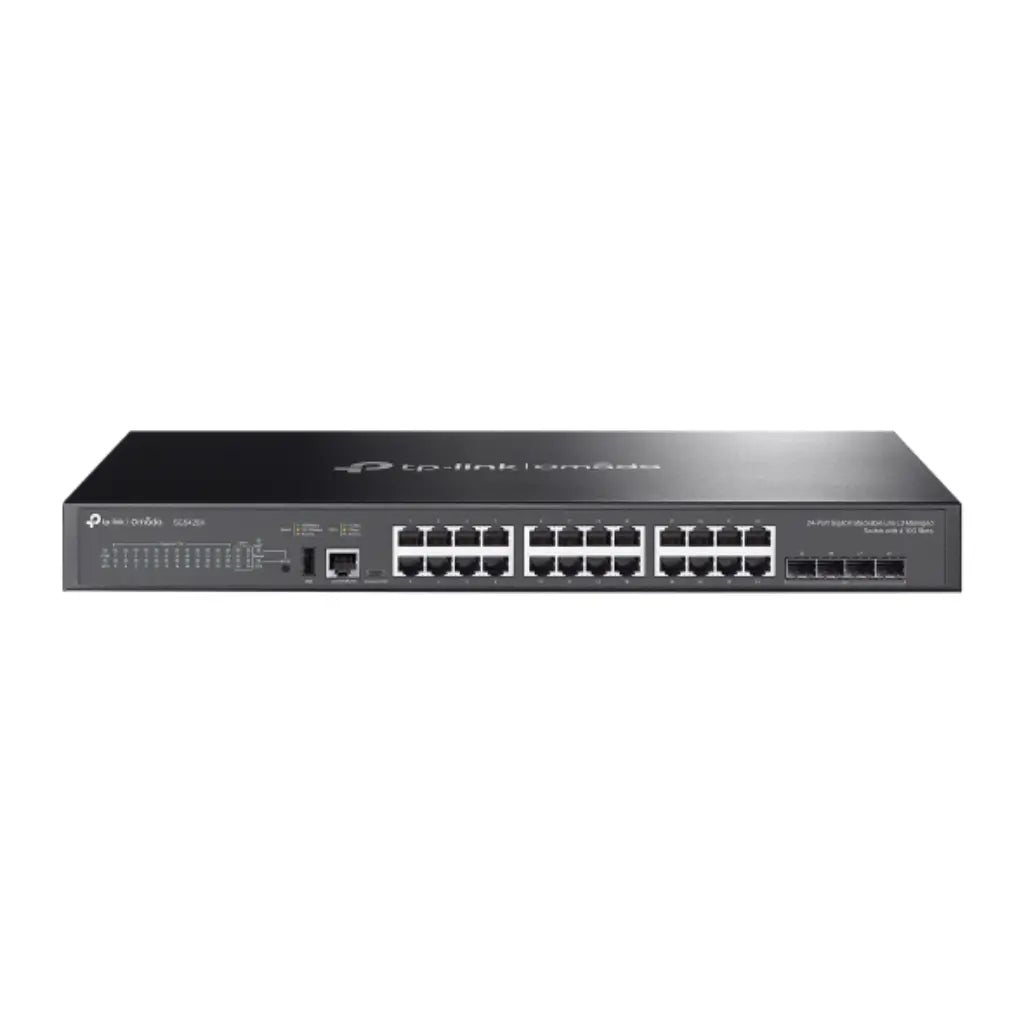

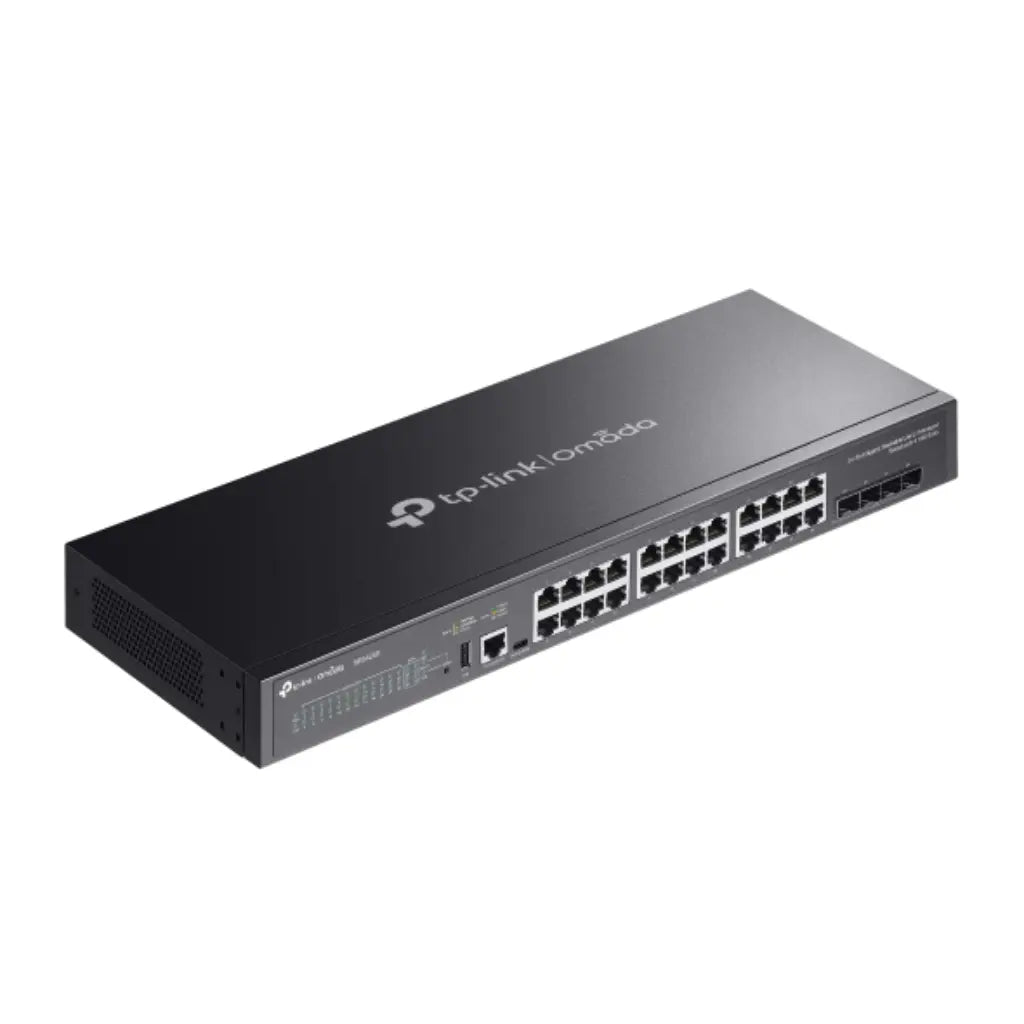

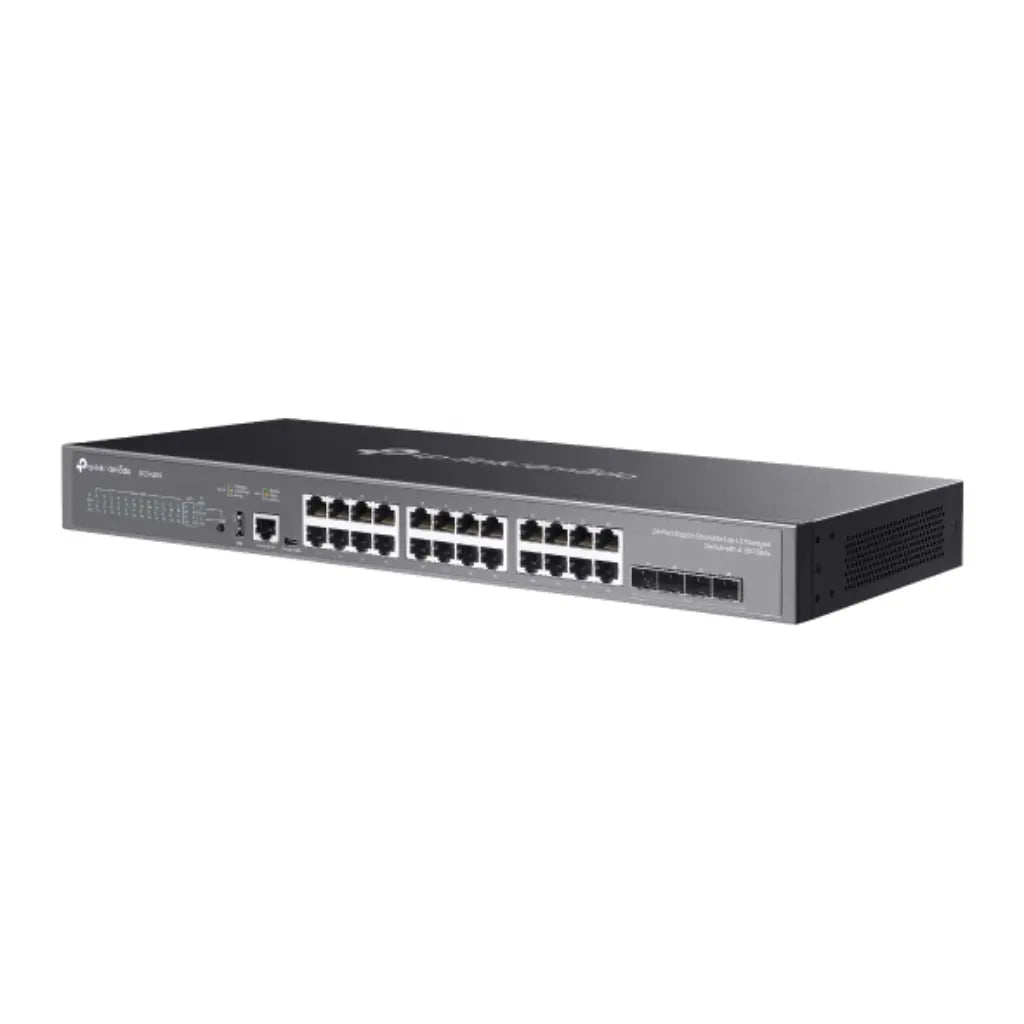

TP‑Link Omada SG5428X 24‑Port Gigabit L3 Managed Switch with 4×10G SFP+ Stackable
TP‑Link Omada SG5428X 24‑Port Gigabit L3 Managed Switch with 4×10G SFP+ Stackable
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🔌 24 Gigabit Access Ports – 24× 10/100/1000 Mbps RJ45 ports for high‑density access layer deployments
🚀 High‑Speed 10G Uplinks – 4× 1/10 Gbps SFP+ slots deliver ultra‑fast backbone and aggregation connectivity
🧠 Advanced Layer 3 Routing – Supports Static Routing, RIP, OSPF, DHCP Server & Relay for scalable enterprise networks
🔗 Physical Stacking Support – Stack up to 4 switches with up to 80 Gbps stacking bandwidth for redundancy and performance
🛡️ Enterprise‑Grade Security – ACL (IPv4/IPv6), 802.1X, Port Security, ARP Inspection & DoS protection
☁️ Omada SDN Cloud Management – Centralized management via Omada Controller with ZTP, GUI, CLI, SNMP & RMON
The TP‑Link Omada SG5428X is a powerful entry‑level Layer 3 managed switch designed for business access networks. Featuring 24 Gigabit ports and 4 high‑speed 10G SFP+ uplinks, it ensures reliable wired performance and scalability. With physical stacking, advanced L3 routing, robust security, and seamless Omada SDN cloud management, the SG5428X is ideal for SMBs, enterprises, campuses, and ISPs seeking a stable, high‑performance networking solution.
| Brand | TP‑Link |
| Series | Omada |
| Model | SG5428X |
| Switch Type | Lite Layer 3 Managed Switch |
| Total Ports | 24 × Gigabit RJ45 |
| Uplink Ports | 4 × 1/10 Gbps SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Stacking Support | Yes, up to 4 units |
| Stacking Bandwidth | Up to 80 Gbps |
| Routing Features | Static Routing, RIP, OSPF |
| VLAN Support | Yes |
| Security Features | ACL, 802.1X, Port Security, DoS Defense |
| Management | Omada SDN, Web GUI, CLI, SNMP, RMON |
| Power Supply | 100–240V AC, 50/60Hz |
| Max Power Consumption | 19.6 W |
| Cooling | Fanless |
| Mounting | Rackmount |
| Dimensions | 440 × 180 × 44 mm |
| Operating Temperature | -5°C to 45°C |
| Part Number | SG5428X |
| Country of Origin | China |
| Net Weight | 3.0 kg |
| Warranty | 3 Years Limited Warranty |
