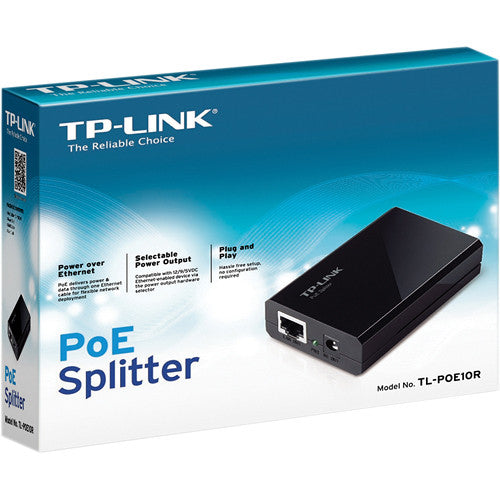

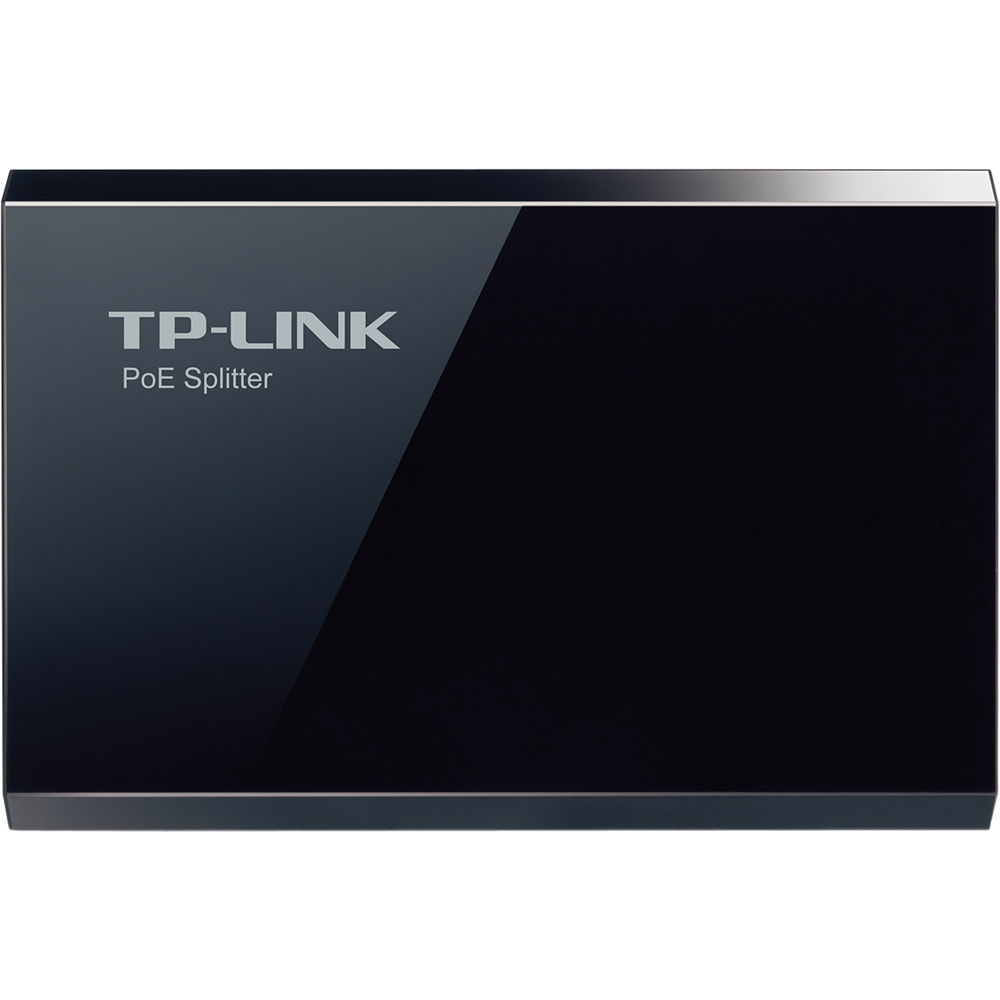

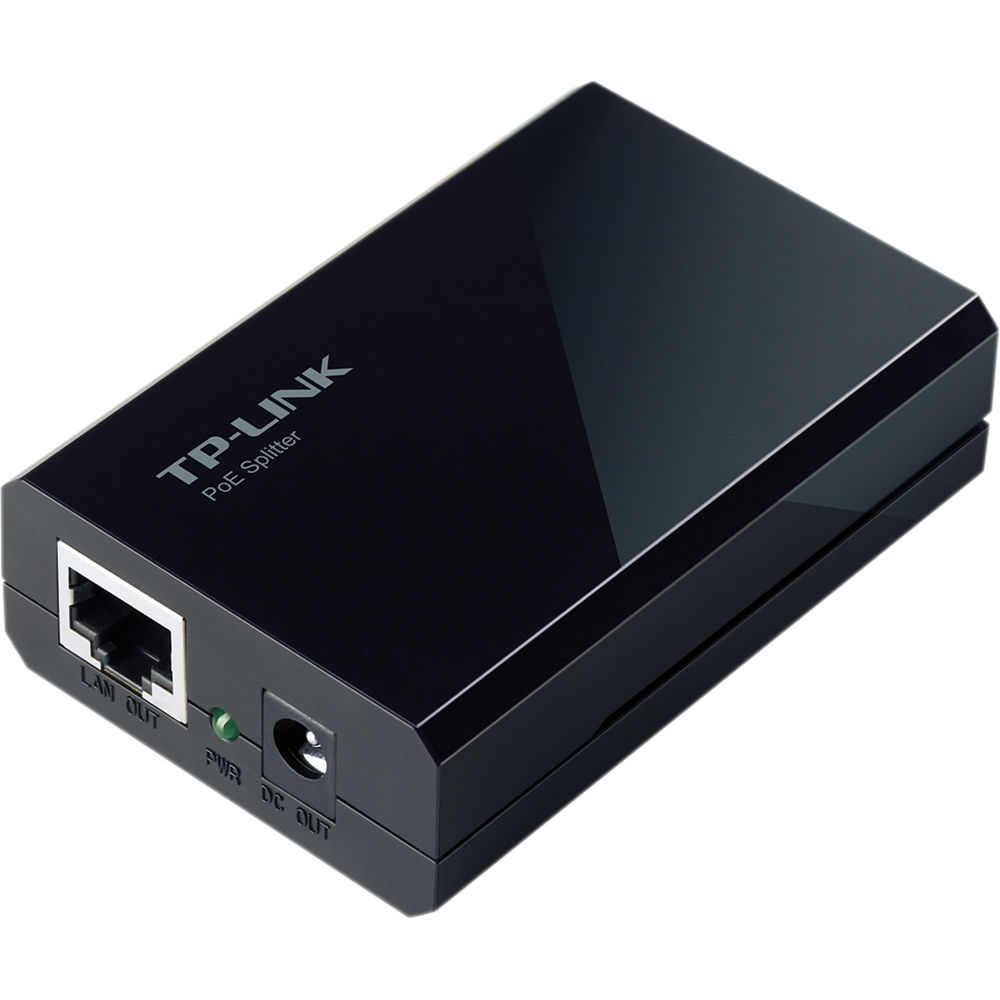

TP-Link Omada TL-POE10R 12V Up to 100 Meter PoE Splitter - Black
TP-Link Omada TL-POE10R 12V Up to 100 Meter PoE Splitter - Black
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
IEEE 802.3af Standard Compliance: The TL-POE10R is fully compliant with the IEEE 802.3af standard, allowing it to work seamlessly with standard PoE switches and injectors to split power and data for non-PoE devices.

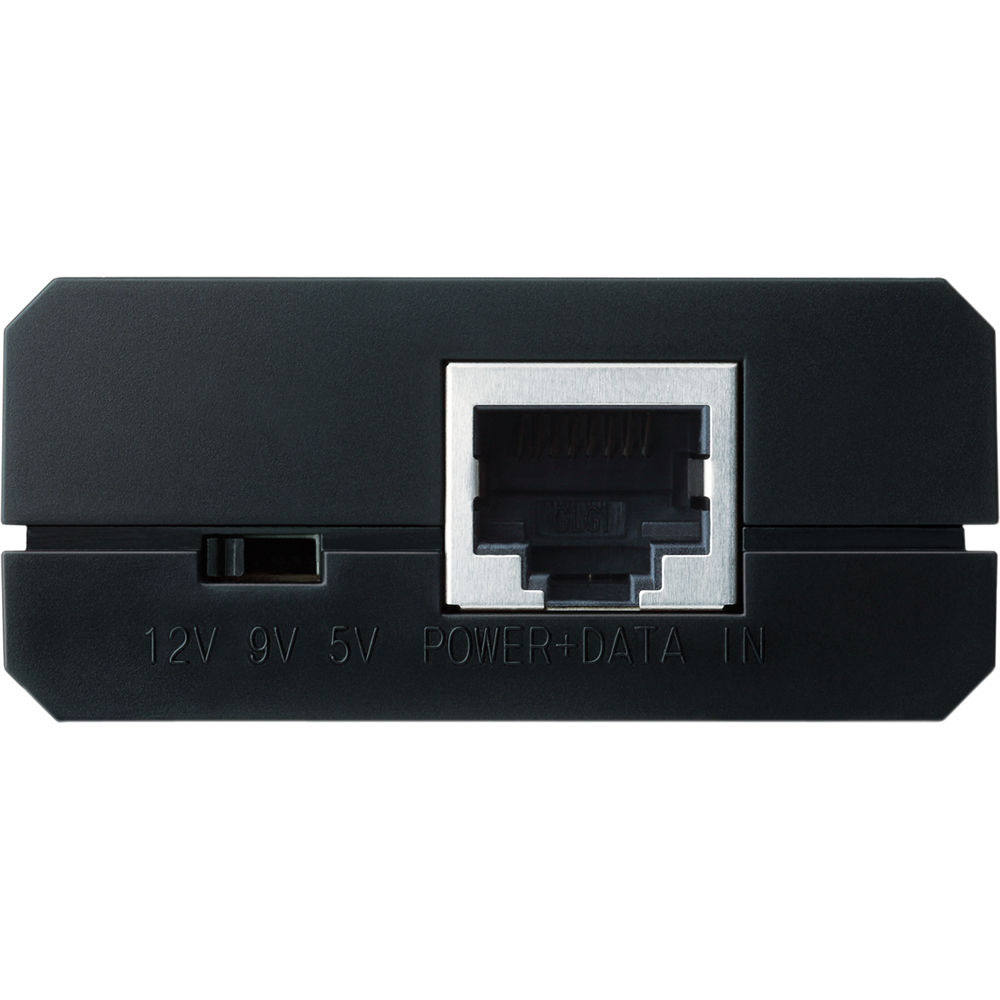

Selectable Output Voltages: It offers flexible power output options of 12V, 9V, or 5V DC, making it compatible with a wide range of network devices that require different voltage levels, such as IP cameras, access points, and VoIP phones.
Gigabit Data Support: With support for Gigabit Ethernet speeds, the splitter ensures high-performance data transmission, maintaining fast and stable network connectivity for connected devices.
Up to 100 Meters Transmission Distance: It enables power and data delivery over a single Ethernet cable for distances up to 100 meters (328 feet), providing extended reach for devices located far from power sources.
Easy Plug-and-Play Setup: Designed for quick and effortless installation, the TL-POE10R requires no configurationājust connect it to your PoE source and device to start powering and networking instantly.
| Model | TL-POE10R |
| Interface |

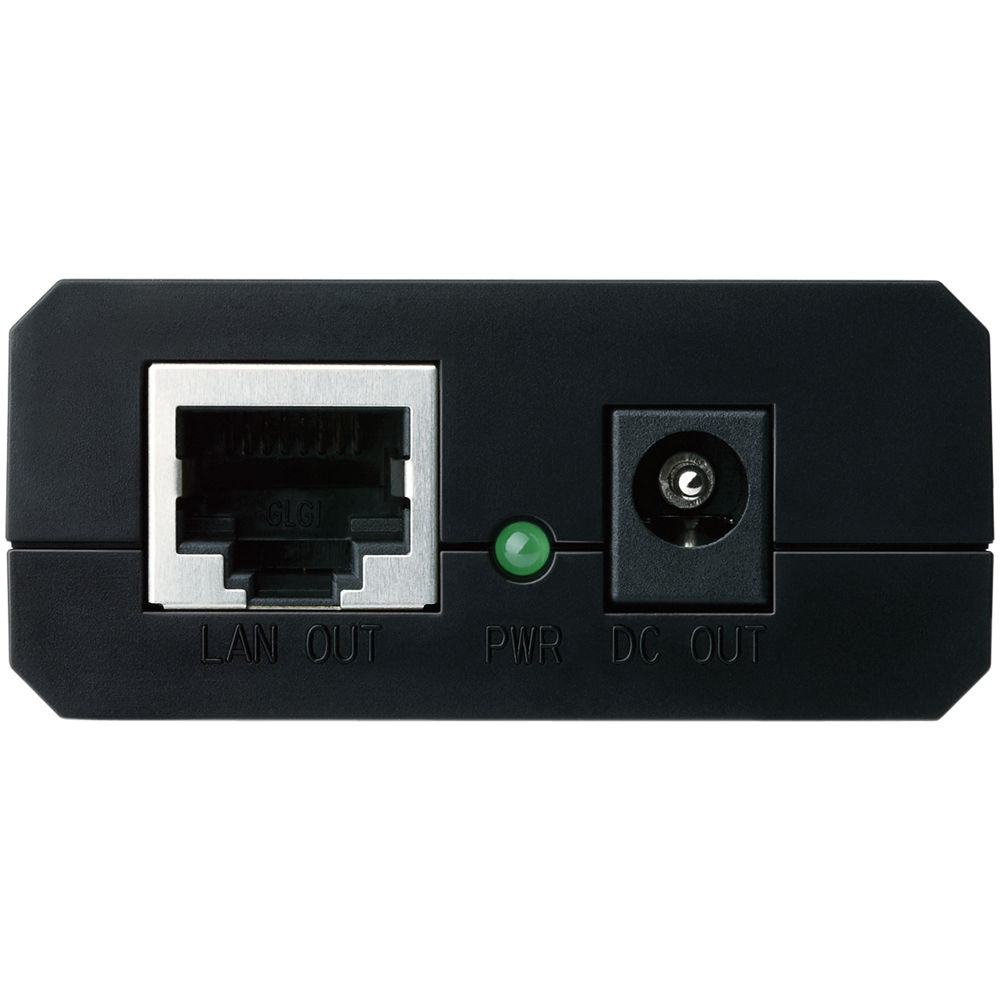

2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT (5.5 mm round barrel) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ī© STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ī© STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| LED Indicator | PWR |
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A selectable |
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
| Dimensions | 80.8*54*24 mm |
| Package Content | PoE Splitter TL-POE10R Power Cord RJ45 Cable Installation Guide |
| Warranty | 1 Year Manufacturer Warranty |
