TP-Link TL-POE160S 30W Up to 100 Meters PoE+ Adapter/Injector - Black
TP-Link TL-POE160S 30W Up to 100 Meters PoE+ Adapter/Injector - Black
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
30W PoE+ Power Output: This injector supports IEEE 802.3af/at standards and delivers up to 30 watts of power, making it suitable for high-power devices such as PTZ IP cameras, dual-band Wi-Fi 6 access points, and advanced VoIP phones.
Gigabit-Speed Connectivity: With two Gigabit Ethernet portsâone for data input and one for data plus power outputâit ensures fast, uninterrupted network performance for bandwidth-intensive applications.
100-Meter Transmission Range: It transmits both power and data over a single Ethernet cable up to 100 meters (328 feet), allowing flexible device placement even in areas without nearby power sources.

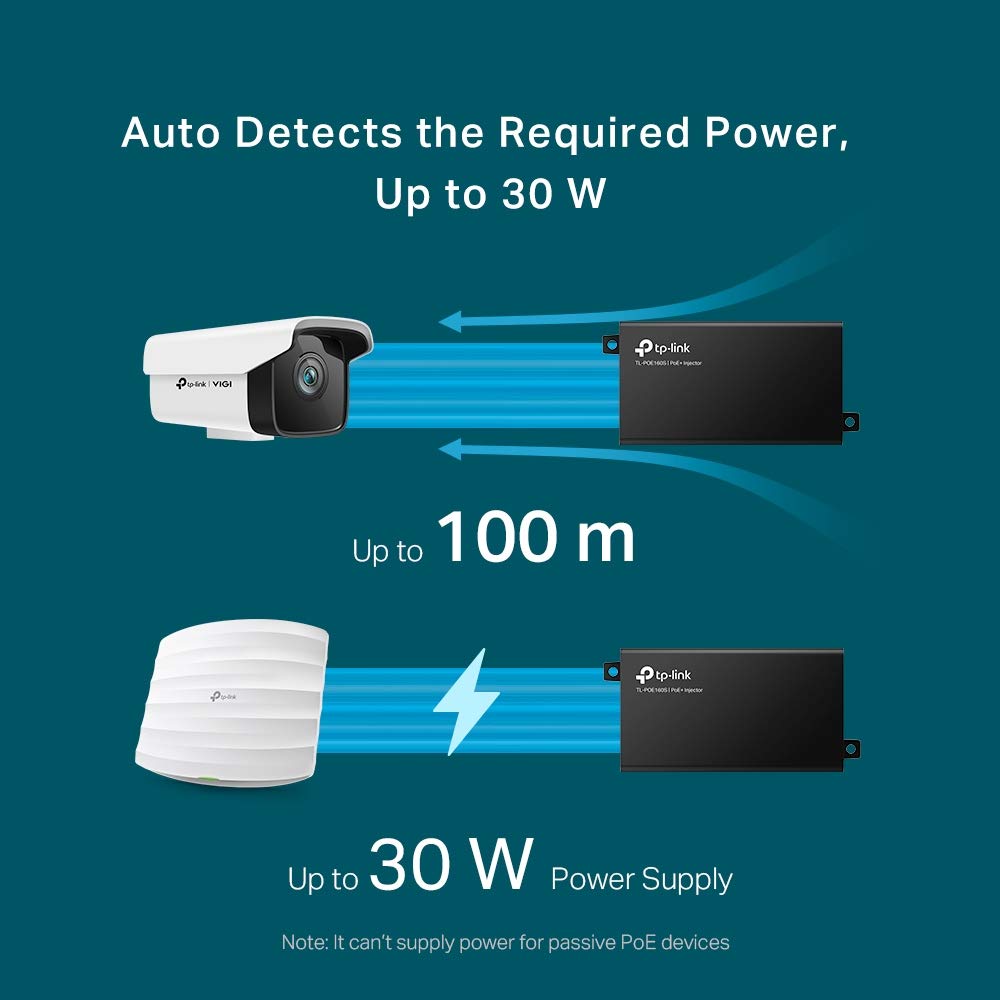

Smart Power Detection: The TL-POE160S automatically detects the power requirements of connected devices and supplies the appropriate amount, ensuring safe and efficient operation without overloading.
Easy Installation and Versatile Mounting: Designed for plug-and-play use, it requires no configuration and supports both desktop and wall-mount installations, making it adaptable to various deployment environments.
| Model | TL-POE160S |
| Standards and Protocols | IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at |
| Interface |

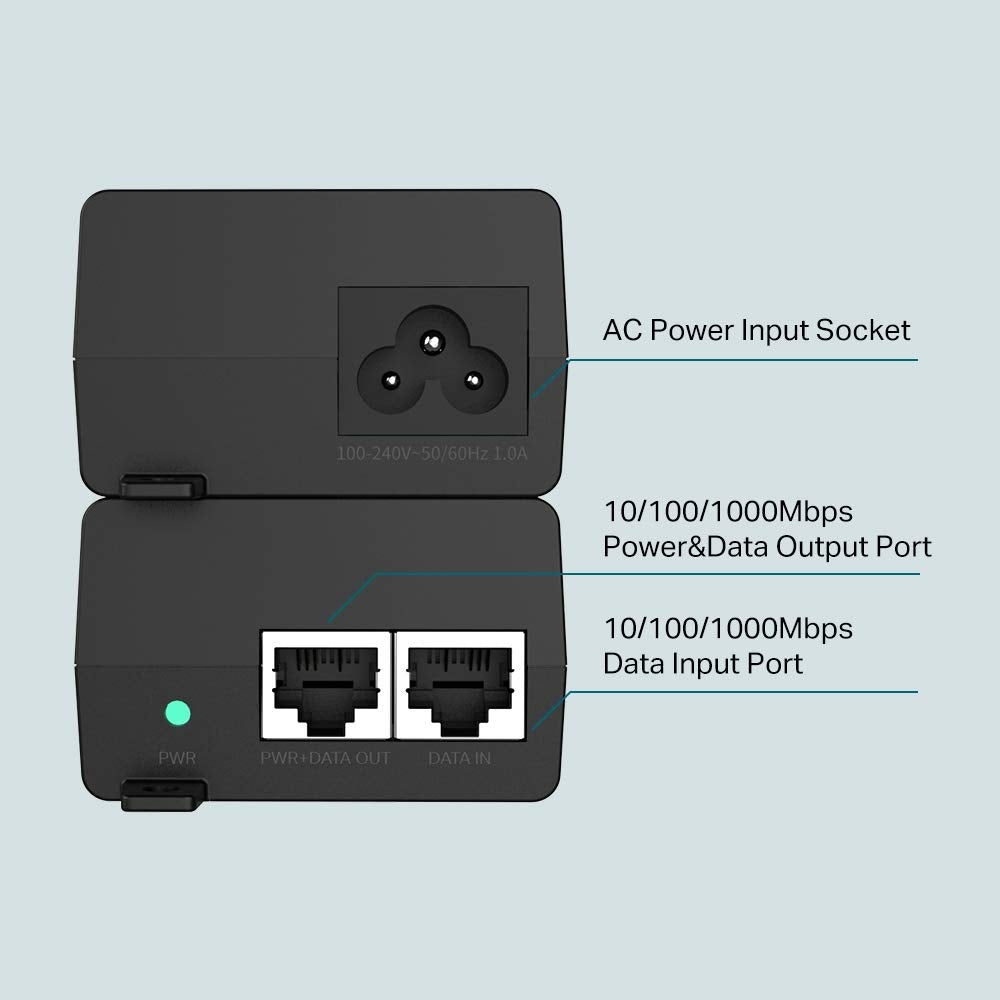

1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| LED Indicator | Power / PoE |
| Power Supply | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
| Dimensions | 125Ă59.4Ă36.8 mm |

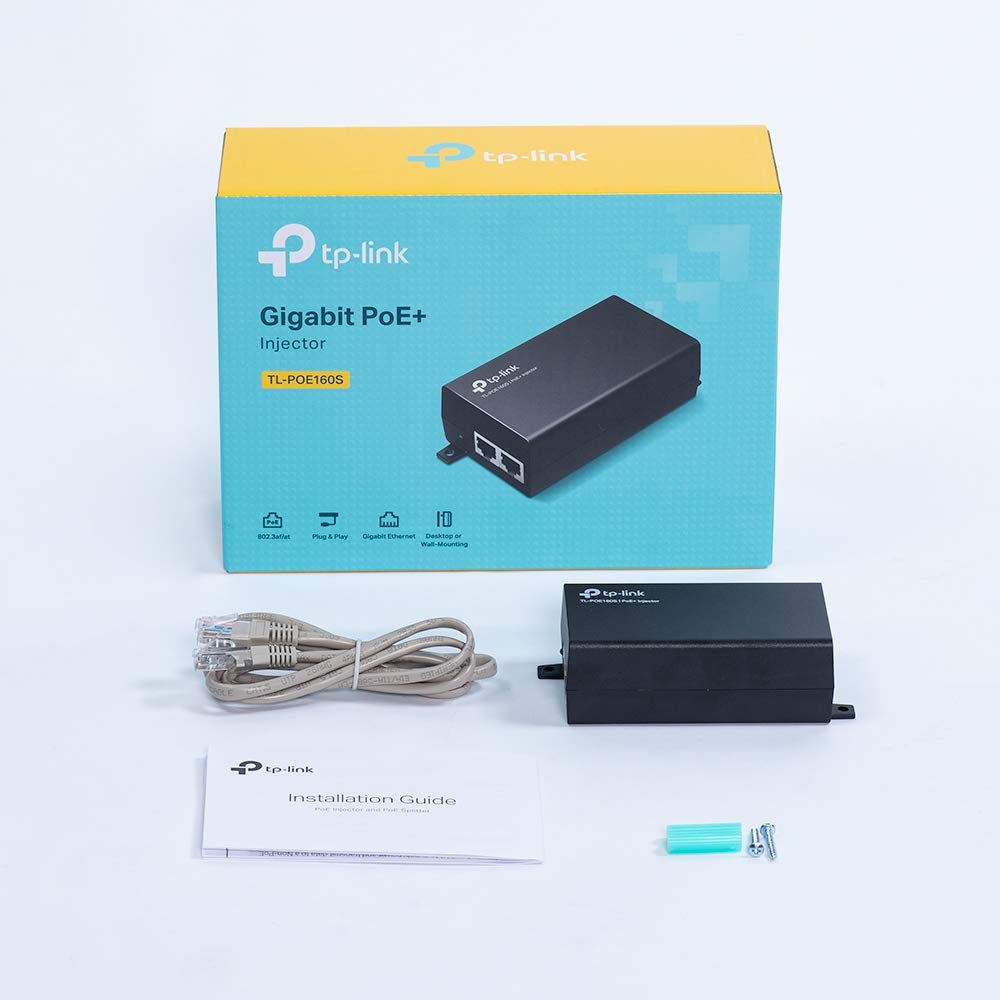

| Package Content | POE160S Installation Guide Power Cord Wall Mounting Kits |
| Warranty | 3 Year Manufacturer Warranty |
