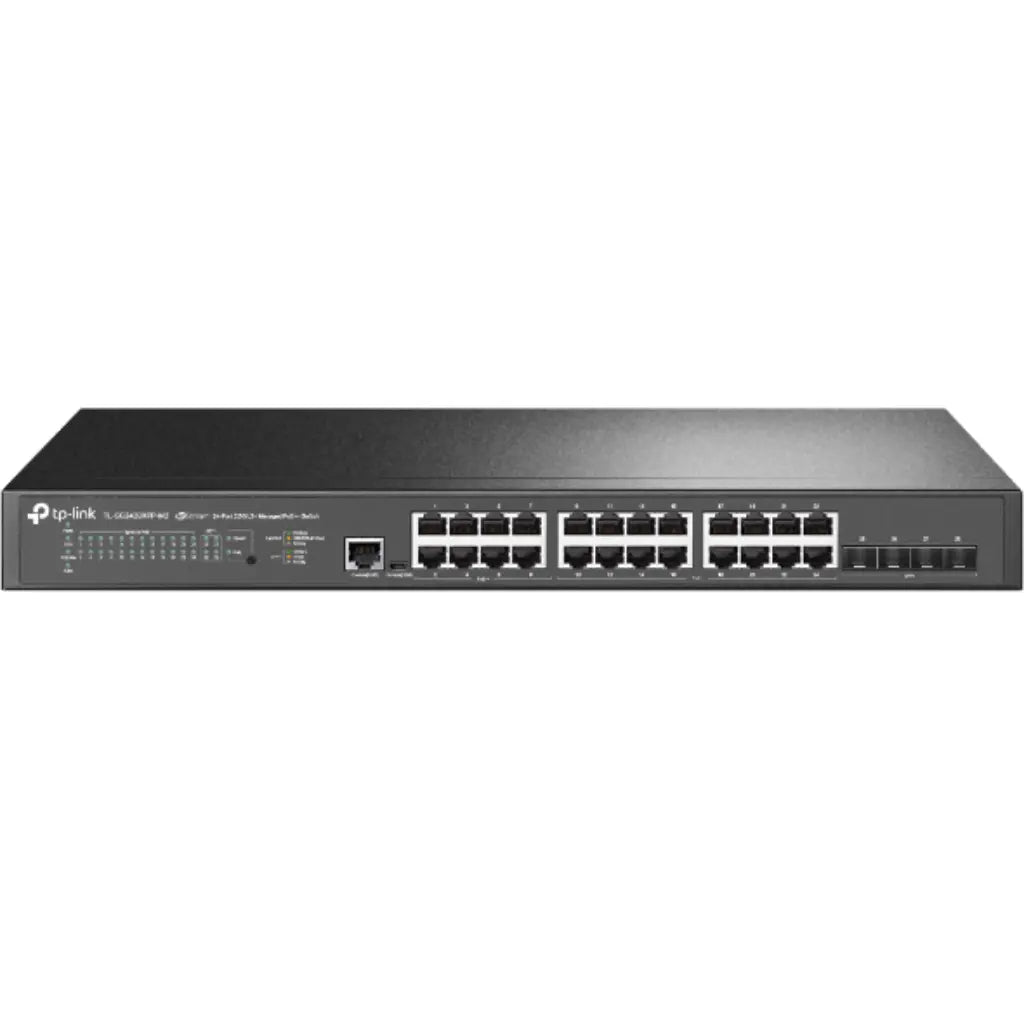

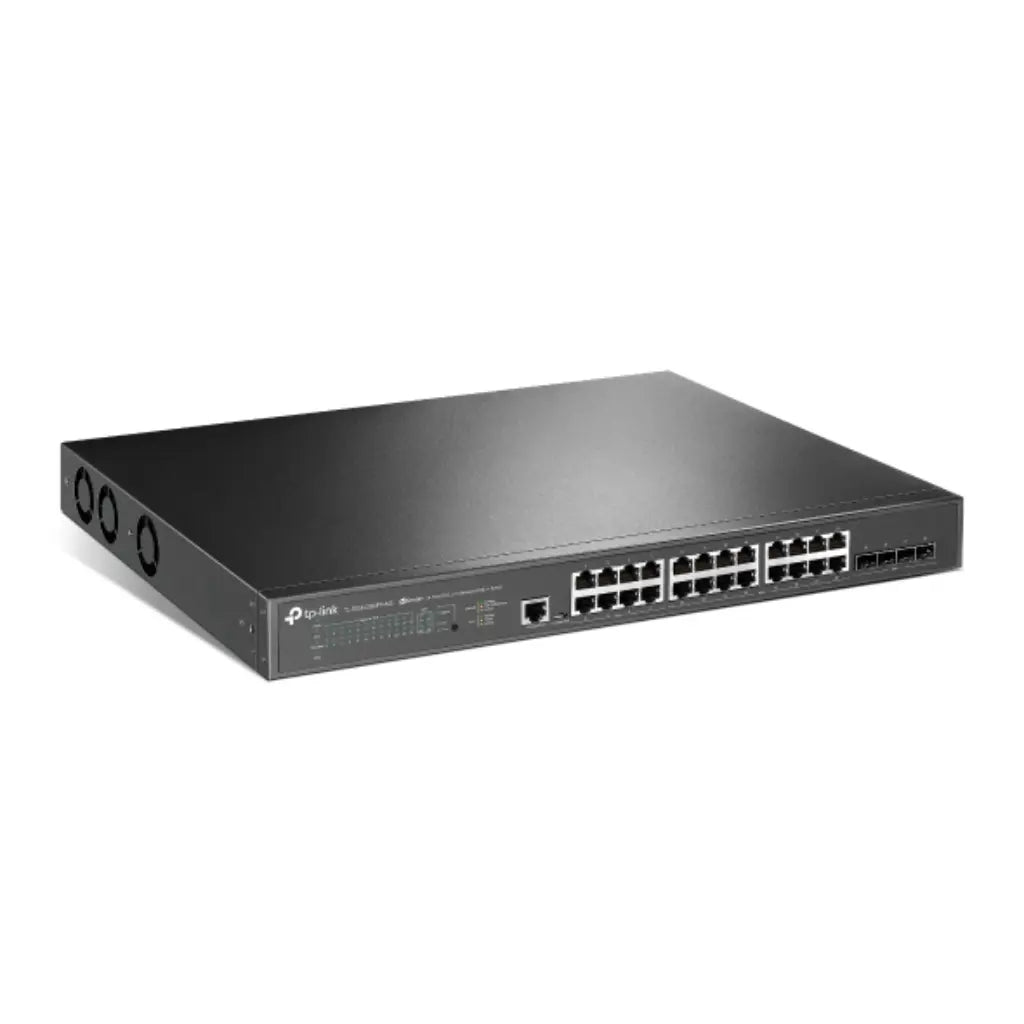

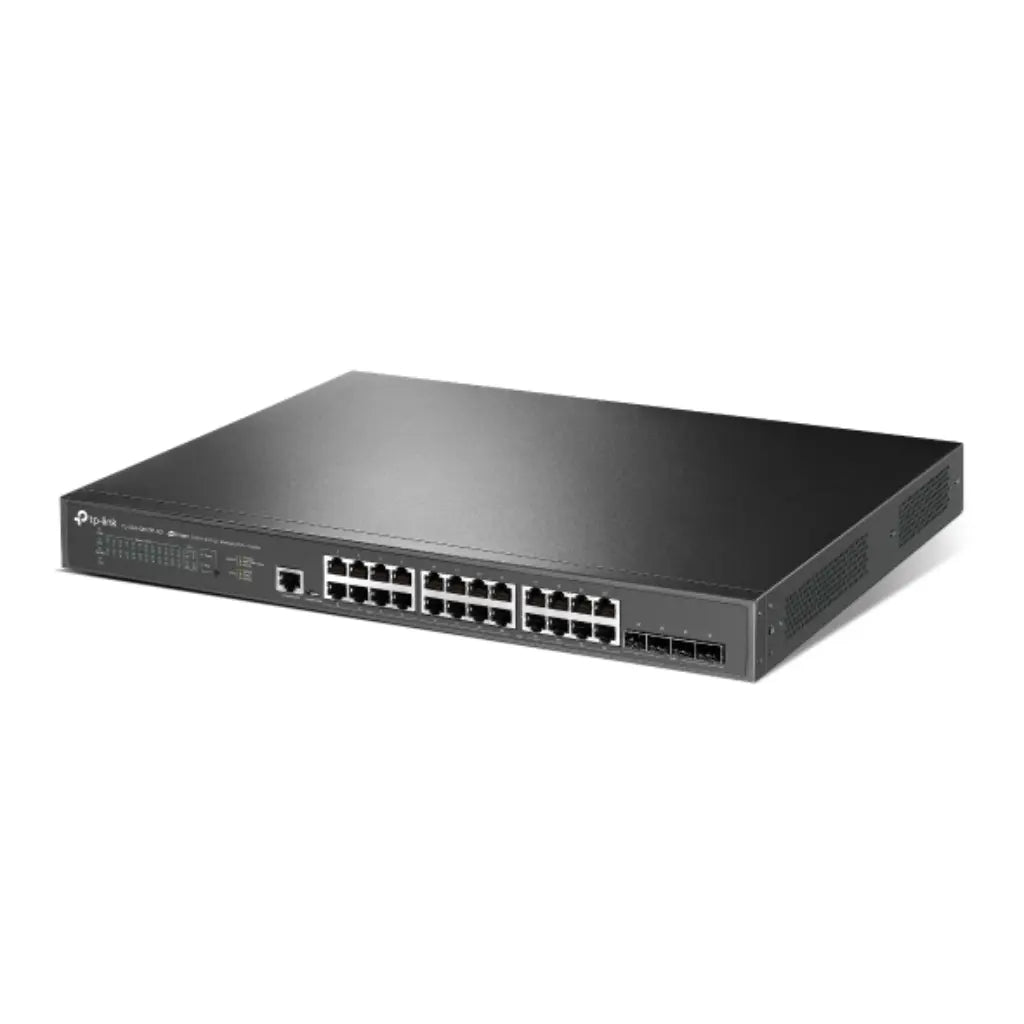

TP-Link TL-SG3428XPP-M2 JetStream 24-Port L2+ Managed Switch 2.5G PoE++ PoE+ 4×10G SFP+ Uplink
TP-Link TL-SG3428XPP-M2 JetStream 24-Port L2+ Managed Switch 2.5G PoE++ PoE+ 4×10G SFP+ Uplink
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:

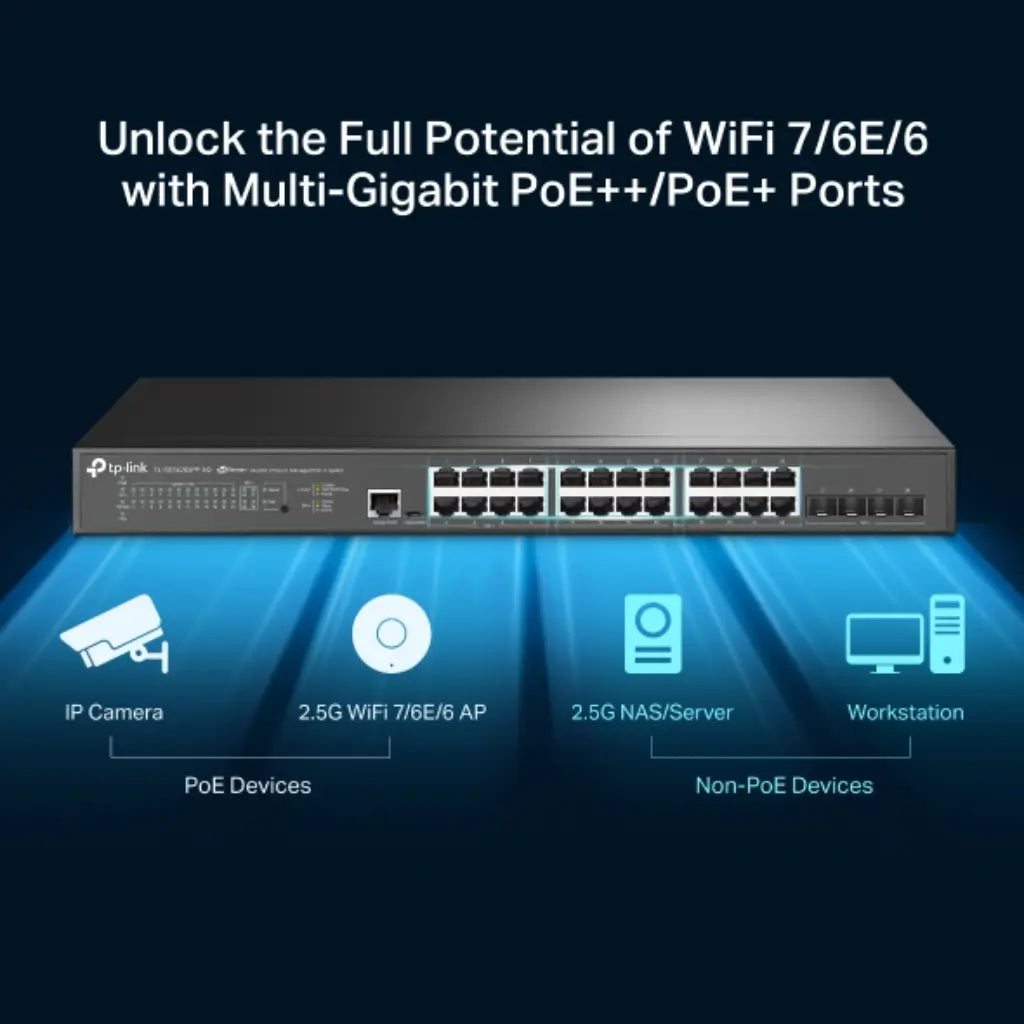

🔌 24× 2.5G Multi-Gig Ports – Unlock full potential for Wi-Fi 7/6E/6 APs with ultra-fast connectivity.

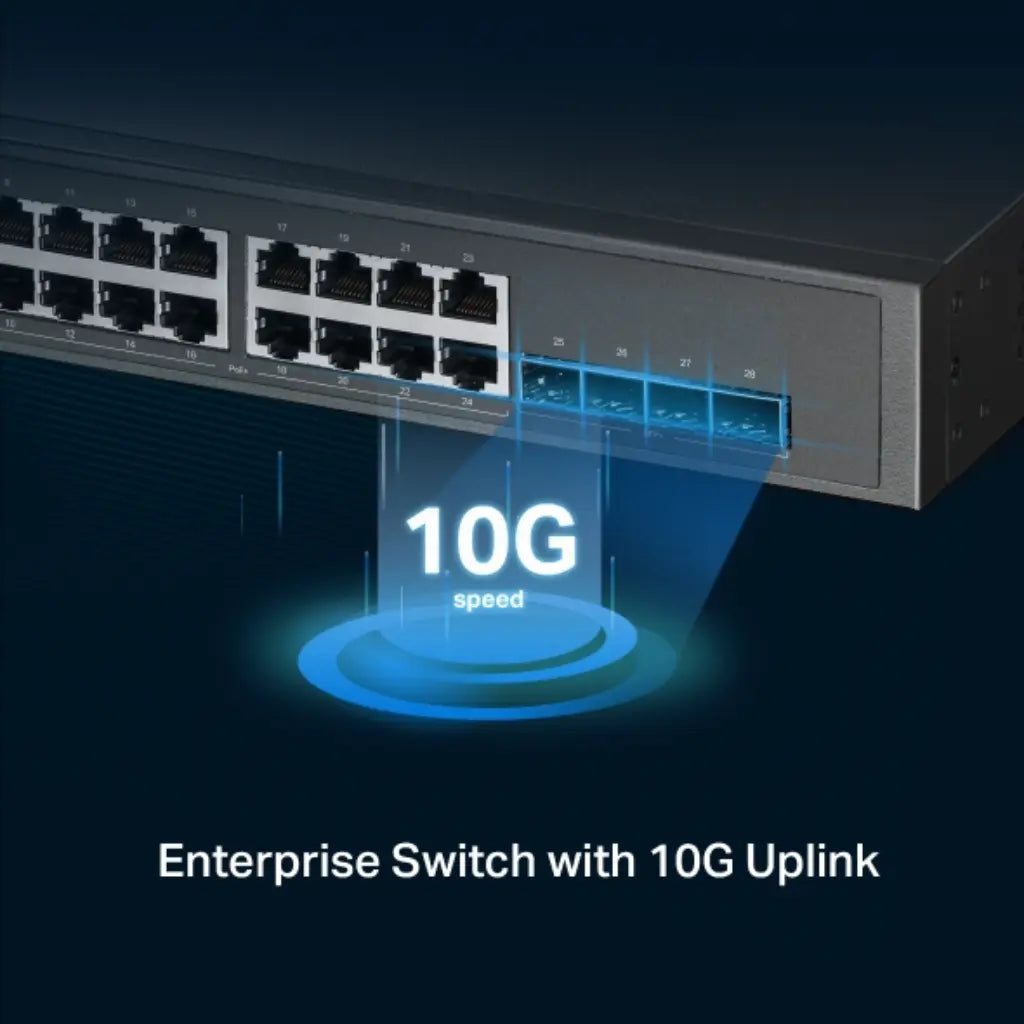

⚡ 4× 10G SFP+ Uplink Slots – Ensure lightning-fast uplink and non-blocking switching performance.
🔋 500W PoE Budget – 8 PoE++ (up to 60W) & 16 PoE+ (up to 30W) ports for high-power devices.
☁ Omada SDN Integration – Centralized cloud management with Zero-Touch Provisioning and intelligent monitoring.
🔐 Enterprise-Level Security – IP-MAC-Port Binding, ACL, DHCP Snooping, 802.1X authentication, and more.
🎥 Optimized for Voice & Video – Advanced QoS and IGMP Snooping for smooth multimedia performance.
The TP-Link TL-SG3428XPP-M2 JetStream Managed Switch delivers next-generation networking with 24× 2.5G PoE++/PoE+ ports and 4× 10G SFP+ uplinks, ideal for Wi-Fi 7/6E/6 deployments. With a 500W PoE budget, it powers high-demand devices like APs, cameras, and IoT systems. Integrated into Omada SDN, it offers centralized cloud management, Zero-Touch Provisioning, and robust security features. Perfect for enterprises seeking high-speed, scalable, and secure network solutions.
Product Specifications:
| Specification | Details |
| Model | TL-SG3428XPP-M2 |
| Ports | 24× 2.5G RJ45 (8 PoE++, 16 PoE+), 4× 10G SFP+ |
| PoE Standard | 802.3bt/at/af compliant |
| PoE Output | PoE++: 8 ports (up to 60W each), PoE+: 16 ports (up to 30W each) |
| PoE Budget | 500W |
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148.8 Mpps |
| MAC Address Table | 32K |
| Packet Buffer | 16 Mbit |
| Jumbo Frame | 9 KB |
| Management | Omada SDN, Web, CLI, SNMP, RMON |
| Security | IP-MAC-Port Binding, ACL, DHCP Snooping, 802.1X |
| QoS | L2/L3/L4 QoS, IGMP Snooping |
| Dimensions | 440 × 330 × 44 mm |
| Mounting | Rack Mountable |
| Power Supply | 100–240V AC, 50/60Hz |
| Max Power Consumption | 629.1W |
| Max Heat Dissipation | 2153.45 BTU/h |
| Country of Origin | China |
| Warranty | 3 Years Warranty |
| Weight | 5.07 kg |
