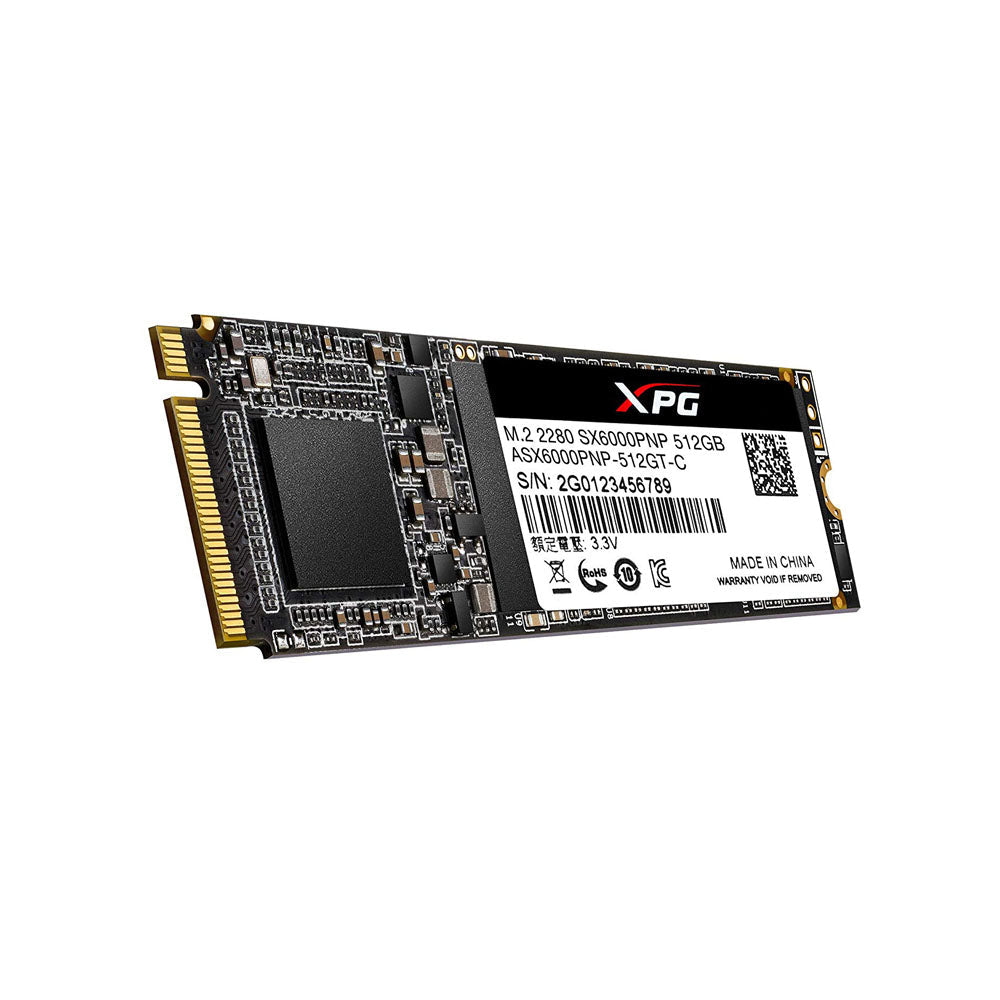

XPG SX6000 512GB M.2 Solid State Drive
XPG SX6000 512GB M.2 Solid State Drive
- Free Shipping
- 10-Days Return
- Original Warranty
Product Description:
- High speed PCIe Gen3x2 interface
- R/W speed up to 2100/1500MB/s
- NVMe 1.3 Support
- 2ND generation 64-layer 3D NAND Flash
- Advanced LDPC ECC Technology
- HMB (Host Memory Buffer) and SLC Caching
- Single-sided design – 2.15mm thick
- Compact M.2 2280 form factor – ideal for gaming notebooks and high-end desktops
~section~
PCIe Gen3x4 -A Smarter Upgrade Option
With support for NVMe 1.3 and equipped with 3D NAND Flash, it offers up to 4 times faster performance than SATA SSDs and up to 1TB of capacity.
The Faster the Better
Featuring HMB (Host Memory Buffer) and SLC Caching, the SX6000 Pro accelerates read/write speeds up to 2100/1500MB/s and delivers random performance of up to 250K/240K IOPS.
LDPC ECC for Improved Data Integrity
The SX6000 Pro supports LDPC (Low-Density Parity-Check) error correcting code technology to detect and fix a wider range of data errors for more reliable data transfers and a longer product lifespan.
Single-Sided Design for Easier Installation
Featuring a single-sided design that’s 2.15mm thick, the SX6000 Pro is much slimmer than standard M.2 SSDs. This makes it ideal for notebooks, small-form-factor desktops, and even some ultrabooks.
Backed by a 5-Year Warranty
Every component on the SX6000 Pro has passed rigorous screening,testing and certification.. Moreover, if that isn’t enough assurance for you, the SX6000 Pro comes with a 5-year warranty.
Cool XPG heatsink included
The SX6000 Pro box has a sleek black XPG heatsink with pre-applied thermal compound inside for easy DIY. With or without heatsink: the choice is yours, as the SX6000 Pro looks great in builds either way.
~section~
Product Type |
SSD |
Brand |
XPG |
Part Number |
ASX6000PNP-256GT-C ASX6000PNP-512GT-C |
Capacity | 256 GB / 512 GB |
Controller | Realtek |
NAND Flash memory | 2 nd Generation 3D TLC |
Interface | PCle Gen 3x2 |
Form factor | M.2 2280 |
MTBF | 2,000,000 hours |
Power Consumption | 0.33W Active (Typical) |
Read Speed ATTO (MB/s) | Up to 2100 |
Write Speed ATTO (MB/s) | Up to 1400 |
Sequential Read Crystal Disk Mark (MB/s) |
Up to 2100
|
Sequential Write Crystal Disk Mark (MB/s) |
Up to 1400
|
AS SSD Read Speed (MB/s) | Up to 1800 |
AS SSD Write Speed (MB/s) | Up to 1200 (256GB SSD) Up to 1300 (512GB SSD) |
4K Random Read IOPS (MB/sec) |
190K (256GB SSD)
250 K (512GB SSD) |
4K Random Write IOPS (MB/sec) | 180K (256GB SSD) 240 K (512GB SSD) |
TBW | 150TB (256GB SSD) 300TB (512GB SSD) |
Operating temperature |
0°C - 70°C
|
Storage t emperature |
-40°C - 85°C
|
Shock resistance |
1500G/0.5ms
|
BCH ECC Capability |
up to 72-bit per 1KB
|
Certification |
RoHS, CE, FCC, BSMI, VCCI, KC
|
Weight | 8g |
Warranty | 5 Years |
