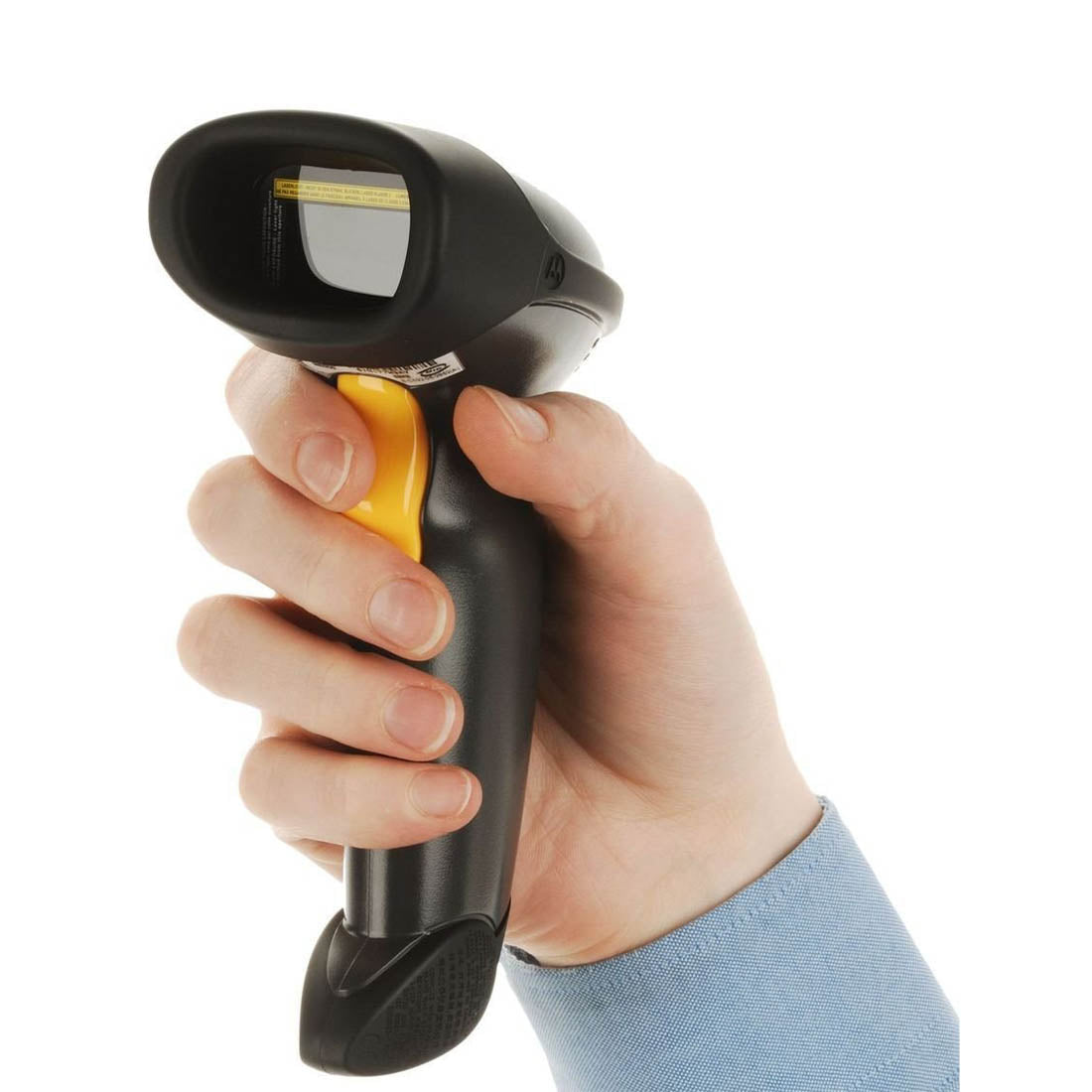

- The LS2208 handheld barcode scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range makes this device ideal for retail, hospital, education or government settings.
- This Scanner engineered for continuous, heavy usage all day, every day and has been tested to withstand multiple 1.5m drops to concrete.
- The Scratch-resistant tempered glass helps preserve bar code scanning accuracy. Integrated multiple interfaces, universal cable compatibility, and support for emerging symbologies provide investment protection.
- The patented single board construction eliminates a common point of failure the interconnection between multiple boards and the patented frictionless liquid polymer scan element delivers integral shock protection to further ensure reliable operation.
Fast And Built To Last
The LS2208 handheld barcode scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems.
With its patented single board construction, patented frictionless liquid polymer scan element, scratch-resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, everyday operation.
All-day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan-intensive environments. The result? Reduced user fatigue and increased worker productivity.
|Light Source||650 nm visible laser diode|
|Scan Rate||100 scans per second|
|Print Contrast Min.||30% minimum reflectance|
|Roll (Tilt)||± 30° from normal|
|Skew (Yaw)||± 60°|
|Decode Capability||UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5|
|Interface||USB, RS232, Keyboard Wedge, IBM 468x/9x|
|Dimensions||6 x 2.5 x 3.34 inch|
|Voltage & Current||5 volts +/- 10% at 130 mA typical, 175 mA max|
|Power Source||Host power or external power supply|
|Operating Temp||0° to 50° C|
